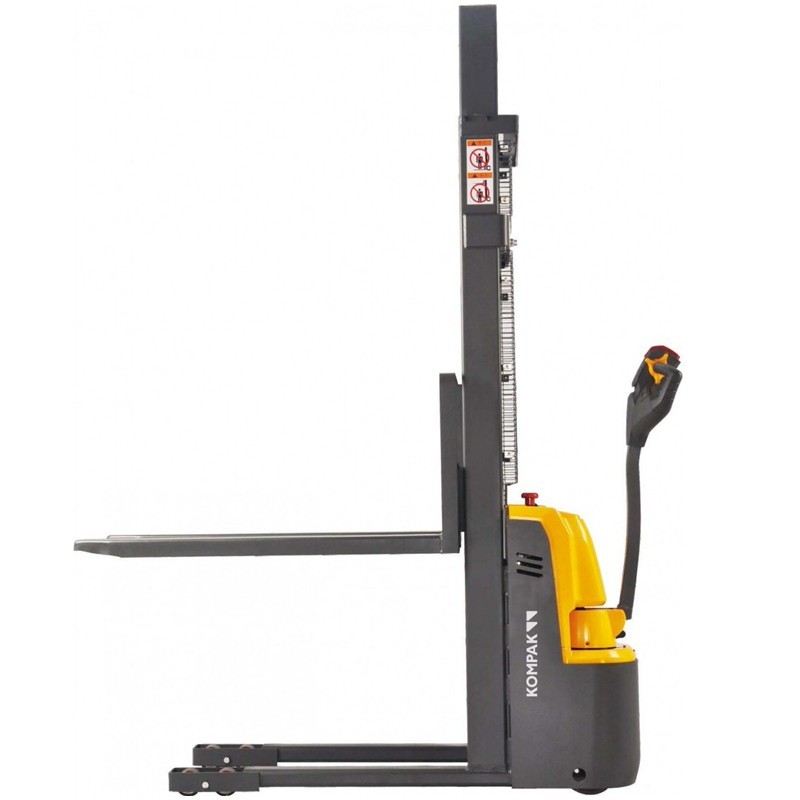

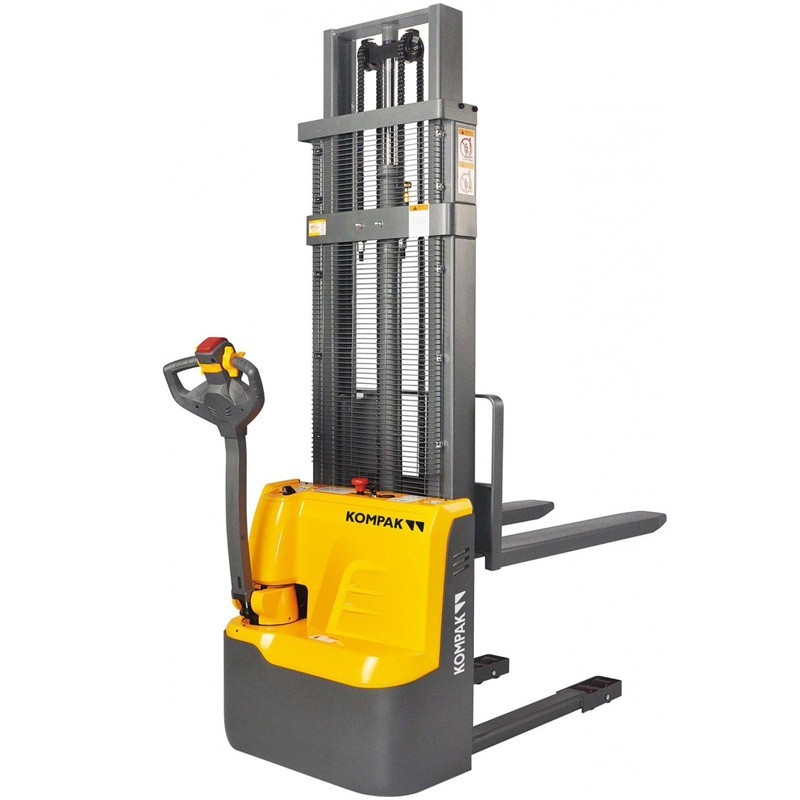

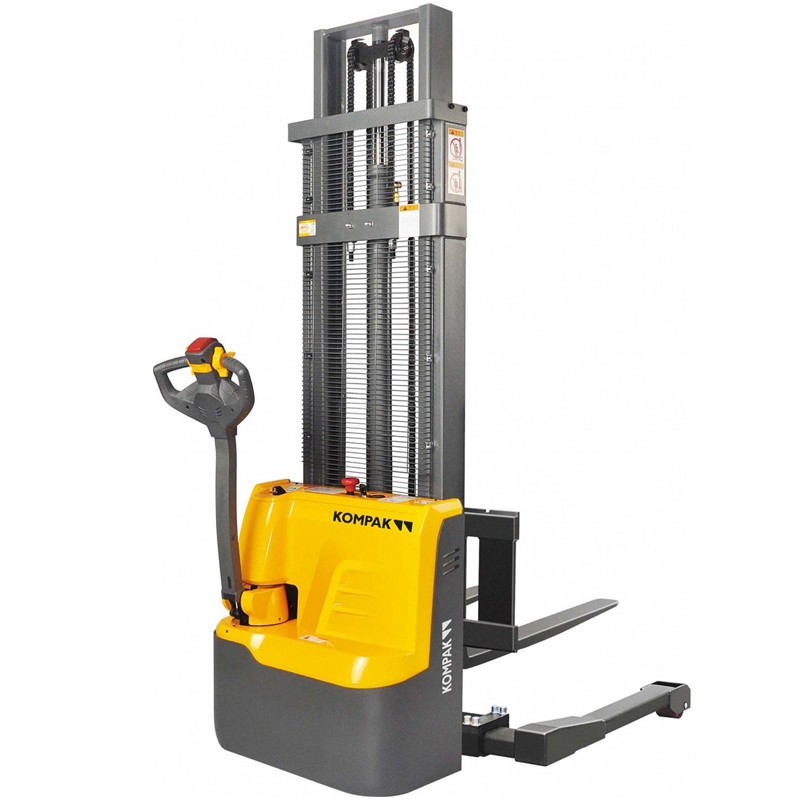

The electric stacker Kompak ES10R-E stands out for its integrated back cover design, which facilitates assembly and maintenance. Equipped with a GEL battery and an easily accessible integrated charger, it ensures an efficient source of power Supply.
Its low-gravity 4-point design improves stability, while the drive unit with a small turning radius offers remarkable agility. In addition, both the motor and brake are easily replaceable, ensuring simple and efficient management.
With compact dimensions and a design that favors visibility, this electric stacker features a small turning radius and aisle width, similar to those of a manual stacker. The floor-type drive wheel and 4-point design further enhance stability.
Load capacity | 1000 kg |
Load center distance | 600 mm |
Load distance, center of drive axle to forks | 741 mm |
Height, lowered | 90 mm |
Front tire size | Φ 195×70 mm |
Tire size, rear (single) | Φ 80×70 mm |
Additional wheels (dimensions) | Φ 150×60 mm |
Number of front rear wheels (x = driving wheels) | 1x+1/4 |
Height, mast lowered | 2240 mm |
Max. lifting height | 3200 mm |
Height, mast extended | 3850 mm |
Height of tiller in driving position min./max | 670/1300 mm |
Overall length | 1748 (1668) mm |
Length to fork face | 598 mm |
Average width | 800 mm |
Fork dimensions | 60/170/1150 (1070) mm |
Total width of forks | 570/695 mm |
Ground clearance, center of wheelbase | 26 mm |
Aisle width for 1000x1200 cross pallets | 2218 mm |
Aisle width for pallets 800x1200 longitudinally | 2173 mm |
Turning radius | 1365 mm |
Travel speed, with/without load | 4.5/5 km/h |
Lifting speed, loaded/unloaded | 0.11/0.14 m/s |
Lowering speed, loaded/unloaded | 0.12/0.10 m/s |
Battery voltage, rated capacity k20 | 24/105 (125) V/Ah |
Battery dimensions l/w/h | 260(330)x168(171)x217 mm |
Battery weight | 52 (70) kg |
Operating weight (with battery) | 460/525/545/560/565 Kg |
