Snow plow for tractor DELEKS LNS-C
- Tractor power: 16 - 40 HP
- Weight: 113 kg
- Total depth: 62 cm
- Inclination: 28 degrees
€1,075.71 VAT incl.
Deleks products take about 15 to 25 days. |

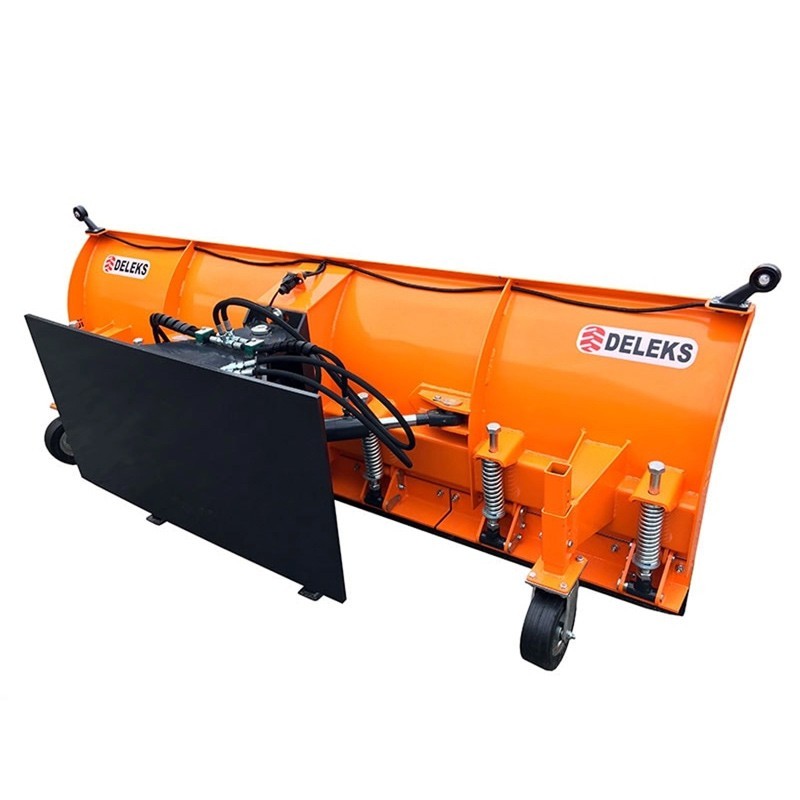

The Snow Plow for Tractor Deleks SSH-04-3.0-A is a tractor attachment that is compatible with most tractors. This plow is for front use or with a reversible tractor.
This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for companies. It is compatible with some front tractors and all reversible tractors.
The plow is attached to the tractor with a 3-point hitch of category 2-3. This can be replaced by a plate or a mount for a compact mini-loader. It also features side wheels, allowing us to reduce pressure at the blade level.
The model of Snow Plow SSH-04-3.0-A from Deleks has two good hydraulic pistons. This is for right to left orientation. It is hydraulically operated with 1.6-meter hydraulic tubes. Made in Italy.

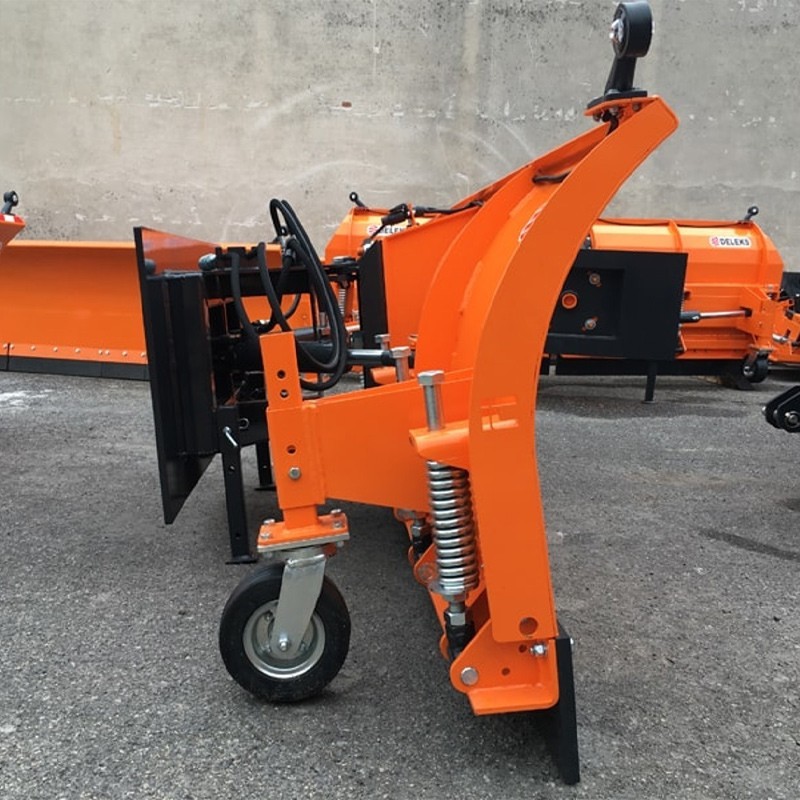

This Plow from Deleks SSH-04-3.0-A features 6 anti-shock springs that allow the operator to work with maximum safety. Additionally, it offers great ease of assembly and use with great comfort. The Snow Plow is approved for public roads and has perfect adhesion to the road.
Weight | 530 kg |
Total height | 880 mm |
Total depth | 900 mm |

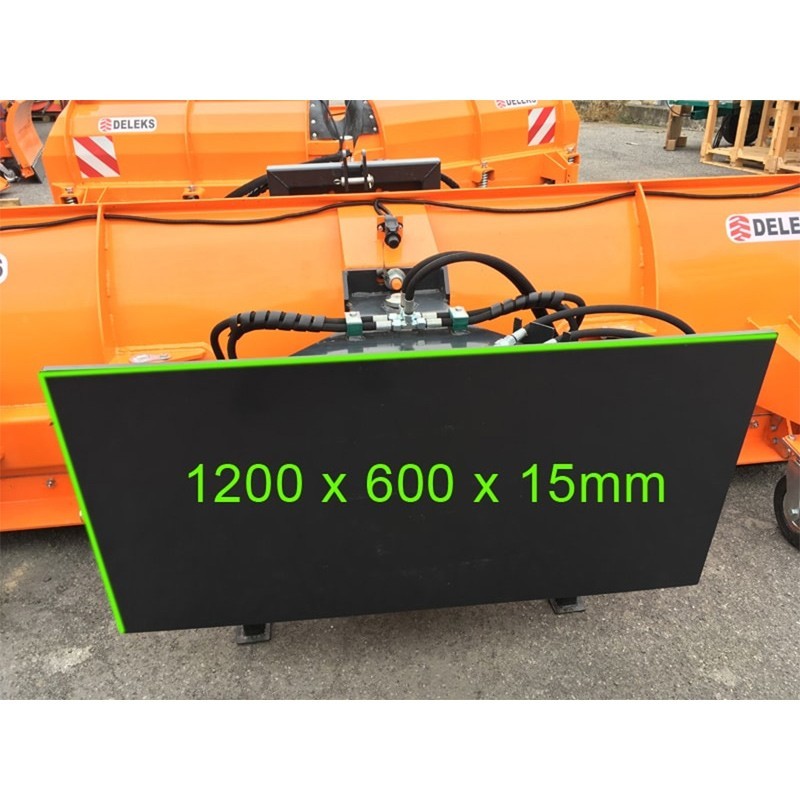

Hitch dimension | 1200*600*15 mm |
Oil pressure min./max | 110 - 150 bar |
Optional oil flow | 18 - 22 l/min |
Mounting | FLAT PLATE |
Tilt | 25° |
Float | +/- 4° |
Blade height | 880 mm |
Thickness of side reinforcements | 7 mm |
Shock absorbers | 6 |
Blade | Steel or rubber |
Blade: height | 200mm / 180mm |
Blade: thickness | 20mm / 55mm |
Sharpening: number | 3 |
Sharpening: bolt spacing | 175 mm |
Side lights | √ |
Side skids | Wheels |
Blade width (tilted) | CUSTOMIZABLE |

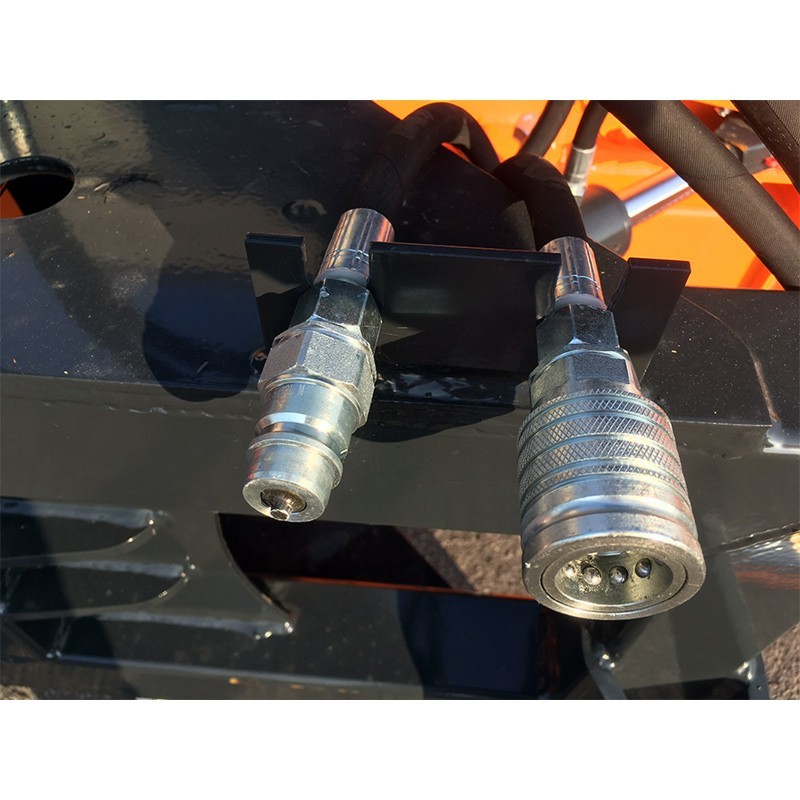

Hydraulic tubes | 2 x 1600 mm / connections 1.2" AGRI, WP 400 bar |
Blade width | 3000 mm |
Sheet thickness | 4 mm |
ø piston/i | 73/36 mm |
Packaging dimension | 3000*1000*1000 mm |
