Snow plow for tractor Deleks LNV-180-C 25-60HP
- Tractor power: 25 - 60 HP
- Blade width: 1840 mm
- Blade height: 920 mm
- Inclination: 30 degrees
€2,488.44 VAT incl.
Deleks products take about 15 to 25 days. |

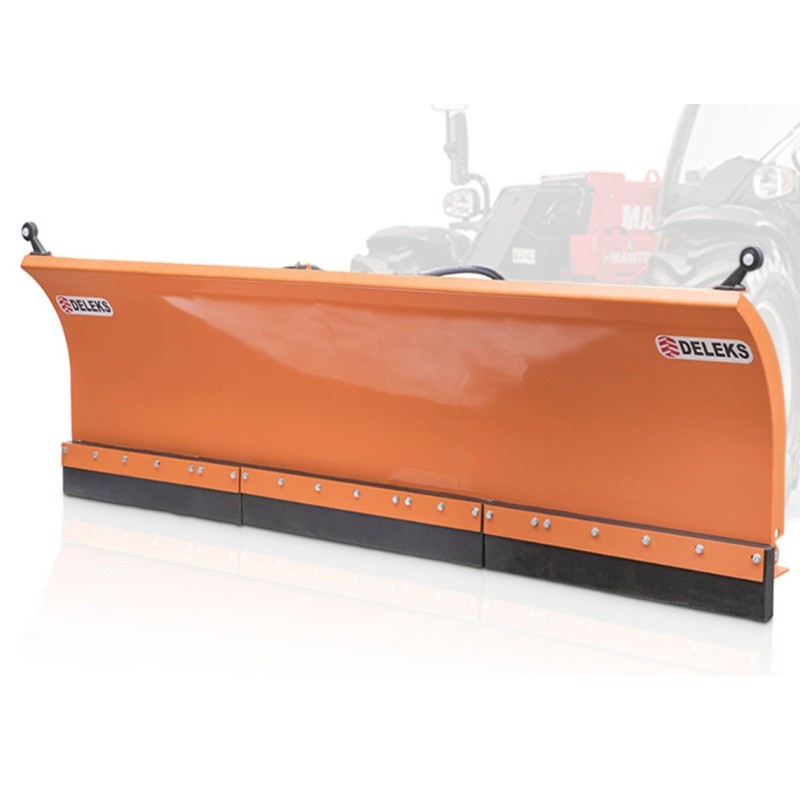

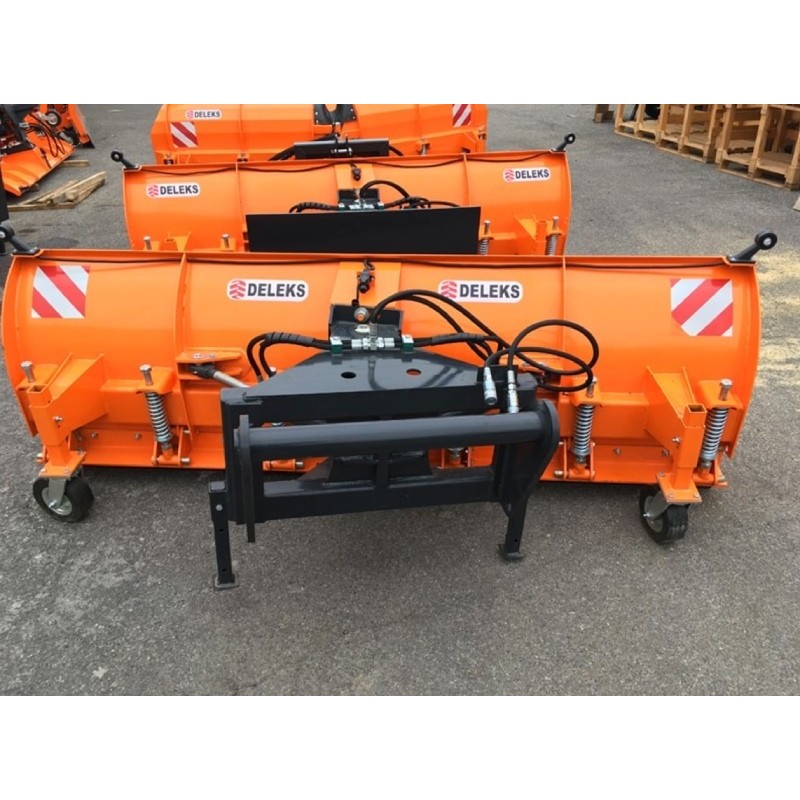

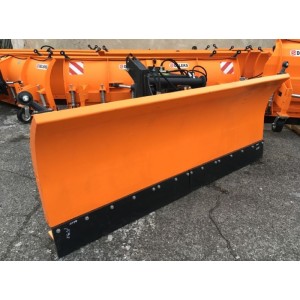

The DELEKS SSH-04-3.0 snow plow for Manitou handlers is designed for MANITOU telescopic handlers. The right/left orientation it is done with 2 hydraulic pistons and 2 tubes of 1.6 meters.

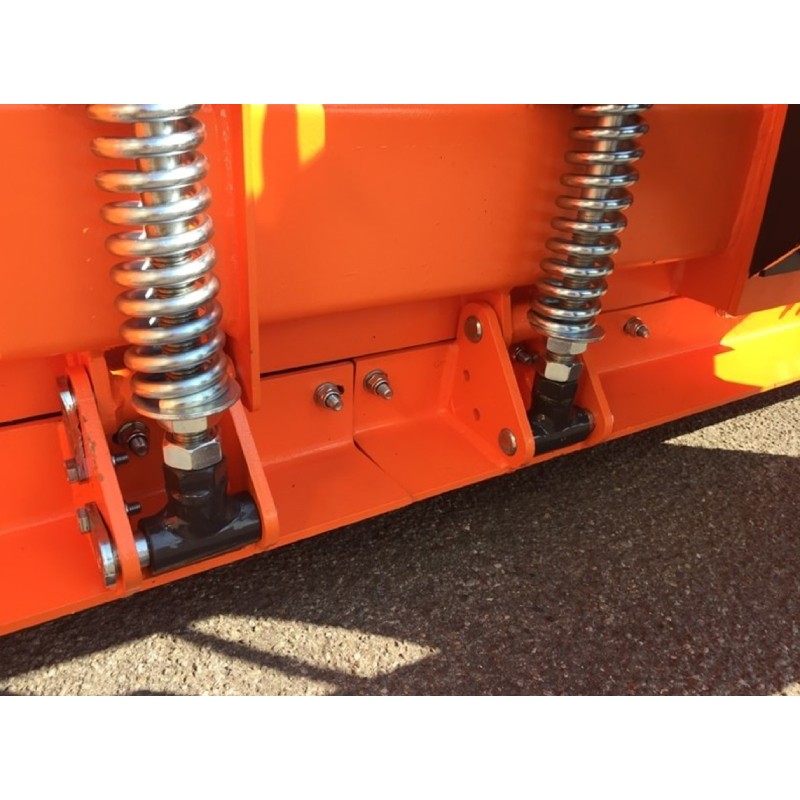

This snow shovel is delivered with 2 wheels and lights., it has European quality compliance and a 2-year warranty. It has 6 shock-absorbing springs for working with maximum safety, 3 independent sheets (steel or rubber), features easy assembly and use.

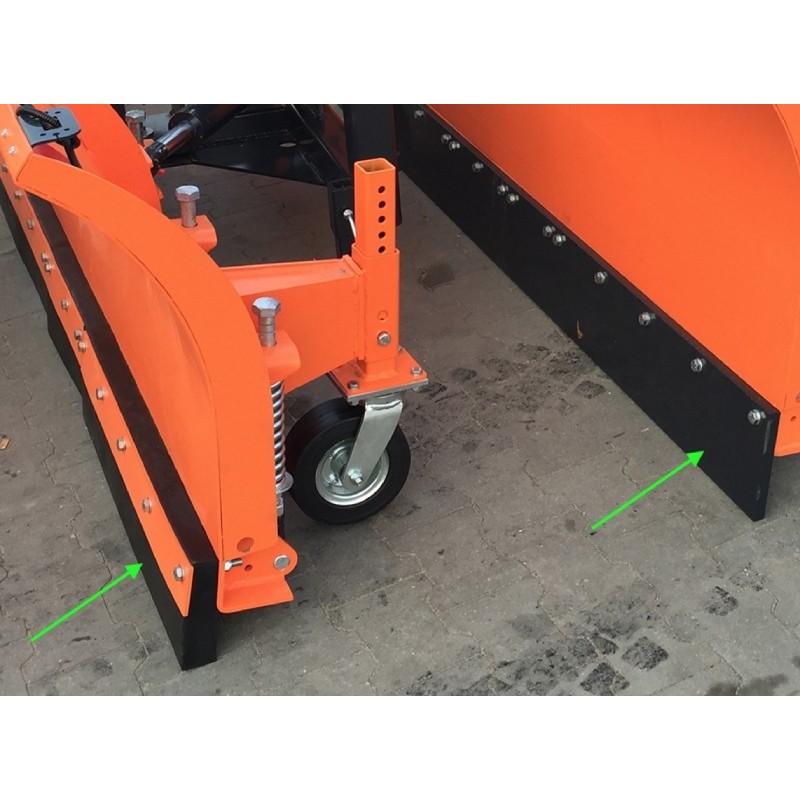

The side wheels allow for adjusting the height of the blade to maintain the working depth., the MANITOU support can to be replaced for a 3-point hitch or other supports for telescopic handlers like MERLO or JCB, or with a customizable plate. Its perfect adhesion to the road and approved for public roads.
Weight | 500.0 kg |
Total height | 880.0 mm |
Total depth | 900.0 mm |
Hook dimension | View images |
Minimum/maximum oil pressure | 110 - 150 bar |
Optional oil flow | 18 - 22 l/min |

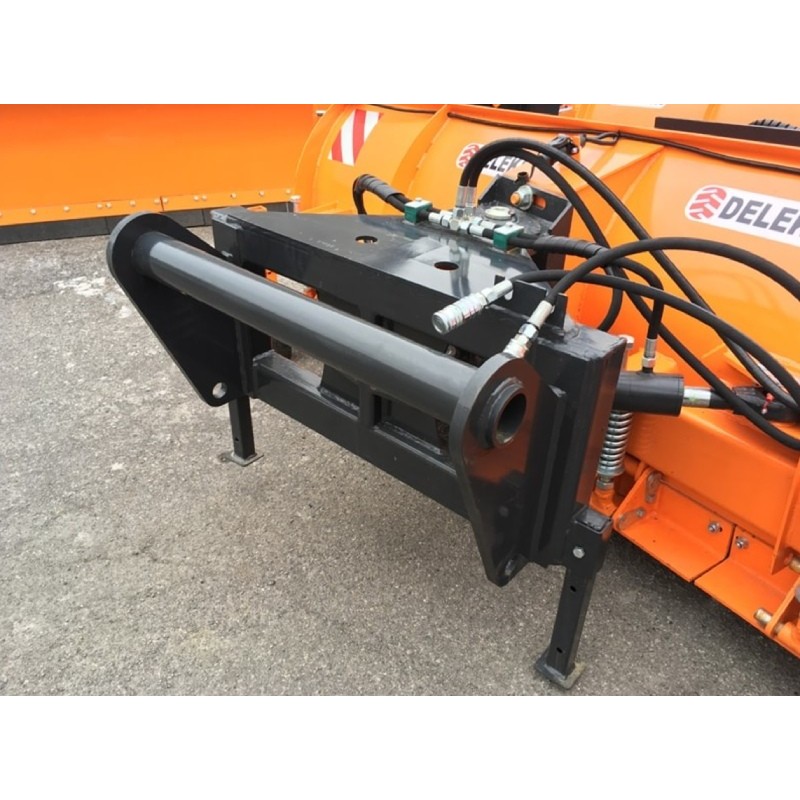

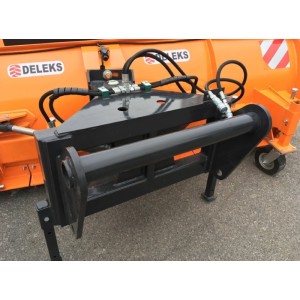

Fixation | MANITOU |
Inclination | 25° |
Floatation device | +/- 4° |
Blade height | 880.0 mm |

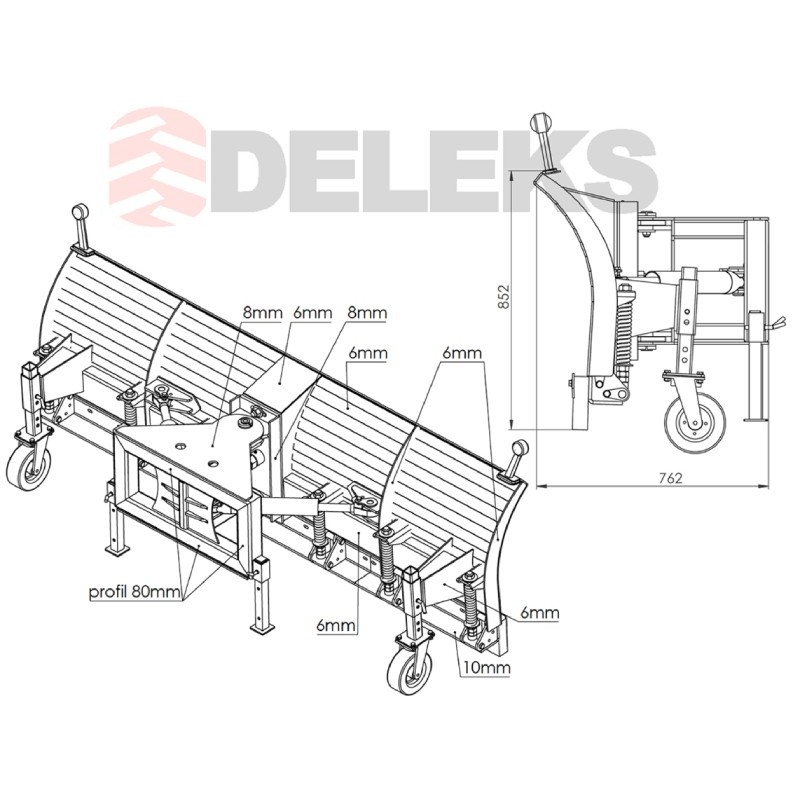

Thickness of lateral reinforcements | 7.0 mm |
Shock absorbers | 6 |
Space between the ground and the plate | 270 mm |
Lama | Steel or rubber |
Llama: height | 200.0mm / 180.0mm |
Lama: thickness | 20.0mm / 55.0mm |
Sharp: number | 3 |
Sharp: space between bolts | 175.0 mm |

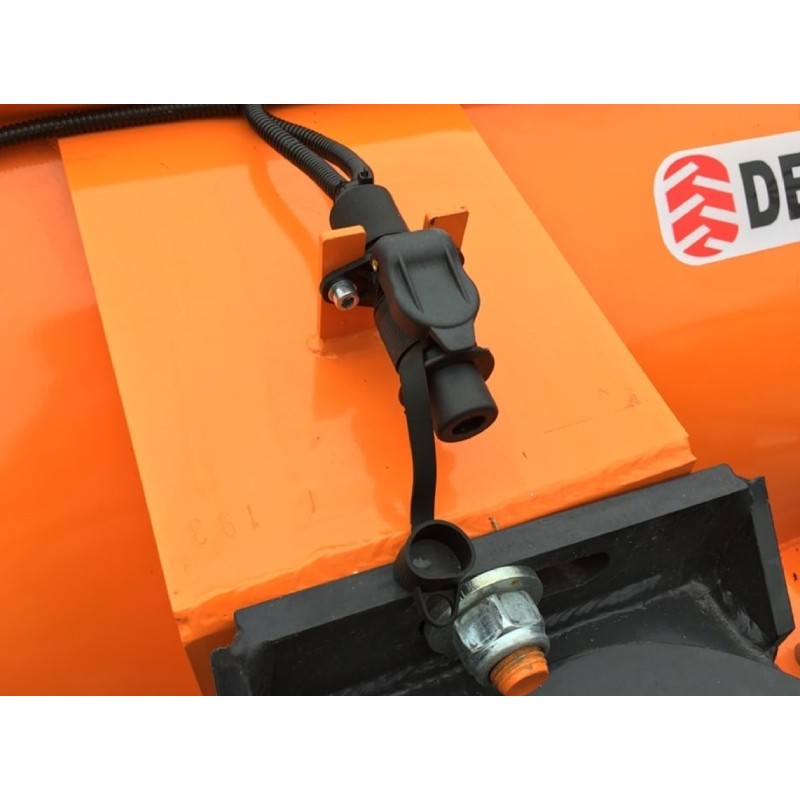

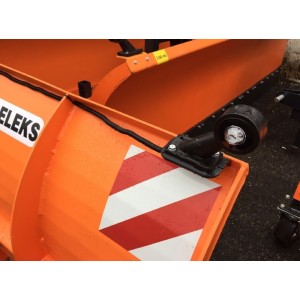

Side lights | √ |
Side skates | Wheels |
Width of the slat (inclined) | MANITOU |

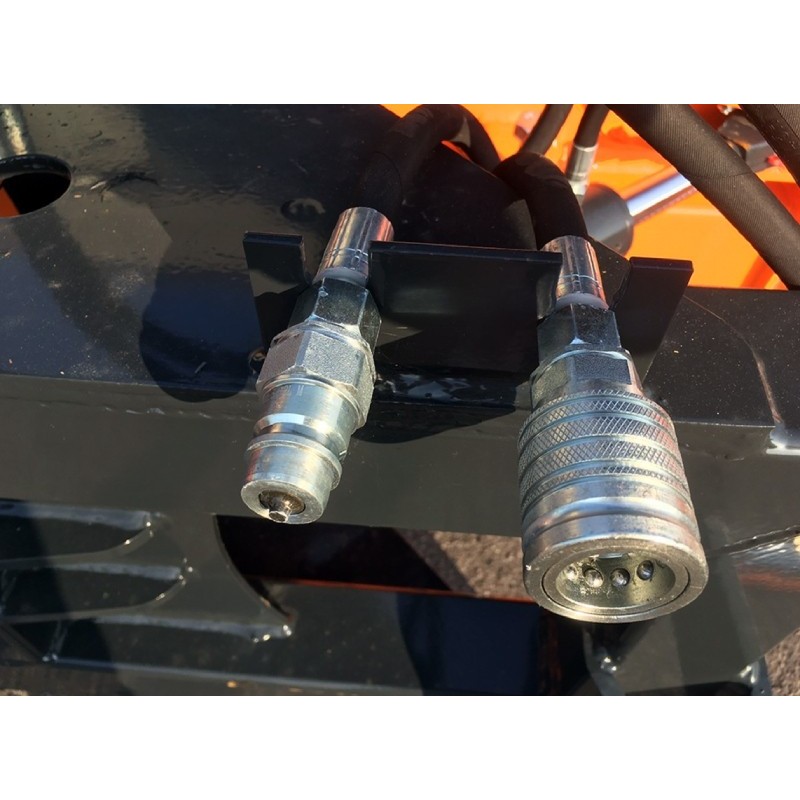

Hydraulic tubes | 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar |
Width of the blade | 3000.0 mm |
Thickness of the sheet | 4 mm |
ø piston/i | 73.0/36.0 mm |
Packaging dimension | 3000*1000*1000 mm |
IMPORTANT NOTICE |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
