Snow plow Deleks SSH-04-2.6-A
- Weight : 490.0 kg
- Overall height : 880.0 mm
- Tractor power : 90 - 130 hp
€4,540.90 VAT incl.
Deleks products take about 15 to 25 days. |

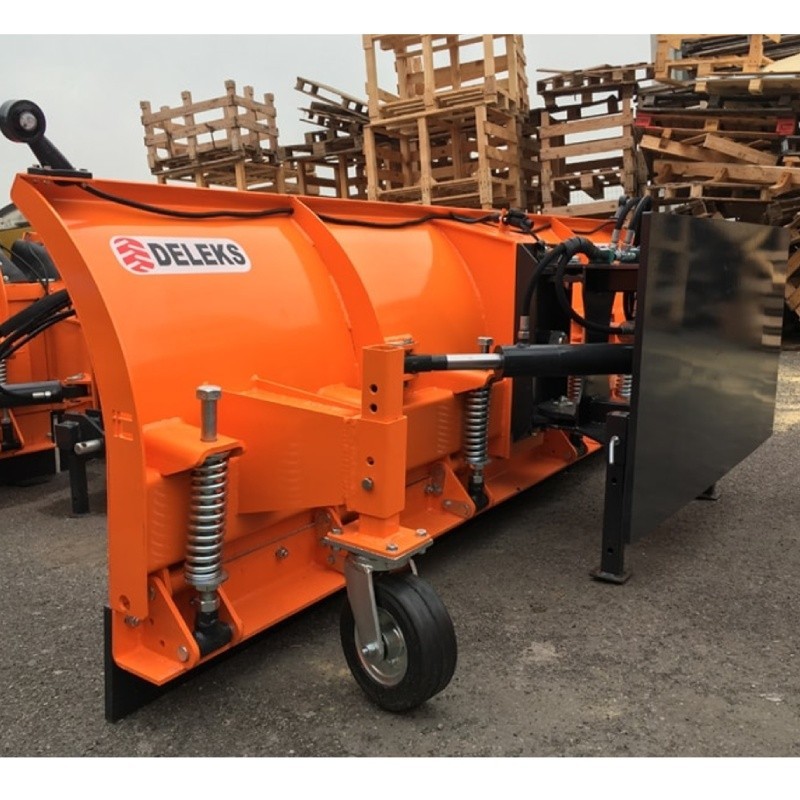

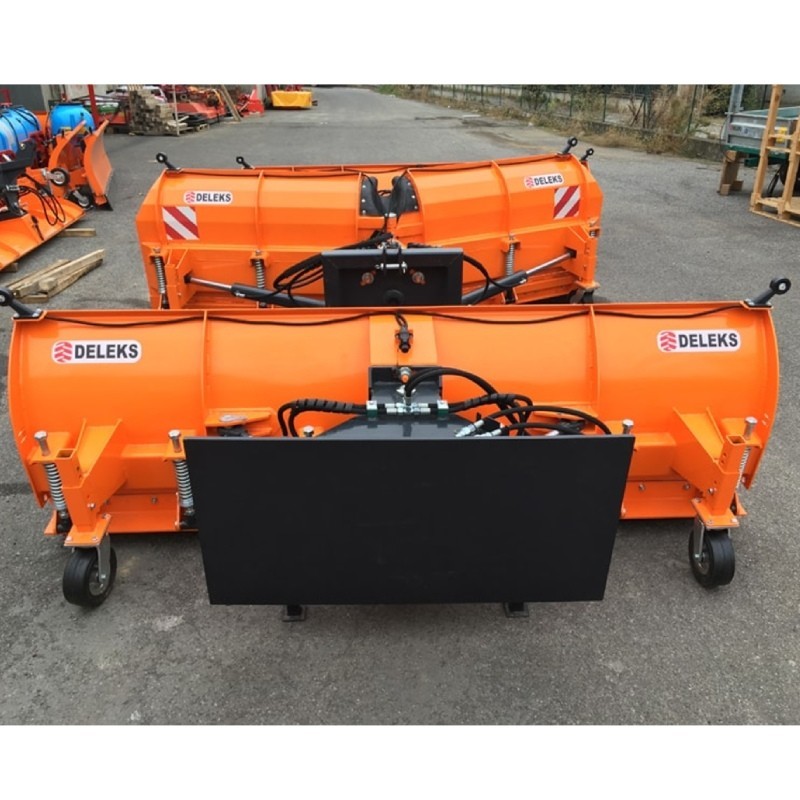

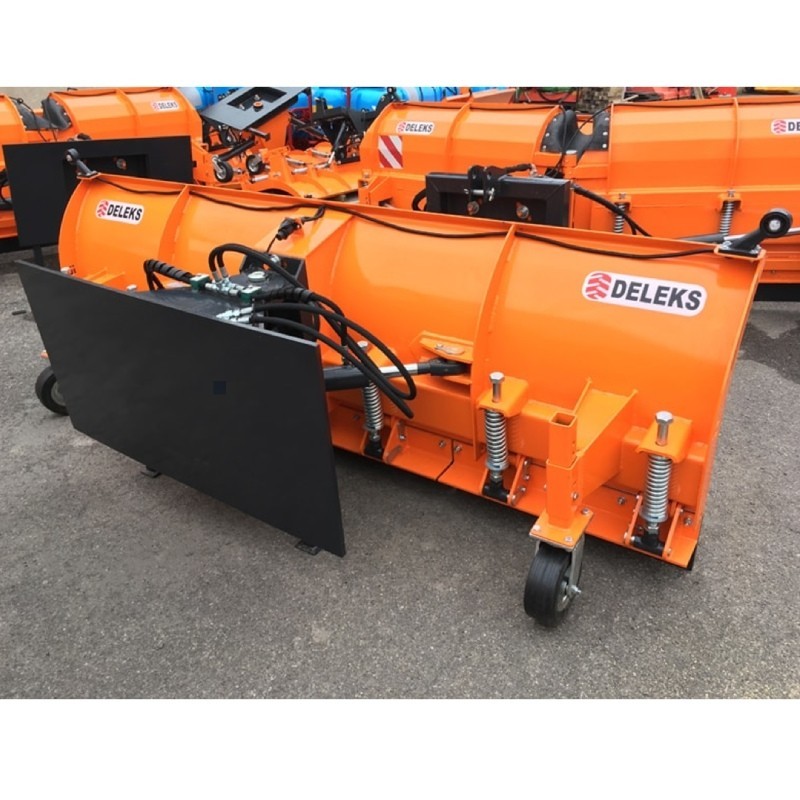

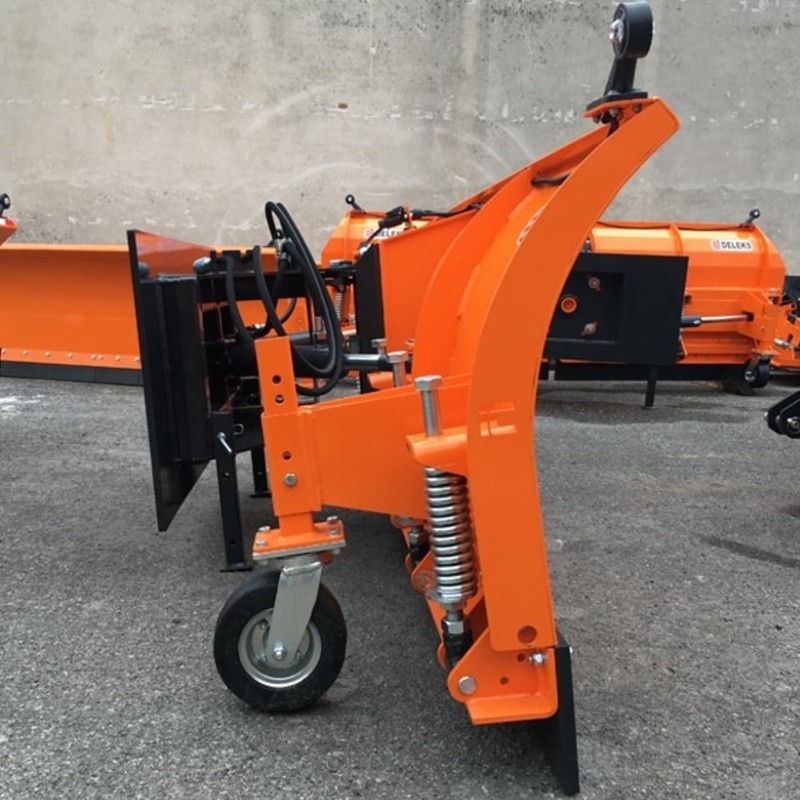

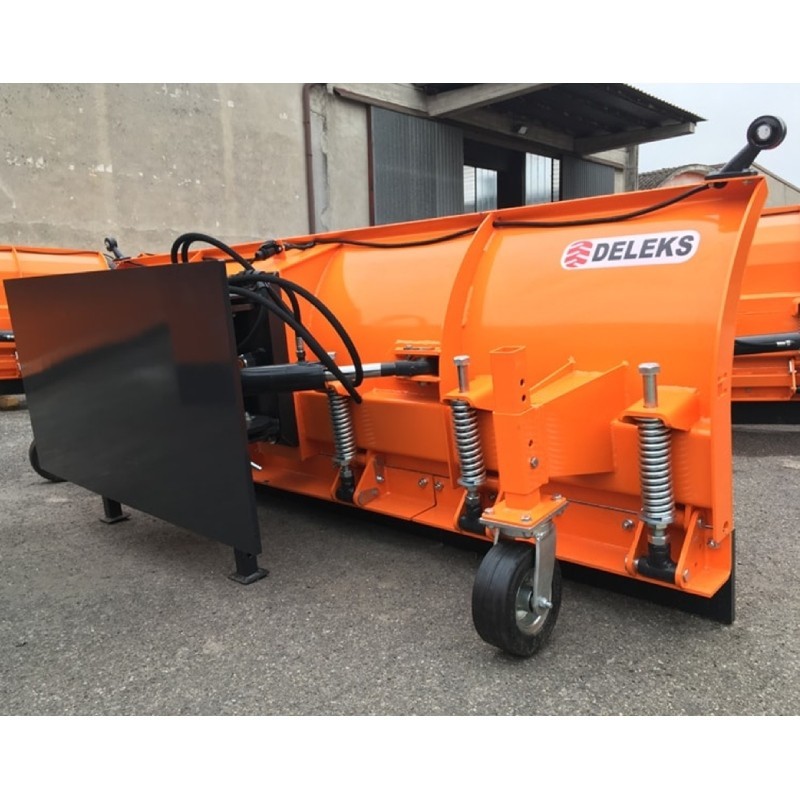

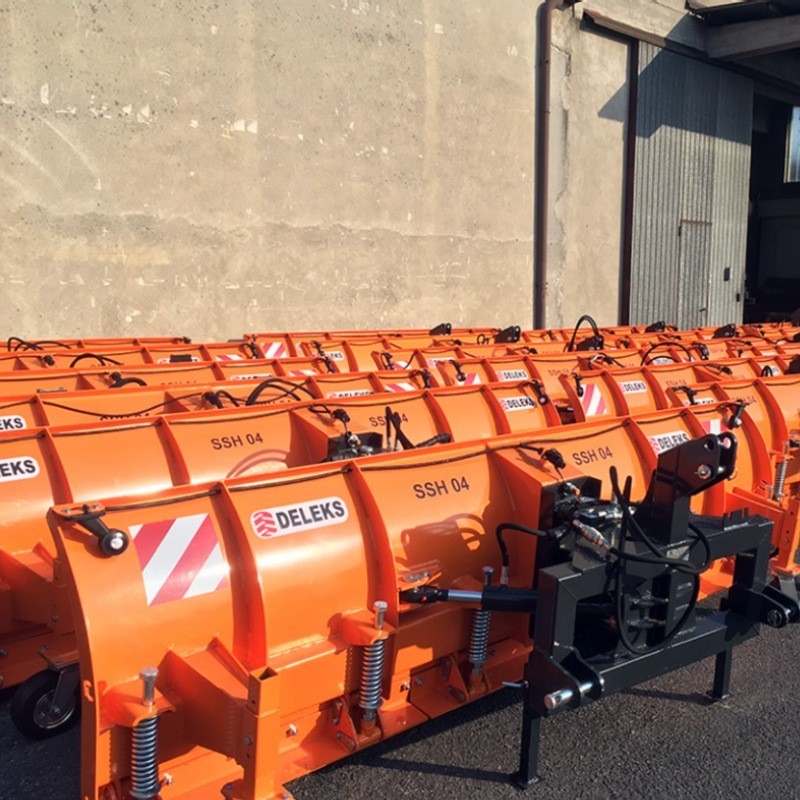

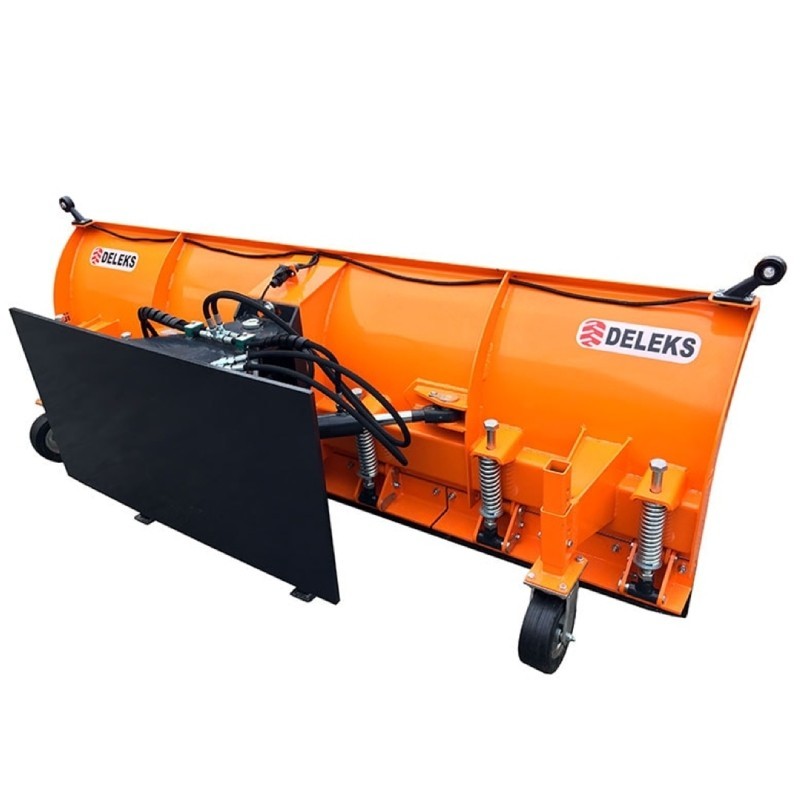

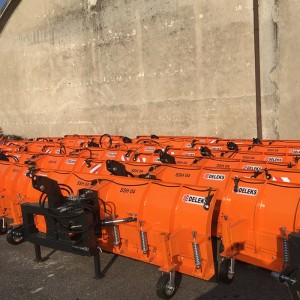

This snow plow Deleks SSH-04-2.6-W is an attachment for tractors suitable for the vast majority of John Deere, Komatsu, Caterpillar, or JCB models.
This Deleks plow model allows you to remove obstacles you may encounter along the way, whether it's dirt, gravel, or even snow, making it perfect for a farm. It also features a left/right orientation thanks to its 2 hydraulic pistons and 1.6-meter tubes.
Finally, this plow is equipped with 6 shock-absorbing springs allowing you to work with maximum safety. Additionally, it features a fairly simple assembly and use and is street-approved.

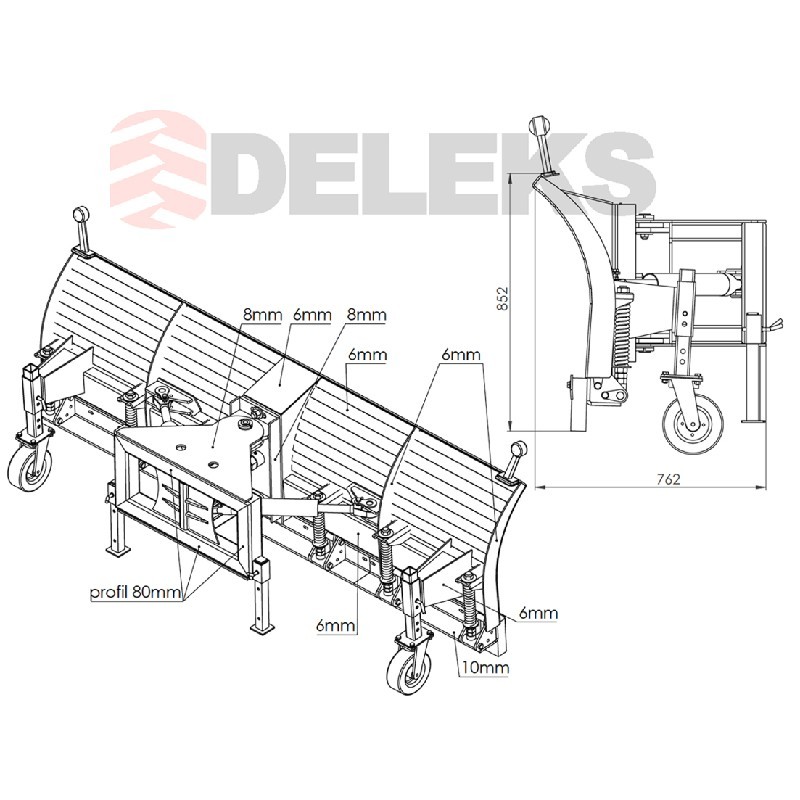

Weight | 490.0 kg |
Total height | 880.0 mm |
Total depth | 900.0 mm |
Hitch dimension | 1200.0*600.0*15.0 mm |
Oil pressure min./max | 110 - 150 bar |
Optimal oil flow | 18 - 22 l/min |
Mounting | FLAT PLATE |
Tilt | 25° |
Float | +/- 4° |
Blade height | 880.0 mm |
Thickness of side reinforcements | 7.0 mm |
Shock absorbers | 6 |
Blade | Steel or rubber |
Blade: height | 200.0 mm / 180.0 mm |
Blade: thickness | 20.0 mm / 55.0 mm |
Sharpening: number | 3 |
Sharpening: bolt spacing | 175.0 mm |
Side lights | √ |

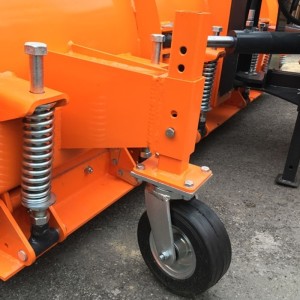

Side skids | Wheels |
Blade width (tilted) | CUSTOMIZABLE |

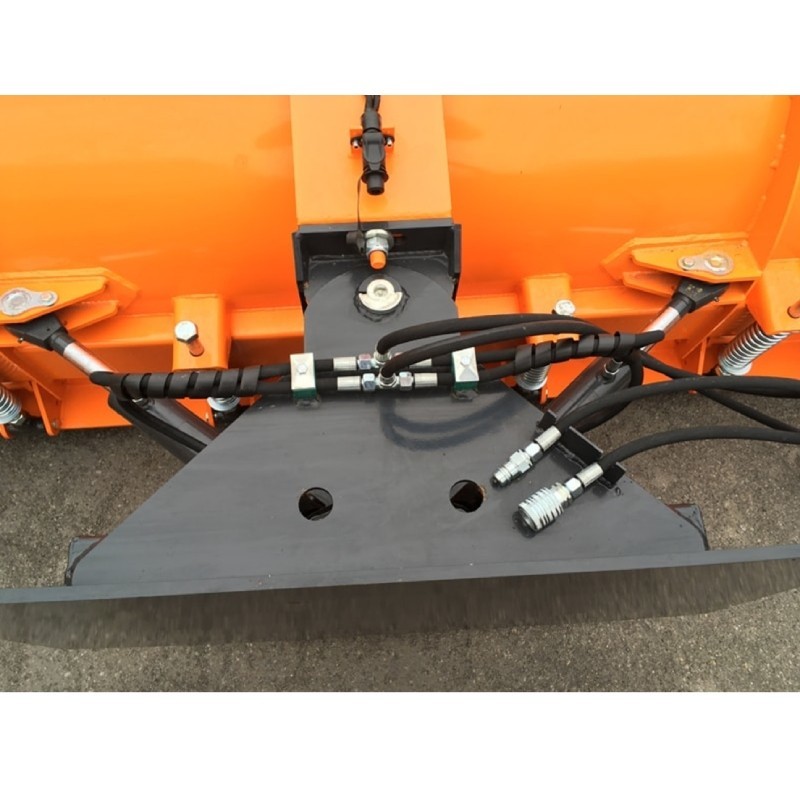

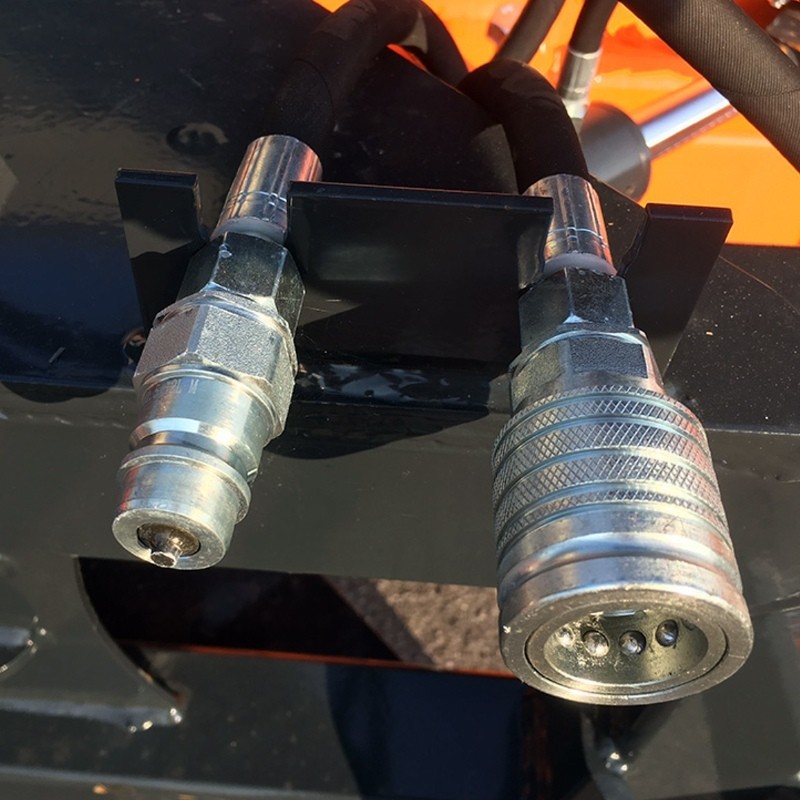

Hydraulic tubes | 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar |
Blade width | 2600.0 mm |
Sheet thickness | 4.0 mm |
Piston ø/i | 73.0 / 36.0 mm |
Packaging dimension | 2600*1000*1000 mm |
IMPORTANT NOTICE |
For the correct delivery of this product, the customer will need a forklift or similar for unloading this product, and the address must be accessible for a 24t truck. |
