Snow plow for tractor Deleks LN-220-C 50-80HP
- Tractor power: 50 - 80 HP
- Blade width: 2205 mm
- Blade height: 700 mm
- Inclination: 27 degrees
€2,797.04 VAT incl.
Deleks products take about 15 to 25 days. |

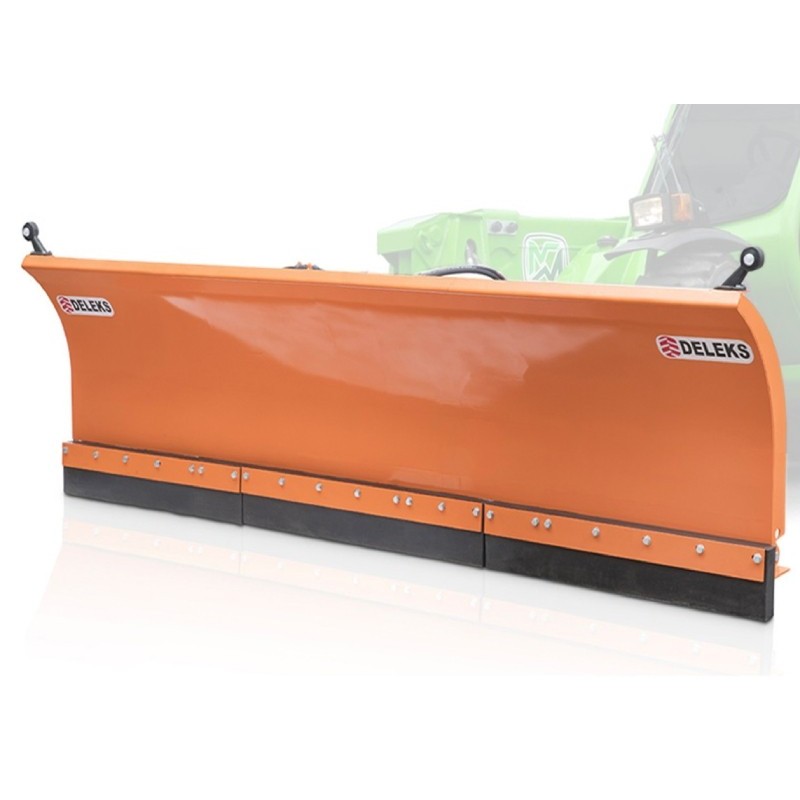

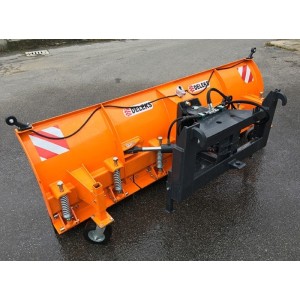

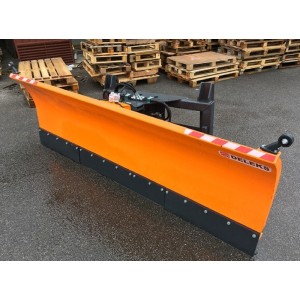

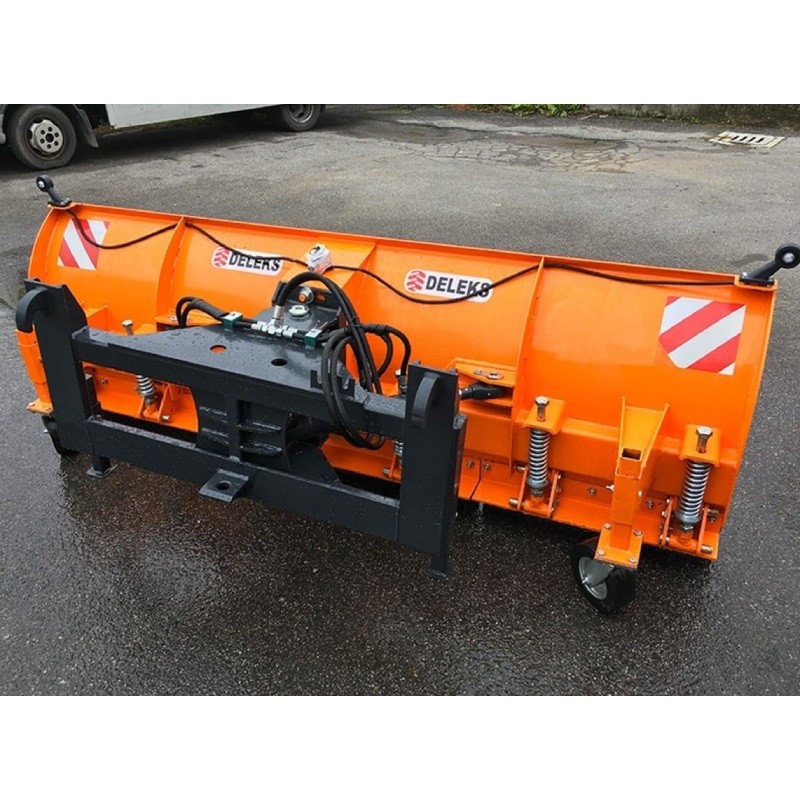

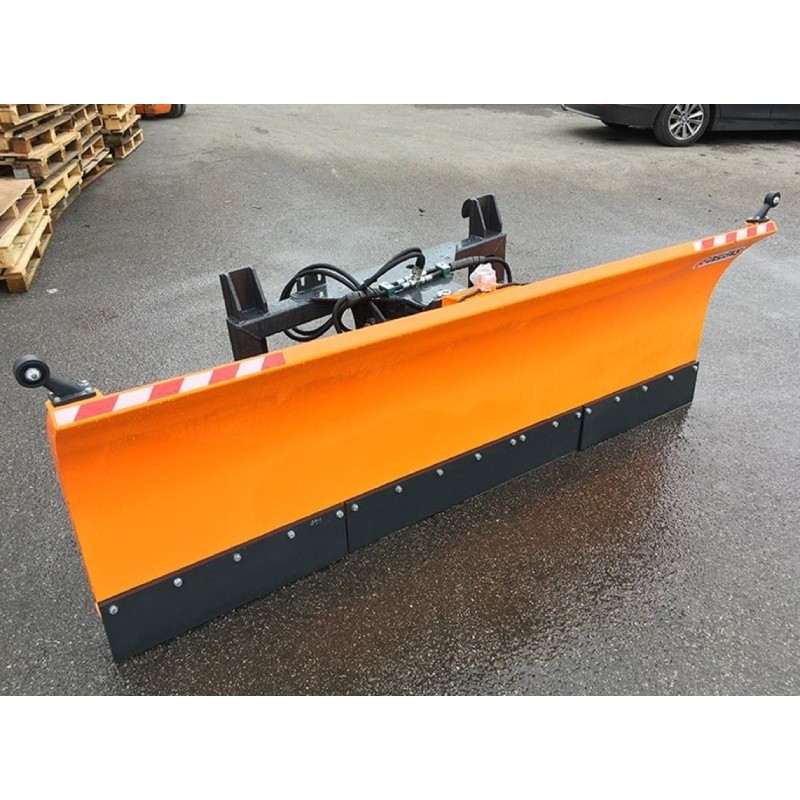

The DELEKS SSH-MERLO snow plow for handlers It is designed for MERLO telescopic handlers. The right/left orientation is done with 2 hydraulic pistons and 2 tubes of 1.6 meters.

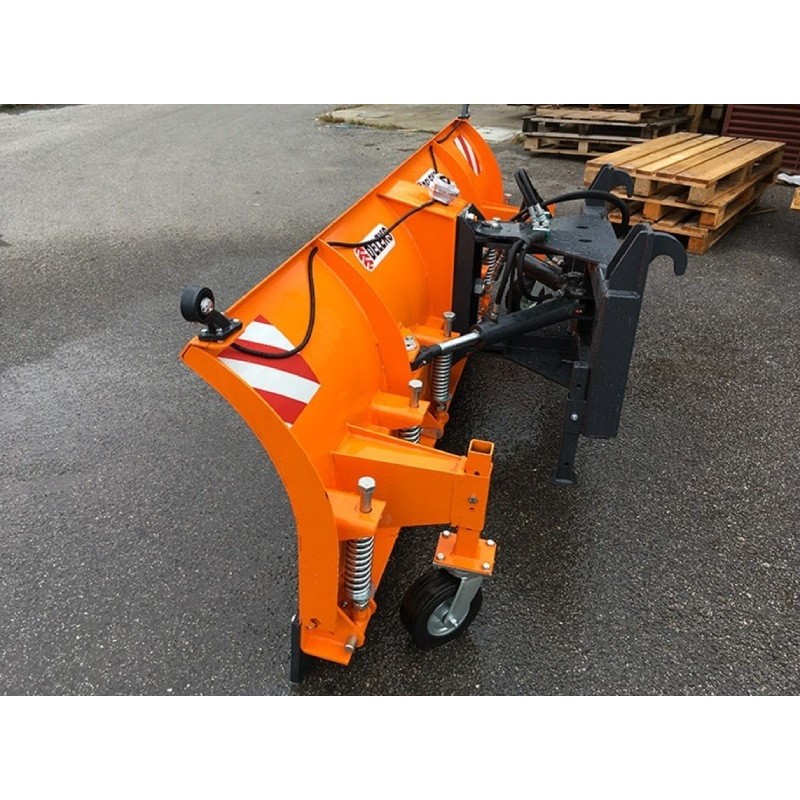

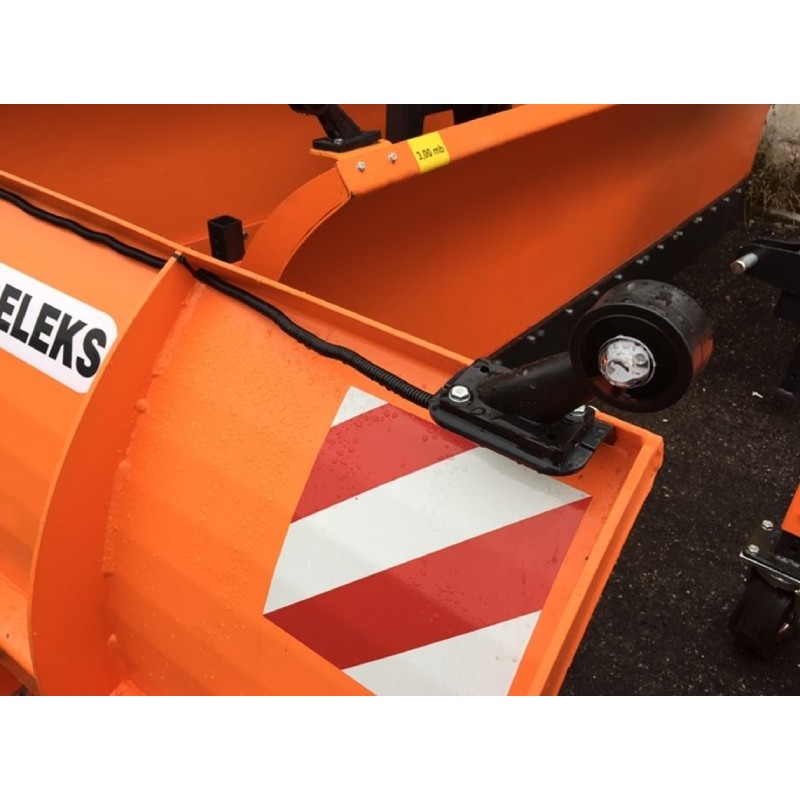

This is delivered with 2 wheels and lights, it also comes with a CE compliance and a 2-year warranty, has 6 shock-absorbing docks To work with maximum safety and 3 independent blades, it features easy assembly and use, and the side wheels allow you to adjust the height of the blade to maintain the working depth.

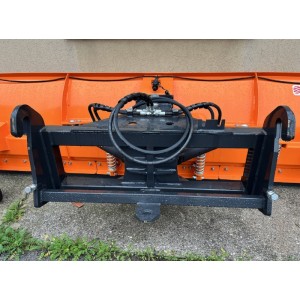

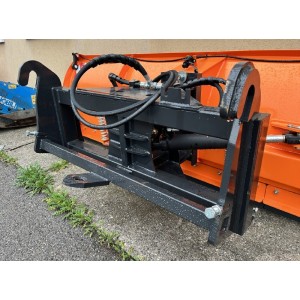

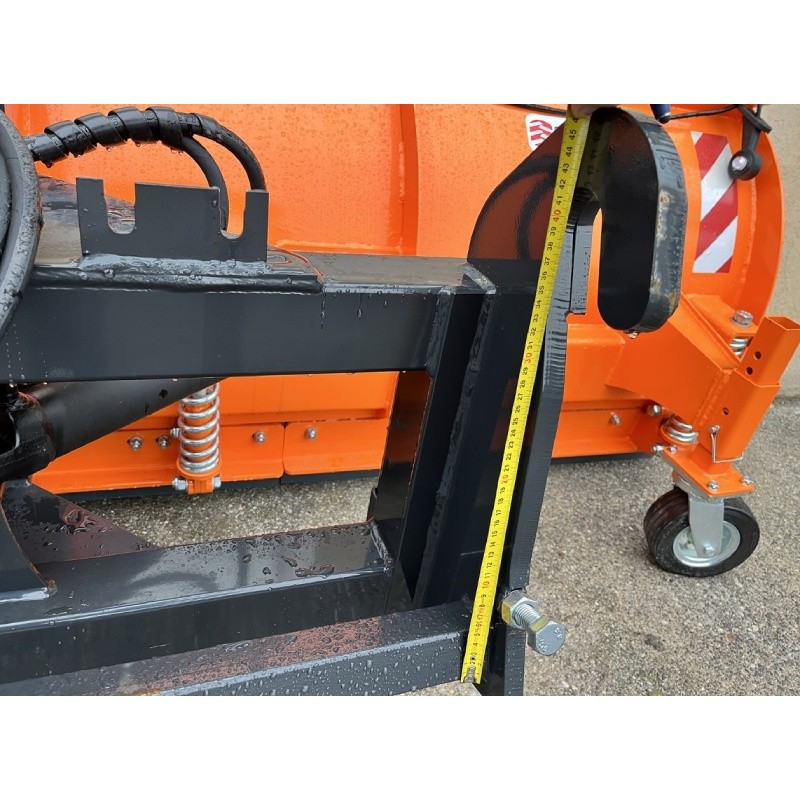

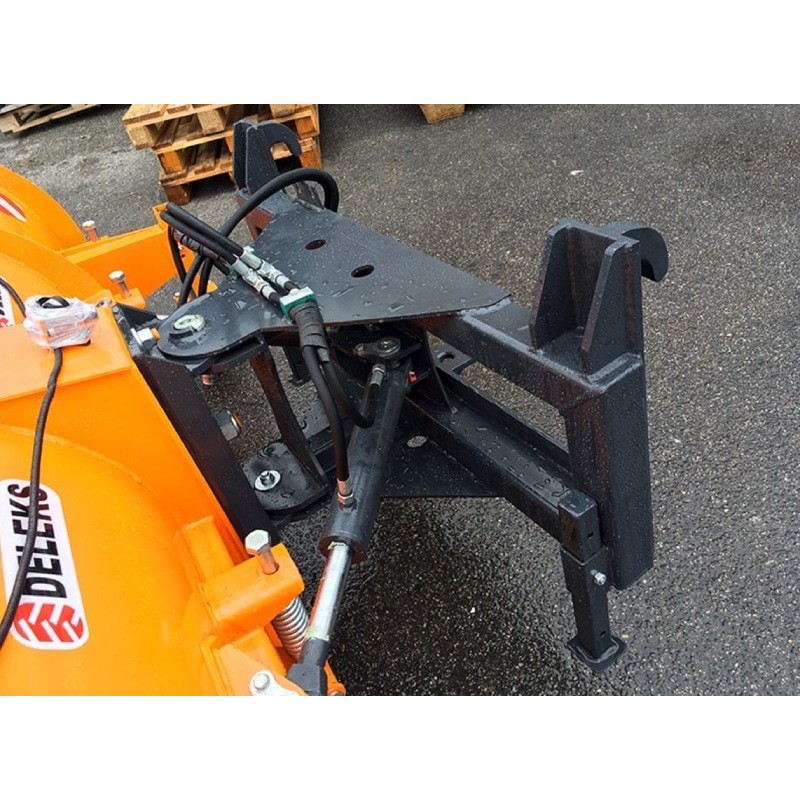

The MERLO support can be replaced by a 3-point hitch or by other supports for telescopic handlers like MANITOU or JCB, or by a customizable plate, in addition to having perfect adhesion to the road and being approved for public roads.
Model | SSH-04-2.6-MERLO | SSH-04-3.0-MERLO |
Weight | 470.0 kg | 500.0 kg |
Total height | 880.0 mm | 880.0 mm |
Total depth | 900.0 mm | 900.0 mm |
Minimum/maximum oil pressure | 110 - 150 bar | 110 - 150 bar |
Optimal oil flow | 18 - 22 l/min | 18 - 22 l/min |
Minimum/maximum oil pressure | 110 - 150 bar | |
Fixation | MERLO | |
Inclination | 25° | |
Floatation device | +/- 4° | |
Blade height | 880.0 mm | |
Thickness of lateral reinforcements | 7.0 mm | |

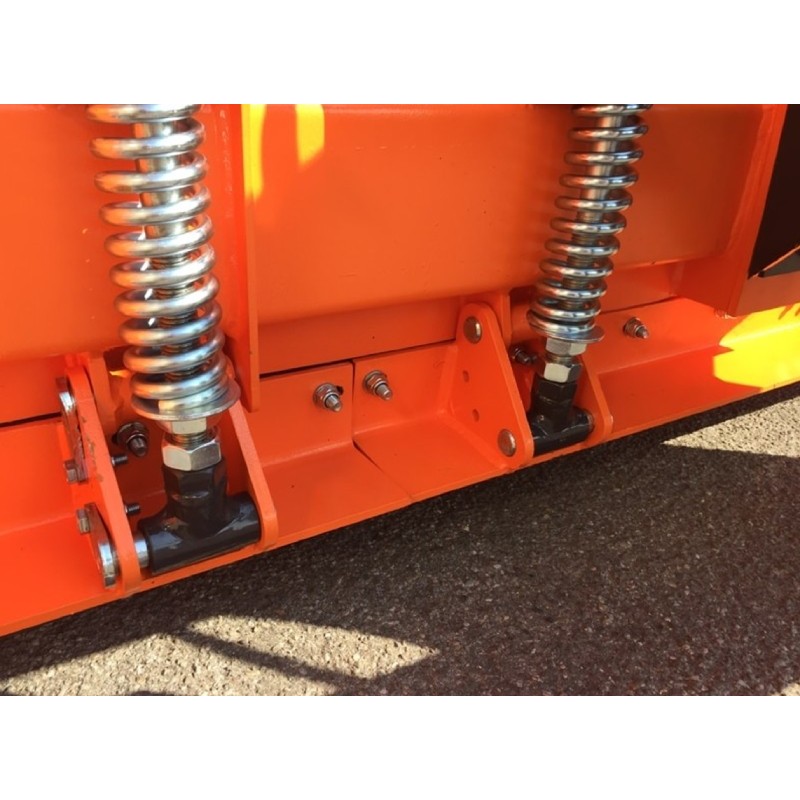

Shock absorbers | 6 | |

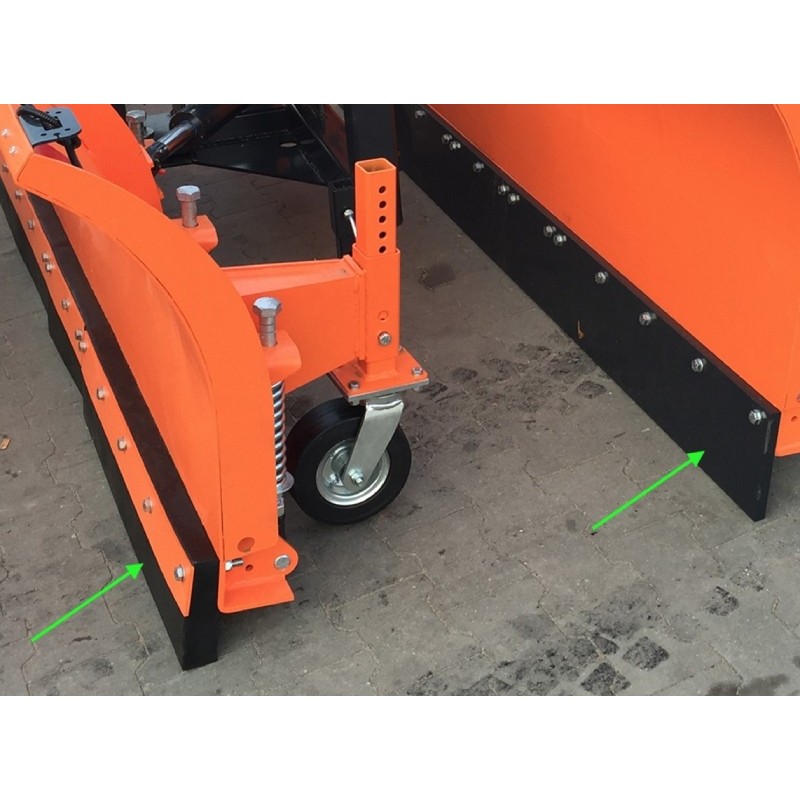

Lama | Steel or rubber | |
Llama: height | 200.0mm / 180.0mm | |
Lama: thickness | 20.0mm / 55.0mm | |
Sharpening: number | 3 | |
Sharpening: space between bolts | 175.0 mm | |

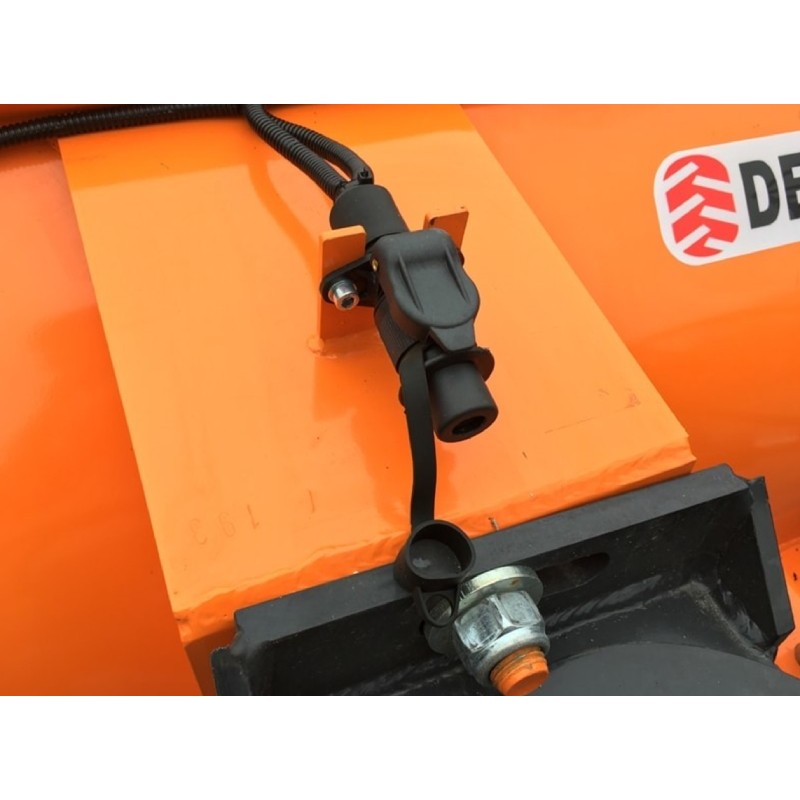

Side lights | √ | |
Side skates | Wheels | |

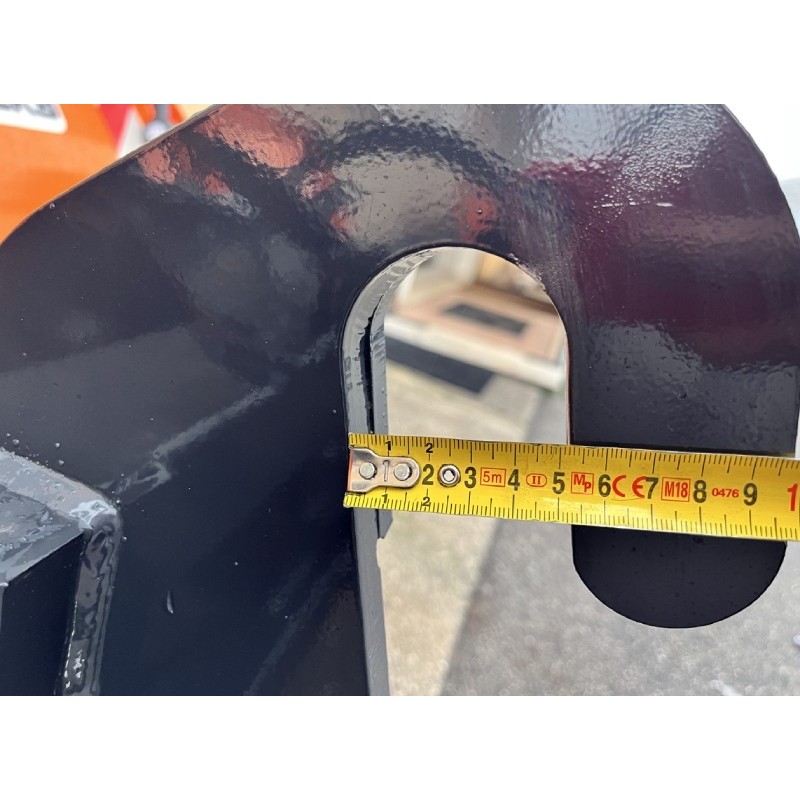

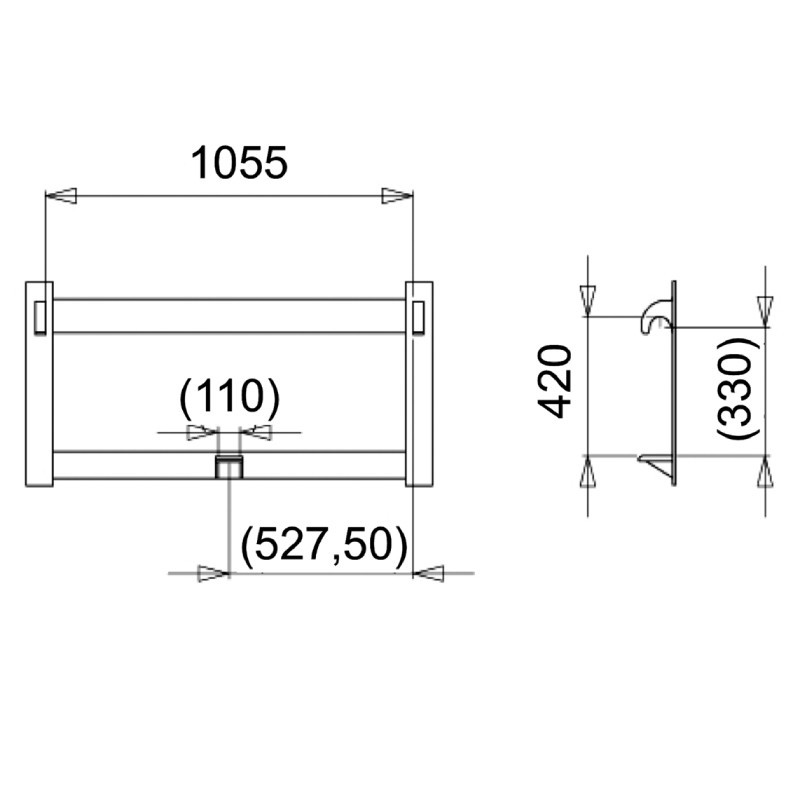

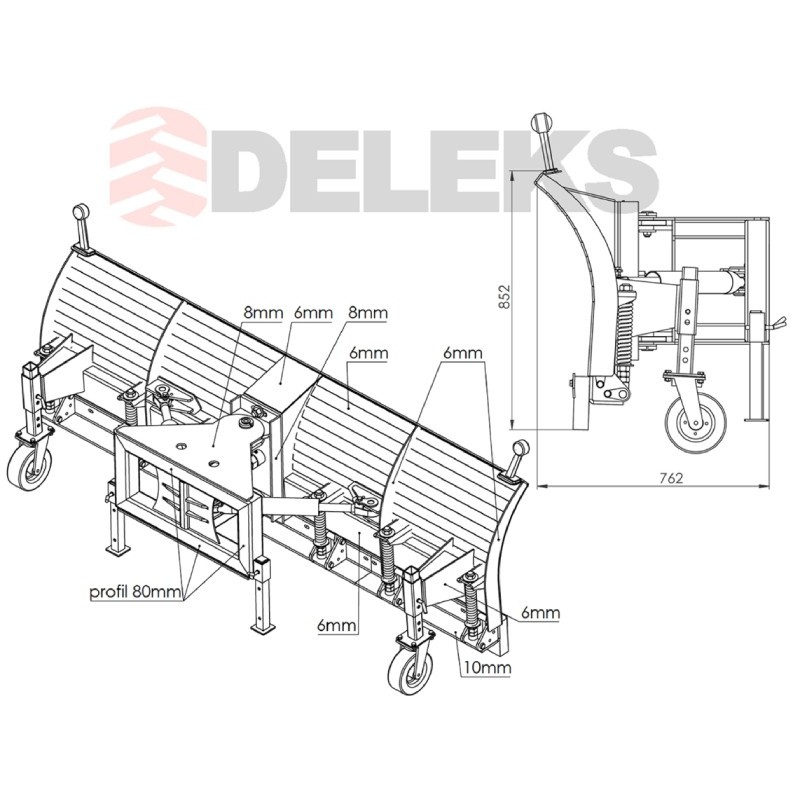

Plate dimensions | View images | |
Width of the slat (inclined) | MERLO | |
Hydraulic tubes | 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar | |
Width of the blade | 2600.0 mm | 3000.0 mm |
Sheet thickness | 4.0 mm | |
ø piston/i | 73.0 / 36.0 mm | |
Packaging dimension | 260 x 100 x 100 cm | 300 x 100 x 100 cm |
IMPORTANT NOTICE |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
