Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C
Snow plow for tractor DELEKS LNS-C

Snow plow for tractor DELEKS LNS-C

Rating:
(0)
  • Tractor power: 16 - 40 HP
  • Weight: 113 kg
  • Total depth: 62 cm
  • Inclination: 28 degrees
Deleks products take about 15 to 25 days.
En stock
icon Working width
Working width
1516 - 2116 mm
icon Tractor power
Tractor power
16 - 50 HP
icon 3-point hitch for tractor
3-point hitch for tractor
Yes
icon Country of manufacture
Country of manufacture
Italy
€916.51 excl. VAT
- 4%
€879.85 excl. VAT
€1,064.62 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Snow plow for tractor DELEKS LNS-C
€1,064.62
Select
Qty

Snow plow for tractor DELEKS LNS-C

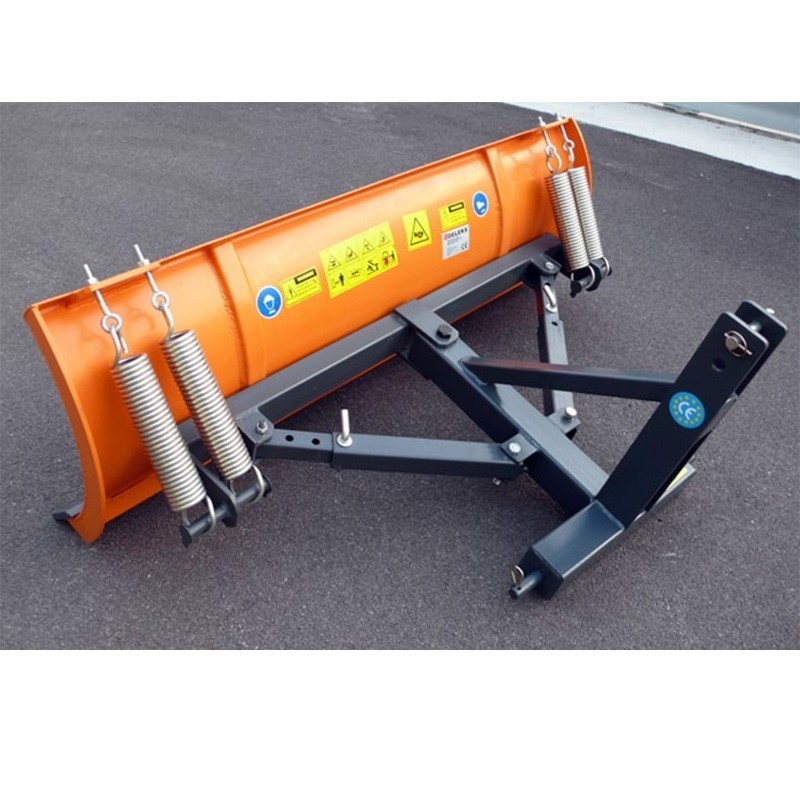

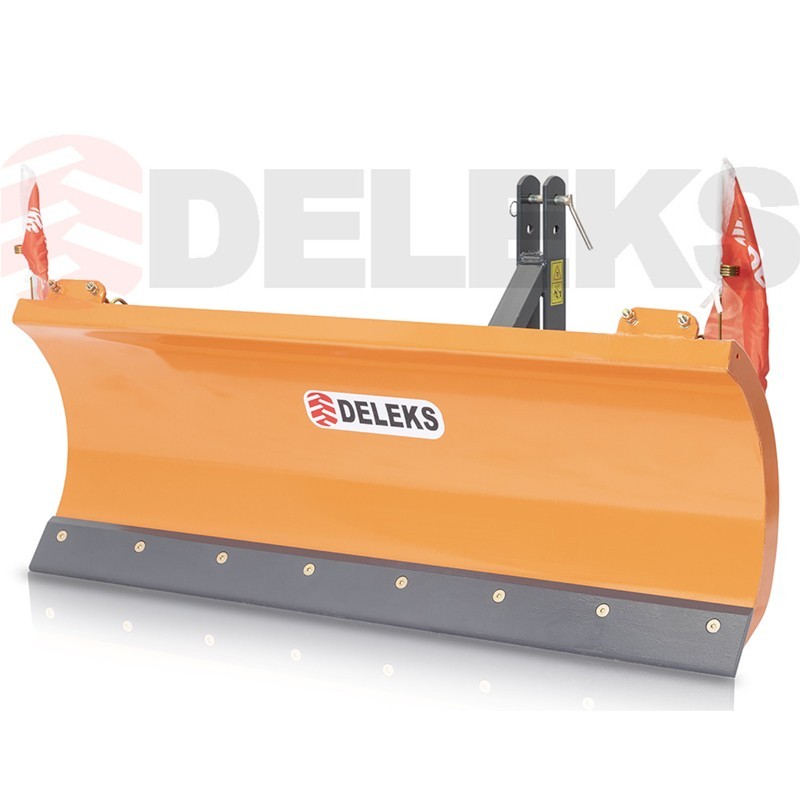

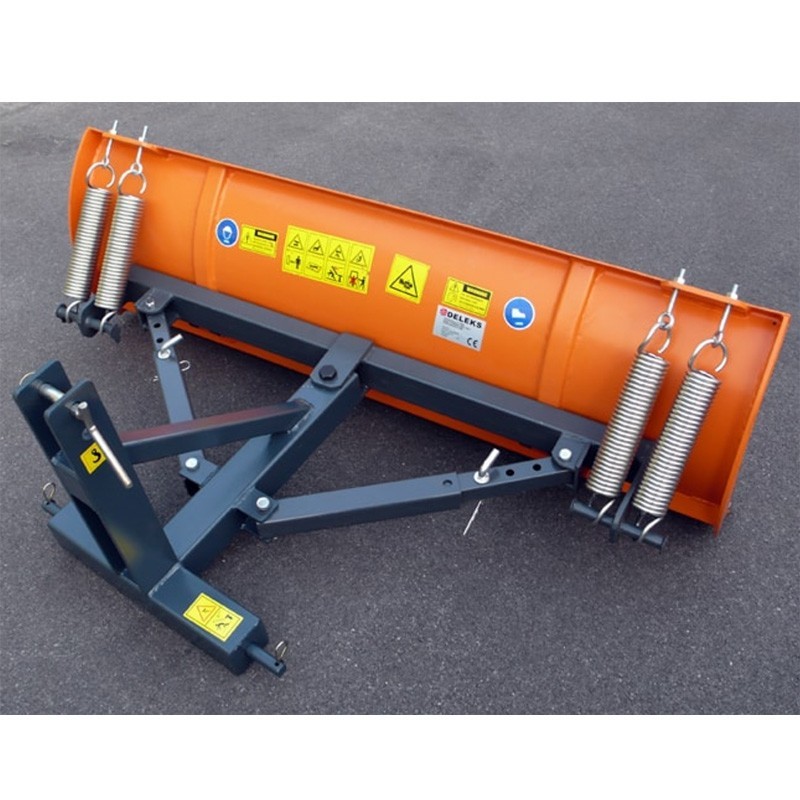

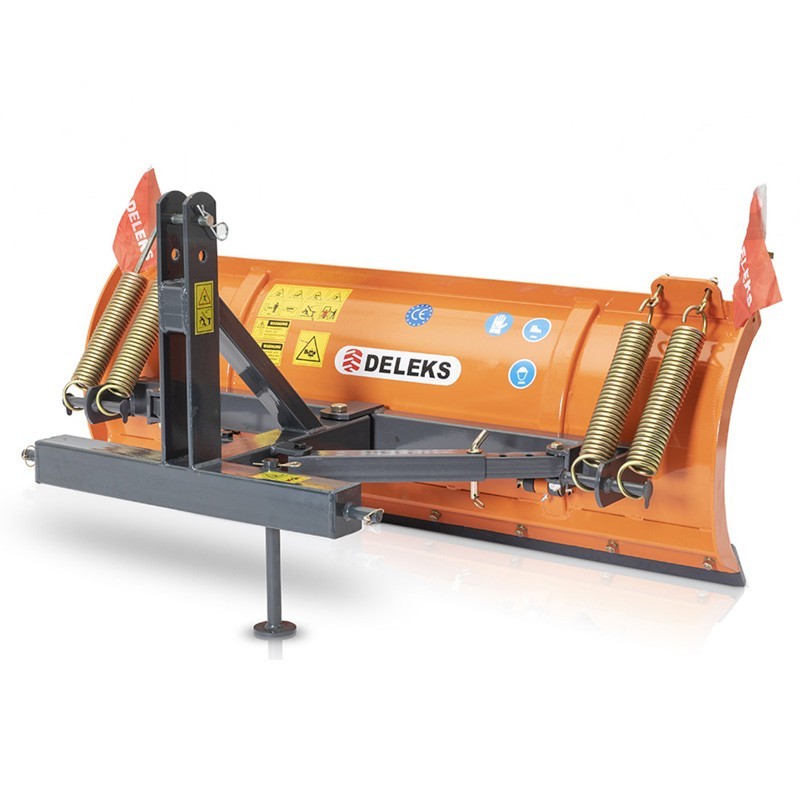

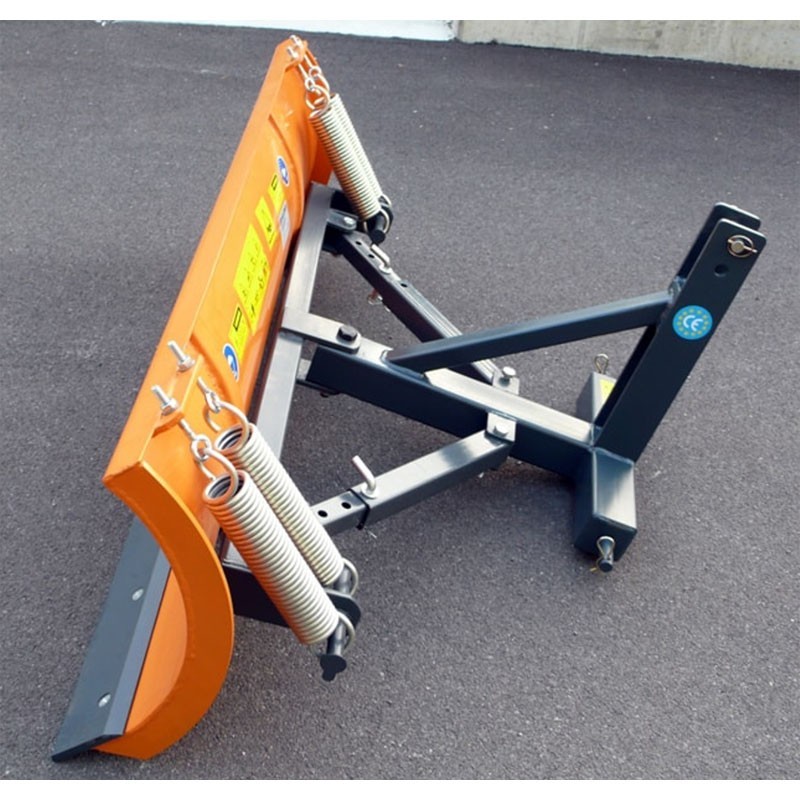

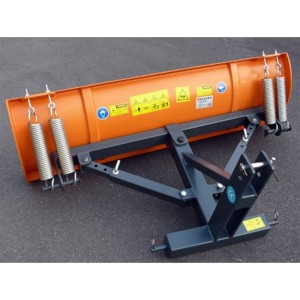

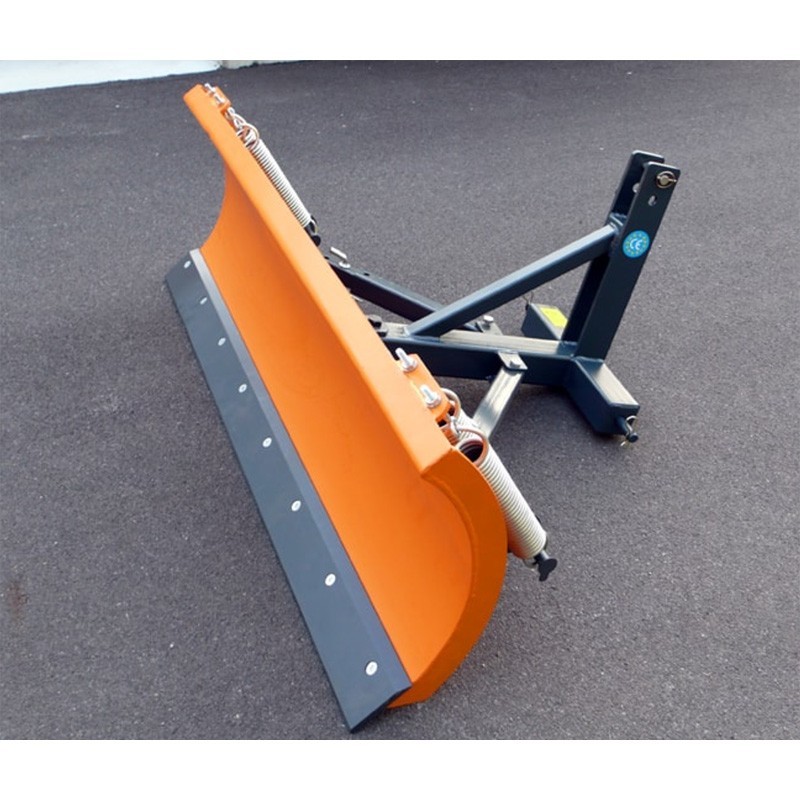

The DELEKS LNS-C snow plow for tractor It is designed to remove snow from roads, parking lots, or for businesses. Its robust structure allows it not only to remove snow but also to function as a leveling blade during the warmer months.

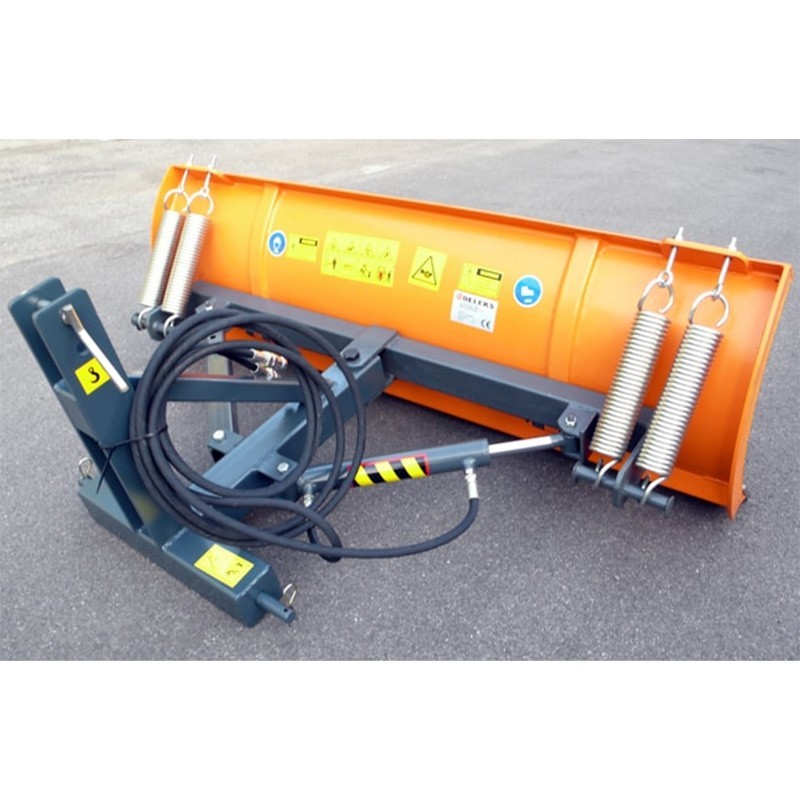

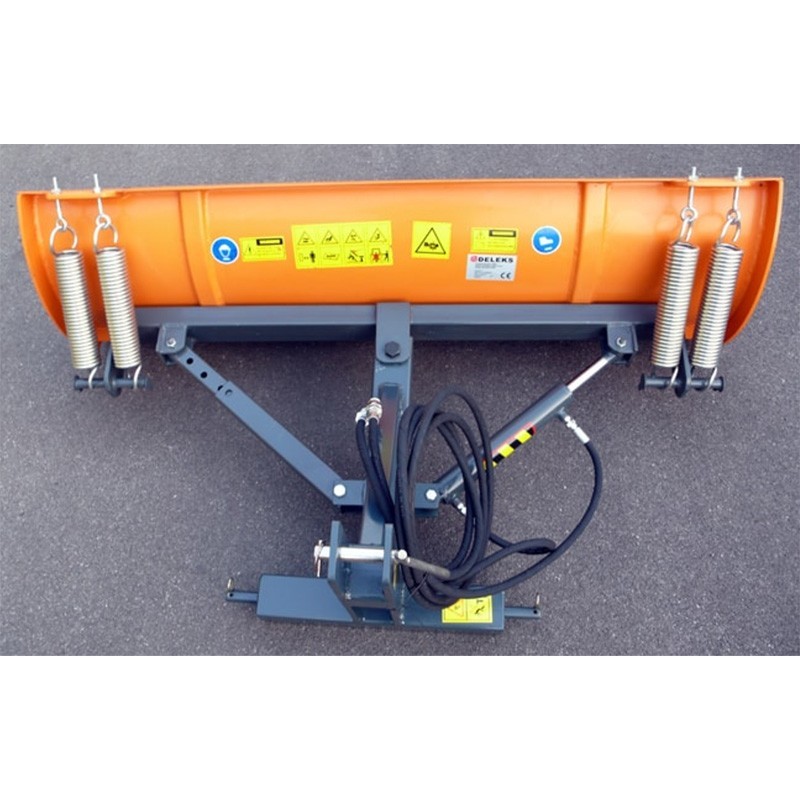

The blade attaches to the tractor with a category 1 three-point hitch and is compatible with tractors ranging from 16/20/30 up to 40/45/50 HP., The tractor does not require hydraulic outlets. However, this model can be equipped with the option of a hydraulic piston for right/left orientation. (the tractor must have 2 hydraulic outlets).

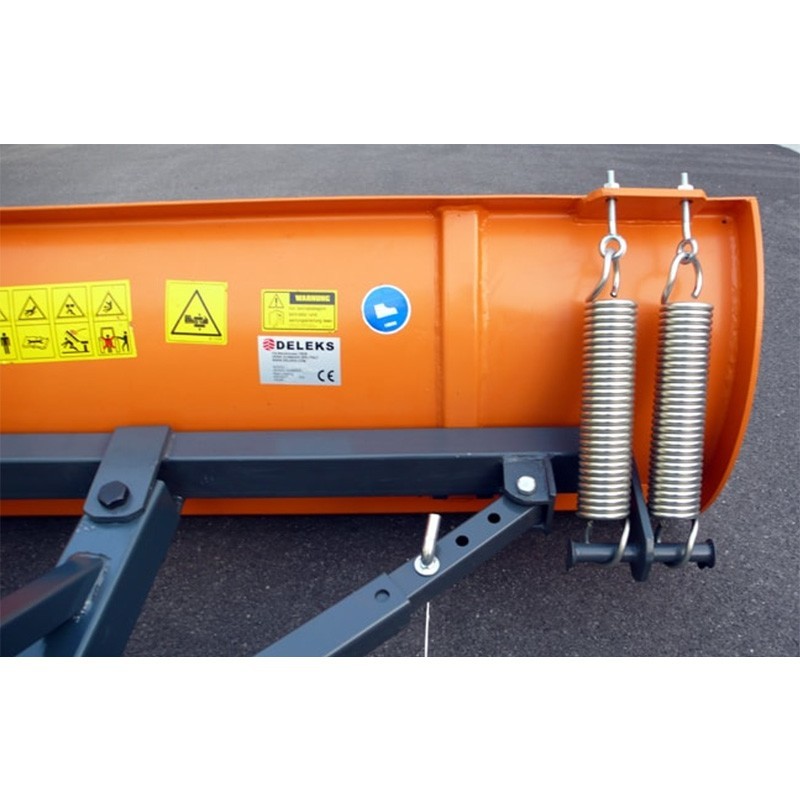

It has 4 anti-shock docks. To work with maximum safety, it features easy assembly and use, and its replaceable steel blade. The 3-point hitch can be replaced by a plate or a bracket. For compact skid steer loaders, this bucket is approved for public roads.

Characteristics

Model LNS-160-C LNS-180-C LNS-200-C
Weight 113.0 kg 123.0 kg 150.0 kg
Total height 880.0 mm 880.0 mm 880.0 mm
Tractor power 16 - 40 hp 20 - 45 hp 30 - 50 hp
Total depth 620.0 mm 50 - 90 hp 60 - 90 hp
Distance between lower points 690.0 - 800.0 mm 690.0 - 800.0 mm 690.0 - 800.0 mm
Distance between 2 points and the ground 300.0 mm 300.0 mm 11.81 in
Minimum/maximum oil pressure 110 - 150 bar
Optimal oil flow 18 - 22 l/min 18 - 22 l/min 18 - 22 l/min
Fixation 3-point hitch CAT 1 (19.0 - 22.0 mm)
Inclination 28°
Floatation device +/- 2°
Blade height 525.0 mm
Thickness of lateral reinforcements 8.0 mm
Shock absorbers 4
Lama Steel or rubber
Llama: height 120.0 mm
Lama: thickness 14.0 mm
Sharpening: number 1
Sharpening: space between bolts 200.0 mm
Width of the slat (inclined) 1330.0 mm 1520.0 mm 1890.0 mm
Hydraulic tubes (Optional) 2 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar
Width of the blade 1516.0 mm 1716.0 mm 2116.0 mm
Sheet thickness 4.0 mm
ø piston/i (Optional) 50.0 / 25.0 mm
Packaging dimension 152 x 80 x 80 cm 172 x 80 x 80 cm 212 x 80 x 80 cm
IMPORTANT NOTICE
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam.
260437

Data sheet

Working width
1516 - 2116 mm
Tractor power
16 - 50 HP
3-point hitch for tractor
Yes
Country of manufacture
Italy

Specific References

ean13
8053470231377
mpn
LNS150C
