Snow plow for DELEKS SSH-MERLO handlers
- MERLO Fastening
- Weight: 470 - 500 kg
- Total depth: 90 cm
- Inclination: 25 degrees
€4,137.27 VAT incl.
Deleks products take about 15 to 25 days. |

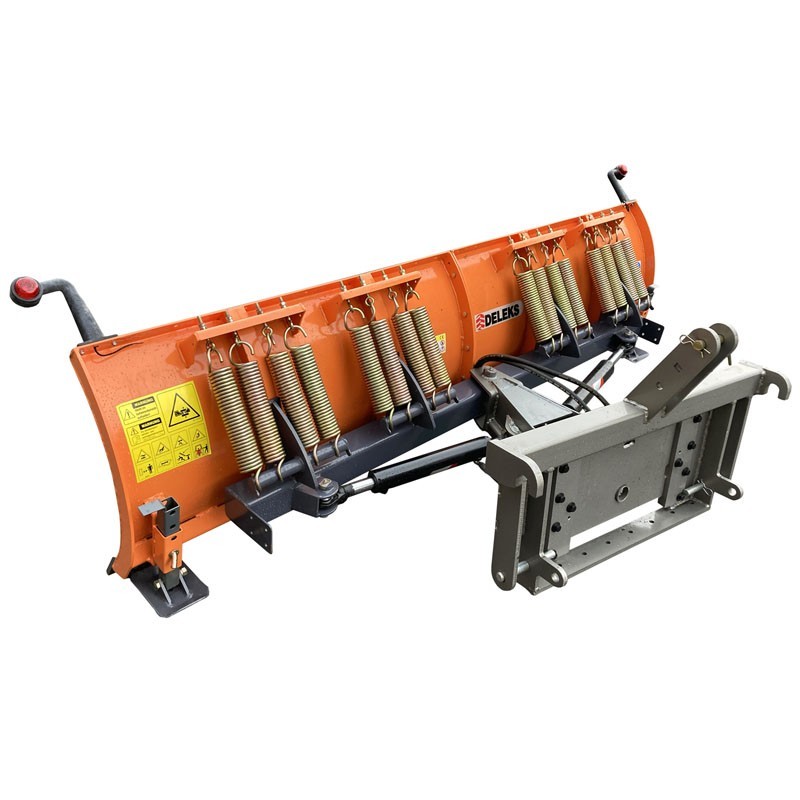

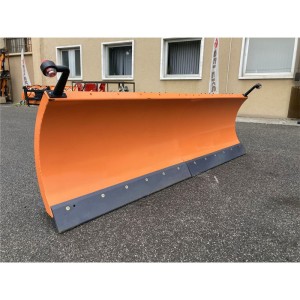

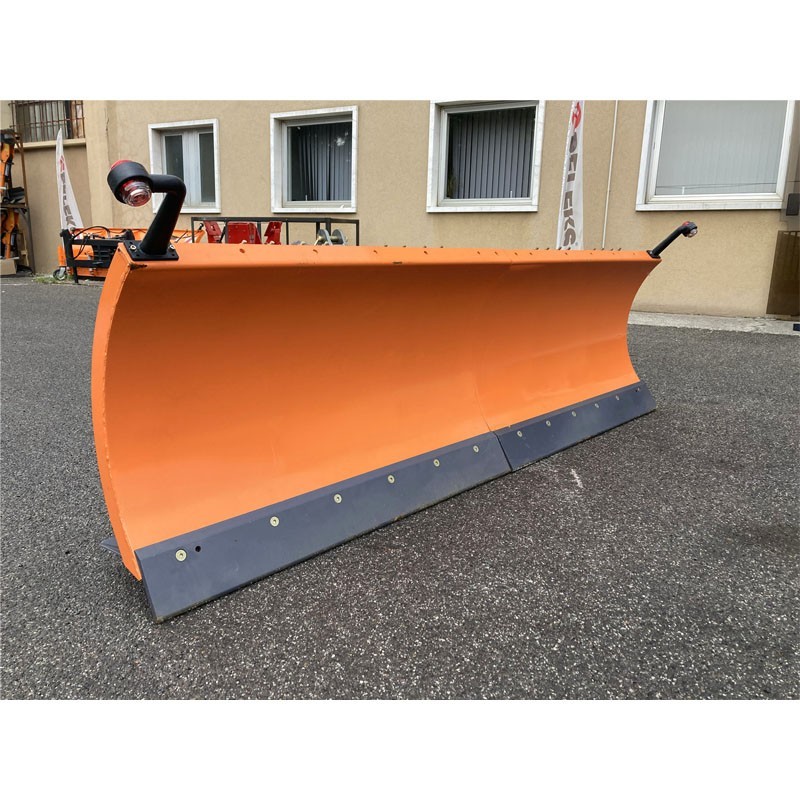

The Snow Plow for Tractor Deleks LN-250-C is a tractor attachment compatible with tractors that provide a power between 60 and 80HP. This plow is for front use or with a reversible tractor.
This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for companies. It is compatible with some front tractors (60 to 80HP) and with all reversible tractors.

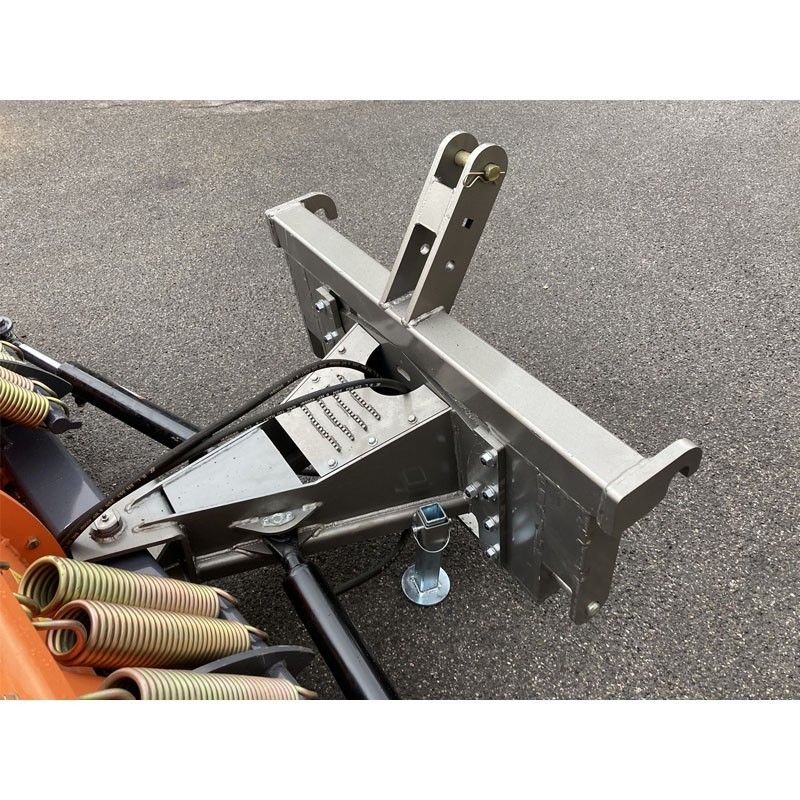

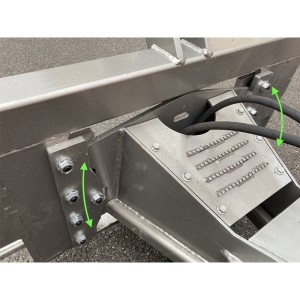

The plow is attached to the tractor with a 3-point hitch of category 1-2. This can be replaced by a plate or a support for a compact mini-loader. It also features adjustable side skids, allowing us to reduce the pressure at the blade level.
The model of Snow Plow LN-250-C from Deleks has two good hydraulic pistons. This is for a right to left orientation. It is done hydraulically with 1.5-meter hydraulic tubes. Made in Italy.
This Plow from Deleks LN-250-C features 8 anti-shock springs that allow the operator to work with maximum safety. Additionally, it offers great ease of assembly and use with great comfort. The Snow Plow is approved for public roads and with perfect adhesion to the road.
Weight | 330 kg |
Total height | 700 mm |
Tractor power | 60 - 80 HP |
Total depth | 950 mm |
Distance between lower points | 780 - 920 mm |
Distance between 2 points and the ground | 250 mm |
Oil pressure min./max | 110 - 150 bar |
Optional oil flow | 18 - 22 l/min |
Attachment | 3-point hitch CAT 1-2 (19-22 / 25-28 mm) |
Inclination | 27° |
Float | +/- 6° |
Blade height | 700 mm |
Thickness of side reinforcements | 8 mm |
Shock absorbers | 8 |

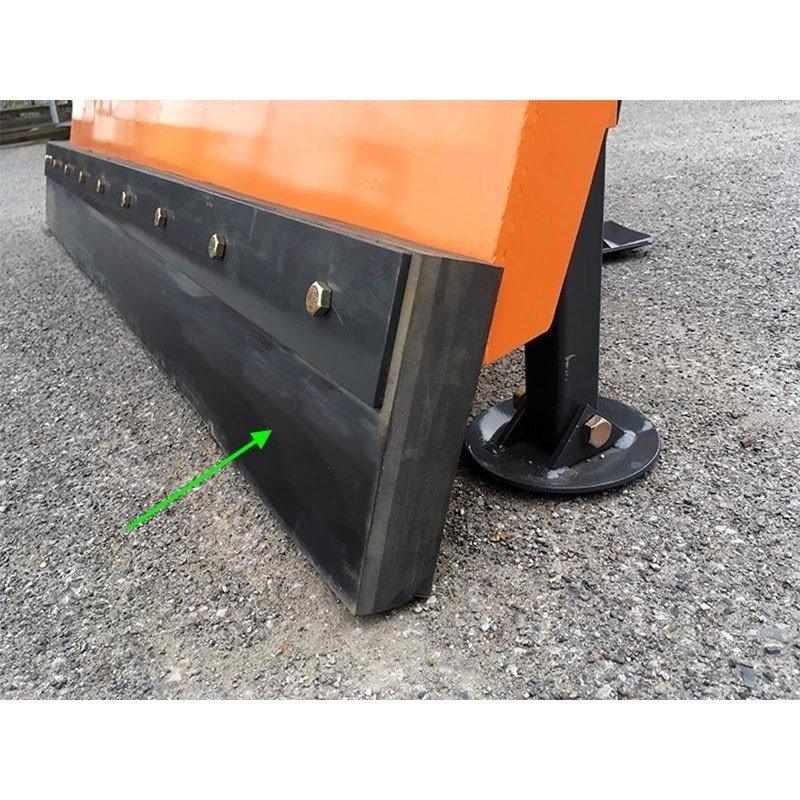

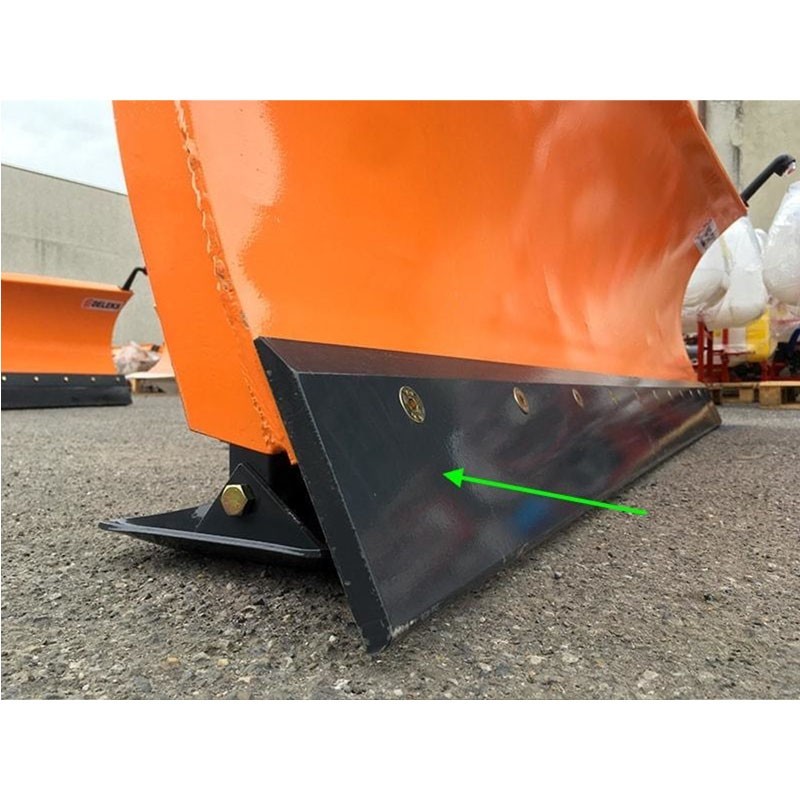

Blade | Steel or rubber |
Blade: height | 150 mm |
Blade: thickness | 16 mm |
Sharpening: number | 1 |
Sharpening: space between bolts | 200 mm |
Side lights | √ |
Side skids | √ |
Width of the blade (inclined) | 2231 mm |
Hydraulic tubes | 2 x 1500 mm / connections 1.2" AGRI, WP 400 bar |
Width of the blade | 2505 mm |
Sheet thickness | 5 mm |
ø piston/i | 60/30 mm |
Packaging dimension | 2505*800*830 mm |
