Snow plow Deleks SSH-04-2.6-A
- Weight : 490.0 kg
- Overall height : 880.0 mm
- Tractor power : 90 - 130 hp
€4,540.90 VAT incl.
Deleks products take about 15 to 25 days. |

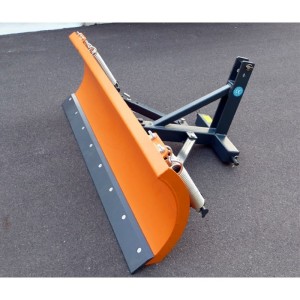

The Snow plow for tractor Deleks LNS-130-C It is a tractor attachment that is compatible with those tractors that provide a power between 12 and 30HP. This shovel is for front or rear use.
This model of Snowplow Deleks It is designed to remove snow from roads, parking lots, or for businesses. It features a robust structure which not only allows for snow removal, but also serves as a leveler.
The shovel is attached to the tractor with a Category 1 three-point hitch. This can be replaced by a plate or a mount for a compact mini-loader. The Shovel of Deleks LNS-130-C It is approved for public roads.
The model of Snow plow LNS-130-C of/from/about/by Deleks does not require hydraulic outlets. However, this model can optionally be equipped with a piston. This is for a right-to-left orientation (the tractor must have two hydraulic outlets).

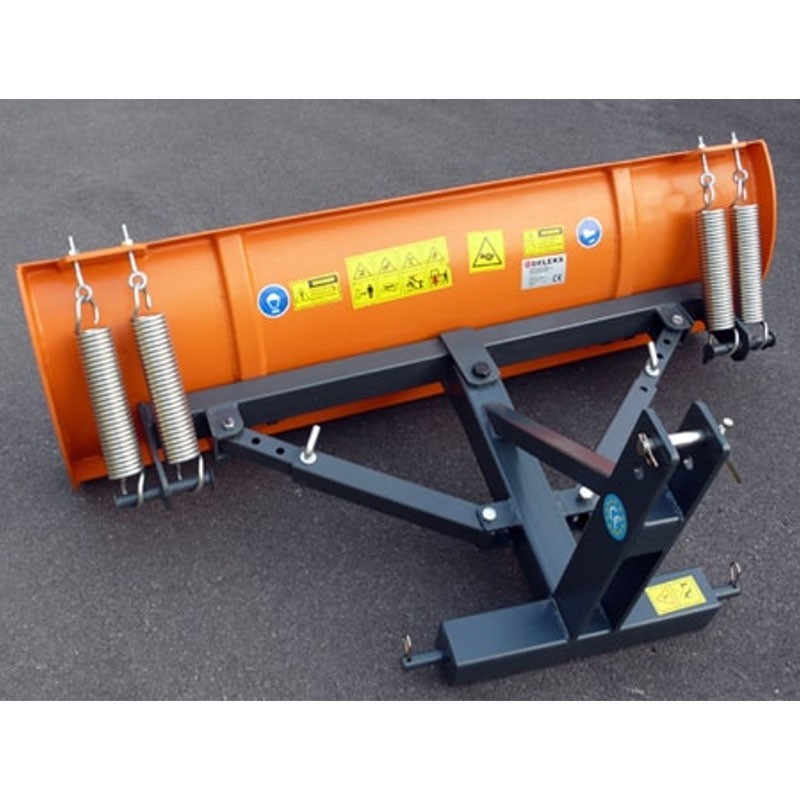

This SnowplowHas 4 shock-absorbing docks which allows the operator to work with maximum safety. Additionally, it is easy to assemble and use with great comfort. The blade of this model is replaceable.
Weight | 103 kg |
Total height | 880 mm |
Tractor power | 12-30 HP |
Total depth | 620 mm |
Distance between lower points | 710-740 mm |
Distance between 2 points and the ground | 300 mm |
Oil pressure min./max. | 110 - 150 bar |
Optional oil flow | 18 - 22 l/min |
Fixation | 3-point hitch CAT 1 (19 - 22 mm) |
Inclination | 28° |
Floatation device | +/- 2° |
Blade height | 525 mm |
Thickness of lateral reinforcements | 8 mm |
Shock absorbers | 4 |
Lama | Steel or rubber |
Llama: height | 120 mm |
Lama: thickness | 14 mm |
Sharp: number | 1 |
Sharp: space between bolts | 200 mm |
Side lights | x |
Side skates | x |
Width of the slat (inclined) | 1140 mm |
Hydraulic tubes | (Optional) 2 x 1500 mm / 1.2" AGRI connections, WP 400 bar |
Width of the blade | 1316 mm |
Thickness of the sheet | 4.0 mm |
ø piston/i | (Optional) 50 / 25 mm |
Packaging dimension | 1316*800*800 mm |
