| Deleks products take about 15 to 25 days. |

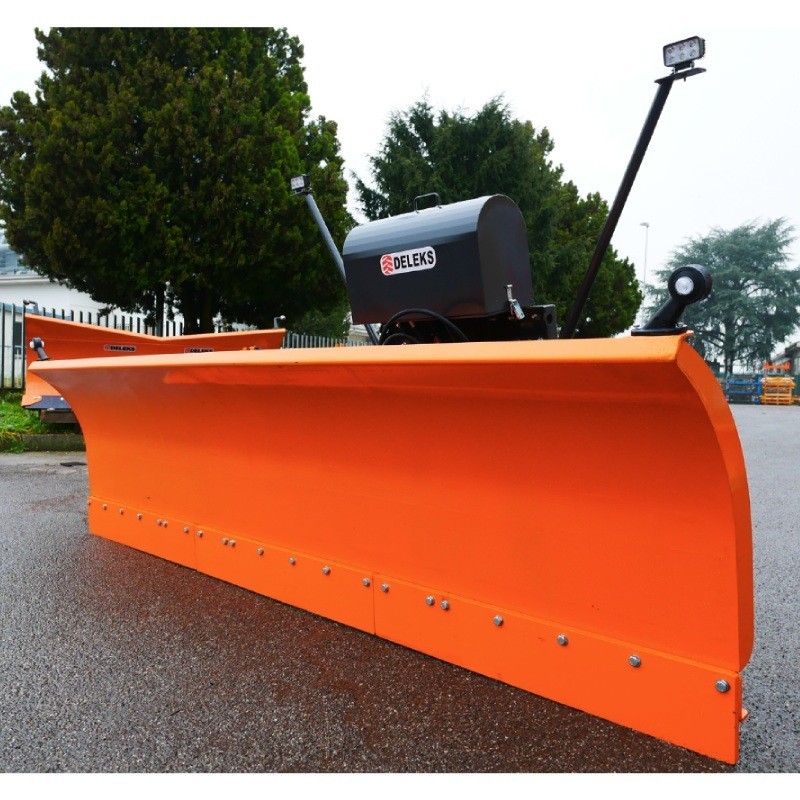

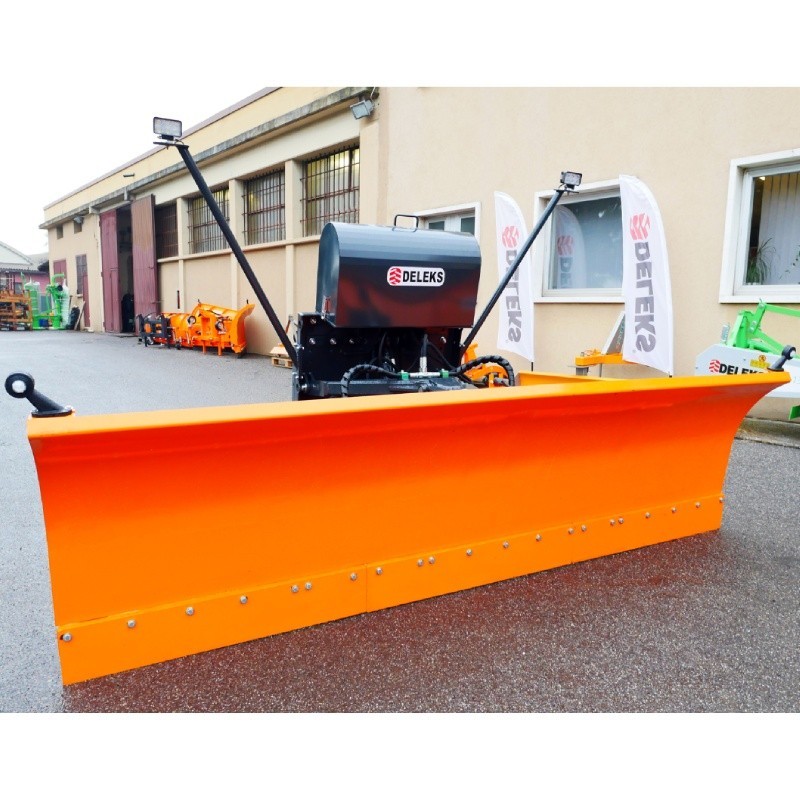

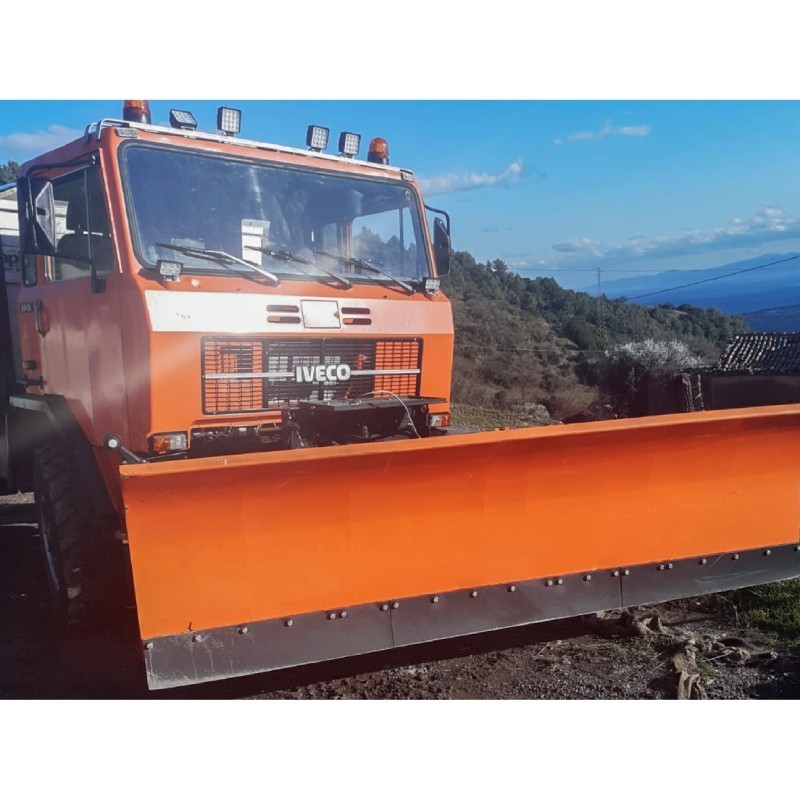

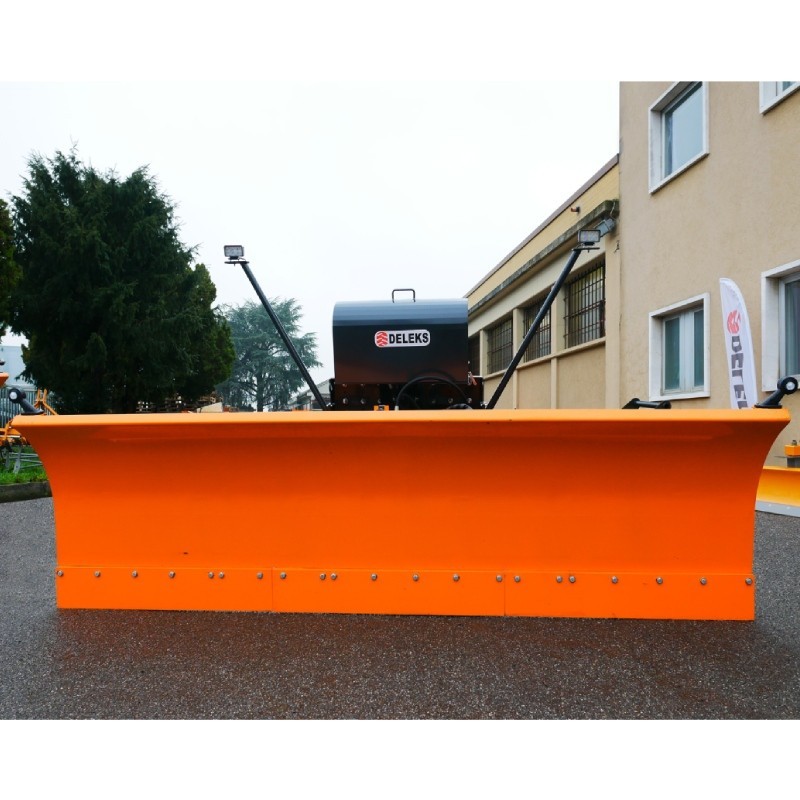

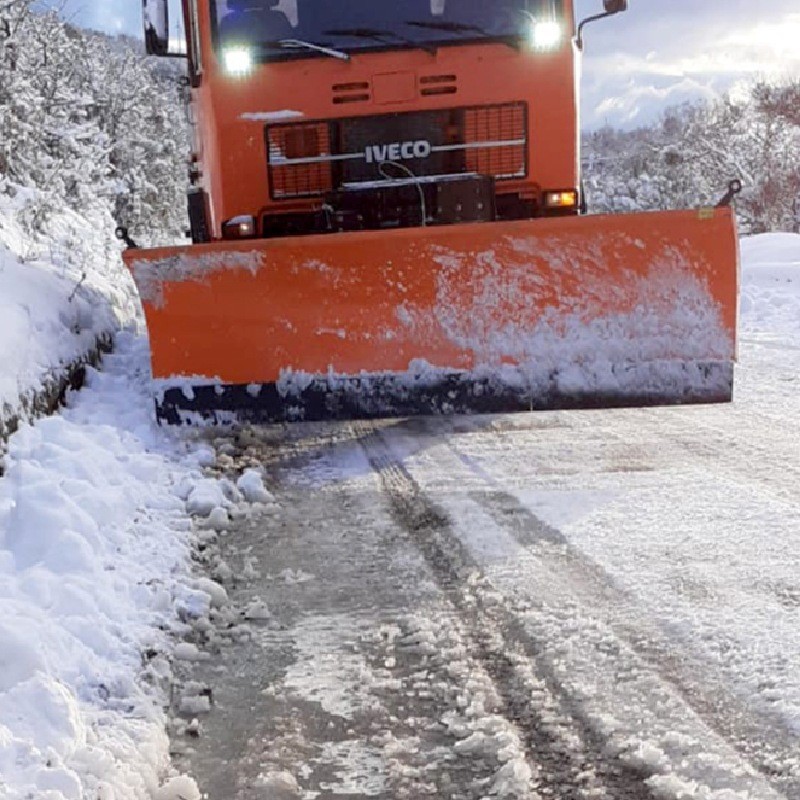

This snow plow SSH-04-3.0-A from the brand Deleks is an accessory for tractors like John Deere, Ford, New Holland, or Lamborghini that have 90 - 130 hp and for 4 x 4 vehicles like Bremach.

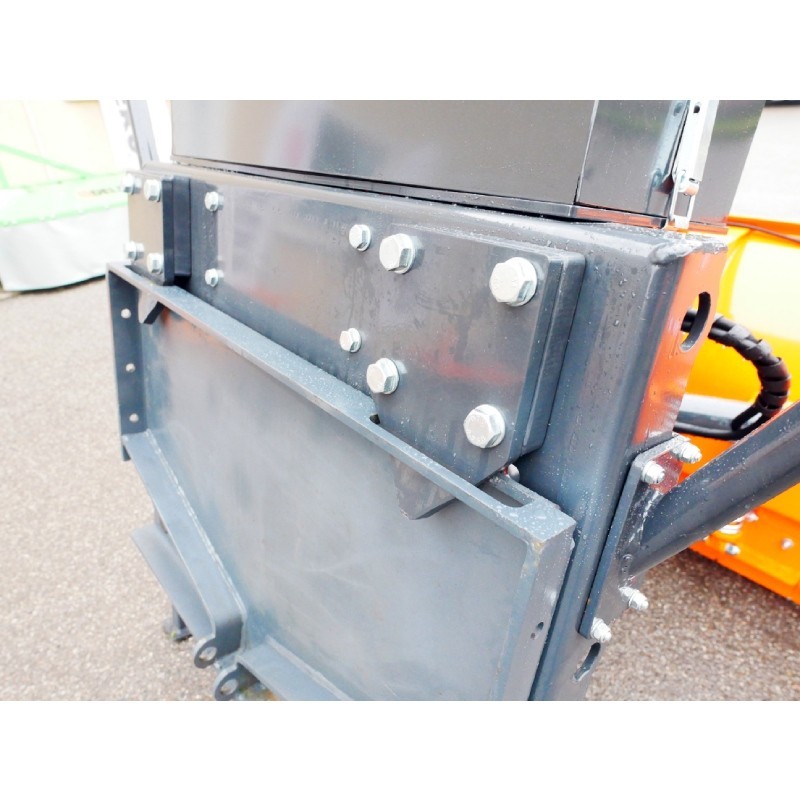

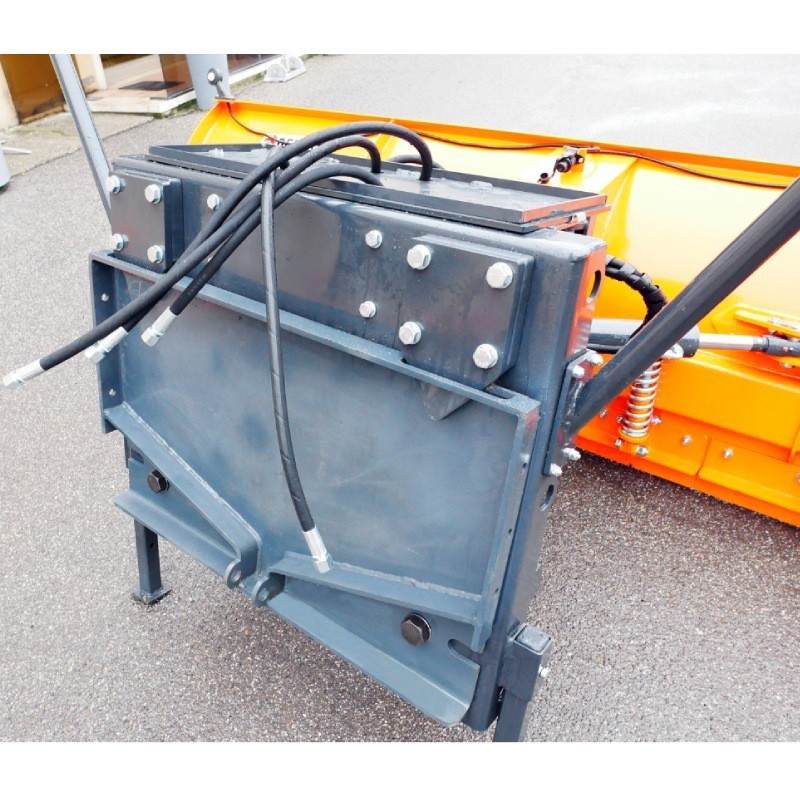

This model has a universal plate, with hydraulic lifting as well as orientation. The plow attaches to your vehicle with a robust mounting plate and 4 hydraulic tubes of 1.5 meters.

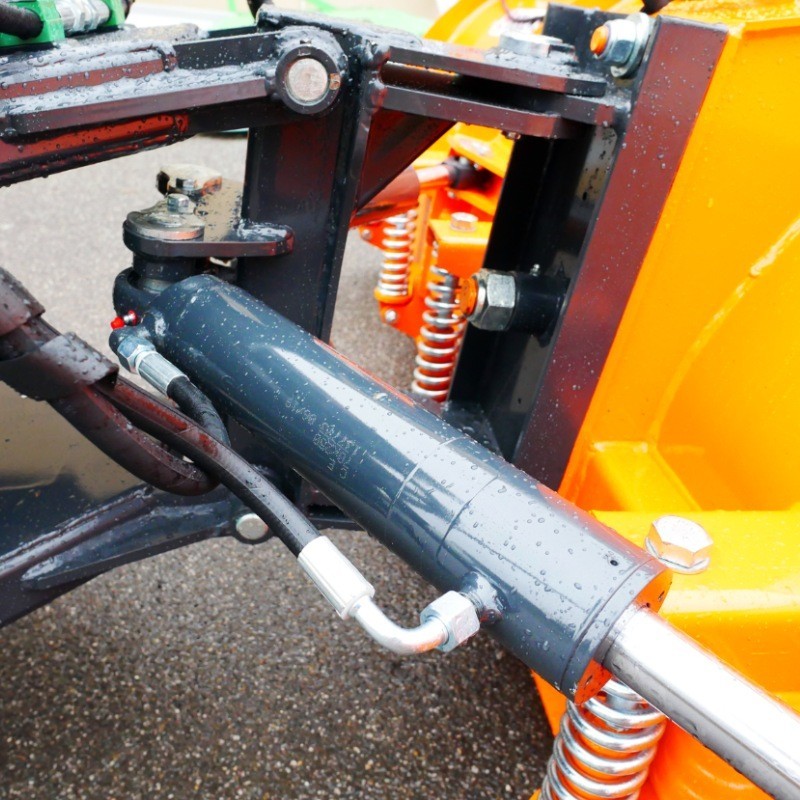

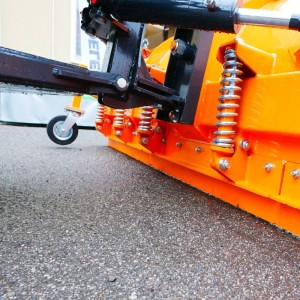

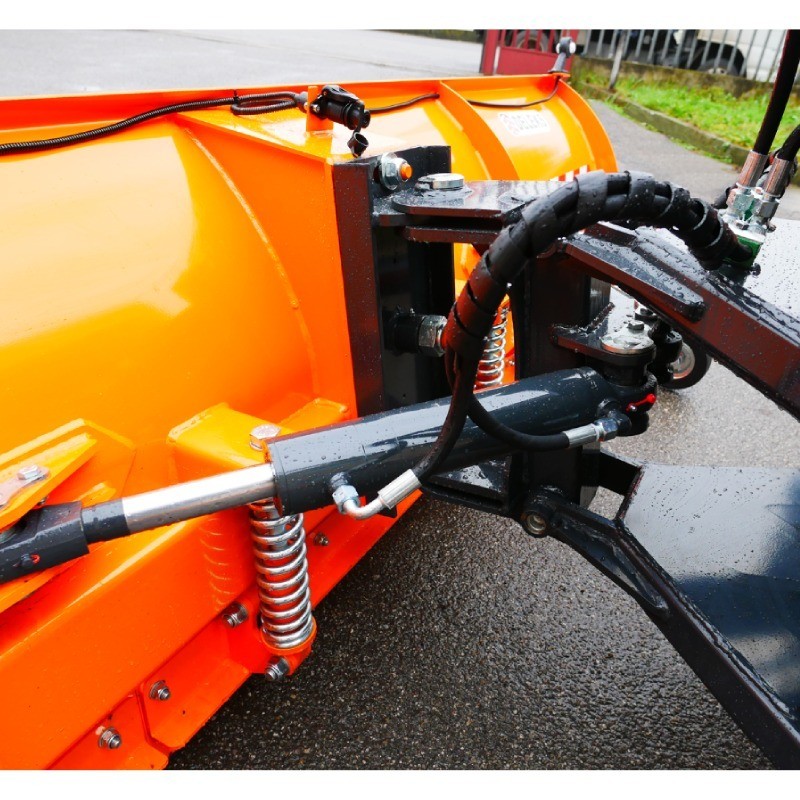

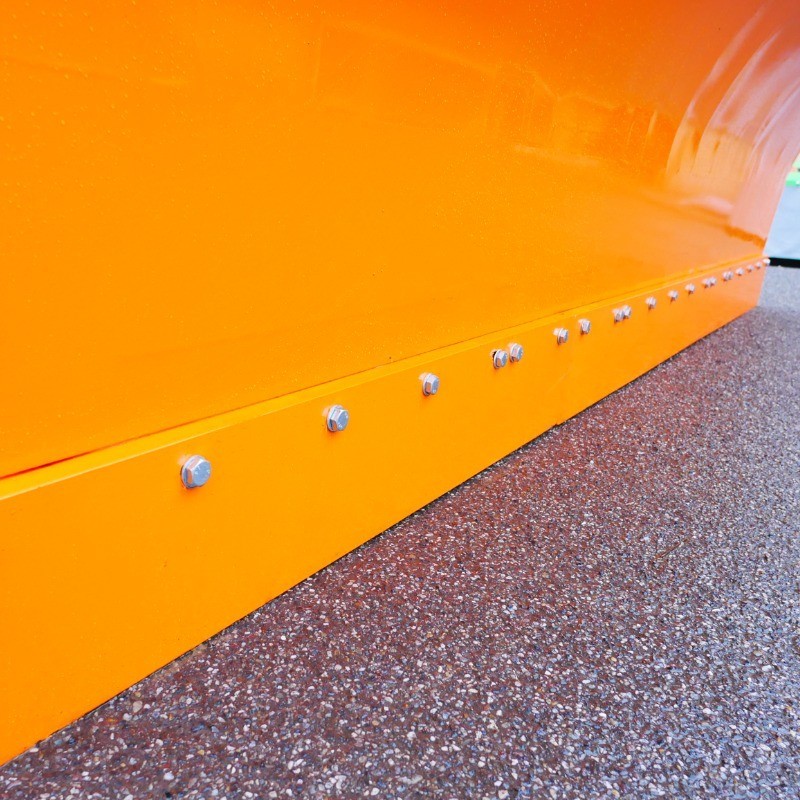

The snow plow comes with 6 anti-shock springs ensuring safety, 3 hydraulic pistons on the right, left, up, and down. Additionally, it has 3 independent blades.
Finally, this model is equipped with side wheels, which not only allow you to adjust the height to maintain the working depth but also adhere to the road, so you can use it on public roads without problems.
| Weight | 530 kg |
| Total height | 880.0 mm |
| Tractor power | 90 - 130 hp |
| Total depth | 900.0 mm |
| Oil pressure min./max | 110 - 150 bar |
| Optimal oil flow | 18 - 22 l/min |
| Mounting | UNIVERSAL PLATE |

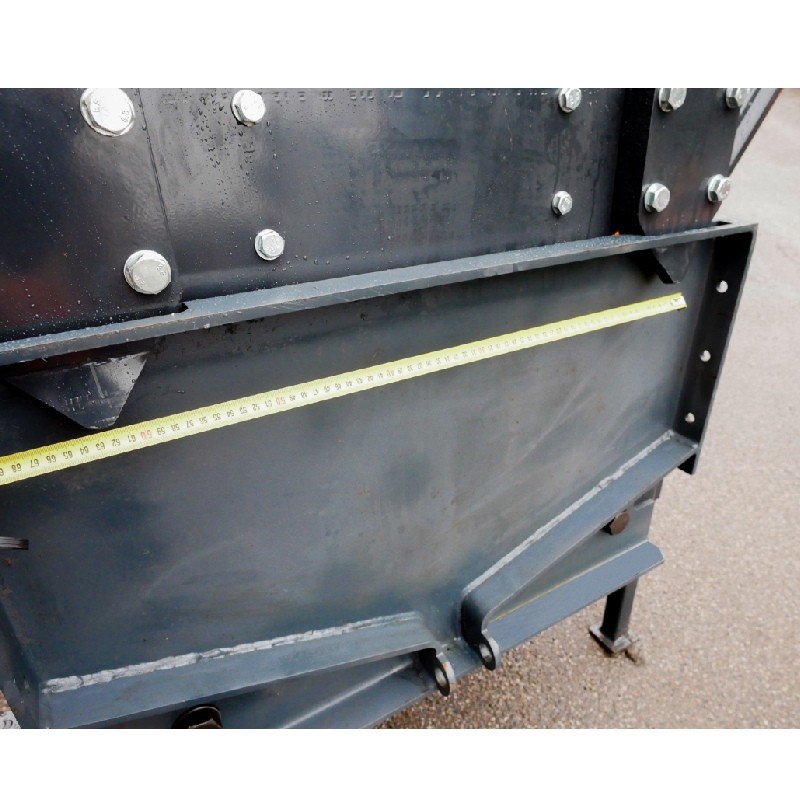

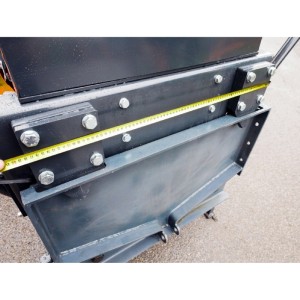

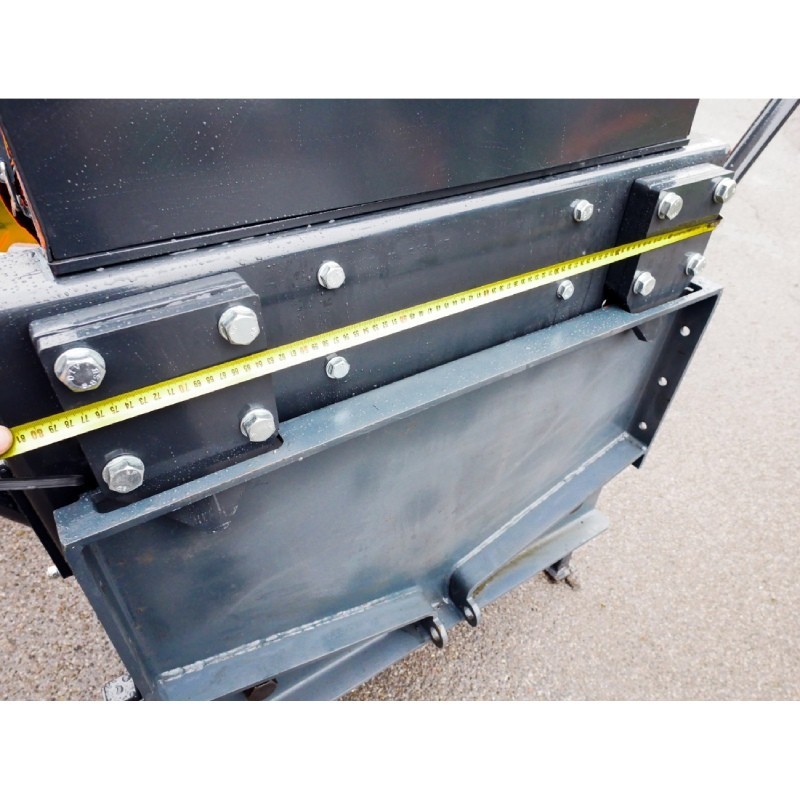

| Plate dimensions | 880.0*540.0 mm |
| Tilt | 25° |
| Float | +/- 4° |

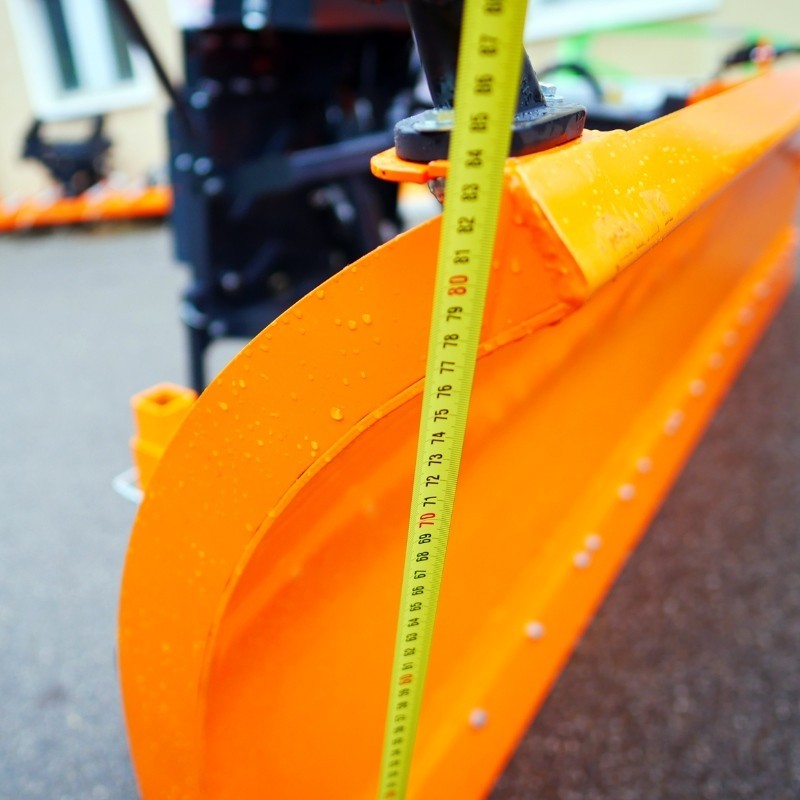

| Blade height | 880.0 mm |
| Thickness of side reinforcements | 7.0 mm |
| Shock absorbers | 6 |
| Space between ground and plate | 450.0 mm |
| Blade | Steel or rubber |
| Blade: height | 200.0 mm / 250.0 mm |
| Blade: thickness | 20.0 mm / 55.0 mm |
| Sharpening: number | 3 |
| Sharpening: space between bolts | 175.0 mm |

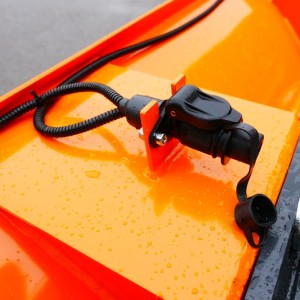

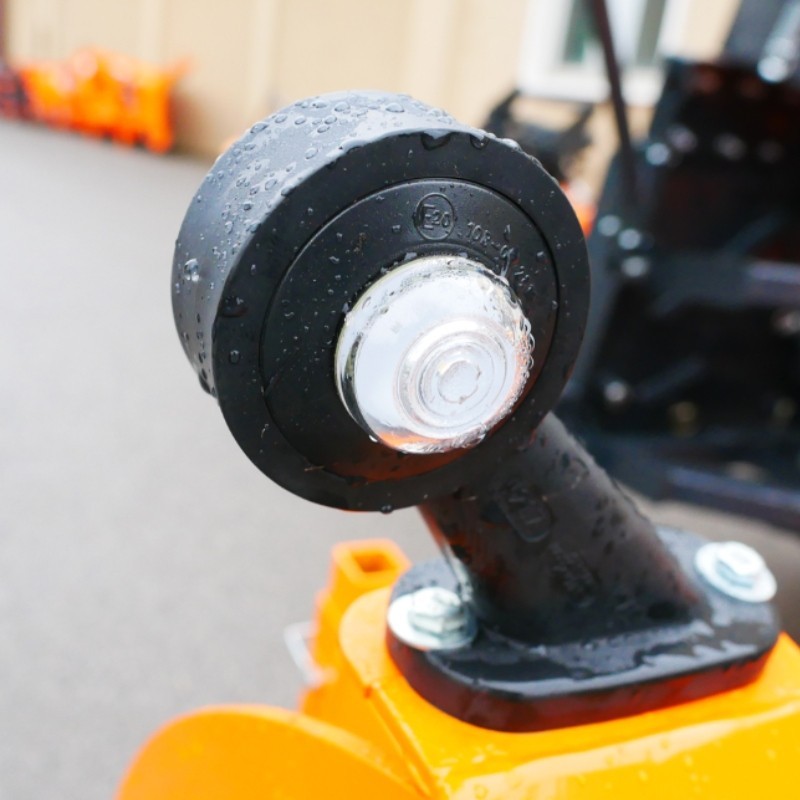

| Side lights | √ |
| Side skids | Wheels |
| Blade width (tilted) | 2600.0 mm |
| Hydraulic tubes | 4 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar |
| Blade width | 3000.0 mm |
| Sheet thickness | 4.0 mm |
| ø piston/i | 60.0 / 35.0 + 75.0 / 40.0 mm |
| Packaging dimension | 3000*1000*1000 mm |
| IMPORTANT NOTICE |
| For the correct delivery of this product, the customer will need a forklift or similar for unloading this product, and the address must be accessible for a 24t truck. |
