Snow plow for tractor Deleks LNV-250-E 50-90HP
- Tractor power: 50 - 90HP
- Blade width: 2540 mm
- Blade height: 920 mm
- Inclination: 30 degrees
€3,188.92 VAT incl.
Deleks products take about 15 to 25 days. |

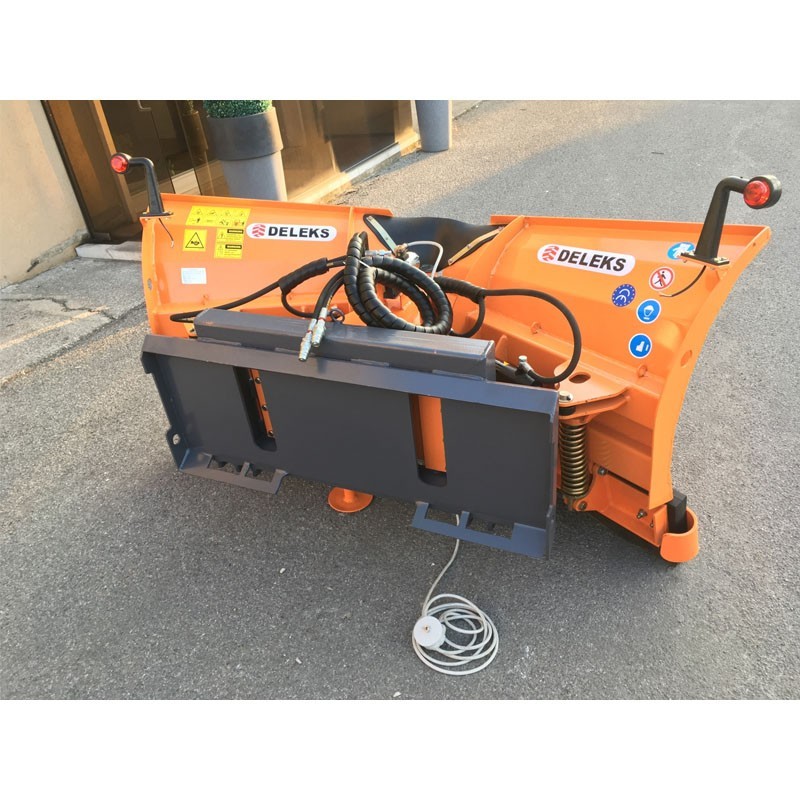

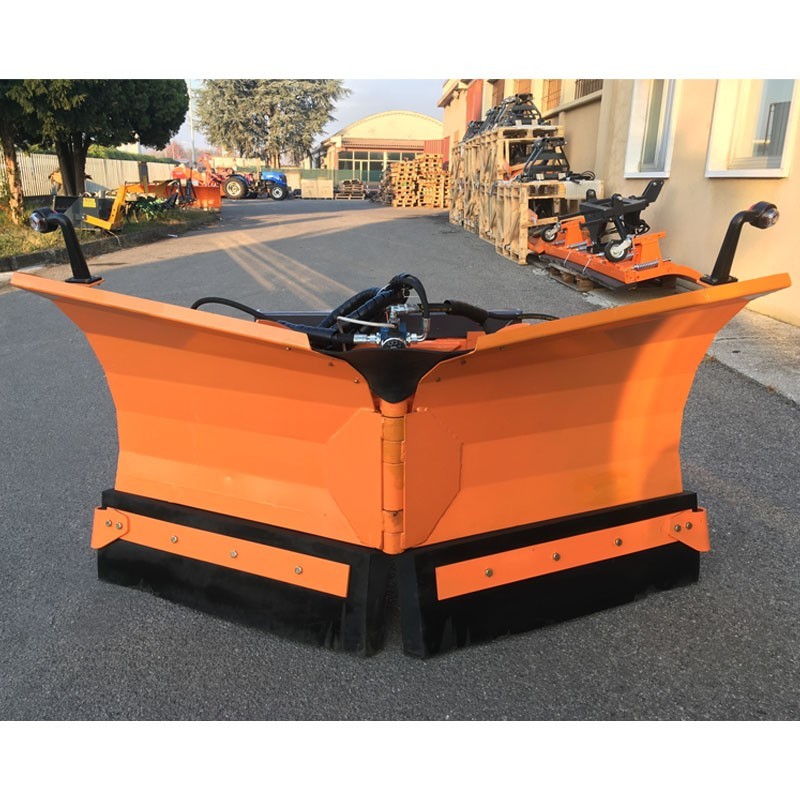

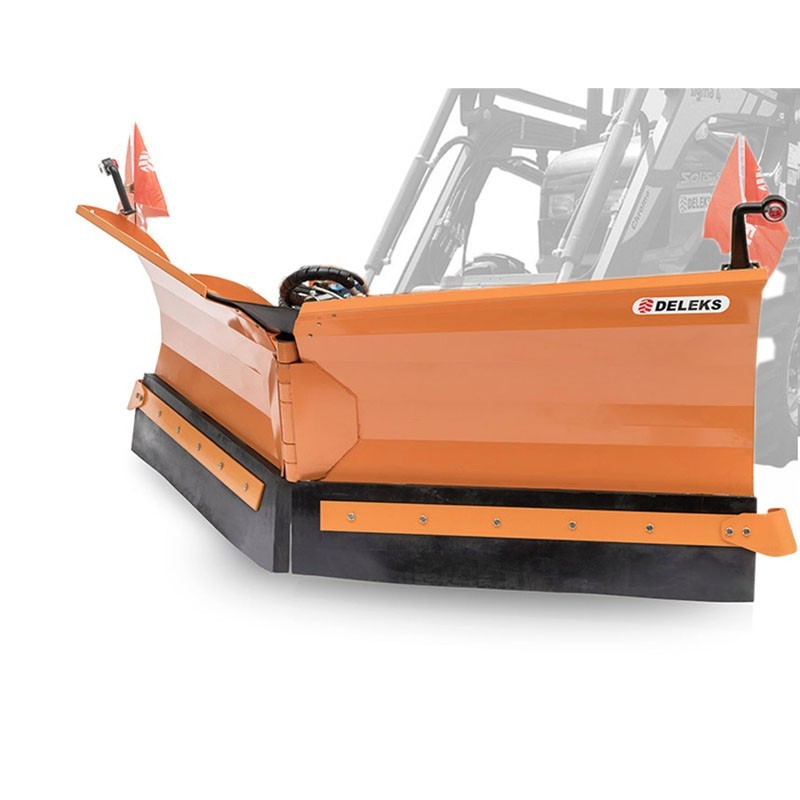

The Snow plow for tractor Deleks LNV-300-E It is a tractor attachment that is compatible with most tractor brands. This shovel is for use with tractors that have a front loader with a Power between 50 and 90HP.
This model of Snowplow Deleks It is designed to remove snow from roads, parking lots, or for businesses. It also features lateral oscillation that allows for perfect adherence to the road.

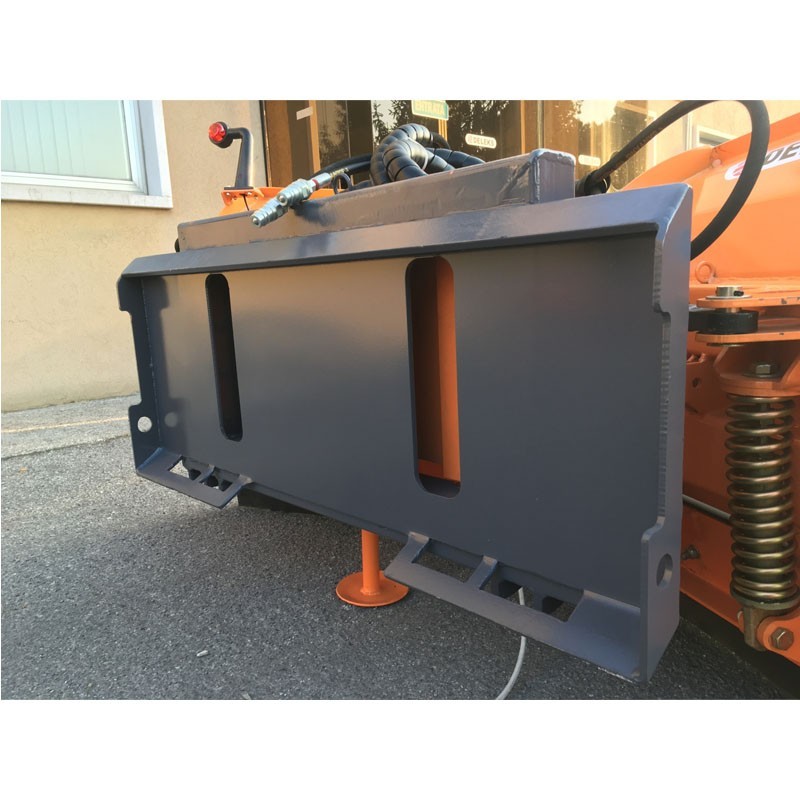

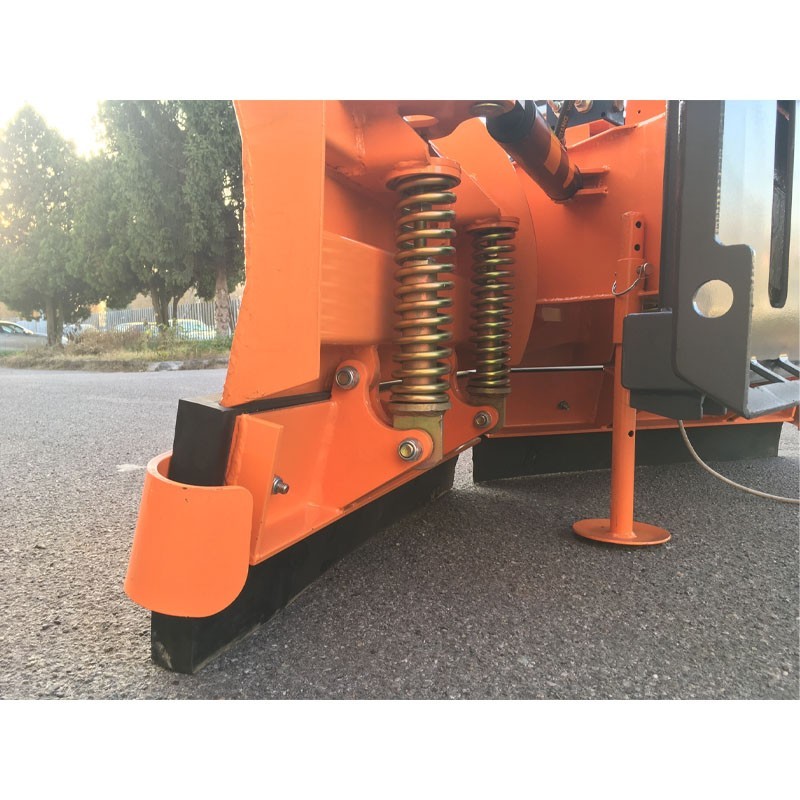

The shovel is attached to the tractor with a EURO support. This can be replaced by a 1-2 category 3-point hitch or by an attachment for a compact skid steer loader. It also features lights and adjustable side skids. This allows us to reduce the pressure at the blade level.

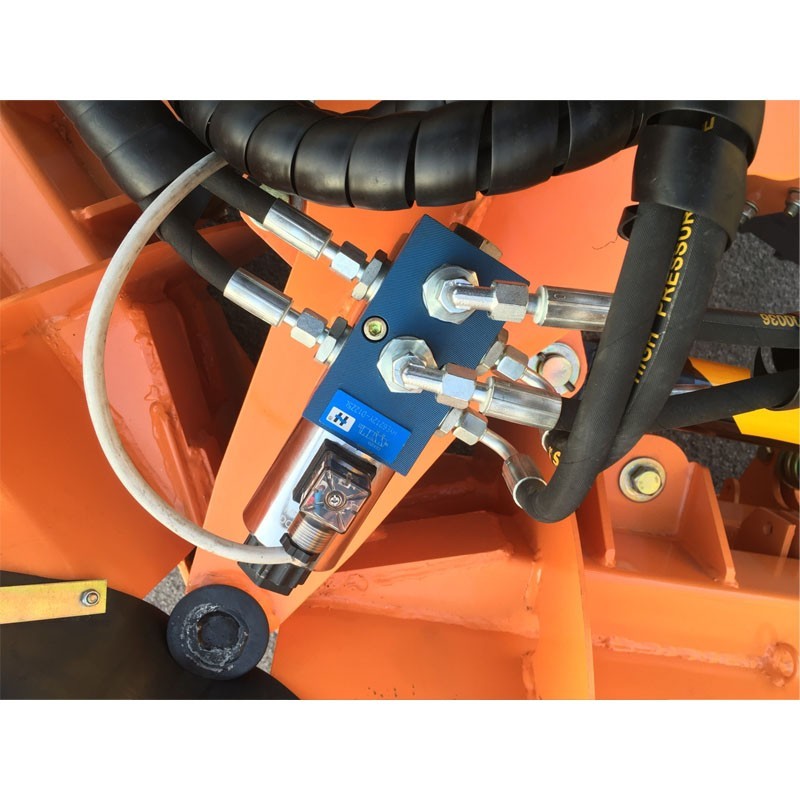

The model of LNV-300-E snow plow of/from/about/by Deleks It features a hydraulic control with 4 different positions. The right-to-left orientation It is operated hydraulically. This involves 2 pistons, a 6-output solenoid, and 2 hydraulic tubes of 2 meters.
This Shovel of Deleks LNV-300-EHas 4 anti-shock docks which allows the operator to work with maximum safety. Additionally, it features easy assembly and use with great comfort. The Snowplow It is approved for public roads and features 2 independent sheets.
Weight | 425 kg |
Total height | 1020 mm |
Tractor power | 60 - 90 hp |
Total depth | 870 mm |
Minimum/maximum oil pressure | 110 - 150 bar |
Optional oil flow | 18 - 22 l/min |
Fixation | EURO |
Inclination | 30° |
Floatation device | +/- 6° |
Blade height | 920 mm |
Thickness of lateral reinforcements | 5.0 mm |
Shock absorbers | 6 |
Lama | Rubber |
Llama: height | 265 mm |
Lama: thickness | 50 mm |
Sharp: number | 2 |
Sharp: space between bolts | 200 mm |
Side lights | √ |
Side skates | x |

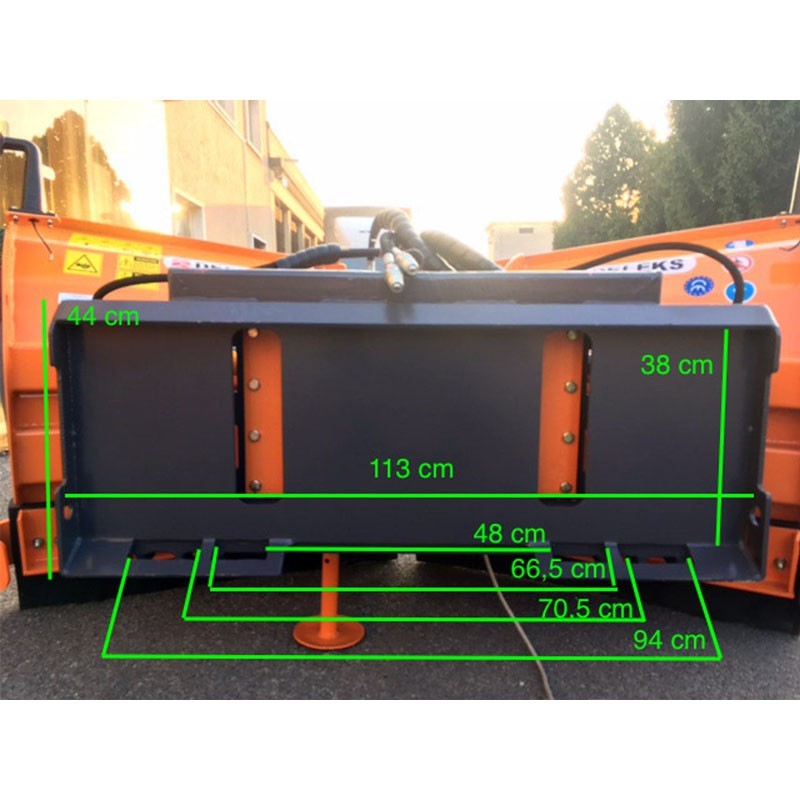

Plate dimensions | View images |
Width of the slat (inclined) | 2850 mm |
Hydraulic tubes | 2 x 2000 mm / connections 1.2" AGRI, WP 400 bar |
Width of the blade | 3020 mm |
Thickness of the sheet | 4 mm + reinforcements |
ø piston/i | 60/30 mm |
Packaging dimension | 3050*1000*800 mm |
Data sheet
