Snow plow for tractor Deleks LN-175-C
Snow plow for tractor Deleks LN-175-C
Snow plow for tractor Deleks LN-175-C
Snow plow for tractor Deleks LN-175-C
Snow plow for tractor Deleks LN-175-C

Snow plow for tractor Deleks LN-175-C

Rating:
(0)
  • Tractor power: 30 - 70 HP
  • Blade width (inclined): 1755 mm
  • Blade height: 700 mm
  • Inclination: 27 degrees
Deleks products take about 15 to 25 days.
En stock
icon Country of manufacture
Country of manufacture
Italy
€2,025.01 excl. VAT
- 4%
€1,944.01 excl. VAT
€2,352.25 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Snow plow for tractor Deleks LN-175-C
€2,352.25
Qty

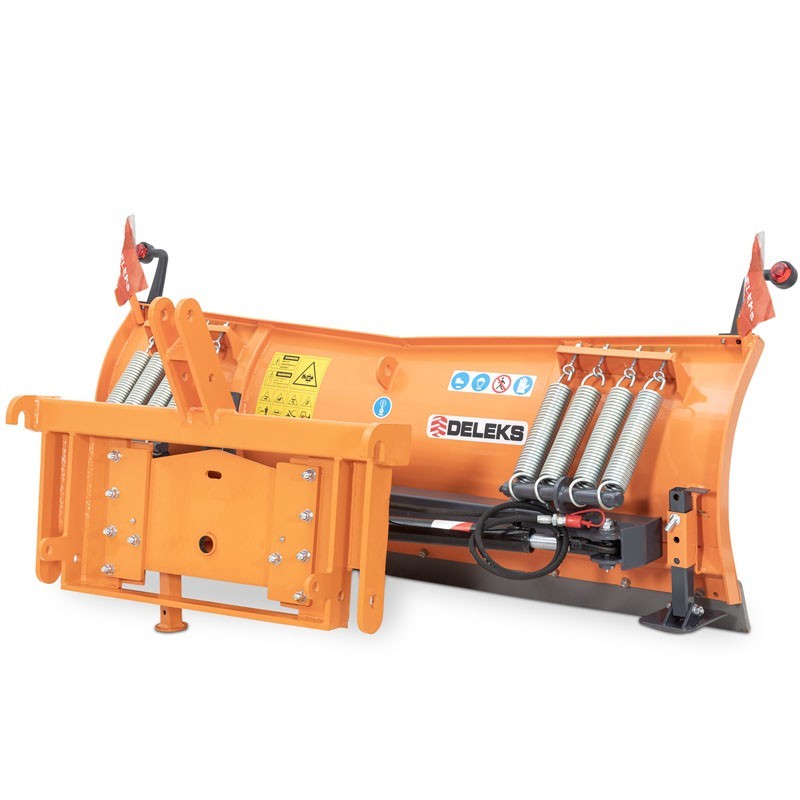

Snow Plow for Tractor Deleks LN-175-C

The Snow Plow for Tractor Deleks LN-175-C is a tractor attachment compatible with tractors that provide a power between 30 and 70HP. This plow is for front use or with a reversible tractor.

This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for companies. It is compatible with some front tractors (30 to 70HP) and with all reversible tractors.

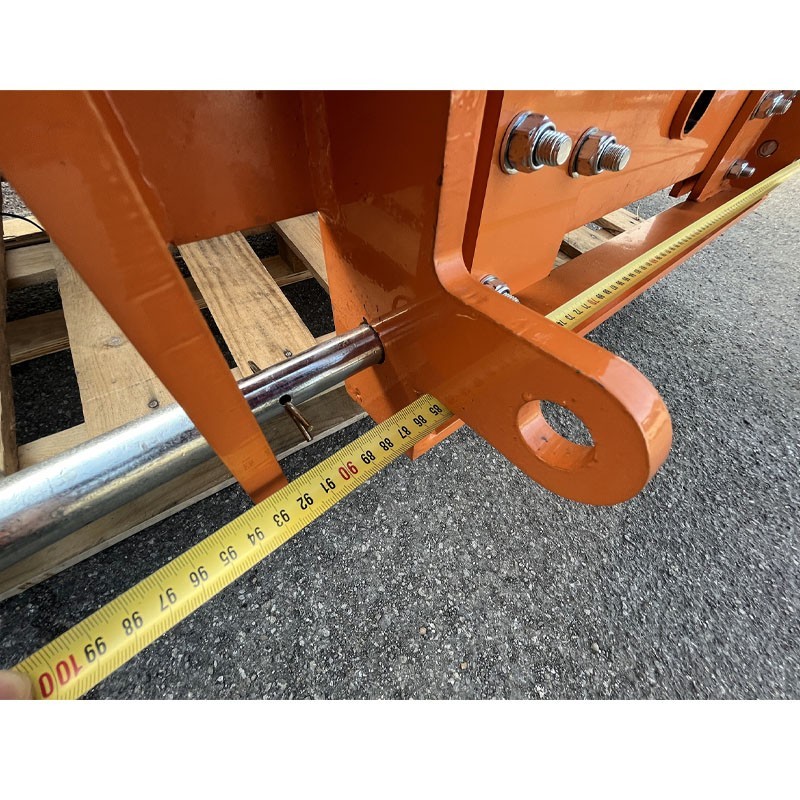

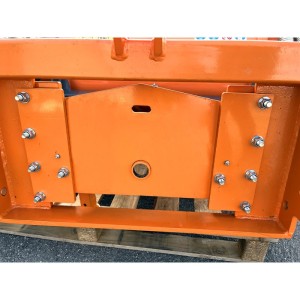

The plow is attached to the tractor with a 3-point hitch of category 1-2. This can be replaced by a plate or a support for a compact mini-loader. It also features adjustable side skids, allowing us to reduce the pressure at the blade level.

The model of Snow Plow LN-175-C by Deleks has two good hydraulic pistons. This is for a right to left orientation (the tractor must have two hydraulic outlets). Manufactured in Italy.

This Plow by Deleks LN-175-C features 8 anti-shock springs that allow the operator to work with maximum safety. Additionally, it is easy to assemble and use with great comfort. The Snow Plow is approved for public roads and has perfect adhesion to the road.

Characteristics

Weight 265 kg
Total height 700 mm
Tractor power 30 - 70 HP
Total depth 950 mm
Distance between lower points 780 - 920 mm
Distance between 2 points and the ground 250 mm
Oil pressure min./max 110 - 150 bar
Optional oil flow 18 - 22 l/min
Attachment 3-point hitch CAT 1-2 (19-22 / 25.0-28 mm)
Inclination 27°
Float +/- 6°
Blade height 700 mm
Thickness of side reinforcements 8 mm
Shock absorbers 8

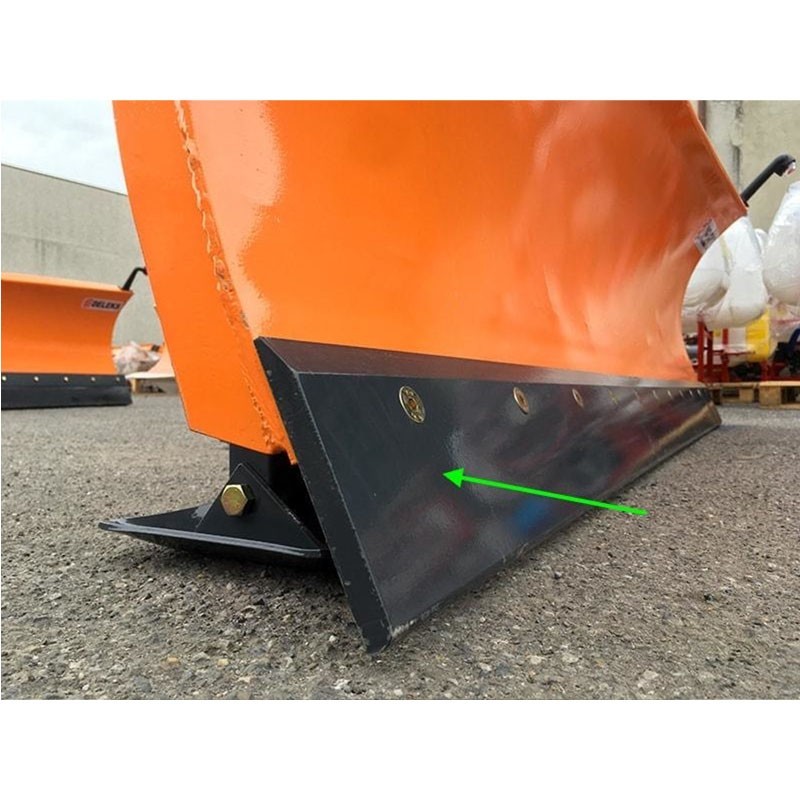

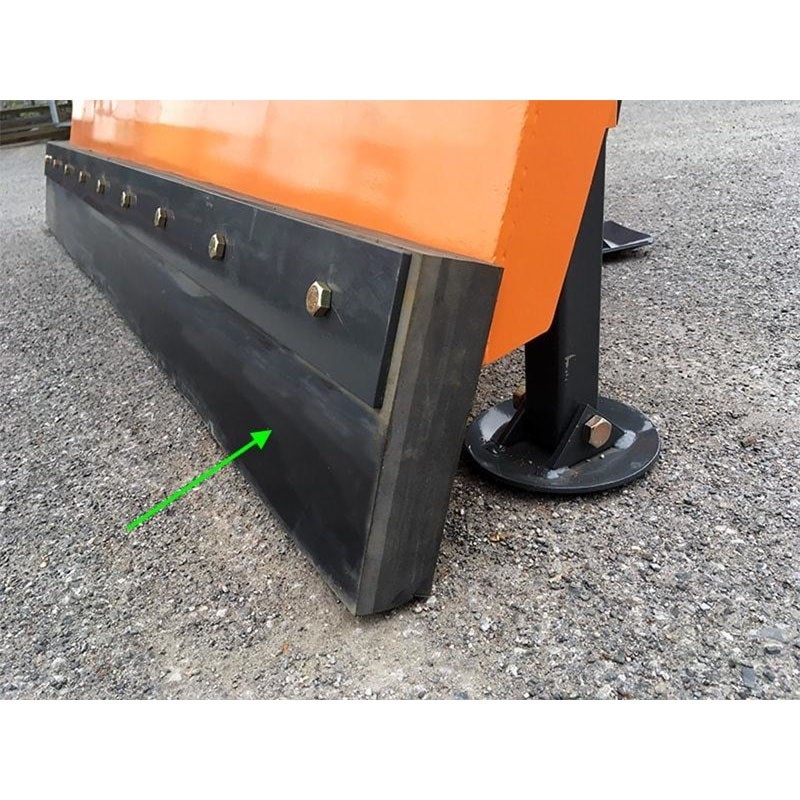

Blade Steel or rubber
Blade: height 150 mm
Blade: thickness 16 mm
Sharpening: number 1
Sharpening: space between bolts 200 mm
Side lights √
Side skids √
Width of the blade (inclined) 1563 mm
Hydraulic tubes 2 x 1500 mm / connections 1.2" AGRI, WP 400 bar
Width of the blade 1755 mm
Sheet thickness 5 mm
ø piston/i 60/30 mm
Packaging dimension 1755*800*830 mm
258116

Data sheet

Country of manufacture
Italy

Specific References

EAN-13
8053470231407
