Snow plow for tractor Deleks LN-220-E
Snow plow for tractor Deleks LN-220-E
Snow plow for tractor Deleks LN-220-E
Snow plow for tractor Deleks LN-220-E
Snow plow for tractor Deleks LN-220-E
Snow plow for tractor Deleks LN-220-E
Snow plow for tractor Deleks LN-220-E

Snow plow for tractor Deleks LN-220-E

Rating:
(0)
  • Tractor power: 50 - 80HP
  • Blade width: 2205 mm
  • Blade height: 700 mm
  • Inclination: 27 degrees
Deleks products take about 15 to 25 days.
En stock
icon Working width
Working width
220 - 229 cm
icon Country of manufacture
Country of manufacture
Italy
€2,364.74 excl. VAT
- 4%
€2,270.15 excl. VAT
€2,746.88 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Snow plow for tractor Deleks LN-220-E
€2,746.88
Qty

Snow Plow for Tractor Deleks LN-220-E

The Snow Plow for Tractor Deleks LN-220-E is a tractor attachment compatible with most tractor brands. This plow is for use with tractors that have a front loader with a power between 50 and 80HP.

This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for companies. It also features lateral oscillation that allows perfect adhesion to the road.

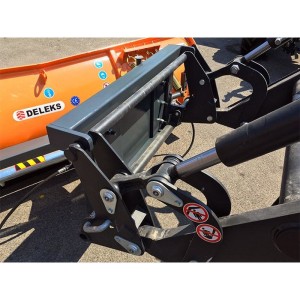

The plow is attached to the tractor with a EURO mount. This can be replaced by a 3-point hitch of category 1-2 or by a mount for a compact mini-loader. It also includes lights and adjustable side skids. This allows us to reduce the pressure at the blade level.

The model of Snow Plow LN-220-E by Deleks features hydraulic control with 2 different positions. The right to left orientation is done hydraulically. This is with 2 pistons and 2 hydraulic tubes of 1.5m.

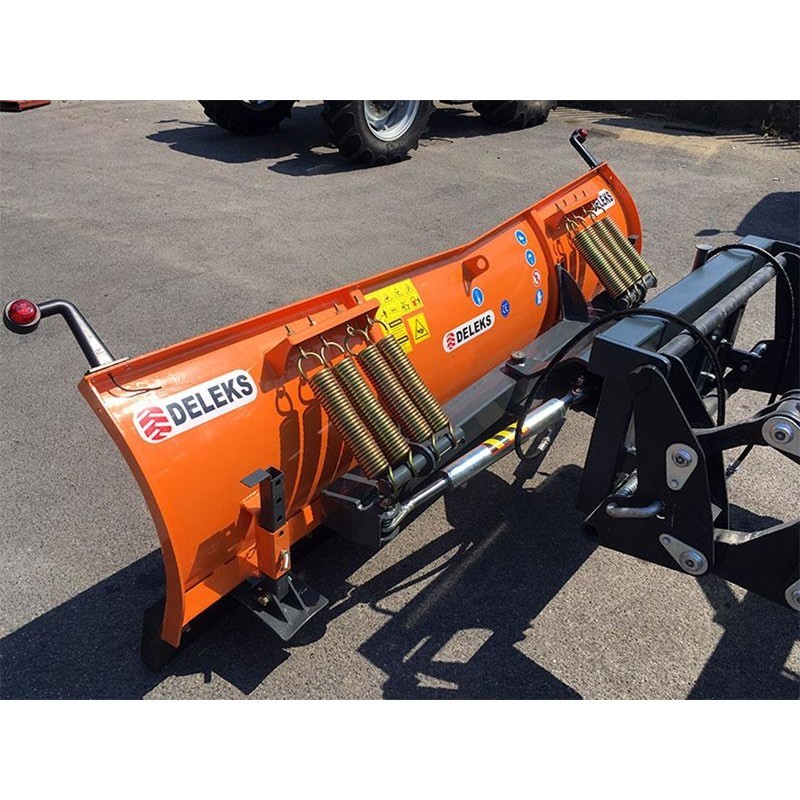

This Plow by Deleks LN-220-E has 8 anti-shock springs that allow the operator to work with maximum safety. Additionally, it is easy to assemble and use with great comfort. The Snow Plow is approved for public roads and has 2 independent blades.

Features

Weight 315 kg
Total height 700 mm
Tractor power 50 - 80 hp
Total depth 950 mm
Oil pressure min./max 110 - 150 bar
Optional oil flow 18 - 22 l/min
Mount EURO
Inclination 27°
Float +/- 4°
Blade height 700 mm
Thickness of side reinforcements 8 mm
Shock absorbers 8

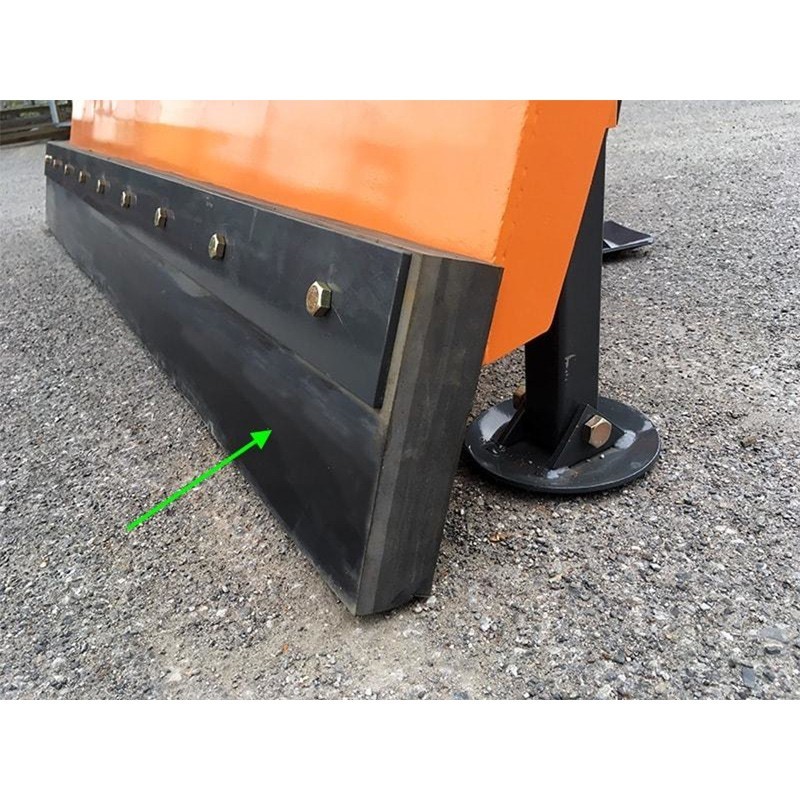

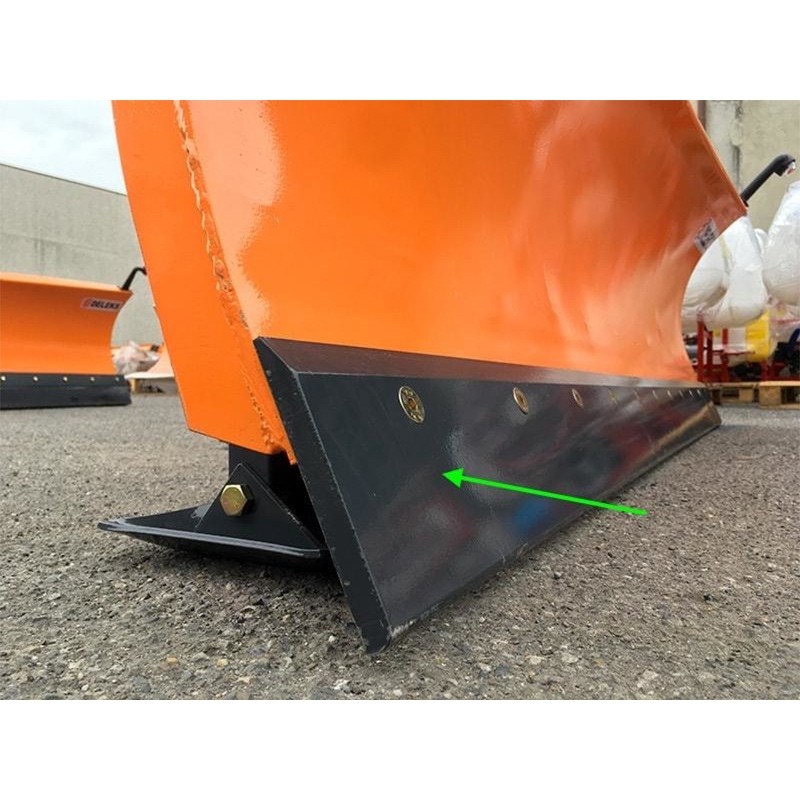

Blade Steel or rubber
Blade: height 150 mm
Blade: thickness 16 mm
Sharpening: number 1
Sharpening: bolt spacing 200 mm
Side lights √
Side skids √
Plate dimensions See images
Blade width (inclined) 1964 mm
Hydraulic tubes 2 x 1500 mm / connections 1.2" AGRI, WP 400 bar
Blade width 2205 mm
Sheet thickness 5 mm
ø piston/i 60/30 mm
Packaging dimension 2205*800*830 mm
258164

Data sheet

Working width
220 - 229 cm
Country of manufacture
Italy

Specific References

EAN-13
8053470231544
New
