Snow plow for tractor Deleks LNV-200-E 35-70HP
Snow plow for tractor Deleks LNV-200-E 35-70HP
Snow plow for tractor Deleks LNV-200-E 35-70HP
Snow plow for tractor Deleks LNV-200-E 35-70HP
Snow plow for tractor Deleks LNV-200-E 35-70HP
Snow plow for tractor Deleks LNV-200-E 35-70HP
Snow plow for tractor Deleks LNV-200-E 35-70HP

Snow plow for tractor Deleks LNV-200-E 35-70HP

Rating:
(0)
  • Slat width: 2020 mm
  • Slat height: 920 mm
  • Inclination: 30 degrees
  • Weight: 345 kg
Deleks products take about 15 to 25 days.
En stock
icon Working width
Working width
200 - 209 cm
icon Country of manufacture
Country of manufacture
Italy
€2,519.16 excl. VAT
- 4%
€2,418.39 excl. VAT
€2,926.25 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Snow plow for tractor Deleks LNV-200-E 35-70HP
€2,926.25
Qty

Snow Plow for Tractor Deleks LNV-200-E

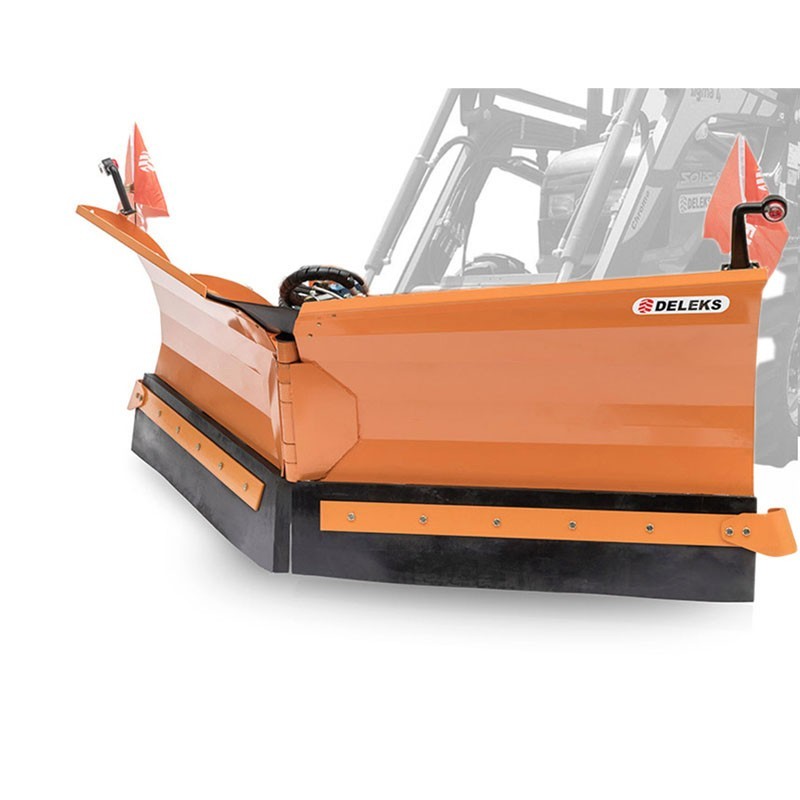

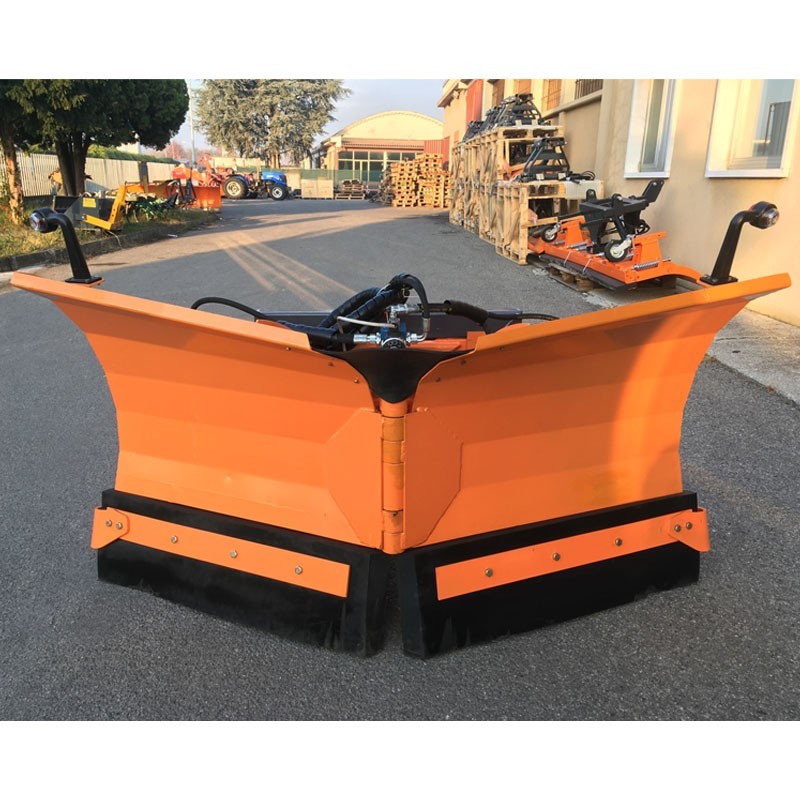

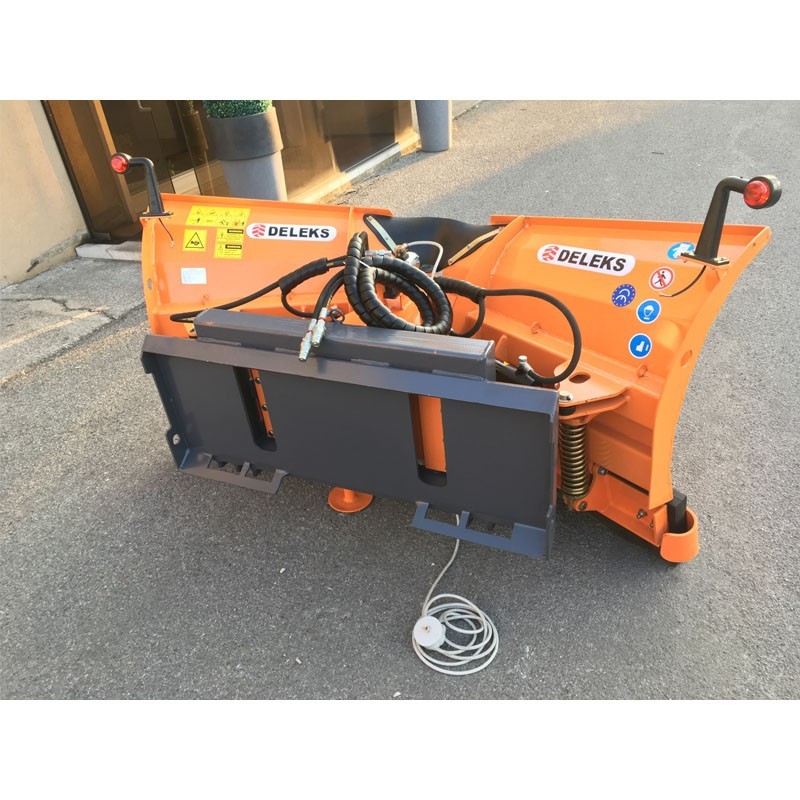

The Snow Plow for Tractor Deleks LNV-200-E is a tractor attachment compatible with most tractor brands. This plow is for use with tractors that have a front loader. Power between 35 and 70HP

This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for businesses. It also features lateral oscillation that allows perfect adhesion to the road.

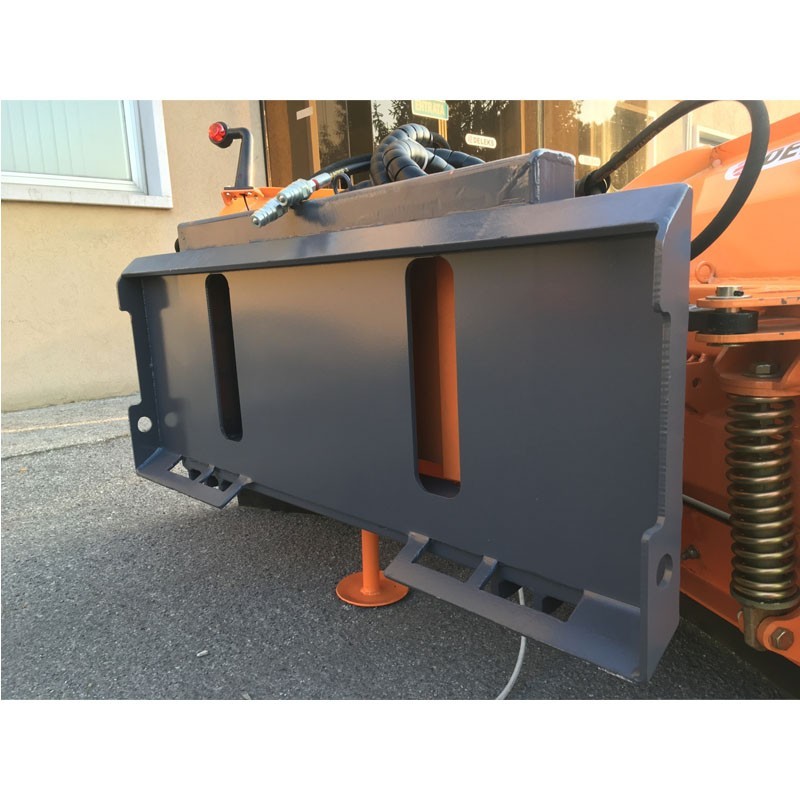

The plow is attached to the tractor with a EURO mount. This can be replaced with a 3-point hitch category 1-2 or a compact mini-loader mount. It also has lights and adjustable side skids. This allows us to reduce the pressure at the blade level.

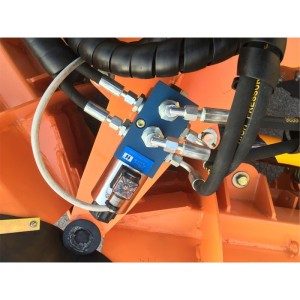

The model of Snow Plow LNV-200-E by Deleks features hydraulic control with 4 different positions. The right to left orientation is done hydraulically. This is with 2 pistons, a 6-way solenoid, and 2 hydraulic tubes of 2m.

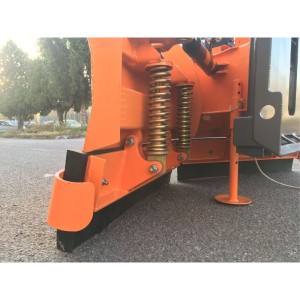

This Plow by Deleks LNV-200-E has 4 shock-absorbing springs that allow the operator to work with maximum safety. Additionally, it is easy to assemble and use with great comfort. The Snow Plow is approved for public roads and has 2 independent blades.

Features

Weight 345 kg
Total height 1020 mm
Tractor power 35 - 70 HP
Total depth 870 mm
Oil pressure min./max 110 - 150 bar
Optional oil flow 18 - 22 l/min
Mounting EURO
Tilt 30°
Float +/- 6°
Blade height 920 mm
Thickness of side reinforcements 5 mm
Shock absorbers 4
Blade Rubber
Blade: height 265 mm
Blade: thickness 50 mm
Sharpening: number 2
Sharpening: bolt spacing 200 mm
Side lights √
Side skids x

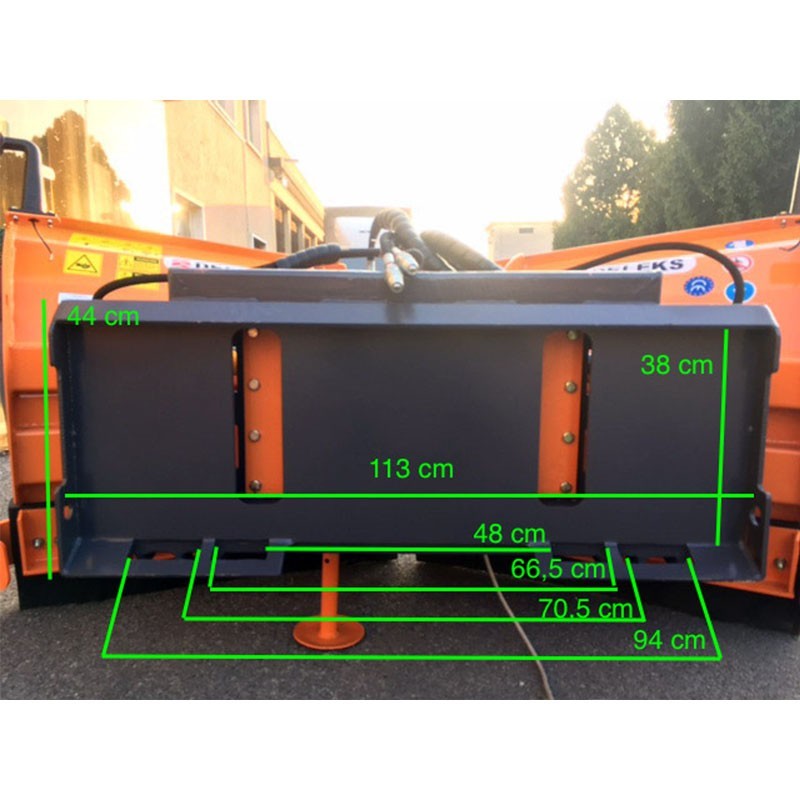

Plate dimensions See images
Blade width (tilted) 1900 mm
Hydraulic tubes 2 x 2000 mm / connections 1.2" AGRI, WP 400 bar
Blade width 2020 mm
Sheet thickness 4 mm + reinforcements
ø piston/i 60/30 mm
Packaging dimensions 2050*1000*800 mm
258142

Data sheet

Working width
200 - 209 cm
Country of manufacture
Italy

Specific References

EAN-13
8053470231575
