Shovel for Wheel Loader Geo Italy SP Skidloader
- For wheel loaders
- Soft cushioning
- Rubber or steel blades on request
- Hydraulic blade orientation
€1,652.17 VAT incl.
Deleks products take about 15 to 25 days. |
The Snow plow for tractor Deleks LNV-200-C It is a tractor attachment that is compatible with those tractors that provide a Power between 35 and 70HP. This shovel is for front use or with a reversible tractor.
This model of Snowplow Deleks It is designed to remove snow from roads, parking lots, or for businesses. It is compatible with some front tractors (35 to 70HP) and with all reversible tractors.

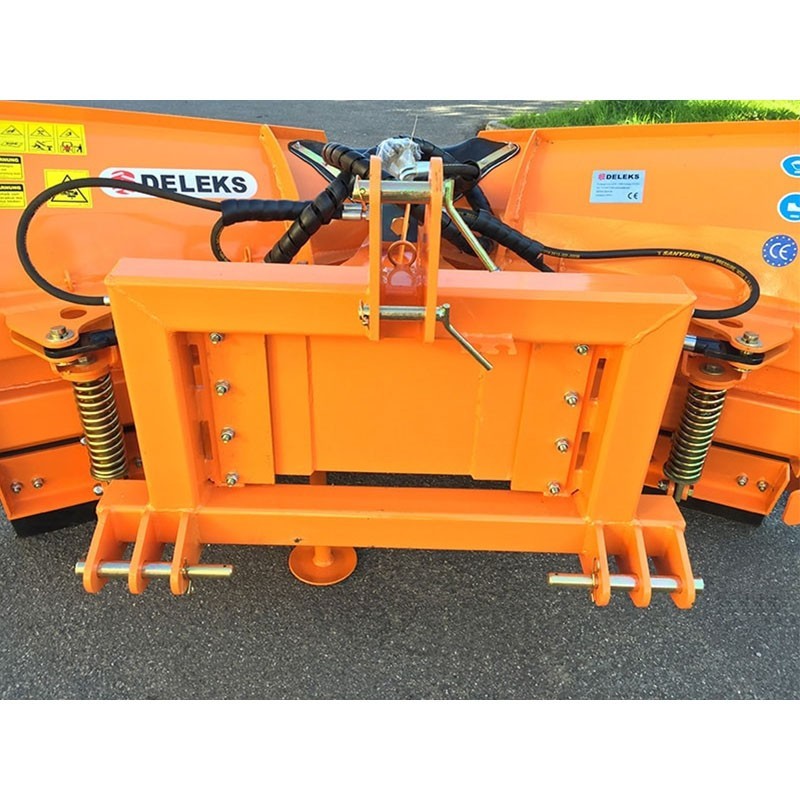

The shovel is attached to the tractor with a 1-2 category 3-point hitch. This can be replaced by a EURO plate or by a mount for a compact skid steer loader. It also features lights and adjustable side skids. This allows us to reduce the pressure at the blade level.

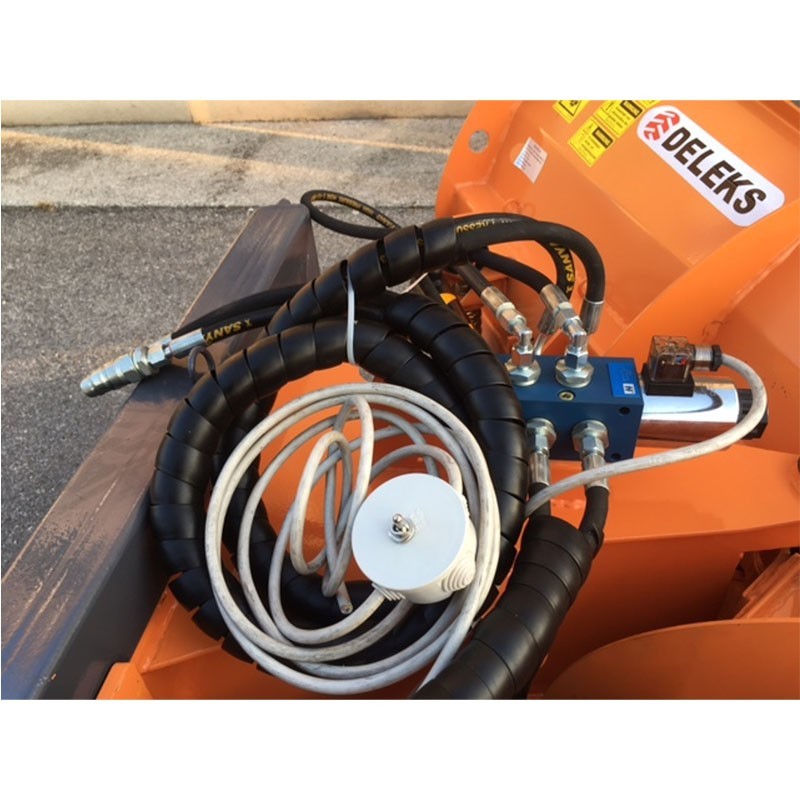

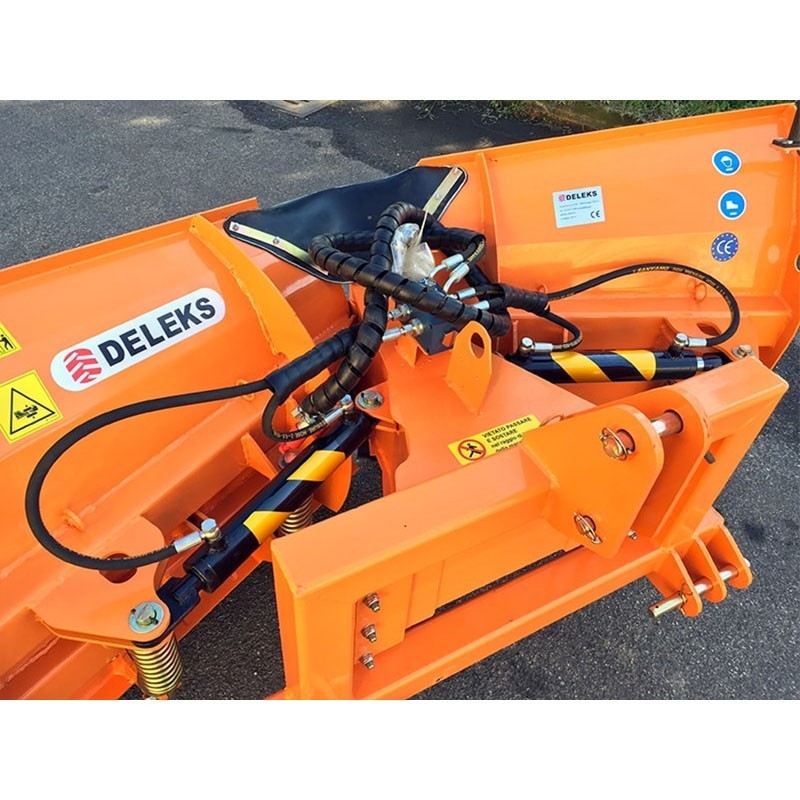

The model of LNV-200-C snow plow of/from/about/by Deleks It features a hydraulic control with 4 different positions. The right-to-left orientation It is operated hydraulically. This involves 2 pistons, a 6-output solenoid, and 2 hydraulic tubes of 2 meters.

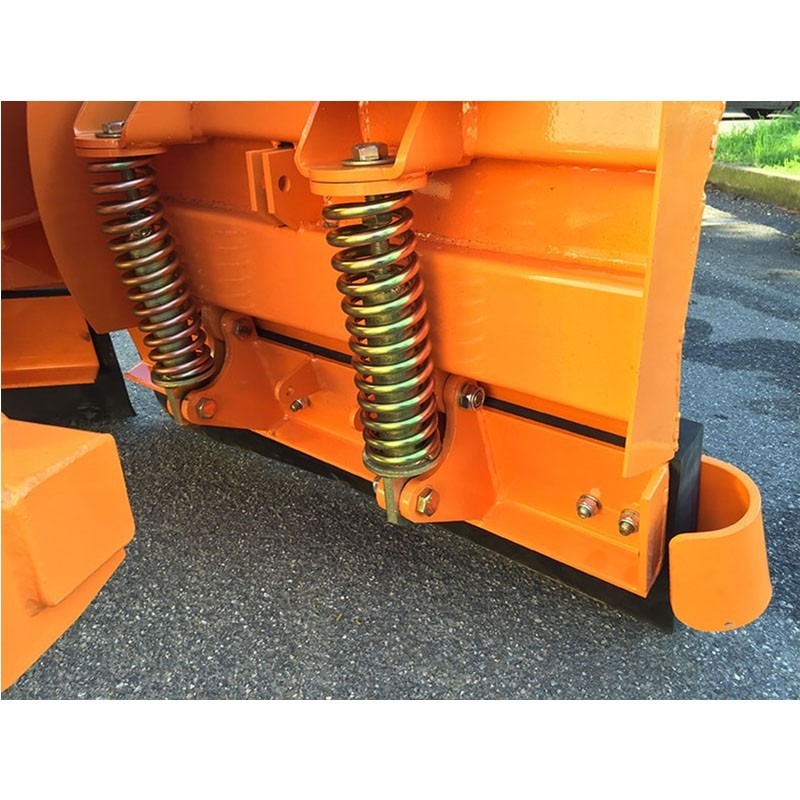

This Shovel of Deleks LNV-200-CHas 4 anti-shock docks which allows the operator to work with maximum safety. Additionally, it features easy assembly and use with great comfort. The Snowplow It is approved for public roads and features two independent slats.
Weight | 330 kg |
Total height | 1020 mm |
Tractor power | 35 - 70 HP |
Total depth | 870 mm |
Distance between lower points | 635 - 970 mm |
Distance between 2 points and the ground | 180 mm |
Minimum/maximum oil pressure | 110 - 150 bar |
Optional oil flow | 18 - 22 l/min |
Fixation | 3-point hitch CAT 1-2 (19-22 / 25-28 mm) |
Inclination | 30° |
Floatation device | +/- 6° |
Blade height | 920 mm |
Thickness of lateral reinforcements | 5 mm |
Shock absorbers | 4 |
Lama | Rubber |
Llama: height | 265 mm |
Lama: thickness | 50 mm |
Sharp: number | 2 |
Sharp: space between bolts | 200 mm |
Side lights | √ |
Side skates | x |
Width of the slat (inclined) | 1900 mm |
Hydraulic tubes | 2 x 2000 mm / connections 1.2" AGRI, WP 400 bar |
Width of the blade | 2020 mm |
Thickness of the sheet | 4 mm + reinforcements |
ø piston/i | 60/30 mm |
Packaging dimension | 2050*1000*800 mm |
