Rating:
(0)
  • Tractor power: 60 - 90 HP
  • Blade width: 3020 mm
  • Blade height: 920 mm
  • Inclination: 30 degrees
Deleks products take about 15 to 25 days.
En stock
icon Working width
Working width
300 - 309 cm
icon Country of manufacture
Country of manufacture
Italy
€2,638.52 excl. VAT
- 4%
€2,532.98 excl. VAT
€3,064.91 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Snow plow for tractor Deleks LNV-300-C 60-90HP
€3,064.91
Qty

Snow Plow for Tractor Deleks LNV-300-C

The Snow Plow for Tractor Deleks LNV-300-C is a tractor attachment compatible with tractors that provide a power between 60 and 90HP. This plow is for front use or with a reversible tractor.

This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for companies. It is compatible with some front tractors (60 to 90HP) and with all reversible tractors.

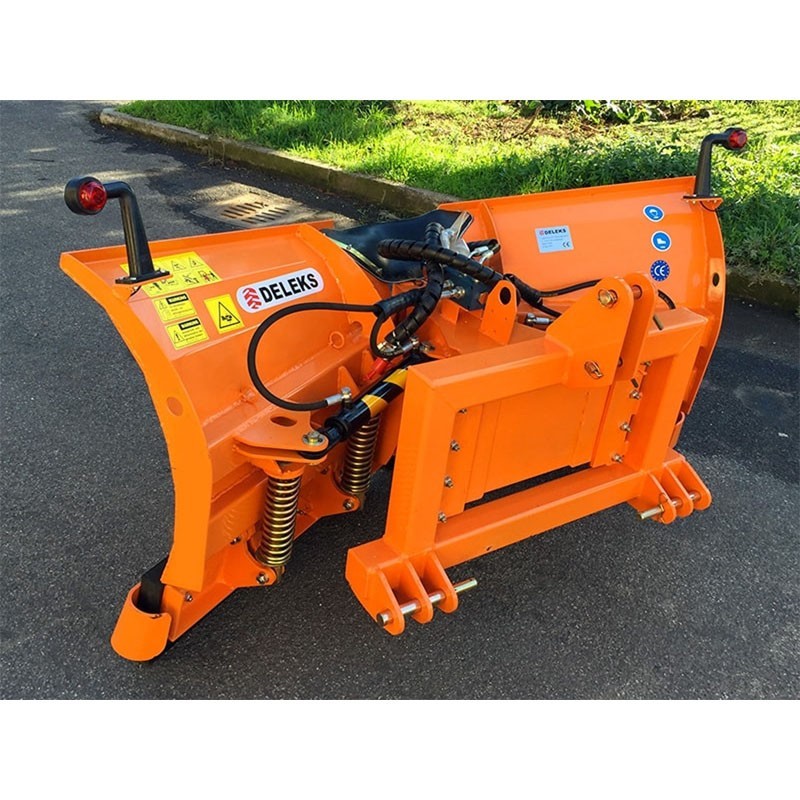

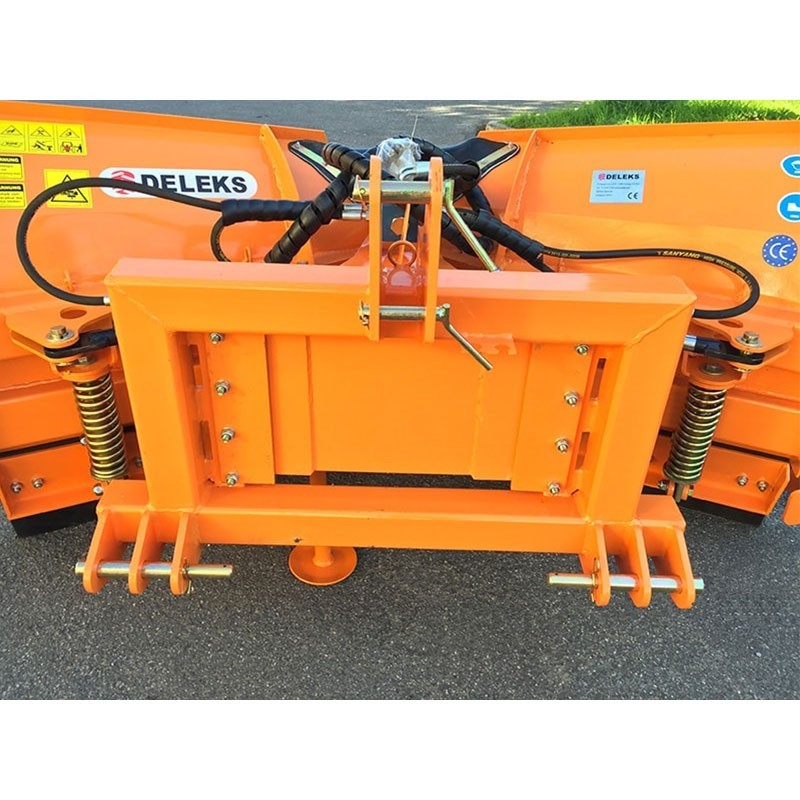

The plow is attached to the tractor with a 3-point hitch of category 1-2. This can be replaced by a EURO plate or a compact mini-loader attachment. It also features lights and adjustable side skids, allowing us to reduce the pressure at the blade level.

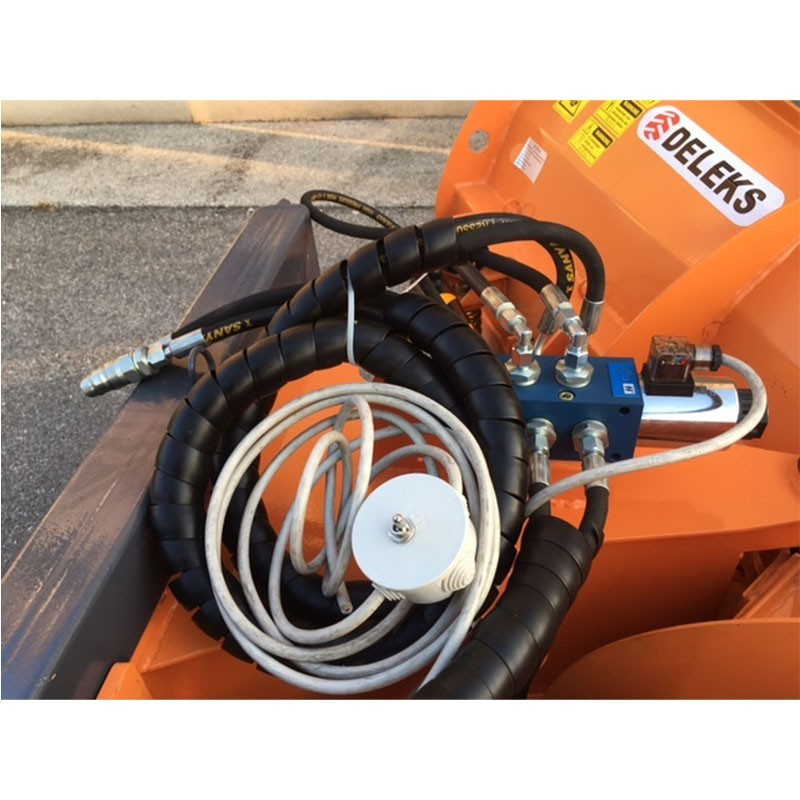

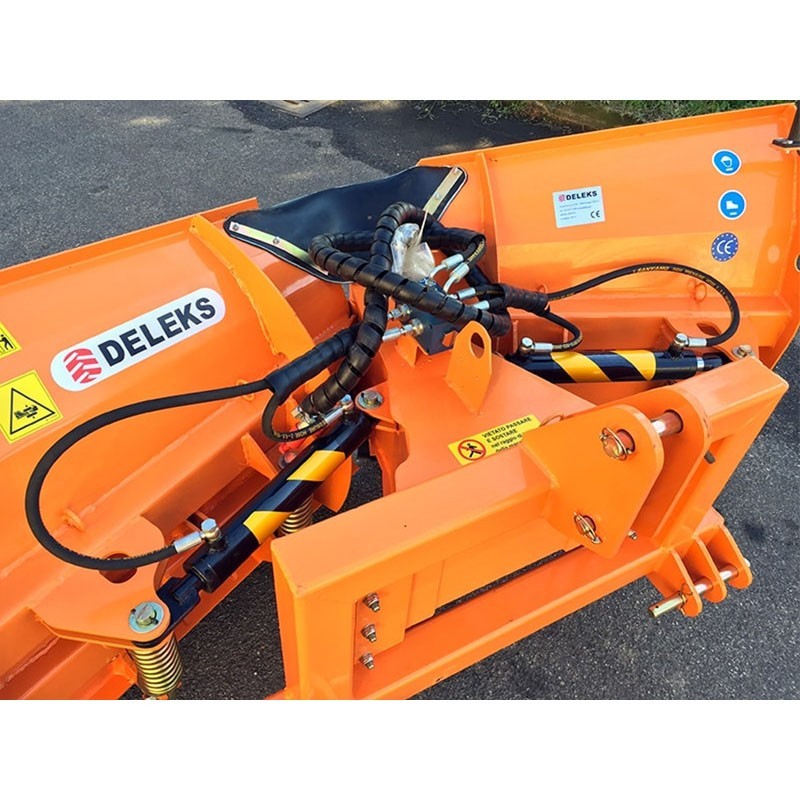

The model of Snow Plow LNV-300-C from Deleks has a hydraulic control with 4 different positions. The orientation from right to left is done hydraulically. This is with 2 pistons, a 6-outlet solenoid, and 2 hydraulic tubes of 2m.

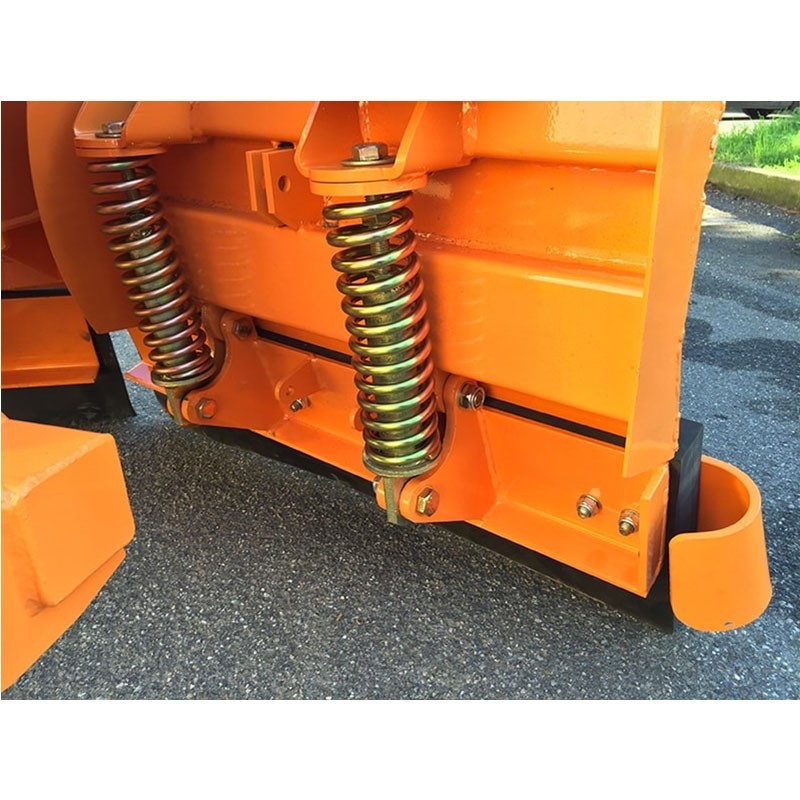

This Plow from Deleks LNV-300-C features 4 shock-absorbing springs that allow the operator to work with maximum safety. Additionally, it offers great ease of assembly and use with great comfort. The Snow Plow is approved for public roads and has 2 independent blades.

Features

Weight 410 kg
Total height 1020 mm
Tractor power 60 - 90 HP
Total depth 870 mm
Distance between lower points 635 - 970 mm
Distance between 2 points and the ground 180 mm
Oil pressure min./max 110 - 150 bar
Optional oil flow 18 - 22 l/min
Attachment 3-point hitch CAT 1-2 (19-22 / 25-28 mm)
Inclination 30°
Float +/- 6°
Blade height 920 mm
Thickness of side reinforcements 5 mm
Shock absorbers 6
Blade Rubber
Blade: height 265 mm
Blade: thickness 50 mm
Sharpening: number 2
Sharpening: space between bolts 200 mm
Side lights √
Side skids x
Blade width (inclined) 2850 mm
Hydraulic tubes 2 x 2000 mm / connections 1.2" AGRI, WP 400 bar
Blade width 3020 mm
Sheet thickness 4 mm + reinforcements
ø piston/i 60/30 mm
Packaging dimension 3050*1000*800 mm
258130

Data sheet

Working width
300 - 309 cm
Country of manufacture
Italy

Specific References

EAN-13
8053470234217
New
