Snow plow for tractor Deleks LNV-180-E 1840mm
Snow plow for tractor Deleks LNV-180-E 1840mm
Snow plow for tractor Deleks LNV-180-E 1840mm
Snow plow for tractor Deleks LNV-180-E 1840mm
Snow plow for tractor Deleks LNV-180-E 1840mm
Snow plow for tractor Deleks LNV-180-E 1840mm
Snow plow for tractor Deleks LNV-180-E 1840mm

Snow plow for tractor Deleks LNV-180-E 1840mm

Rating:
(0)
  • Tractor power: 35 - 70HP
  • Blade width: 1840 mm
  • Blade height: 920 mm
  • Inclination: 30 degrees
Deleks products take about 15 to 25 days.
En stock
icon Working width
Working width
180 - 189 cm
icon Country of manufacture
Country of manufacture
Italy
€2,323.83 excl. VAT
- 4%
€2,230.88 excl. VAT
€2,699.37 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Snow plow for tractor Deleks LNV-180-E 1840mm
€2,699.37
Qty

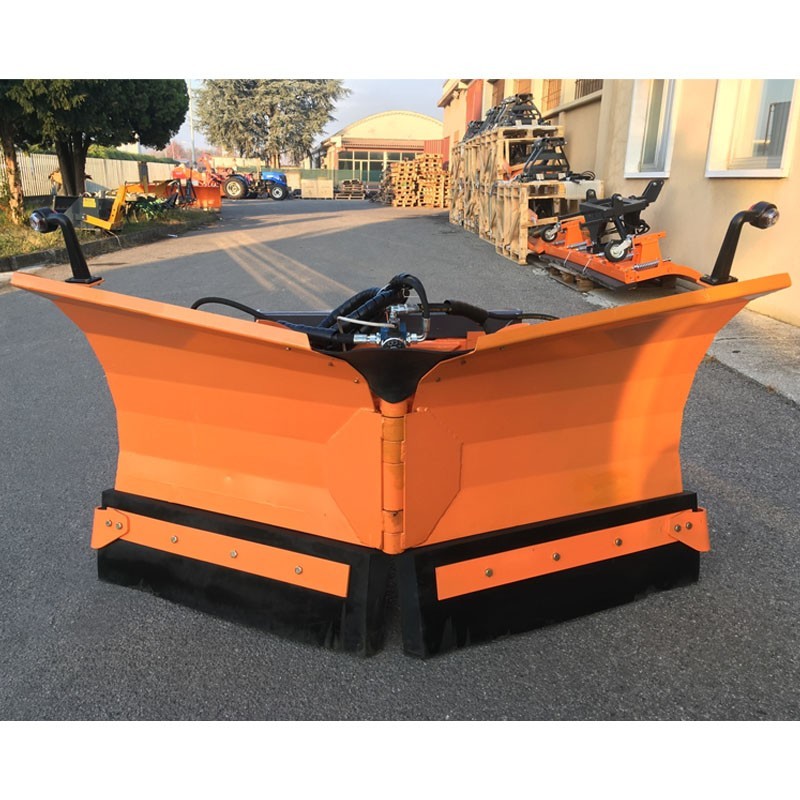

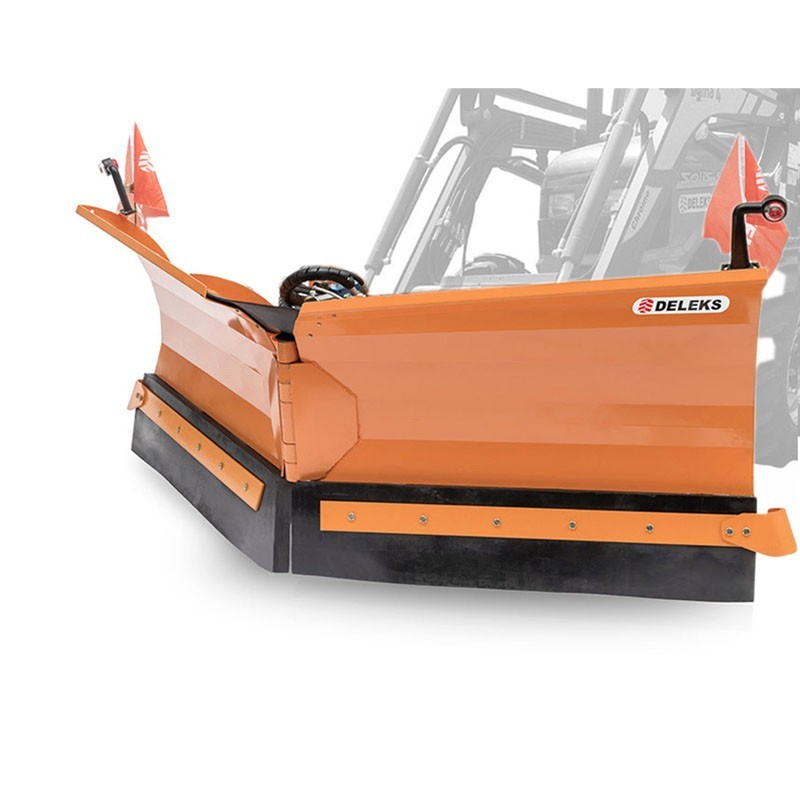

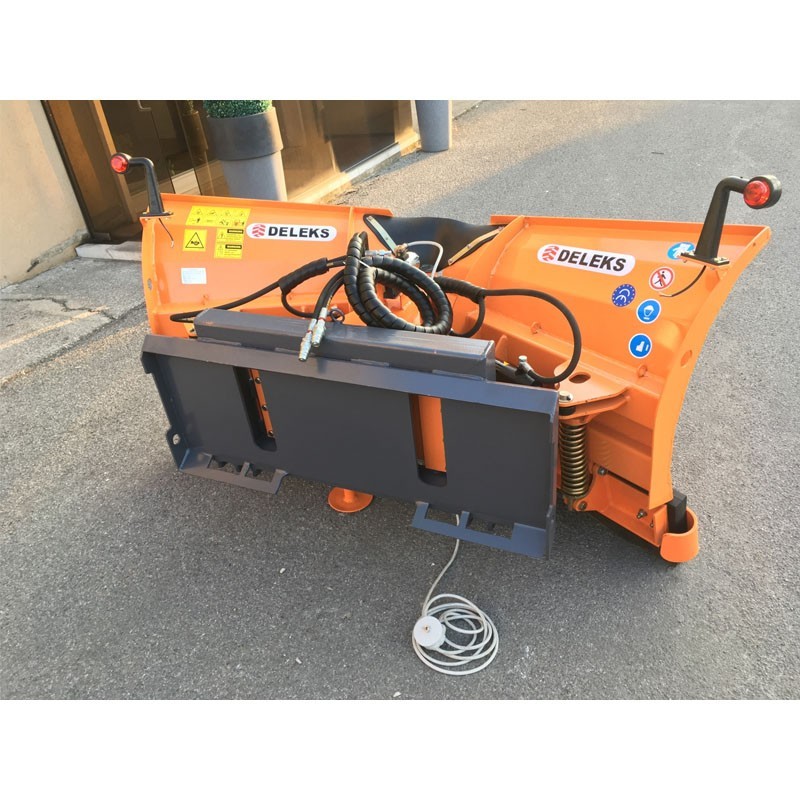

Snow Plow for Tractor Deleks LNV-180-E

The Snow Plow for Tractor Deleks LNV-180-E is a tractor attachment compatible with most tractor brands. This plow is for use with tractors that have a front loader with a power between 35 and 70HP.

This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for businesses. It also features lateral oscillation that allows perfect adhesion to the road.

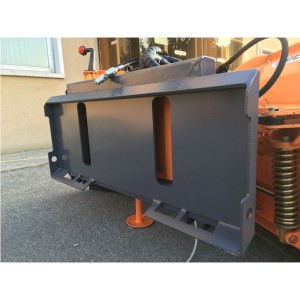

The plow is attached to the tractor with a EURO mount. This can be replaced by a 3-point hitch of category 1-2 or by a mount for a compact mini-loader. It also includes lights and adjustable side skids, allowing us to reduce pressure at the blade level.

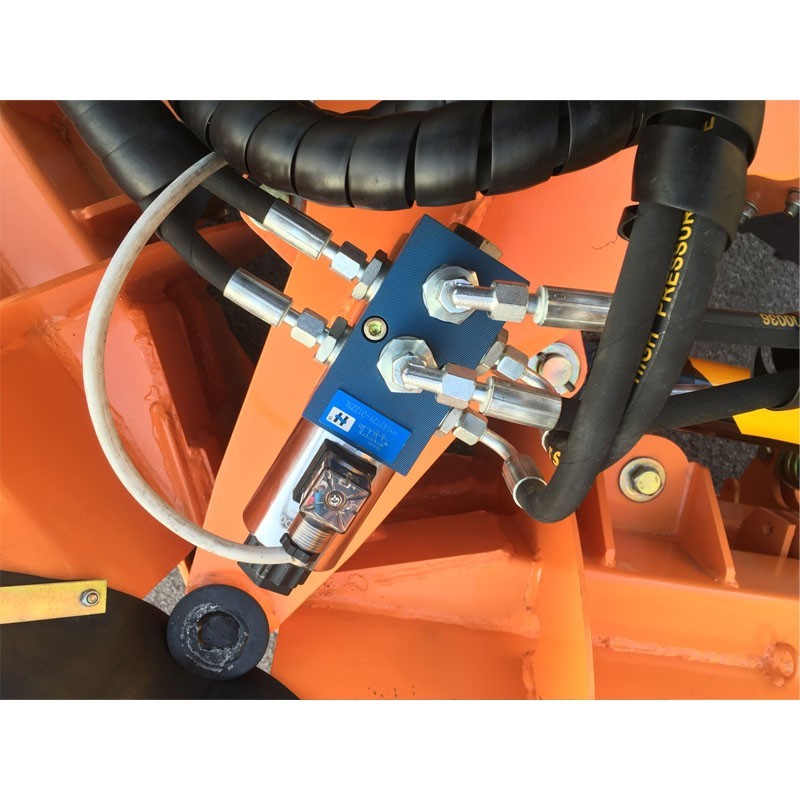

The model of Snow Plow LNV-180-E by Deleks features hydraulic control with 4 different positions. The right to left orientation is done hydraulically. This is with 2 pistons, a 6-outlet solenoid, and 2 hydraulic tubes of 2m.

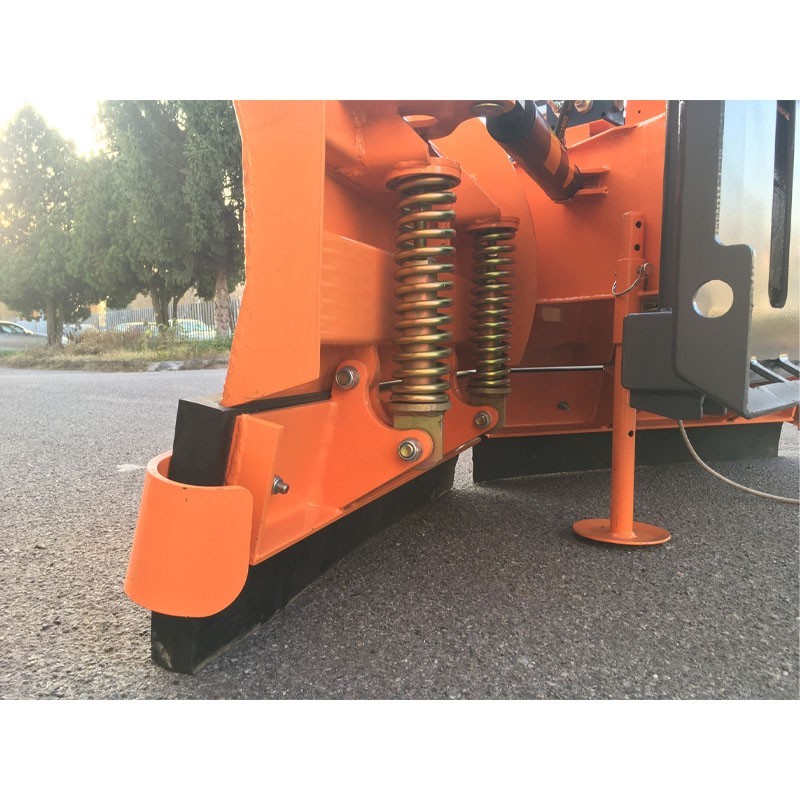

This Plow by Deleks LNV-180-E has 4 shock-absorbing springs that allow the operator to work with maximum safety. Additionally, it is easy to assemble and use with great comfort. The Snow Plow is approved for public roads and has 2 independent blades.

Features

Weight 330 kg
Total height 1020 mm
Tractor power 25 - 60 HP
Total depth 870 mm
Oil pressure min./max 110 - 150 bar
Optional oil flow 18 - 22 l/min
Mounting EURO
Inclination 30°
Float +/- 6°
Blade height 920 mm
Thickness of side reinforcements 5 mm
Shock absorbers 4
Blade Rubber
Blade: height 265 mm
Blade: thickness 50 mm
Sharpening: number 2
Sharpening: space between bolts 200 mm
Side lights √
Side skids x

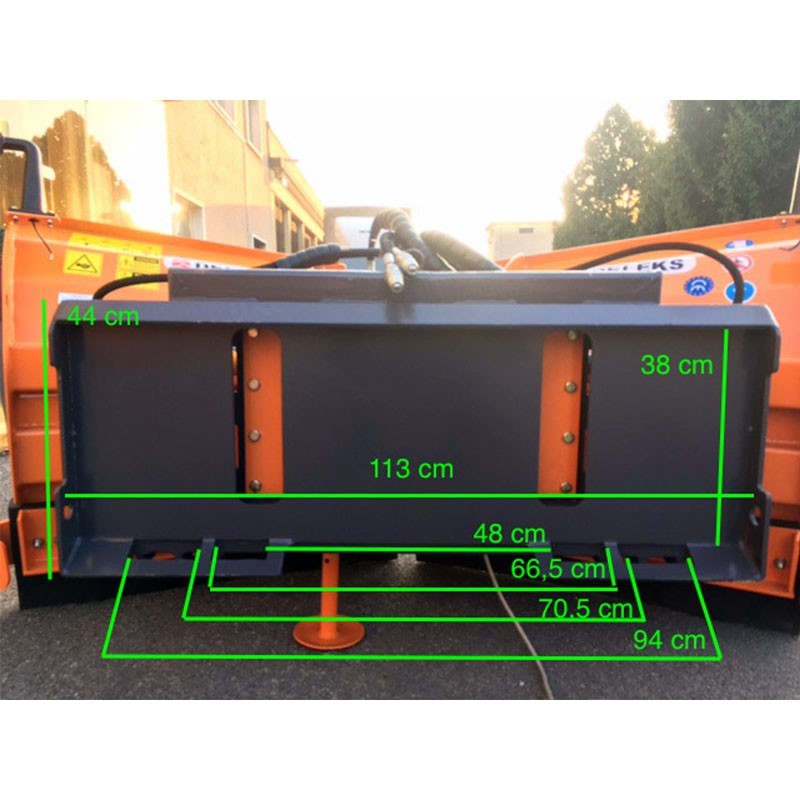

Plate dimensions See images
Blade width (inclined) 1770 mm
Hydraulic tubes 2 x 2000 mm / connections 1.2" AGRI, WP 400 bar
Blade width 1840 mm
Sheet thickness 4 mm + reinforcements
ø piston/i 60/30 mm
Packaging dimension 1850*1000*800 mm
258141

Data sheet

Working width
180 - 189 cm
Country of manufacture
Italy

Specific References

EAN-13
8053470231568
New
