Folding snow shovel for tractor Geo Italy SPO
- For tractors from 40 to 90 HP (29-67 kW)
- Hitch overload protection
- Front hitch
- Three-point hitch category II Euro
€2,301.76 VAT incl.
Deleks products take about 15 to 25 days. |

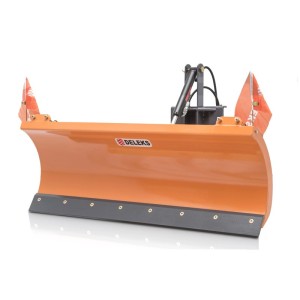

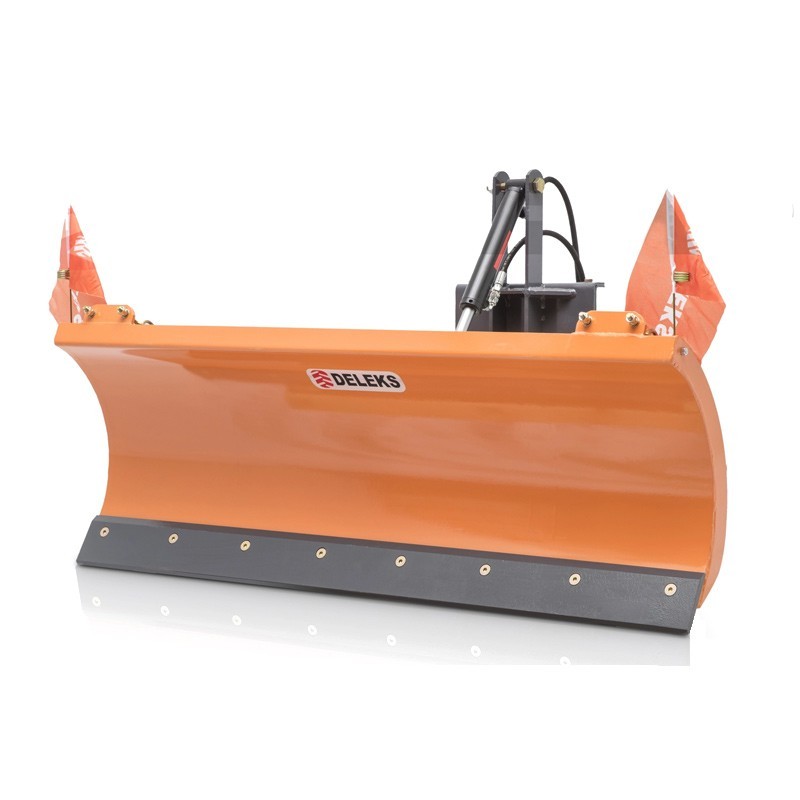

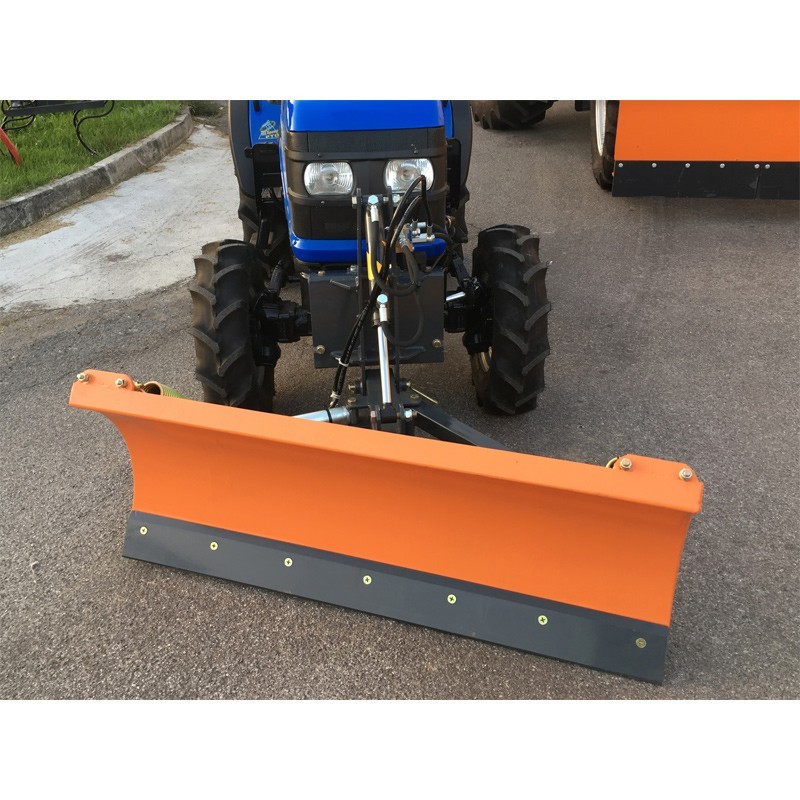

The Snow Plow for Tractor Deleks LNS-130-A is a tractor attachment compatible with tractors that provide a power between 12 and 30HP. This plow is for front or rear use.
This model of Snow Plow Deleks is designed to remove snow from roads, parking lots, or for companies. It features a robust structure that allows not only snow removal but also serves as a leveler.

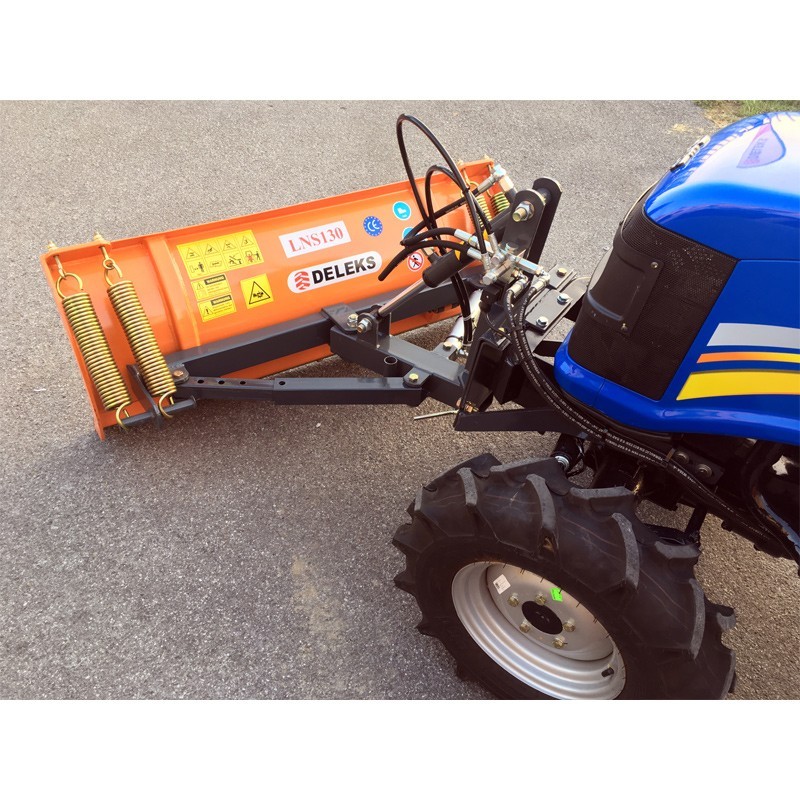

The plow is attached to the tractor with a 3-point hitch of category 1. This can be replaced by a plate or a support for a compact mini-loader. The Deleks LNS-130-A Plow is approved for public roads.

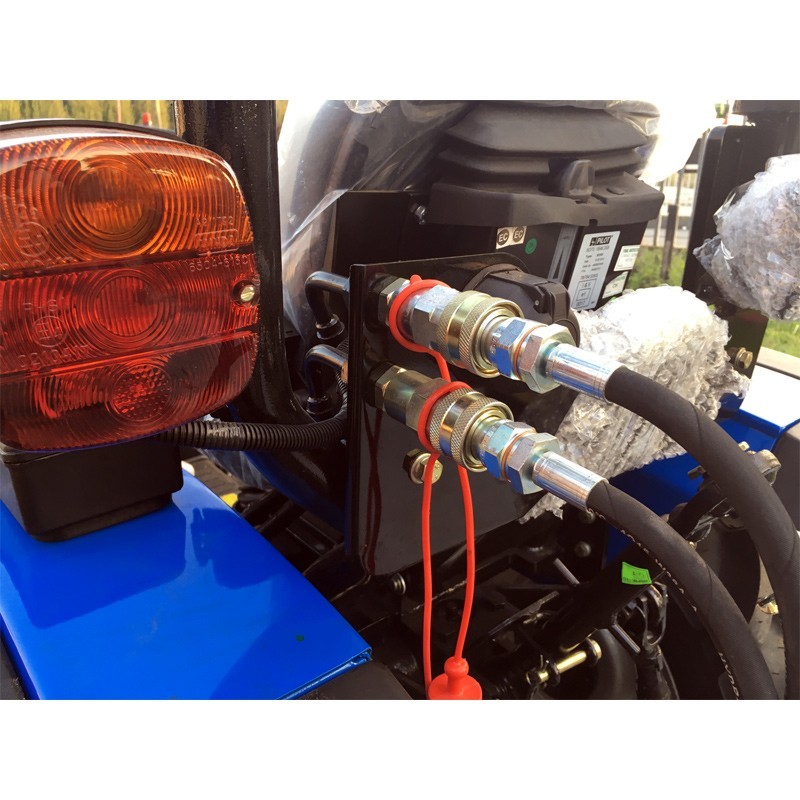

The model of Snow Plow LNS-130-A by Deleks is equipped with two hydraulic outlets. Additionally, this model can be optionally equipped without a hydraulic system. This is for a right to left orientation.
This Snow Plow features 4 anti-shock springs that allow the operator to work with maximum safety. It also offers great ease of assembly and use with great comfort. The blade of this model is replaceable.
Weight | 108 kg |
Total height | 830 mm |
Tractor power | 12 - 30 HP |
Total depth | 670 mm |
Oil pressure min./max | 110 - 150 bar |
Optional oil flow | 18 - 22 l/min |
Attachment | UNIVERSAL PLATE |
Plate dimensions | 260*370 mm |
Inclination | 28° |
Float | +/- 2° |
Blade height | 525 mm |
Thickness of side reinforcements | 8 mm |
Shock absorbers | 4 |
Space between ground and plate | 270 mm |
Blade | Steel or rubber |
Blade: height | 120 mm |
Blade: thickness | 14 mm |
Sharpening: number | 1 |
Sharpening: space between bolts | 200 mm |
Side lights | x |
Side skids | x |
Blade width (inclined) | 1140 mm |
Hydraulic tubes | 2 x 3000 mm / connections 1.2" AGRI, WP 400 bar |
Blade width | 1316 mm |
Sheet thickness | 4 mm |
ø piston/i | 50 / 25 mm |
Packaging dimension | 1316*800*800 mm |
Data sheet
