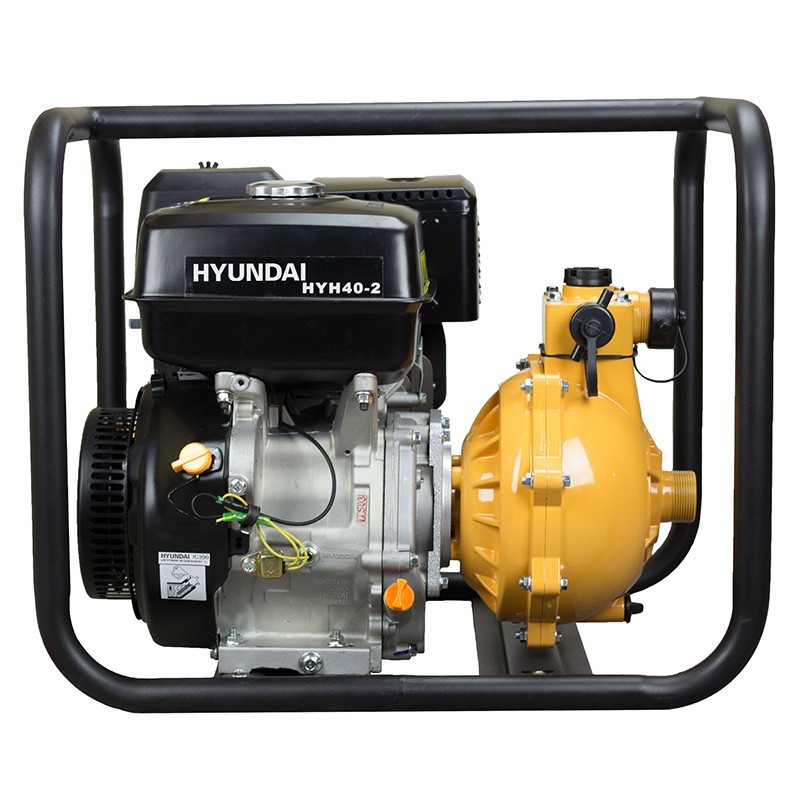

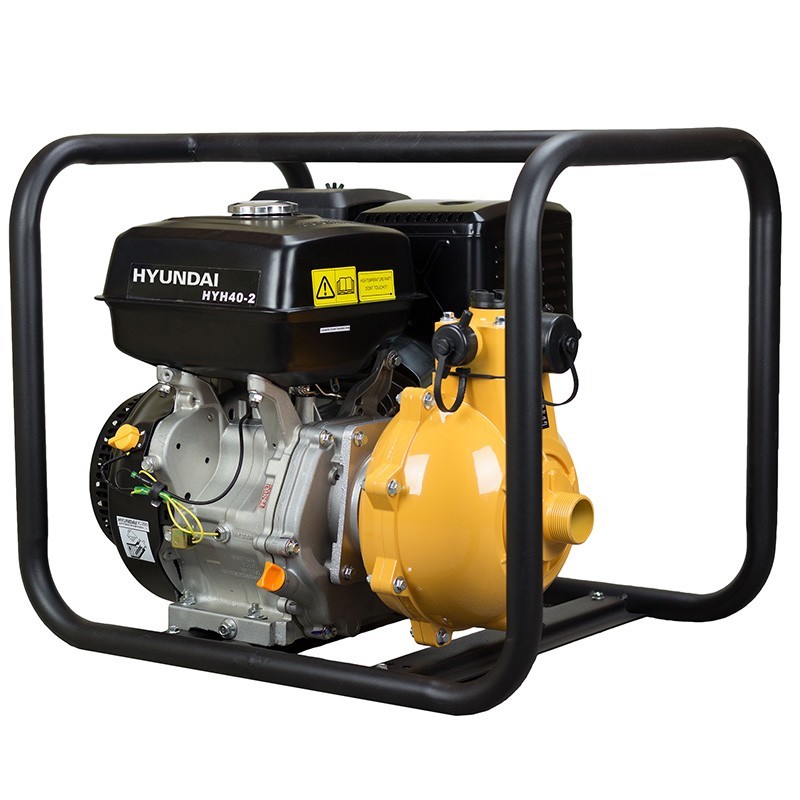

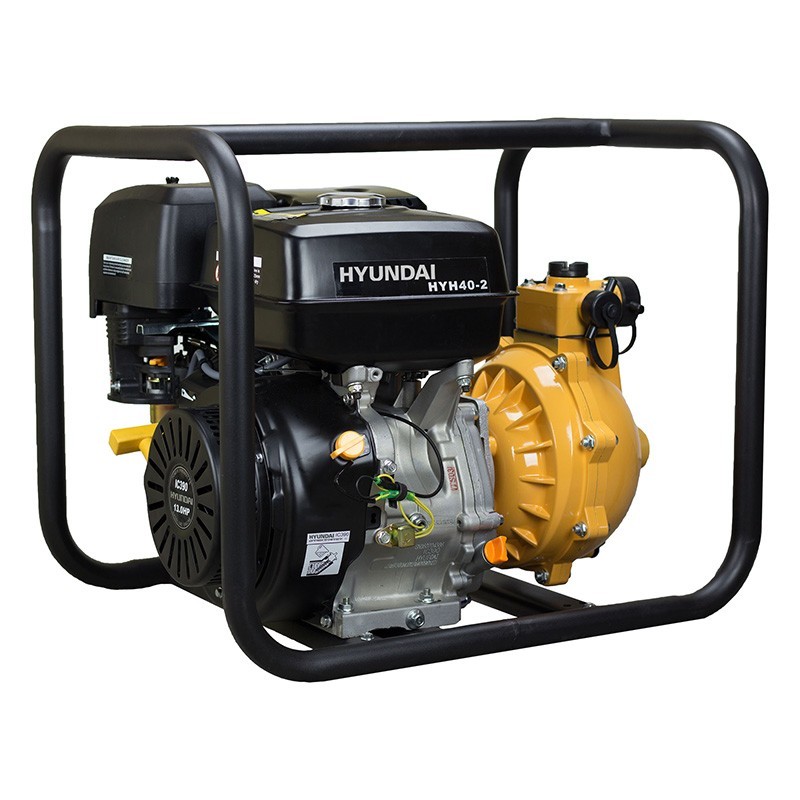

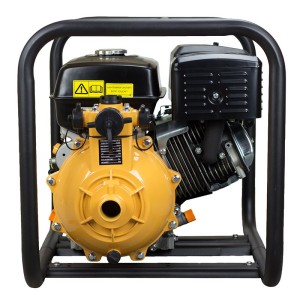

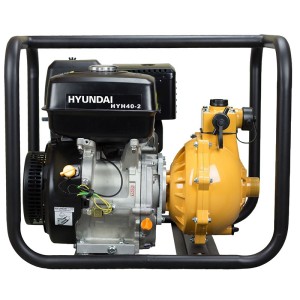

HYH40-2 gasoline motor pump Hyundai HYH40-2

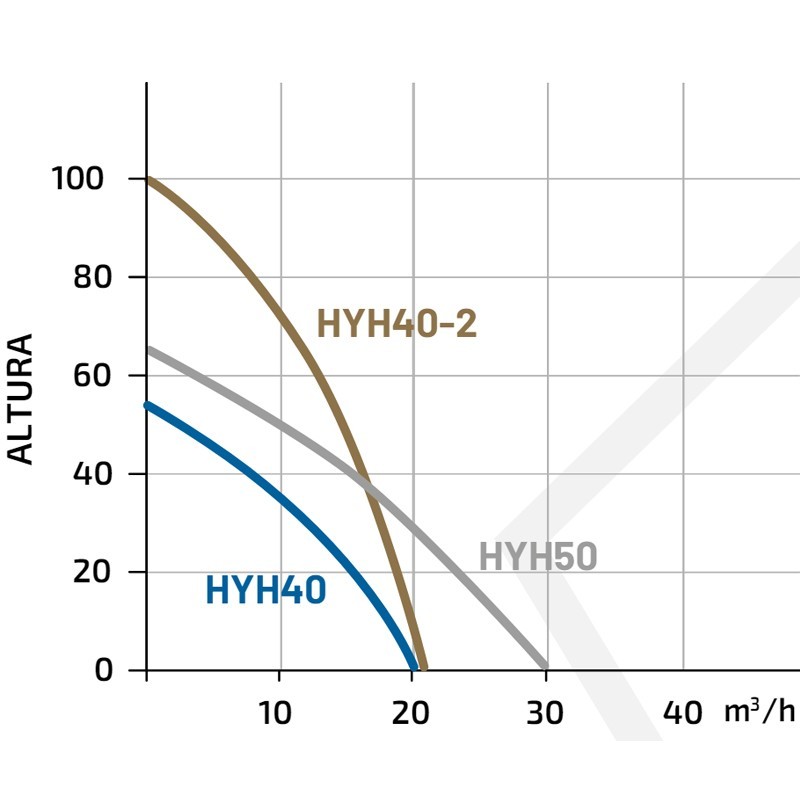

The HYH40-2 petrol motor pump Hyundai HYH40-2 with an impressive maximum head of 85 meters and a maximum flow rate of 21 m³/h, is capable of handling up to 350 liters per minute, making it ideal for applications that require a constant and efficient flow of water.
Its pump body is made of die-cast aluminum, ensuring durability and resistance in demanding environments. Equipped with a 389 cc 4-stroke engine , the HYH40-2 offers a power output of 13 HP, operating at 3600 revolutions per minute.
This robust engine is combined with a reliable manual start and a fuel capacity of 6.5 liters, ensuring long, uninterrupted operation. Its 32 mm diameter chassis provides a solid and stable structure, while the included connection fittings and filter facilitate immediate and versatile use.
This motor pump is especially useful for agricultural irrigation, drainage of flooded areas and water supply in remote areas. Its high pressure and high flow rate allow optimal performance in a variety of applications, ensuring an efficient and durable solution for the most demanding pumping needs.
Technical Data
| Suction/impeller diam |
40 mm (1 1⁄2'') |
| Max. flow rate |
21 m3/h (350 L/min) |
| Max. head |
85 m / 8,2 Bar |
| Solid particle diameter |
9 mm |
| Motor |
IC390 |
| Engine type |
4-stroke |
| Displacement |
389 cc |
| Starter |
Manual |
| Revolutions |
3.600 rpm |
| Engine power |
13 HP |
| Fuel capacity |
6,5 L |
| Weight |
48 Kg |
| Dimensions (mm) |
66,5 x 51 x 55 cm |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
