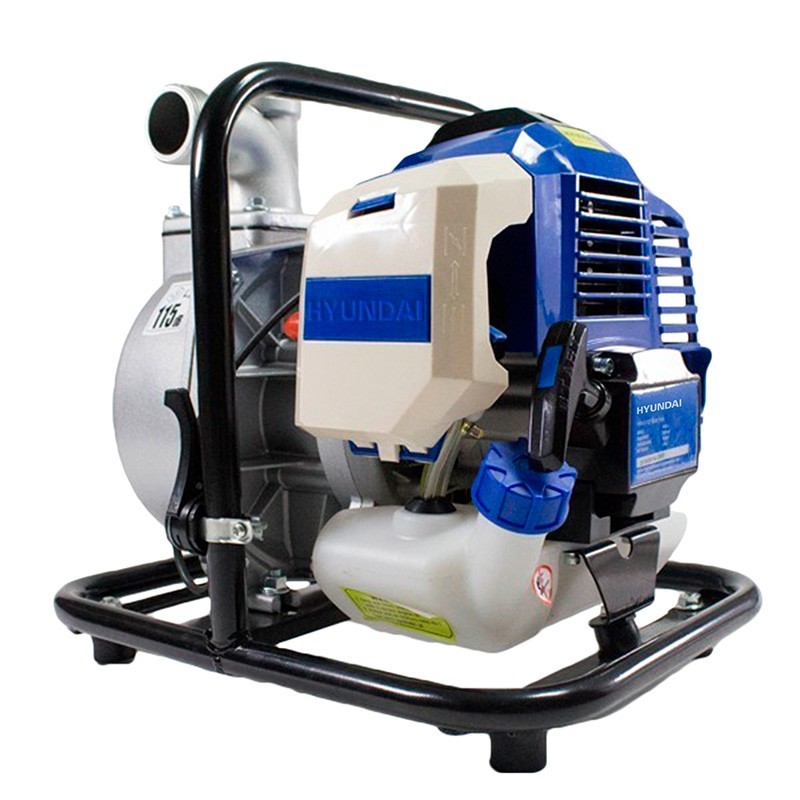

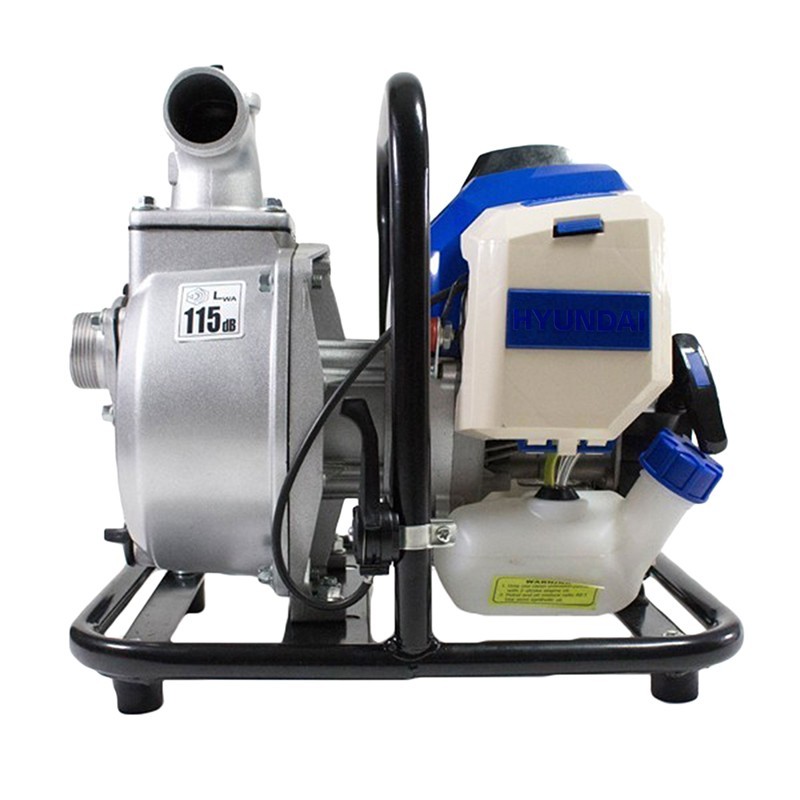

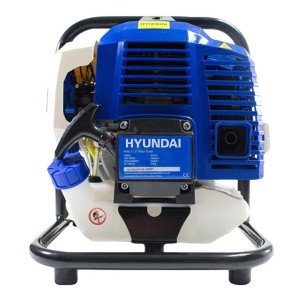

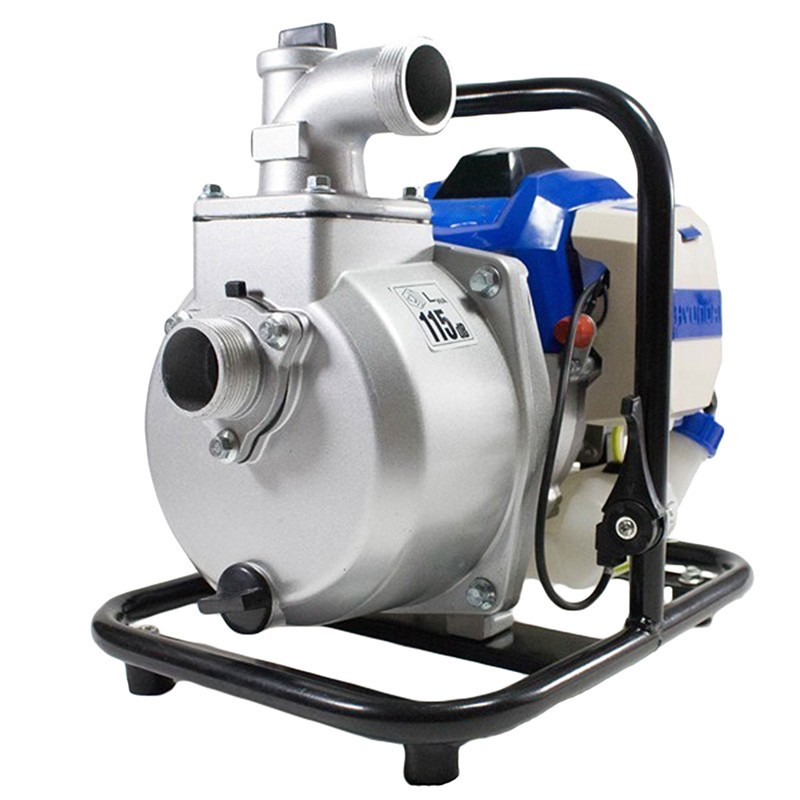

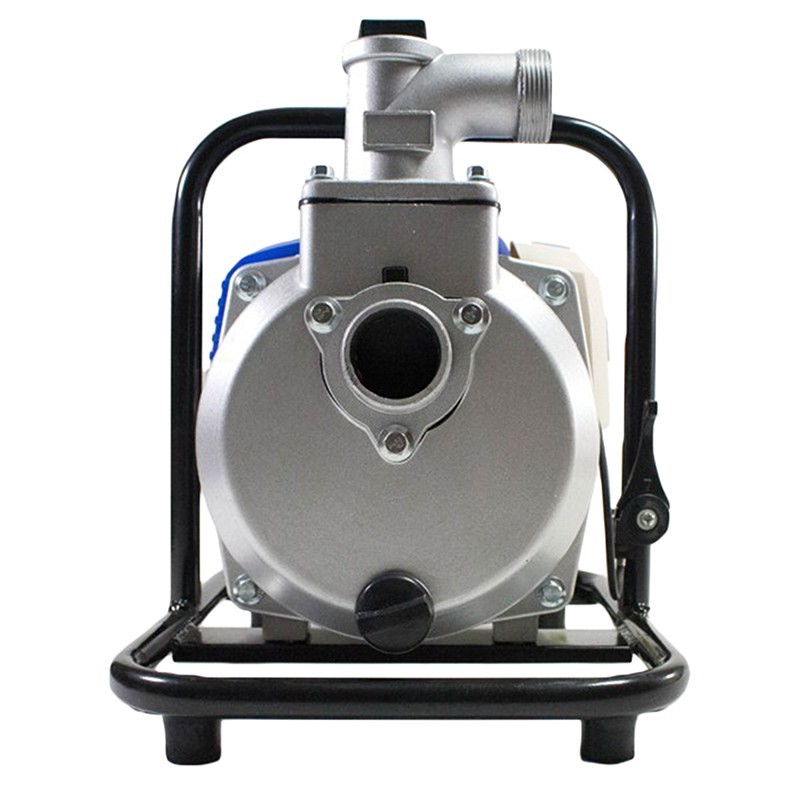

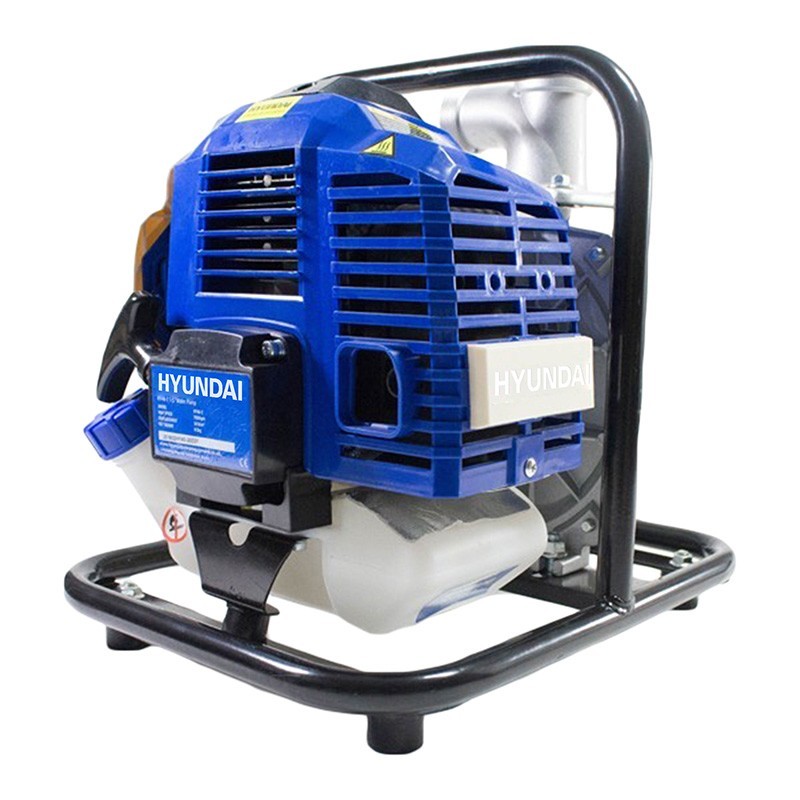

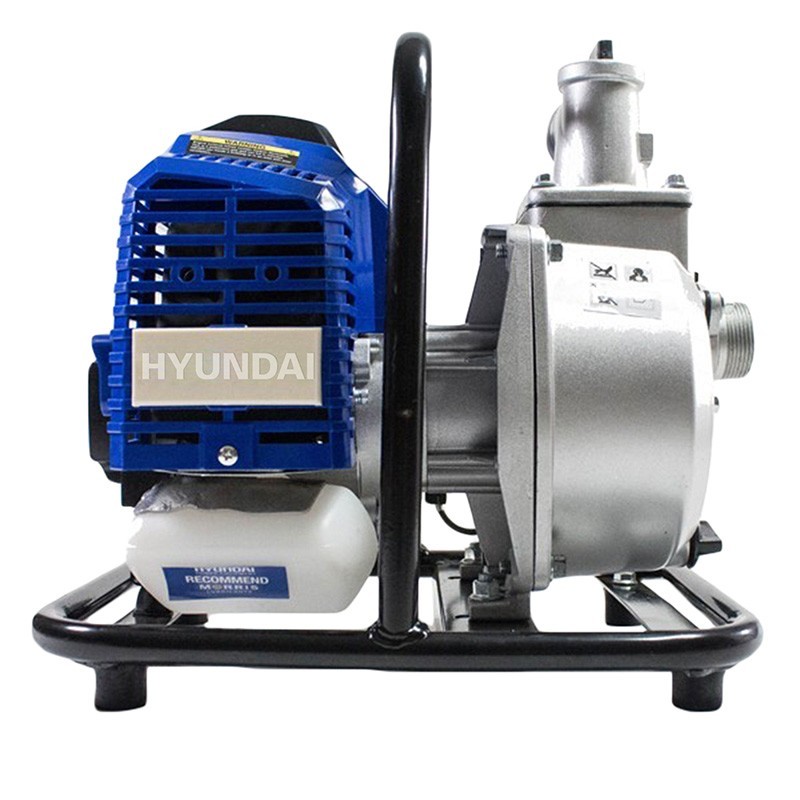

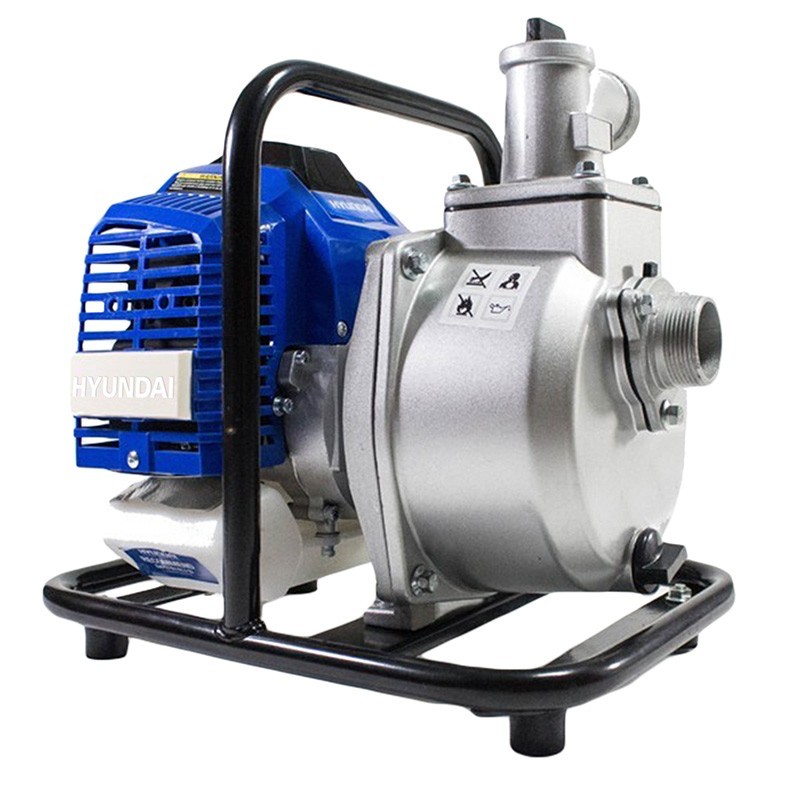

The HY40-2 motor pump Hyundai has a compact and lightweight design that makes it ideal for transporting and maneuvering, while its powerful 2-stroke engine ensures reliable performance.
Manufactured with high-quality materials, the HY40-2 features a high-end mechanical seal that prevents leakage, a corrosion-resistant aluminum injection pump body and a robust 32 mm diameter chassis.

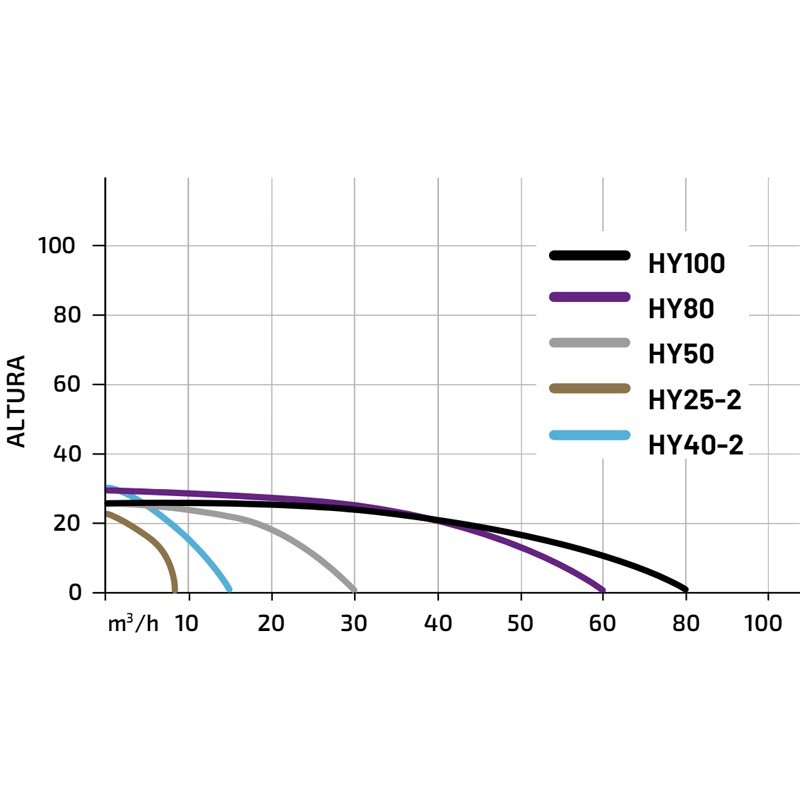

With a maximum flow rate of 15 m³/h and a pumping head of 30 meters, the HY40-2 is capable of coping with demanding transfer tasks, whether in the garden, on small construction sites or in emergency situations.

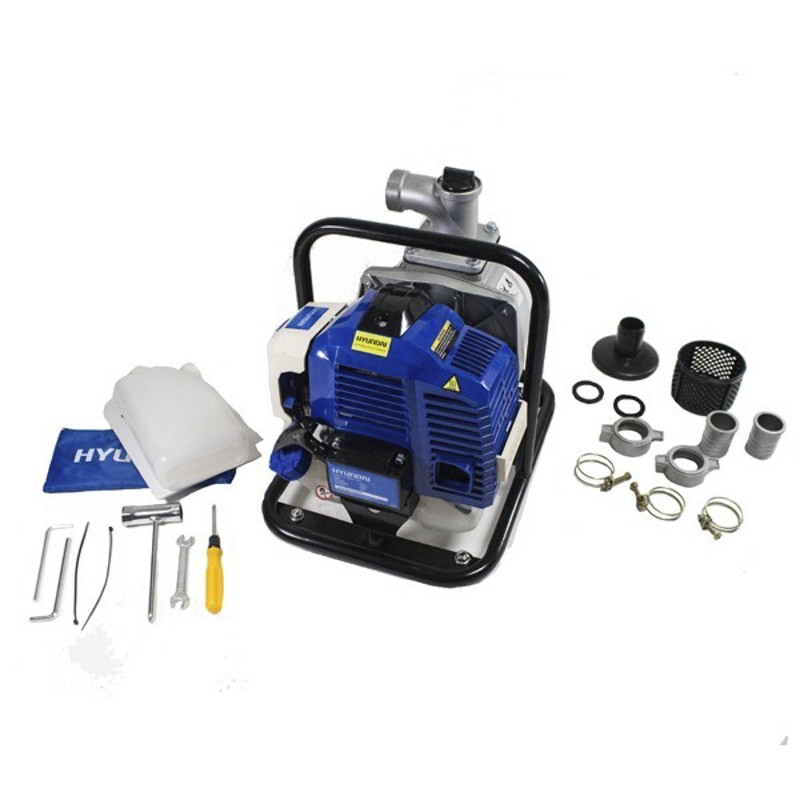

It includes connection and filteraccessories for immediate installation and use, making it a versatile and practical solution for a variety of clean water transfer needs.
| Suction/impeller diameter | 40 mm (1 1⁄2'') |
| Max. flow rate | 15 m3/h (250 L/min) |
| Max. head | 30 m / 3 Bar |
| Solid particle diameter | 8 mm |
| Motor | HY51 |
| Engine type | 2-stroke |
| Displacement | 50,8 cc |
| Starter | Manual |
| RPM | 7.500 rpm |
| Engine power | 2,1 HP |
| Fuel capacity | 0,8 L |
| Weight | 8,5 Kg |
| Dimension (mm) | 38,5 x 30 x 37 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
