Wheel kit for Hyundai generators and motor pumps
- 2 solid puncture-proof wheels
- 1 axle for wheels
- 2 grips with handle
- 8 flanges
- Fixing elements
€107.19 VAT incl.

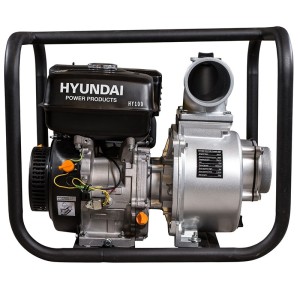

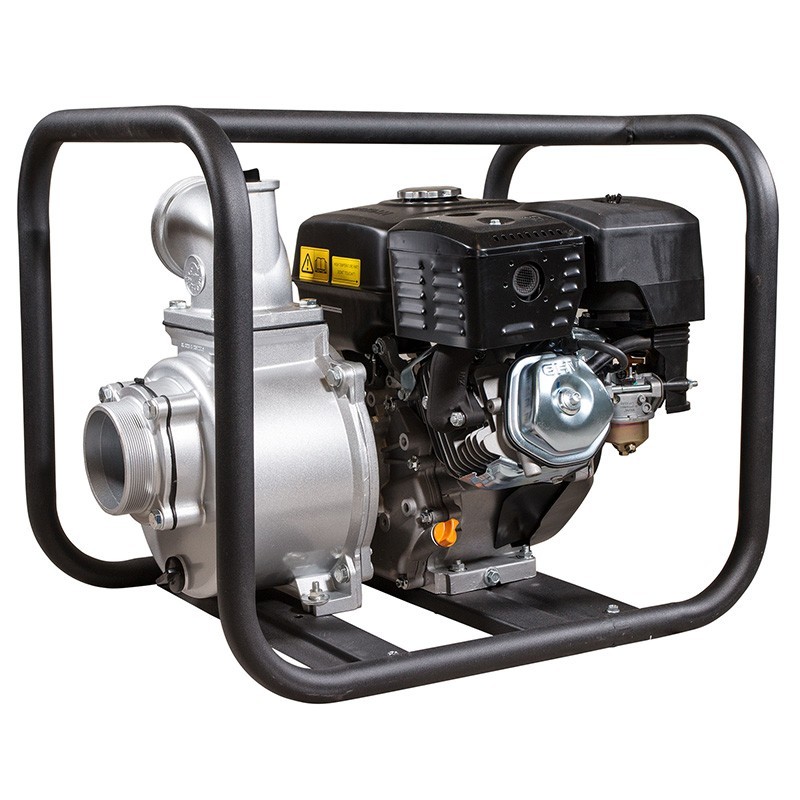

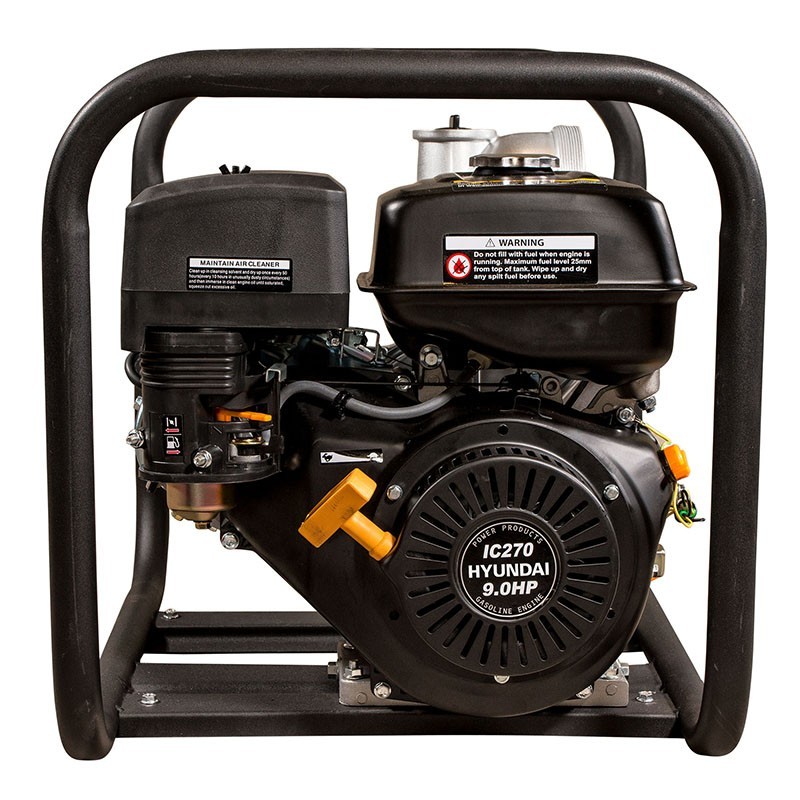

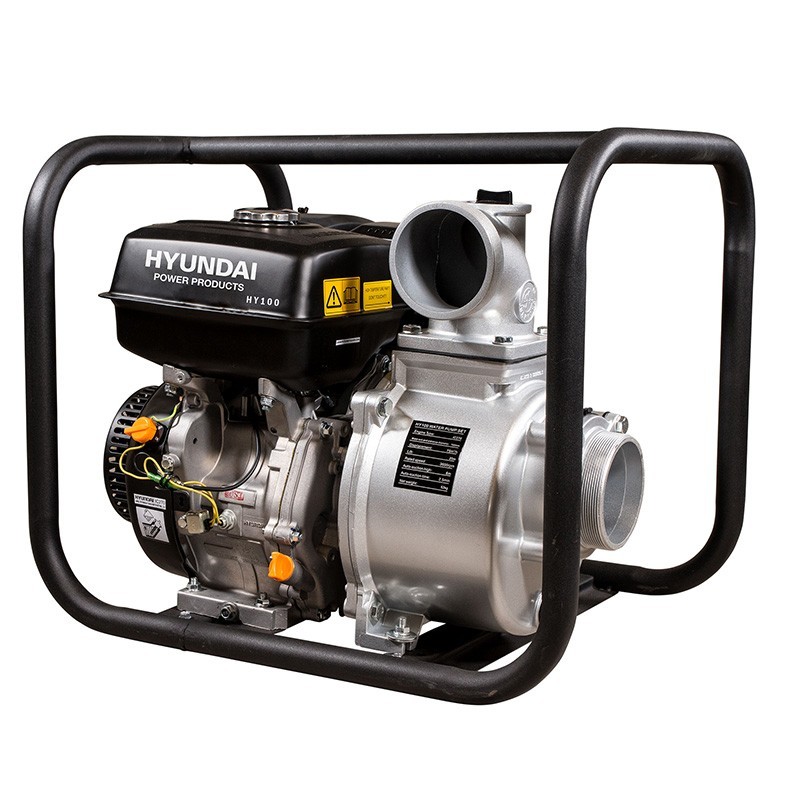

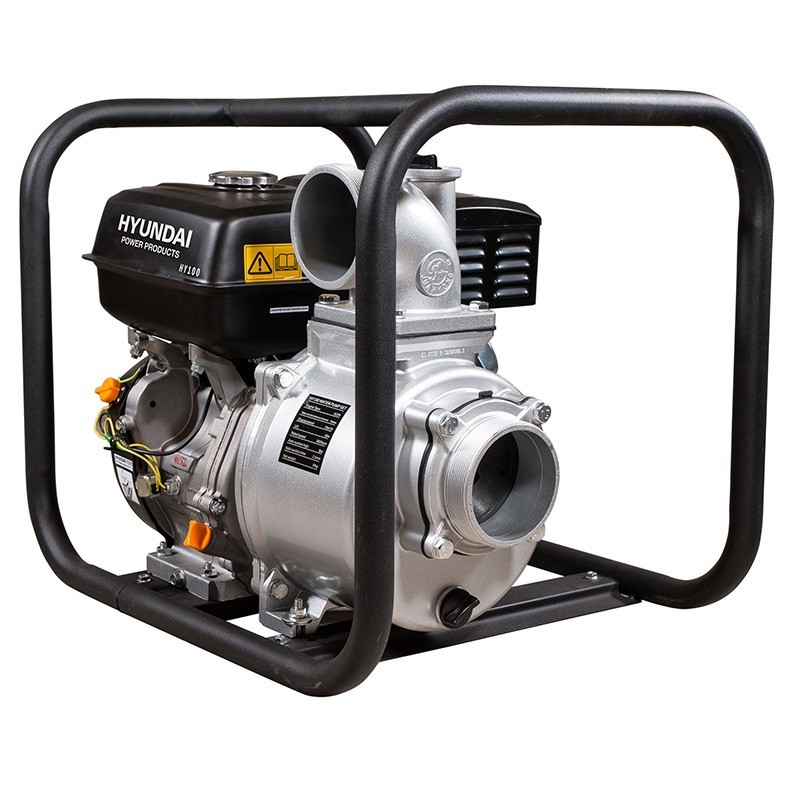

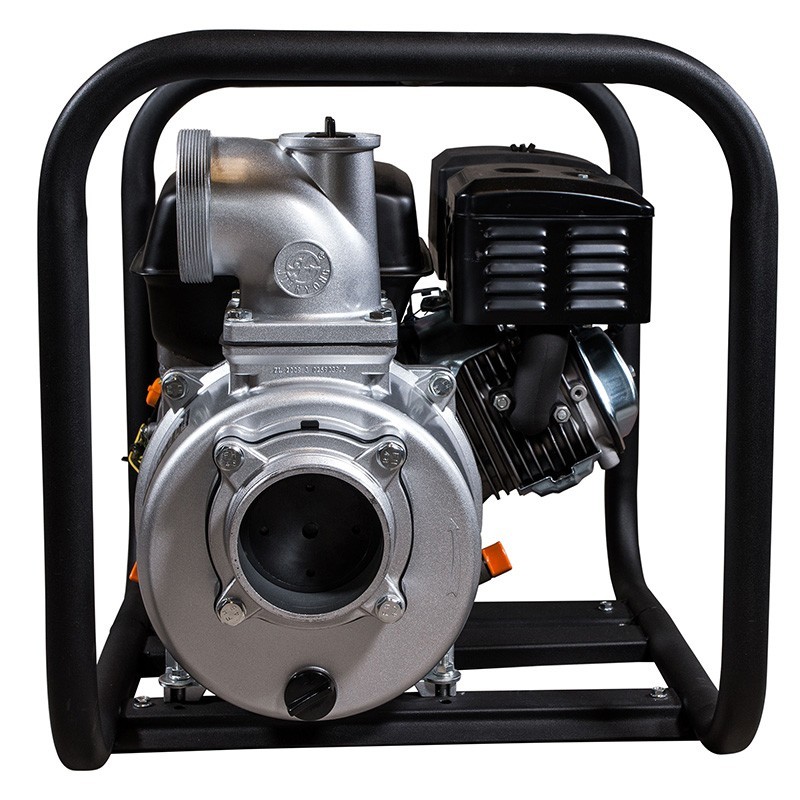

The gasoline motor pump Hyundai HY100 is a powerful and efficient tool designed to meet your water pumping needs. Equipped with a 270 cc 4-stroke engine, it offers a power of 9 HP and runs at 3,600 rpm.
Its manual start and 6.5 liter fuel capacity ensure reliable and long-lasting performance in any situation. The pump body is made of aluminum injection, ensuring strength and durability.
The Hyundai HY100 also stands out for its ability to lift water up to 25 meters with a pressure of 2.5 Bar, and can handle solid particles up to 9 mm in diameter.
With a 32 mm diameter chassis, it includes all the necessary accessories for connection and a filter, making it easy to use and maintain. With OHV engines and oil alarm, it is a reliable and efficient choice for your water pumping projects.
Suction/drive diameter | 100 mm (4'') |

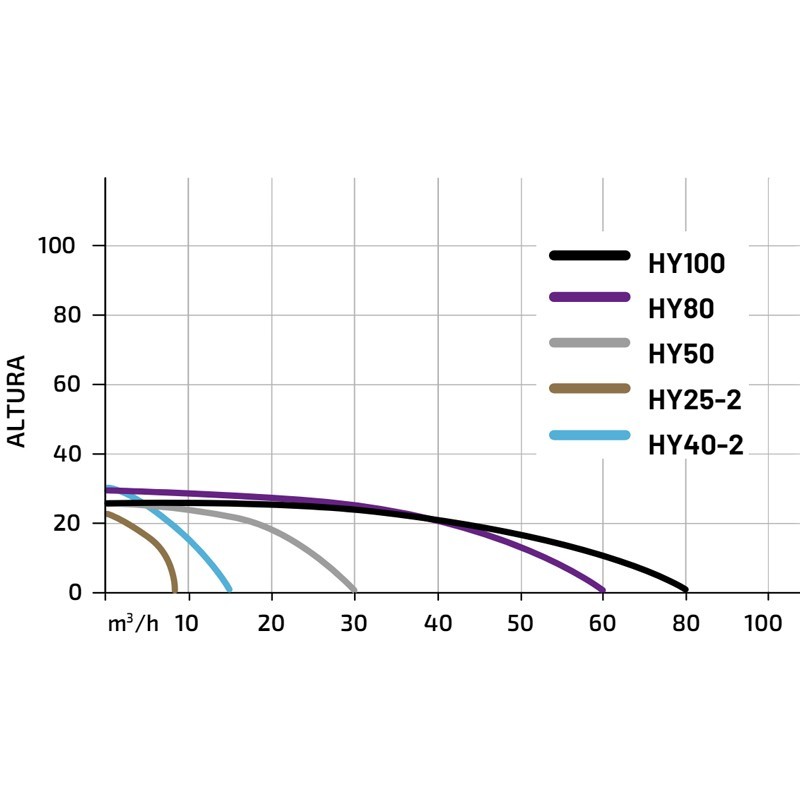

Max. flow rate | 80 m3/h (1,330 L/min) |
Maximum head | 25 m / 2,5 Bar |
Solid particle diameter | 9 mm |
Motor | IC270 |
Engine type | 4-stroke |
Displacement | 270 cc |
Starter | Manual |
Revolutions | 3.600 rpm |
Engine power | 9.0 HP |
Fuel capacity | 6,5 L |
Weight | 48 Kg |
Dimension (mm) | 66,5 x 51 x 55 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
