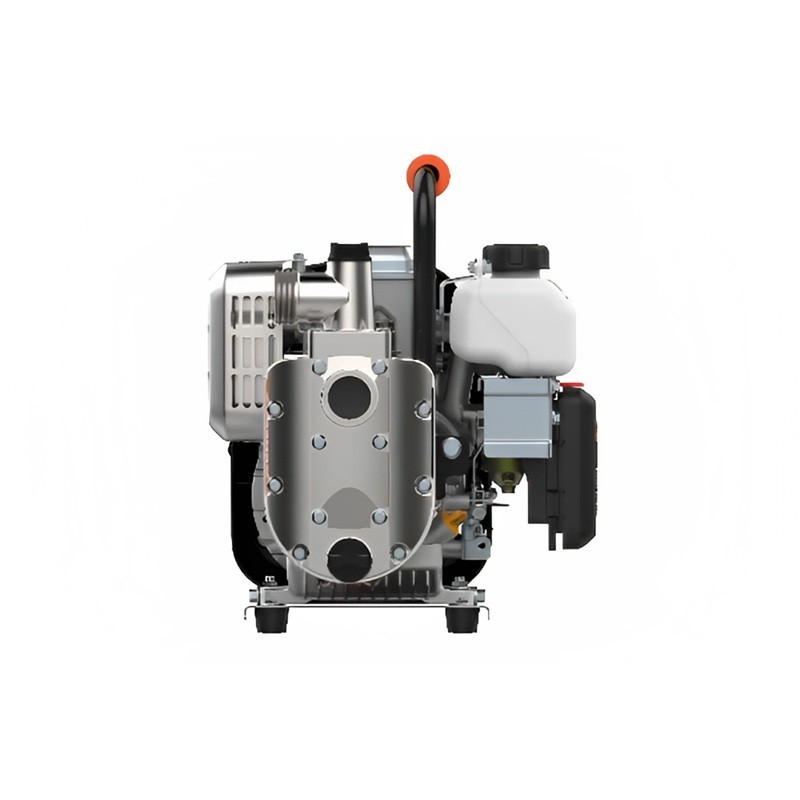

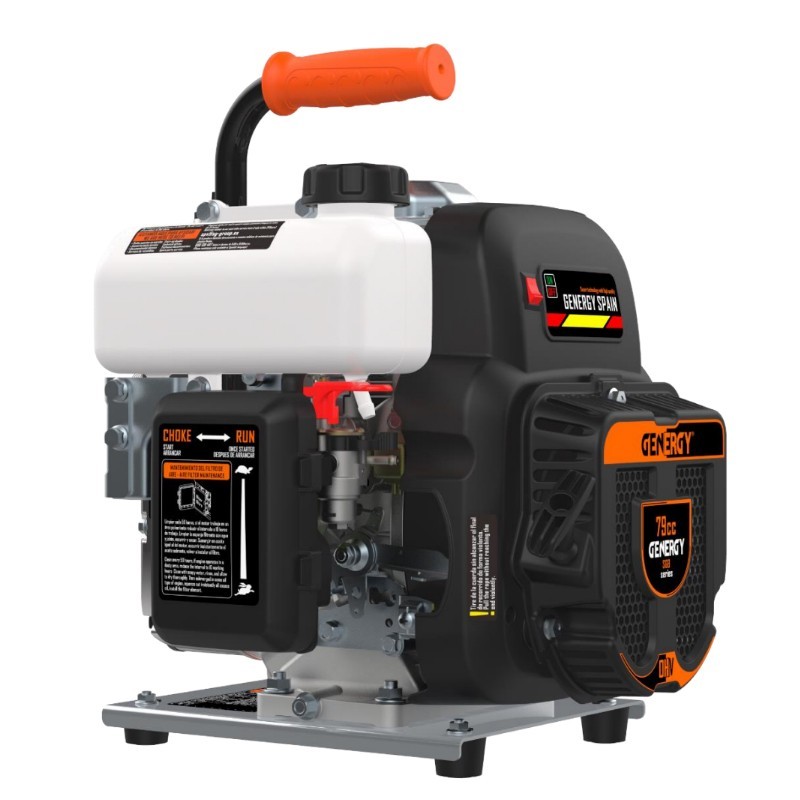

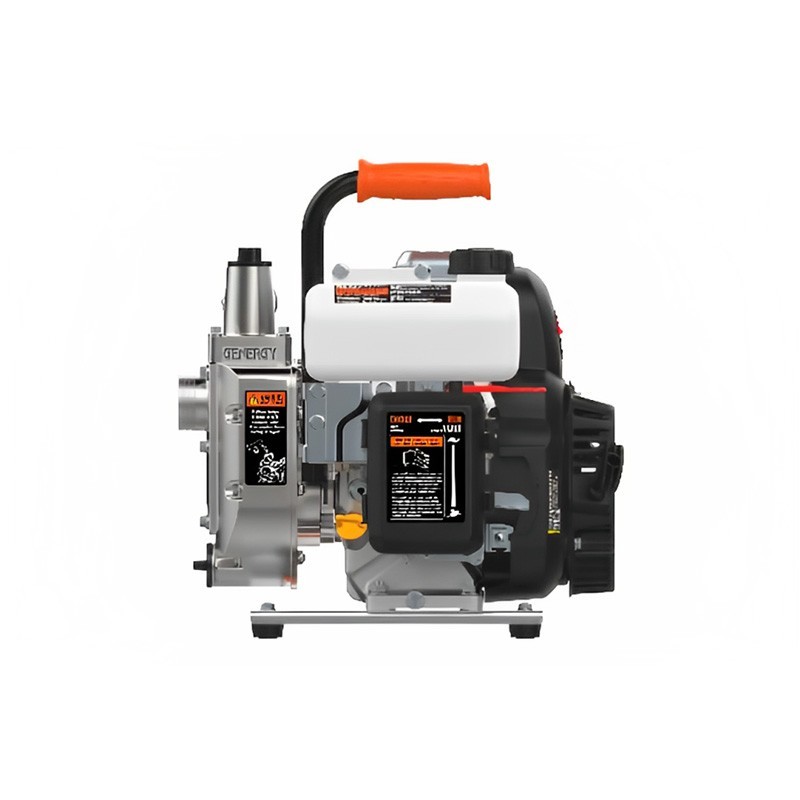

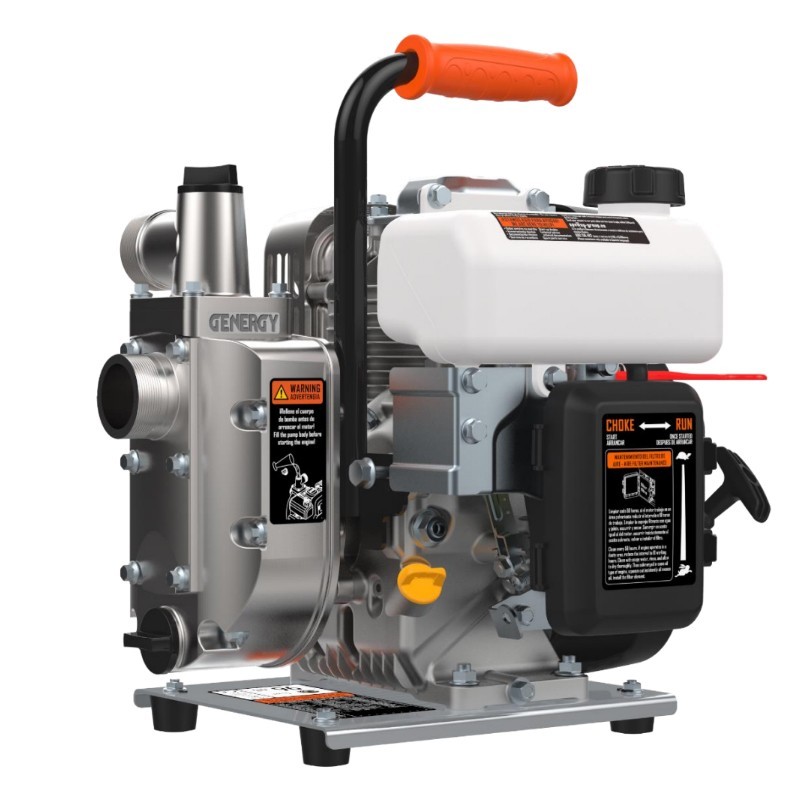

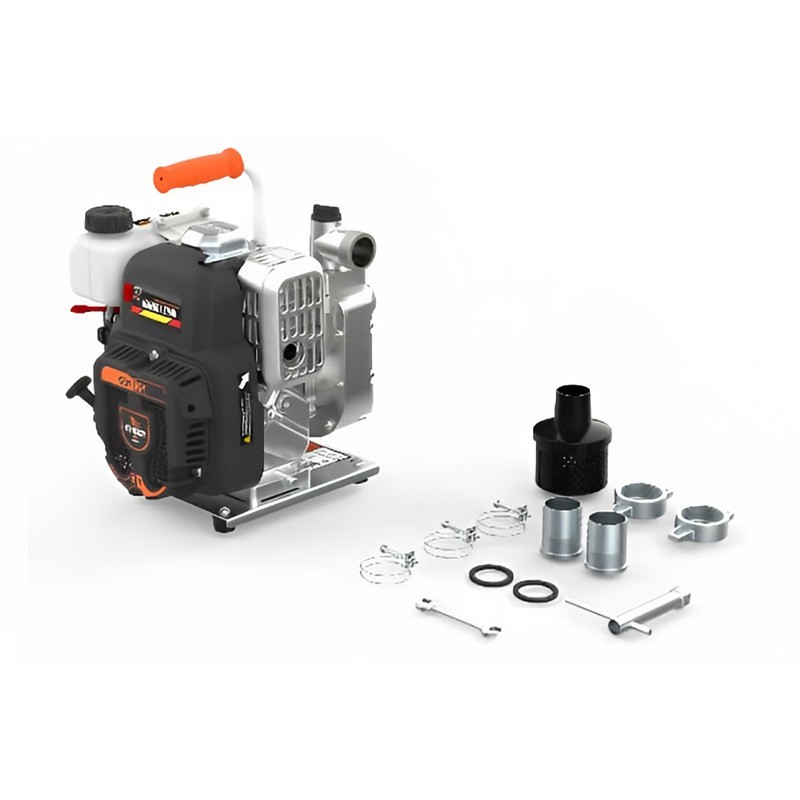

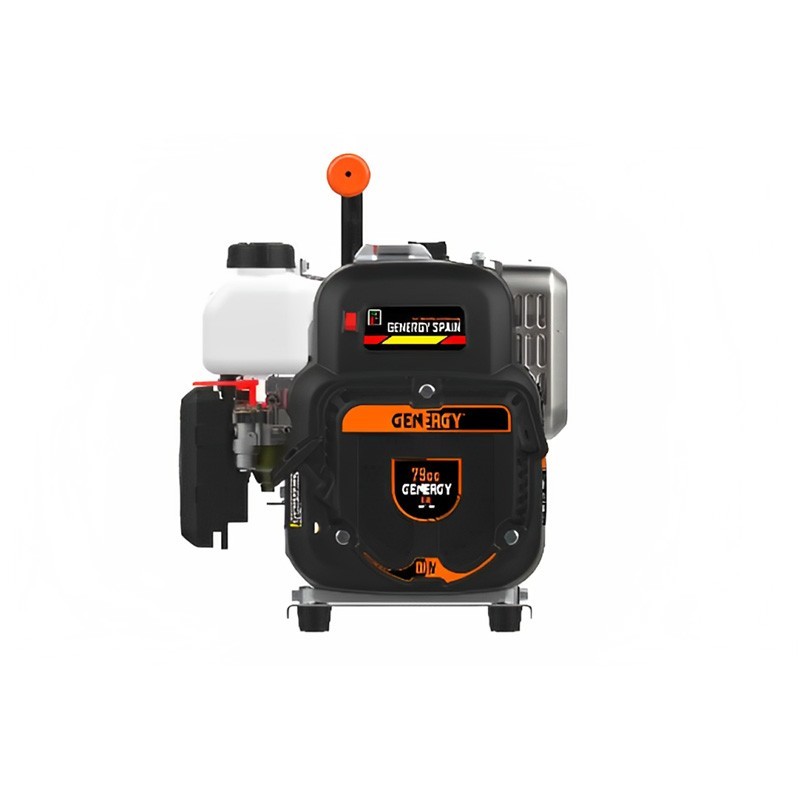

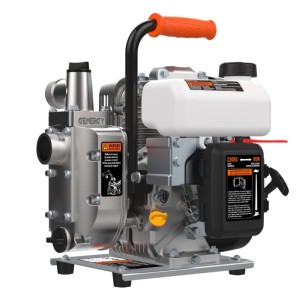

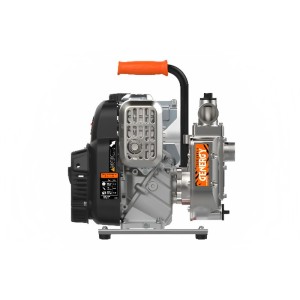

The Cidacos III 13000 L/H 15 m Gasoline Motor Pump Genergy Cidacos III has a fuel tank capacity of 1.1 L, a weight of 12.5 kg, and has a maximum flow of 13,000 L/H. Its dimensions are 380x335x410 mm.
It has athread size of 38mm, a 4-stroke OHV air-cooled gasoline engine, and a maximum suction lift of 6 meters .Its oil capacity and grade is 0.5L - SAE10W40 and it has amaximum total lift height of 15 meters.
The gasoline motor pump Genergy Cidacos III 13000 L/H 15 m has a manual start type, offers a service temperature of 5º to 40º, has a displacement of 79 cc, andhas a suction time at 5 meters of ≤160 seconds.
| Application | Clean or dirty water without solids >5º |
| Thread size-Suction diameter | BSP 1.5" - 38mm |
| Maximum flow rate | 13.000L/H |
| Maximum suction head | 6MTS |
| Maximum total head | 15MTS |
| Suction time at 5mts | ≤160S |
| Motor model | SGB79PRO |
| Displacement | 79cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 66dB - 73dB (A) |
| Guaranteed sound power level LwA | ≤96dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 1.1L |
| Consumption at 25-50-75% throttle | 0.36L/H - 0.35L/H - 0.48L/H |
| Autonomy 25-50-75% throttle | 3H - 3H - 2.3H |
| Oil capacity and grade | 0.5L - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º |
| Transport kit | Carrying handle |
| Dimensions | 380x335x410 mm |
| Weight | 12.5 kg |
| Reference | 30010 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
