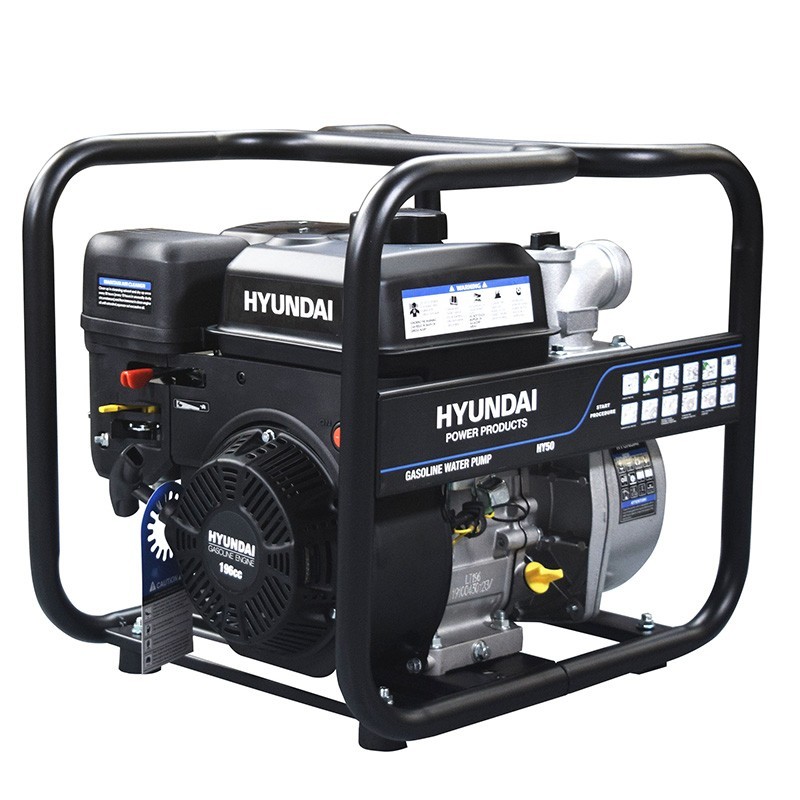

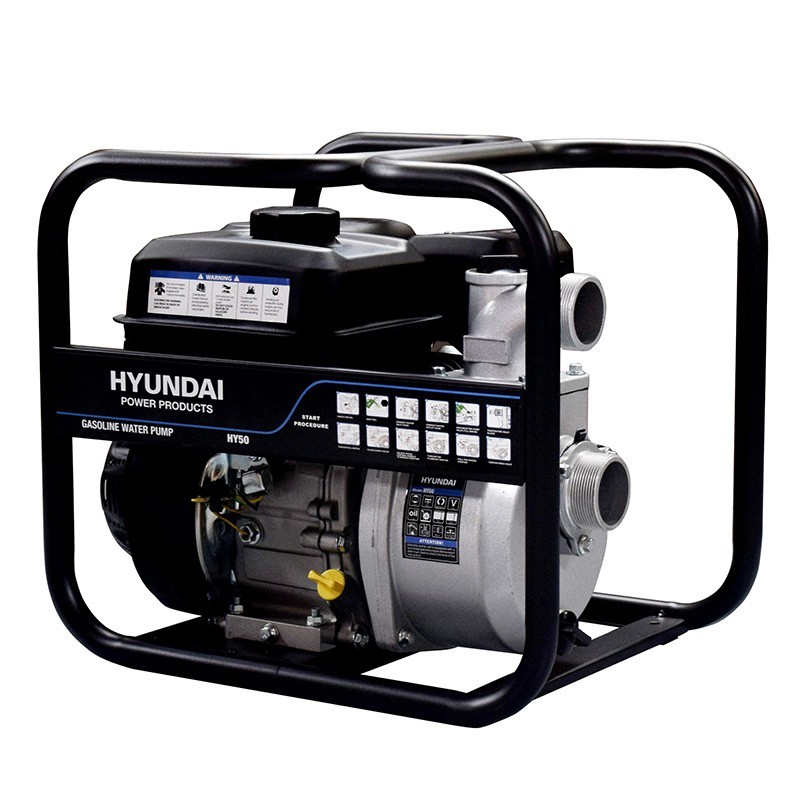

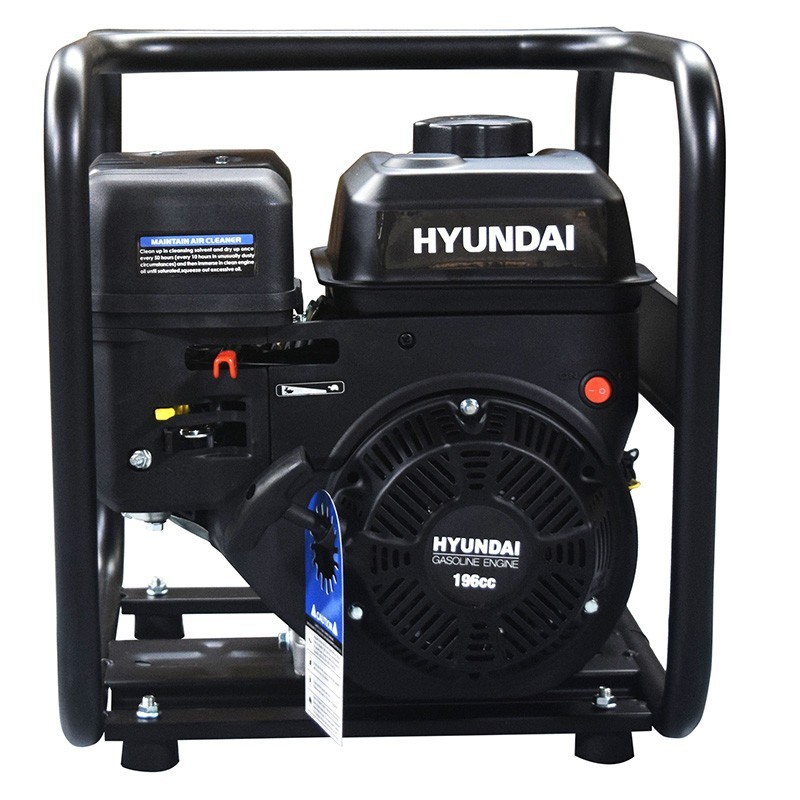

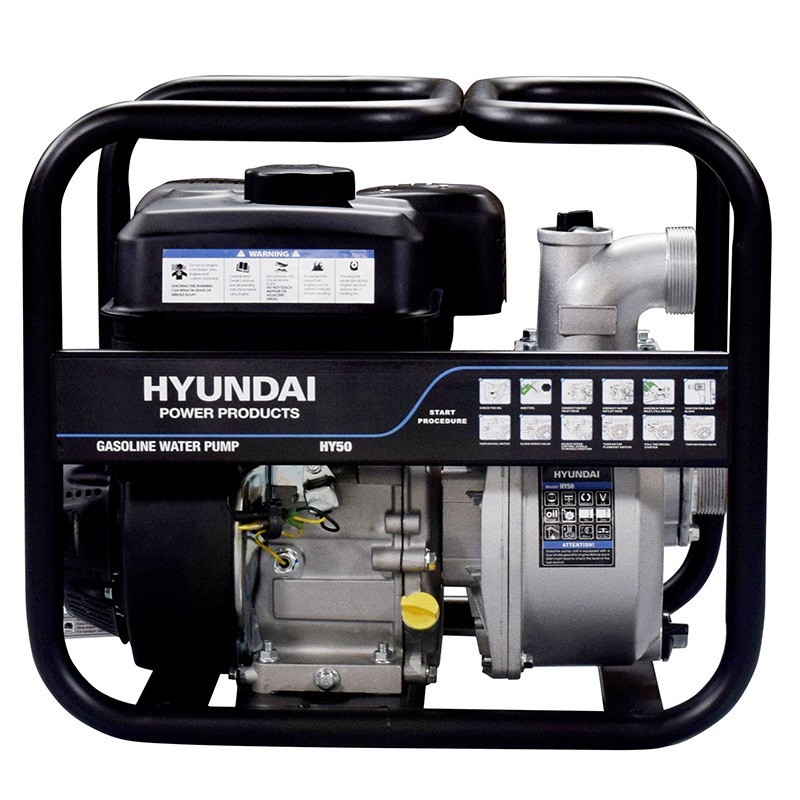

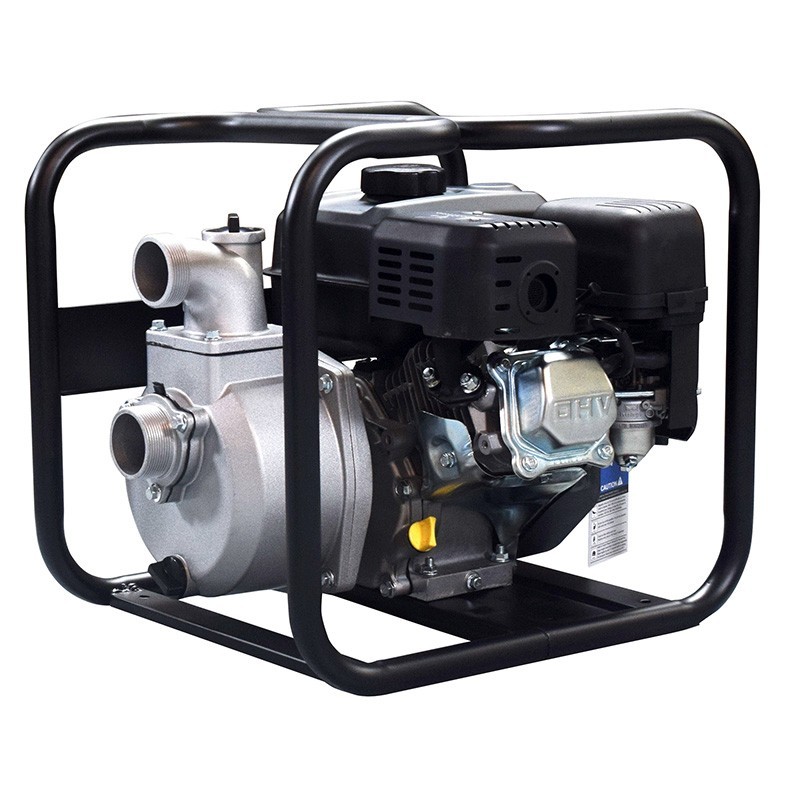

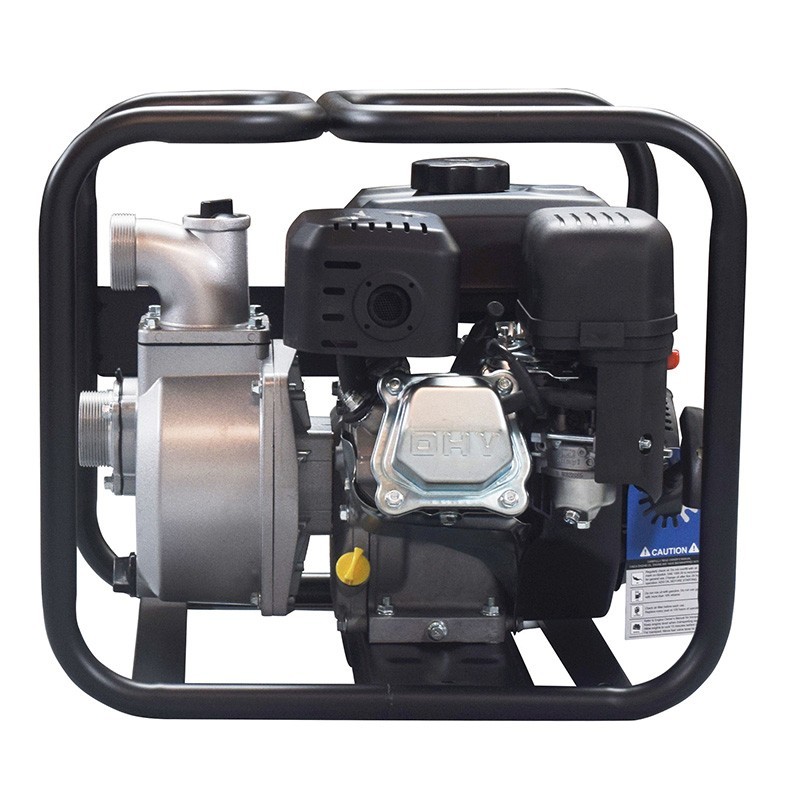

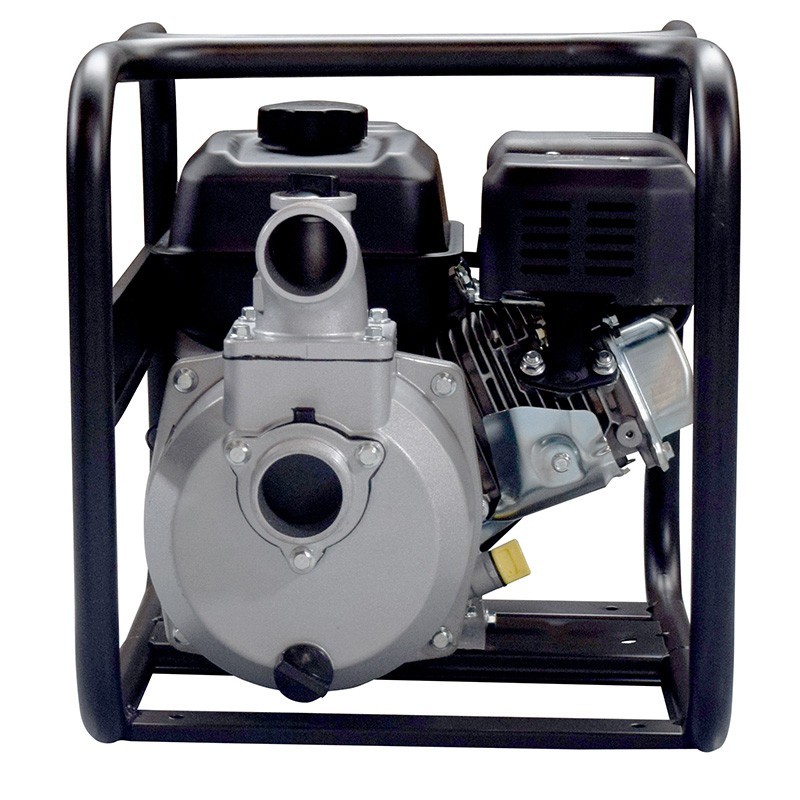

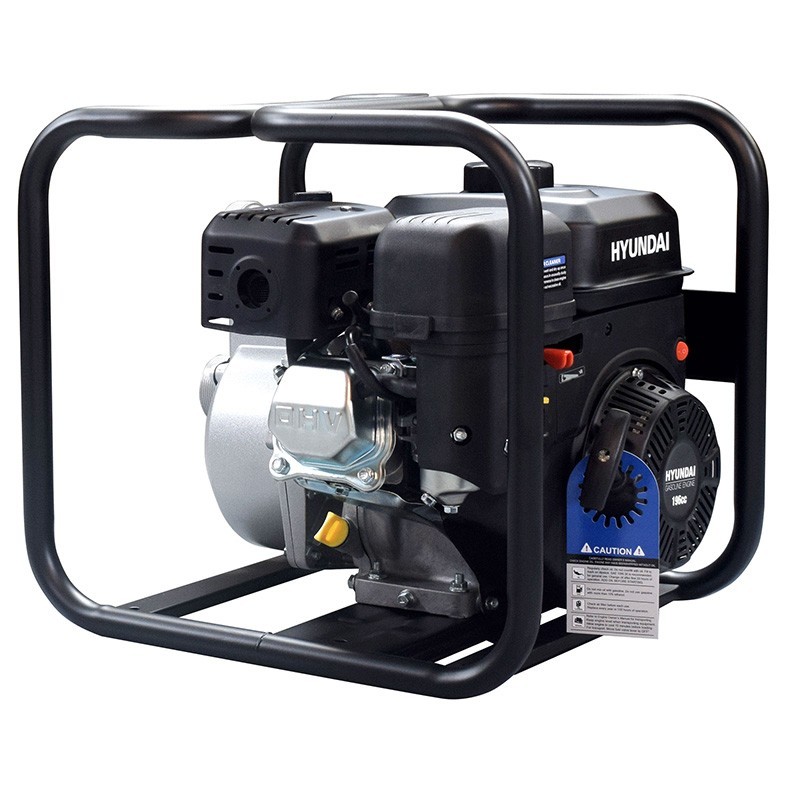

Gasoline motor pump Hyundai HY50
The motor pump Hyundai HY50 is a robust and efficient tool, designed to meet water pumping needs in various environments. Manufactured with an aluminum injection pump body, it stands out for its 32 mm diameter chassis, which ensures a light and compact structure, making it easy to transport and use.

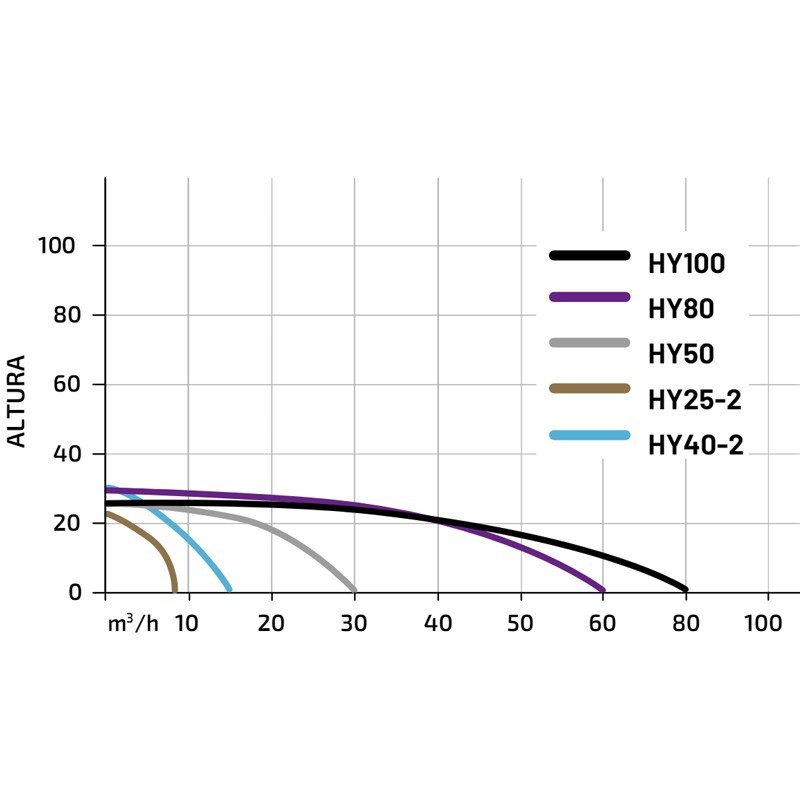

Equipped with a 163 cc HY51IC160 4-stroke engine, this motor pump offers a power of 5.5 HP and a manual start, reaching up to 3,600 revolutions per minute. Its maximum flow capacity is 30 m³/h, allowing it to move up to 500 liters per minute and reach a maximum height of 27 meters, ideal for demanding jobs.
In addition, the Hyundai HY50 includes connection accessories and a filter, ensuring optimum performance. It can handle solid particles up to 9 mm in diameter, and features a high quality mechanical seal and an oil alarm on the motor, providing durability and safety in operation.
Technical Data
| Suction/impeller diameter |
50 mm (2'') |
| Max. flow rate |
30 m3/h (500 L/min) |
| Maximum head |
27 m / 2,7 Bar |
| Solid particle diameter |
9 mm |
| Motor |
IC160 |
| Engine type |
4-stroke |
| Displacement |
163 cc |
| Starter |
Manual |
| Revolutions |
3.600 rpm |
| Engine power |
5,5 HP |
| Fuel capacity |
3,6 L |
| Weight |
25 Kg |
| Dimensions (mm) |
52 x 40,5 x 45,5 cm |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
