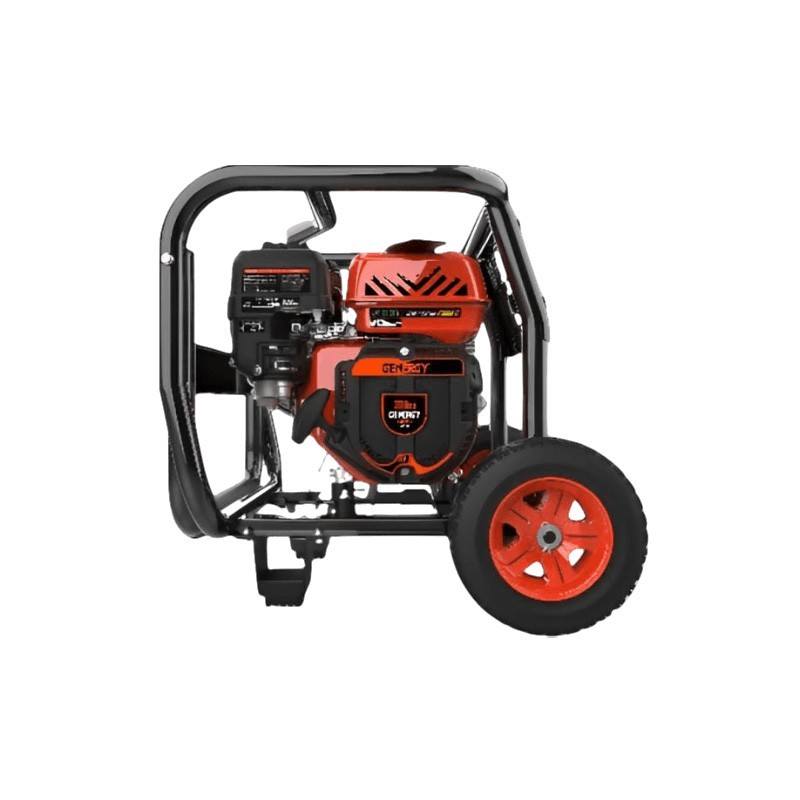

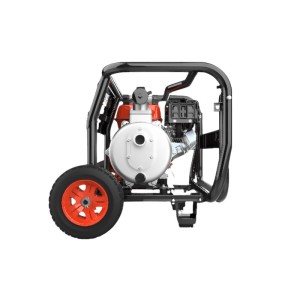

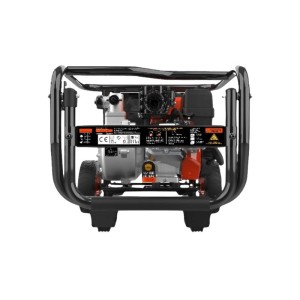

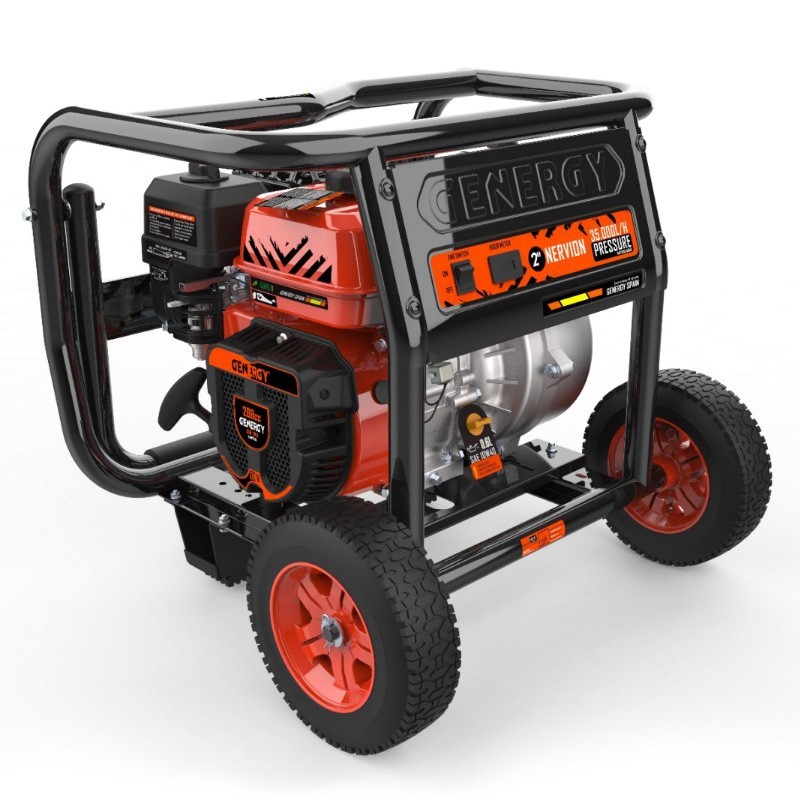

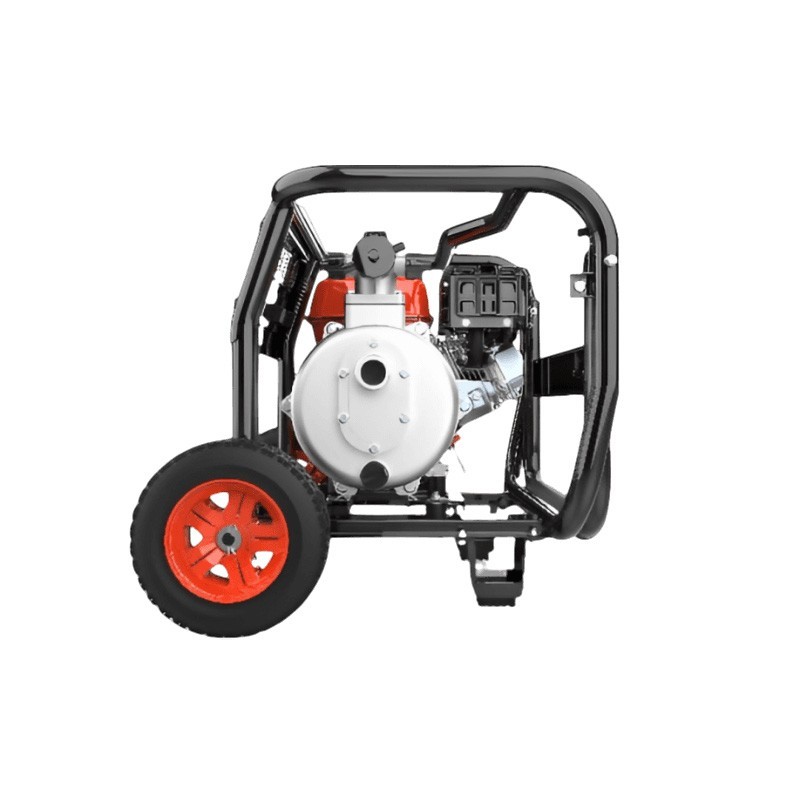

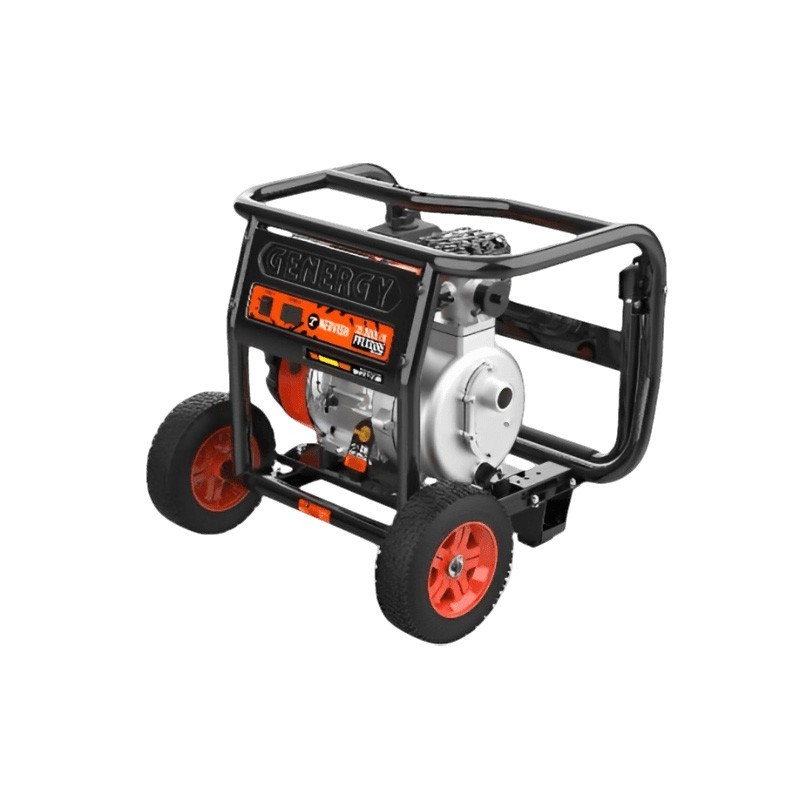

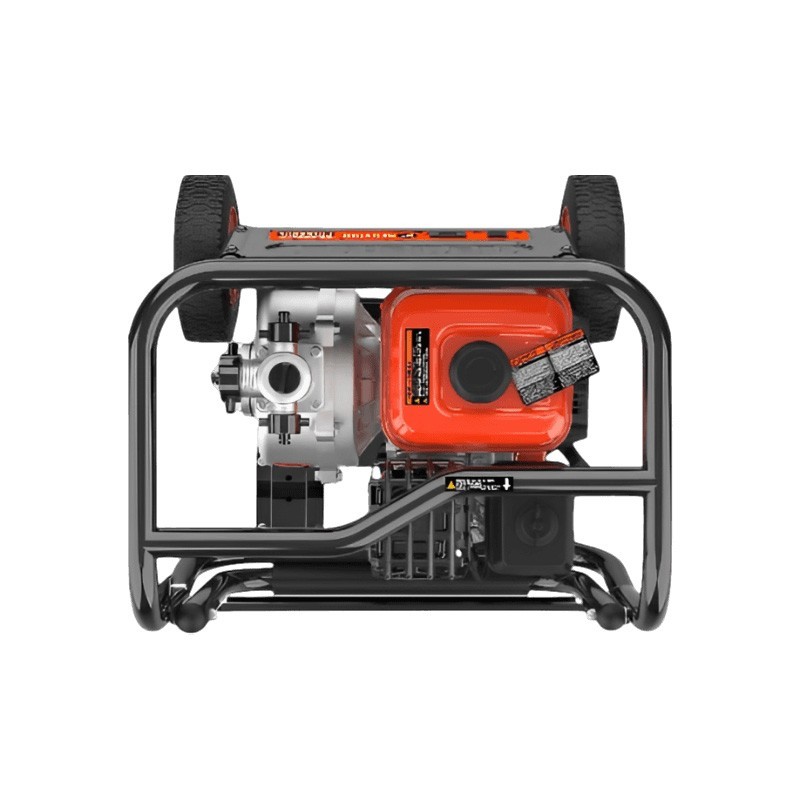

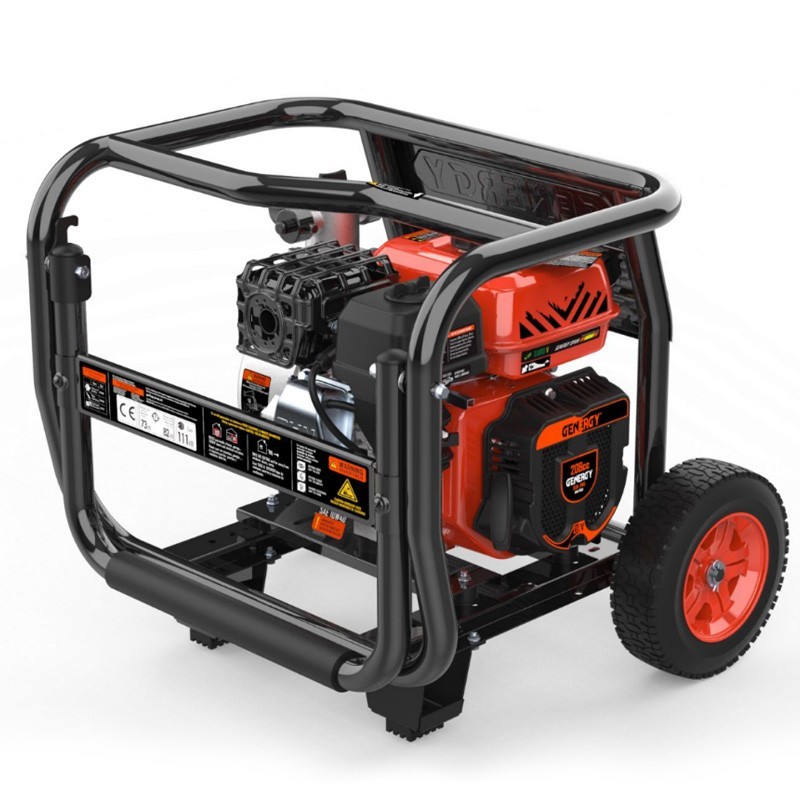

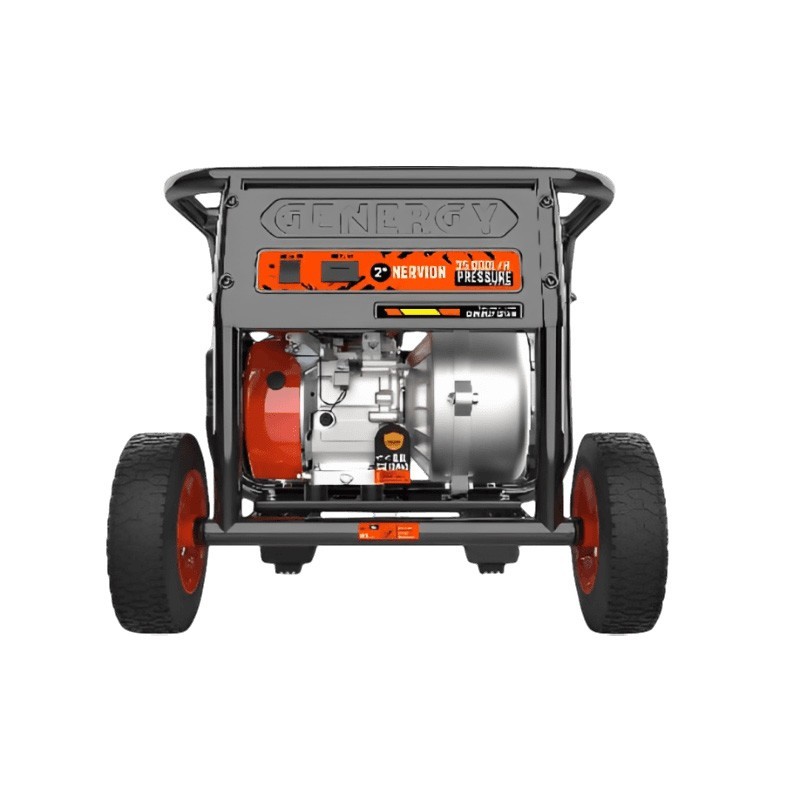

The gasoline motor pump Genergy Nervión 35000 L/H 50 m has a 4-stroke OHV air-cooled gasoline engine, dimensions without wheels of 627x509x480 mm and with wheels of 627x611x583 mm, and a maximum suction height of 5 meters.
It offers a maximum flow rate of 35000 L/H, an operating temperature of 5º to 40º, and a capacity and oil grade of 0.6L - SAE10W40. The motorpump has a manual start type, a fuel tank capacity of 2.6 L, and a displacement of 208 cc.
The gasoline motor pump Genergy Nervión 35000 L/H 50 m its function goes from clean to dirty water without solids, has a maximum lifting height of 50 meters, and a weight of 80 kg. Its suction time is ≤300 seconds at 5 meters, and its thread size is 150 mm.
| Application | Clean or dirty water without solids >5o |
| Thread size - Suction diameter | 1XBSP 2" - 50mm |
| Maximum flow rate | 35.000L/H |
| Maximum suction head | 7MTS |
| Maximum total head | 50MTS |
| Suction time at 5mts | ≤160S |
| Motor model | SGB210PRO |
| Displacement | 208cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 67dB - 78dB (A) |
| Guaranteed sound power level LwA | ≤108dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 2.6L |
| Consumption at 25-50-75% throttle | 1L/H - 1.1L/H - 1.4L/H |
| Autonomy 25-50-75% throttle | 2.6H - 2.4H - 1.8H |
| Oil capacity and grade | 0.6L - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º C |

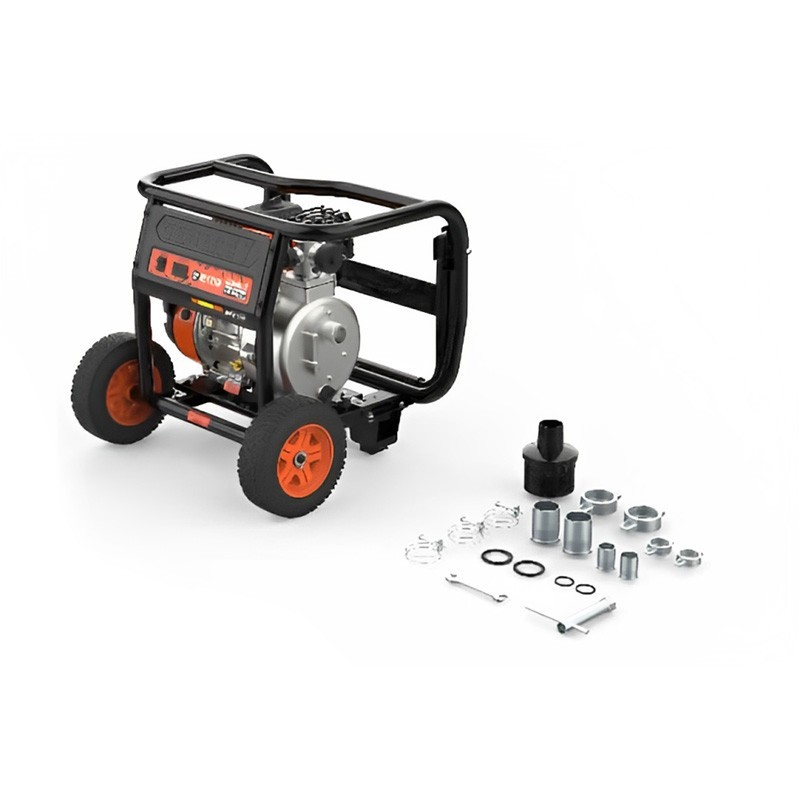

| Transport kit | Integrated with 10" wheels |
| Dimensions without - with casters | 627X509X480 - 627X611X583mm |
| Weight | 38kg |
| Reference | 30035 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
