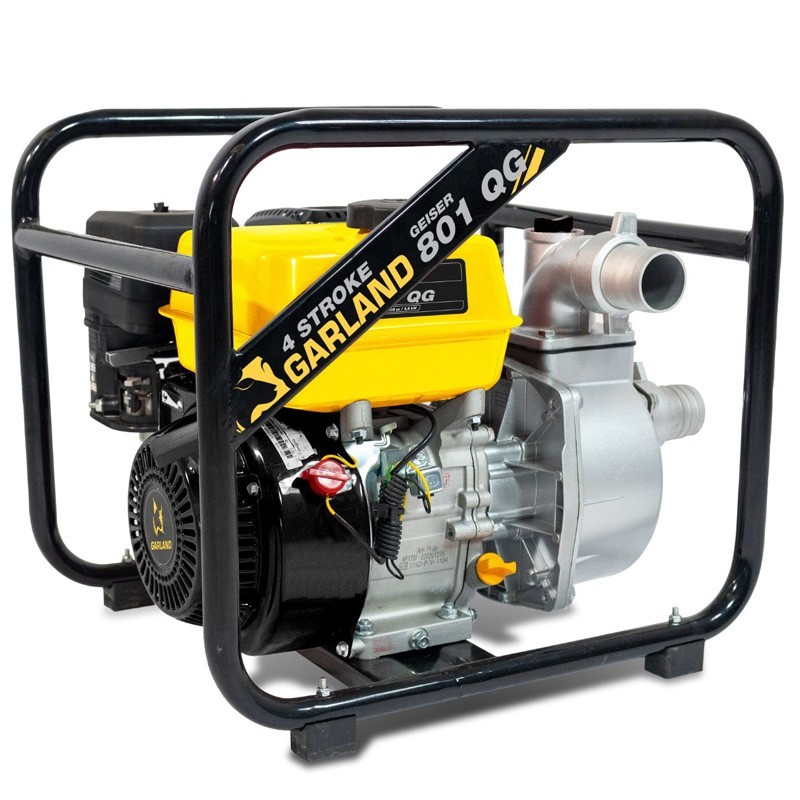

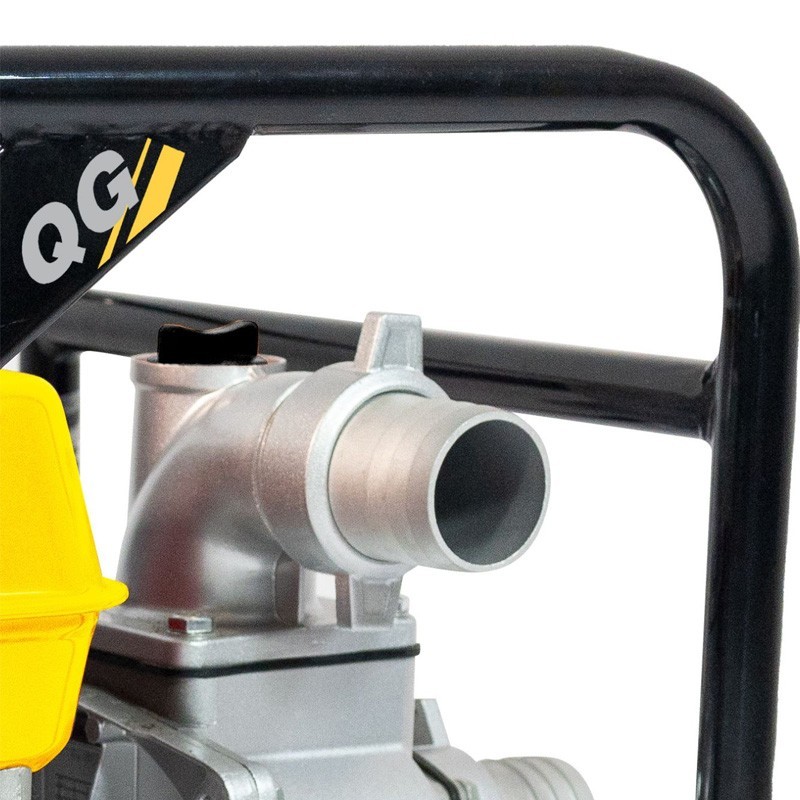

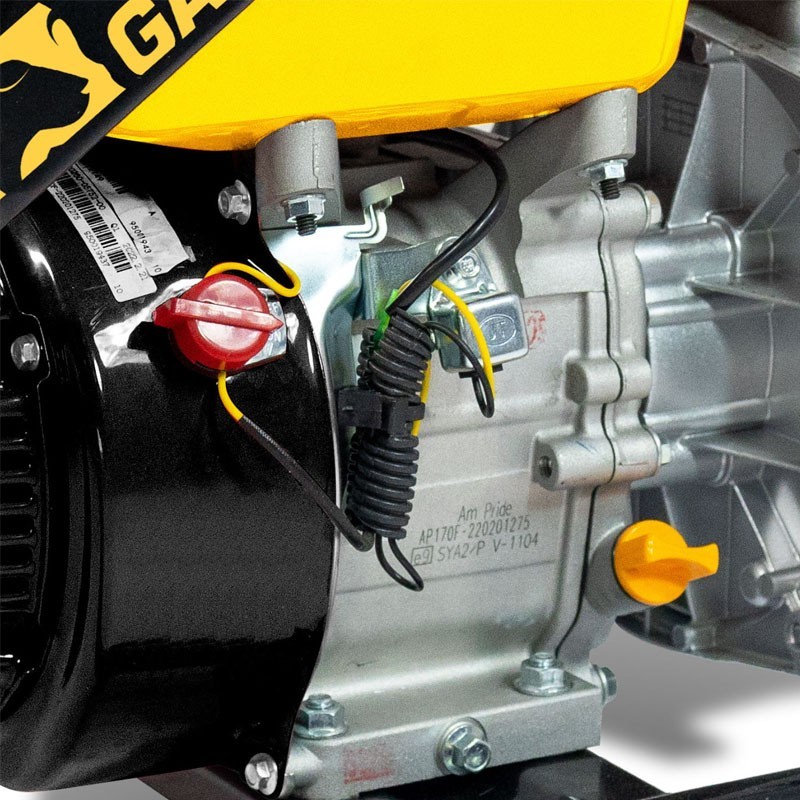

This Motorpump Garland Geiser 801 QG-V23 has a four-stroke engine of 208 displacement, has a fuel capacity of 3.6 liters, has water inlet and outlet fittings of 1.5 inches (40 mm) and 2 inches (50 mm) to mount the measure that best suits the user.
It has a maximum height of impulsion with 2-inch fittings : 30 meters and a maximum height of suction of 7 meters and a discharge of 32 m3/h with 2-inch inlet and outlet, has a power of 4.5 kW and a maximum flow of 32,000 l/h, weighs about 23 kg.
| Engine | Garland 4 Stroke |
| Power | 4500 W |
| Max. height | 7 m. |
| Max height of impulsion | 30 m |
| Flow rate | 32.000 L/H |
| Consumption | 1'1 L/H |
| Tank | 3'6 L |
| Displacement | 208 cc |
| Starter | Manual |
| Weight | 23 kg |
| Inlet Ø | 40/50 mm |
| Outlet Ø | 40/50 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
