Wheel kit for Hyundai generators and motor pumps
- 2 solid puncture-proof wheels
- 1 axle for wheels
- 2 grips with handle
- 8 flanges
- Fixing elements
€107.19 VAT incl.

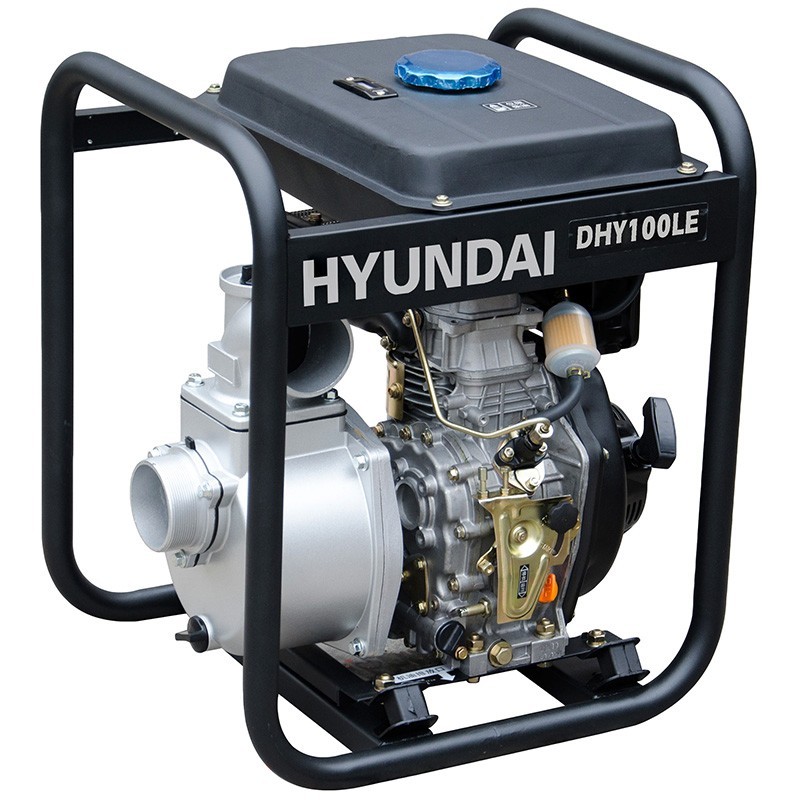

The motor pump Hyundai DHY100LE is a powerful and versatile tool, ideal for industrial applications that require the handling of clean water. Equipped with a single-cylinder diesel engine with direct injection, it has a displacement of 418 cc and a power of 10 HP, ensuring optimum performance in demanding situations.
With a suction and discharge diameter of 100 mm, the DHY100LE is capable of moving a maximum flow rate of 96 m³/h (1,600 L/m) and reaching a maximum height of 39 meters. Its ability to handle solid particles up to 9 mm makes it especially useful in irrigation and crop cultivation tasks, ensuring a constant and efficient flow.
The design of the motor pump Hyundai DHY100LE includes a die-cast aluminum pump body, giving it a lightweight and compact structure with a 32 mm chassis. These features not only make it easy to transport and handle, but also ensure its durability and resistance in demanding industrial environments.
Suction/impeller diameter | 100 mm (4") |
Max. flow rate | 96 m3/h - 1,600 L/m |
Maximum head | 39 m / 3,8 Bar |
Solid particle diameter | 9 mm |
Motor | D400E |
Displacement | 418 cc |
Starter | Electric |
Engine power | 10 HP |
Oil capacity | 1,65 L |
Fuel capacity | 14 L |
Weight | 80 Kg |
Dimension (mm) | 65,5 x 48 x 70 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
