Diesel clean water motor pump Hyundai DHYH40LE-2

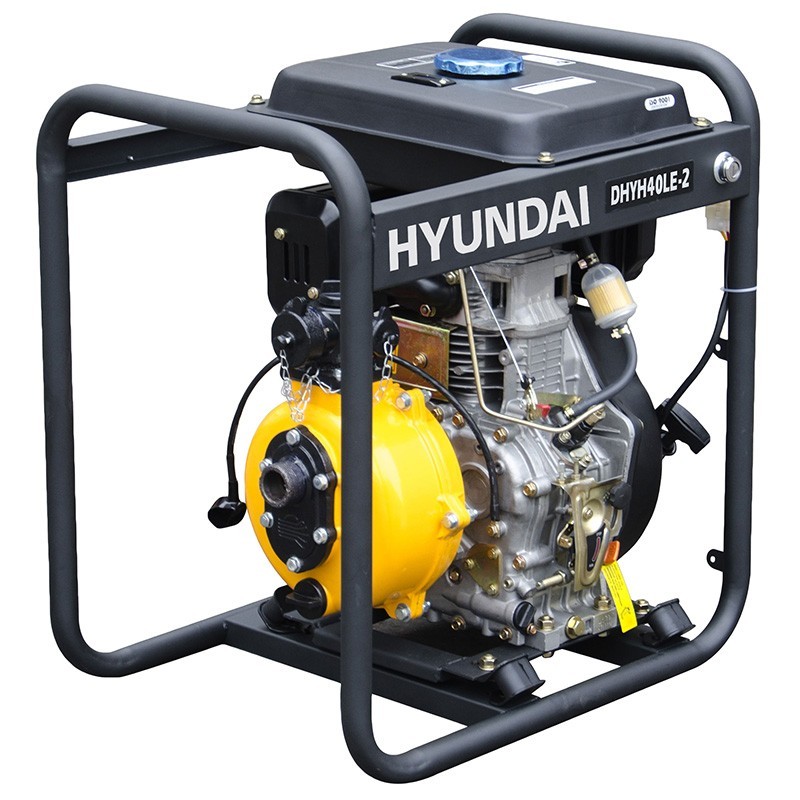

Equipped with a single-cylinder, direct-injection diesel engine and a lightweight, compact 32 mm chassis, the DHYH40LE-2 clean water diesel motor pump Hyundai offers a combination of power and portability that makes it easy to use in a variety of environments.

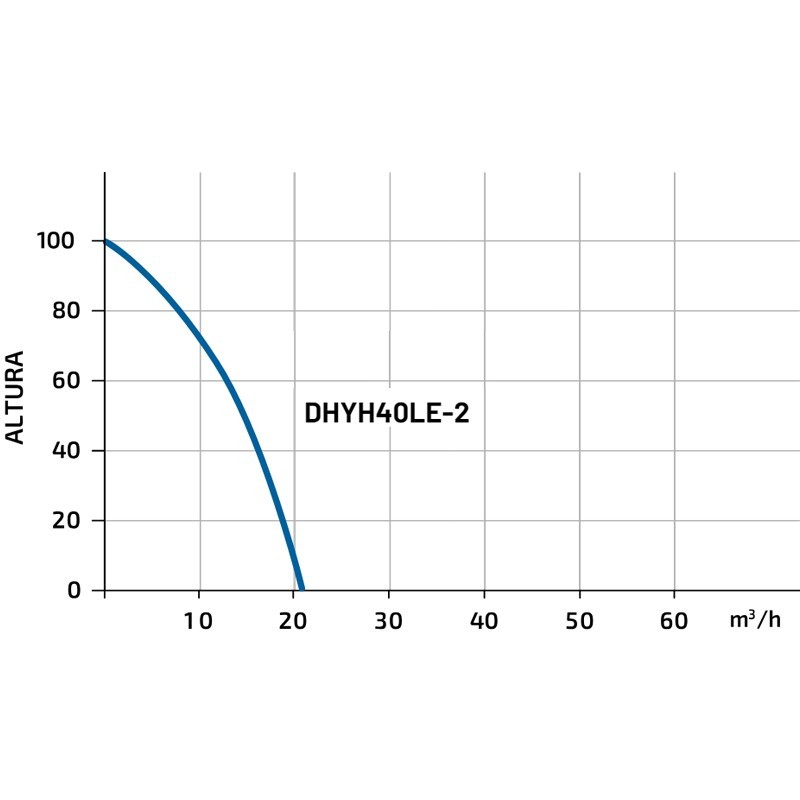

The pump body, made of die-cast aluminum, ensures durability and corrosion resistance. This motor pump stands out for its solids handling capacity with a maximum diameter of 9 mm and its impressive maximum flow rate of 21 m³/h.
In addition, it can reach a maximum head of 85 meters, operating at a pressure of 8.2 bar. Its 418 cc, 10 HP engine, together with an electric starter, ensures reliable and powerful operation.
The fuel tank capacity is 14 liters, which allows prolonged use without the need for frequent refueling, making it ideal for irrigation, drainage and water supply tasks in construction and rural areas.
Technical data
| Suction/impeller diameter |
40 mm (1''½) |
| Maximum flow rate |
21 m3/h |
| Maximum head |
85 m / 8,2 Bar |
| Solid particle diameter |
9 mm |
| Motor |
D400E |
| Displacement |
418 cc |
| Starter |
Electric |
| Engine power |
10 HP |
| Oil capacity |
1,65 L |
| Fuel capacity |
14 L |
| Weight |
80 Kg |
| Dimension (mm) |
65,5 x 48 x 70 cm |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination. |
