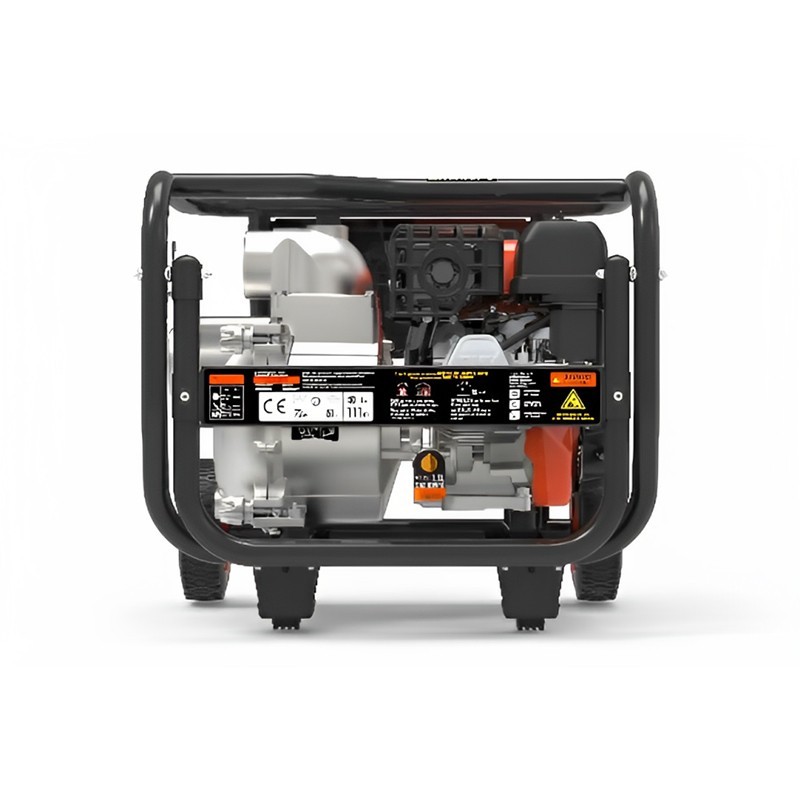

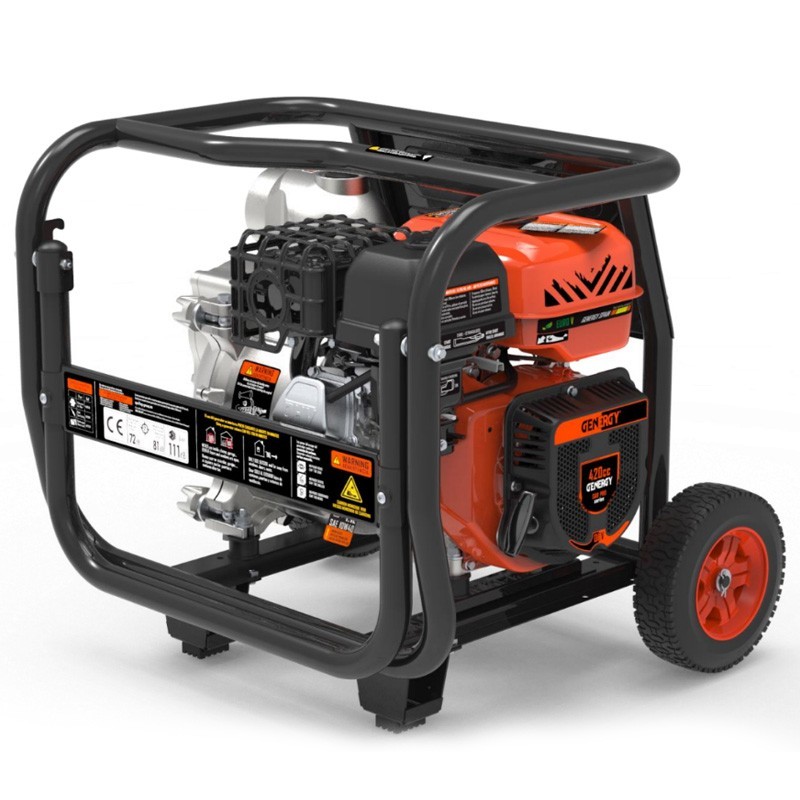

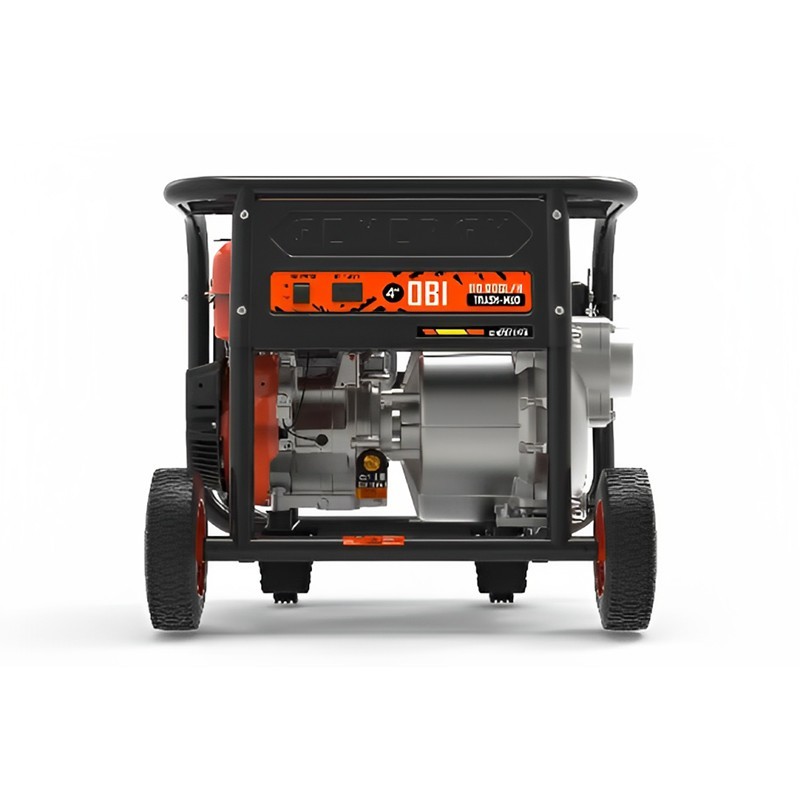

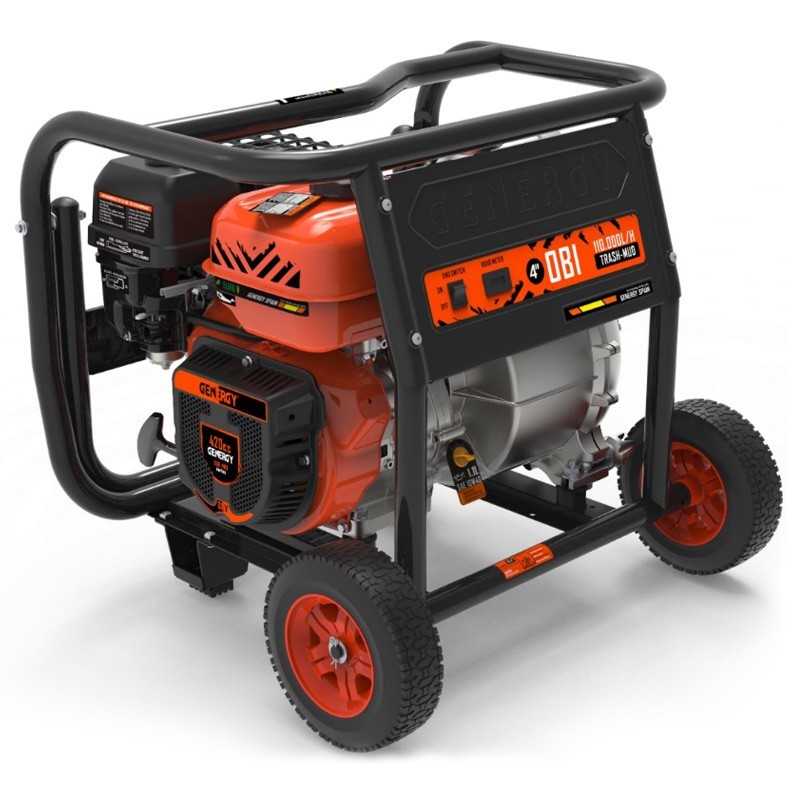

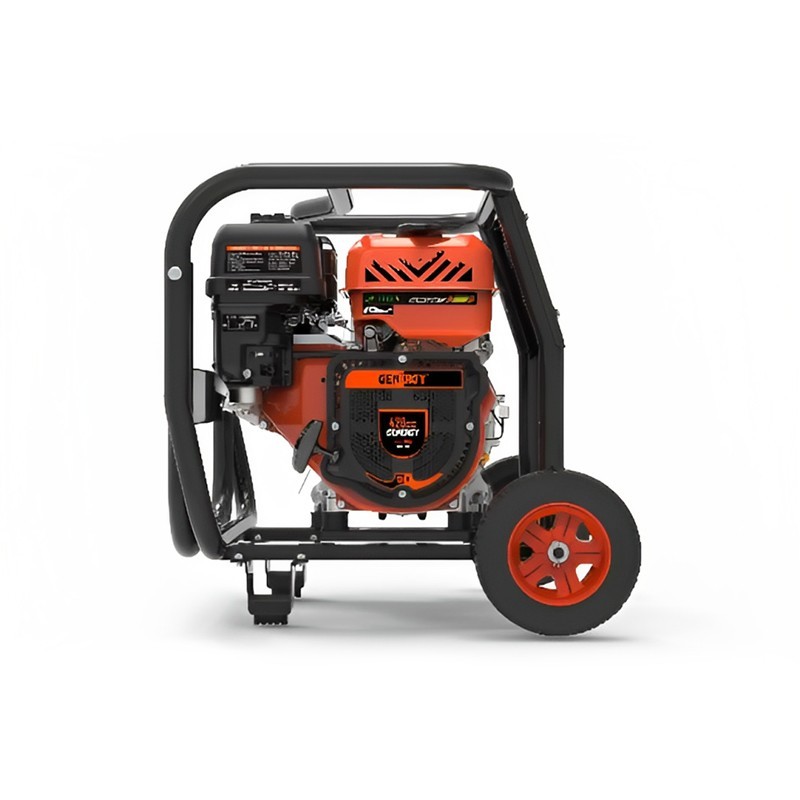

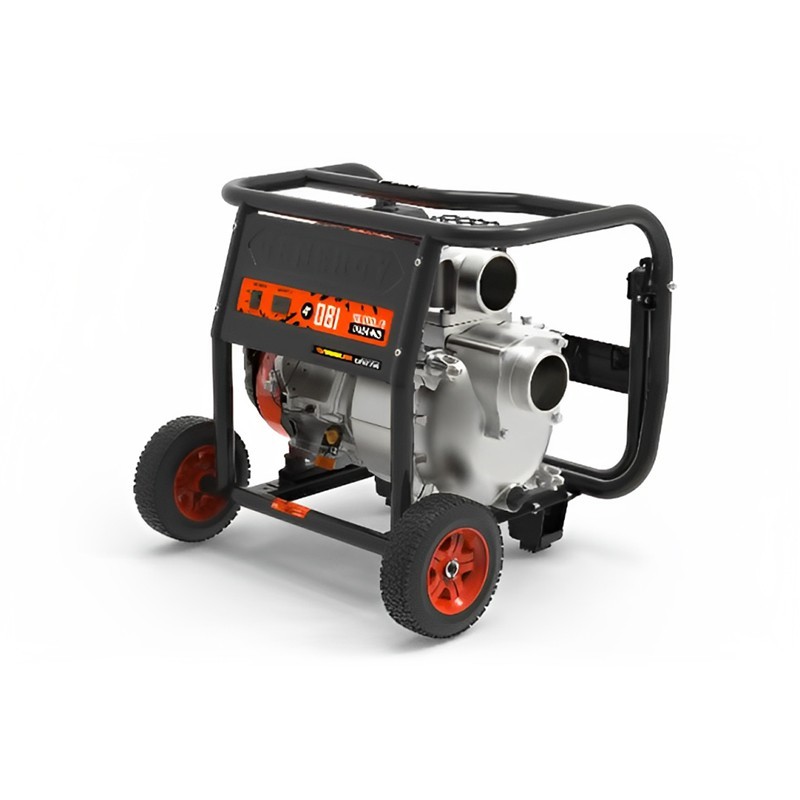

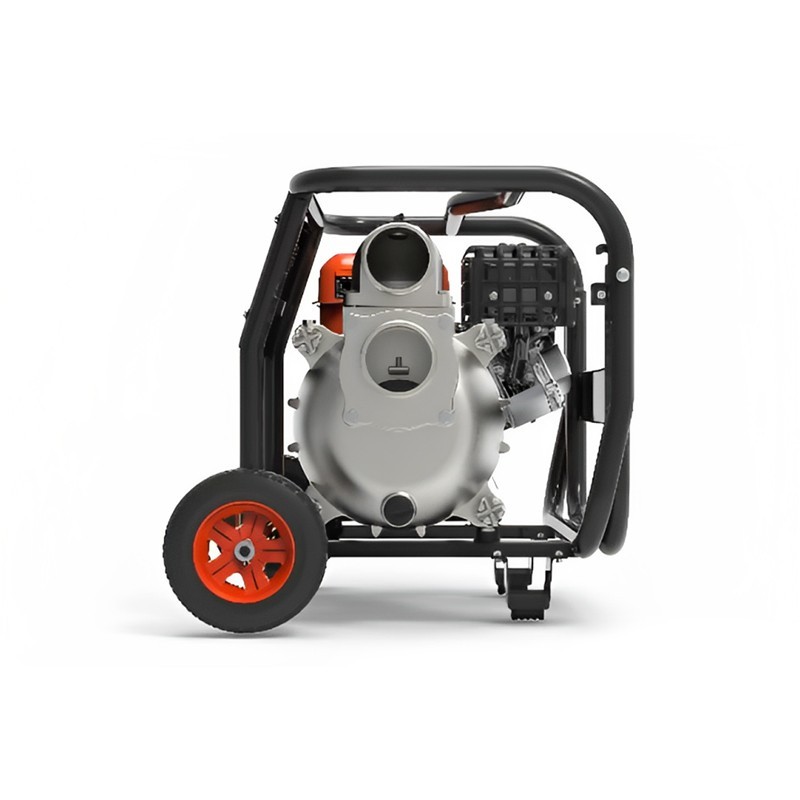

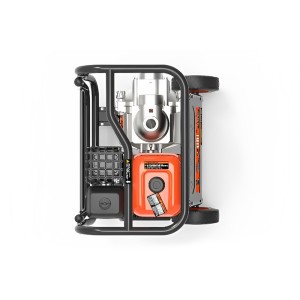

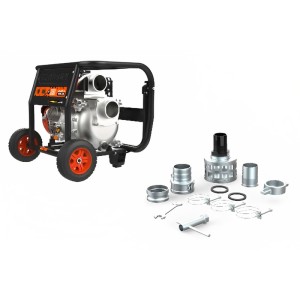

The Genergy Obi 110000 L/H 30 m Gasoline Pump is a powerful pumping tool designed to handle clean or dirty water with solids up to 25mm. With an impressive maximum flow capacity of 110,000 L/H and a maximum suction lift of 6 meters, it is ideal for a variety of pumping applications.
Equipped with an air-cooled 4-stroke OHV gasoline engine with a displacement of 420cc, this motor pump guarantees reliable and long-lasting performance. Its manual start is simple and reliable, and its 6-liter fuel tank allows for long, uninterrupted operation.
Complying with EN809 standards, the Genergy Obi Gasoline Motor Pump offers quiet operation with sound pressure levels of 72dB to 81dB (A) at a distance of 7 meters. Its compact design with dimensions of 753x605x590mm without wheels and 753x705x691mm with wheels, together with its carrying handle, facilitates mobility and storage.
| Application | Clean or dirty water with solids max 25mm >5o |
| Thread size-Suction diameter | 1XBSP 4" - 100mm |
| Maximum flow rate | 110.000L/H |
| Maximum suction head | 6MTS |
| Maximum total head | 30MTS |
| Suction time at 5mts | ≤200S |
| Motor model | SGB420PRO |
| Displacement | 420cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 72dB - 81dB (A) |
| Guaranteed sound power level LwA | ≤111dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 6L |
| Consumption at 25-50-75% throttle | 1.8L/H - 2.3L/H - 3L/H |
| Autonomy 25-50-75% throttle | 3.3H - 2.6H - 2H |
| Oil capacity and grade | 1.1L - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º C |
| Transport kit | Carrying handle |
| Dimensions without - with wheels | 753X605X590 - 753X705X691mm |
| Weight | 84kg |
| Reference | 30050 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
