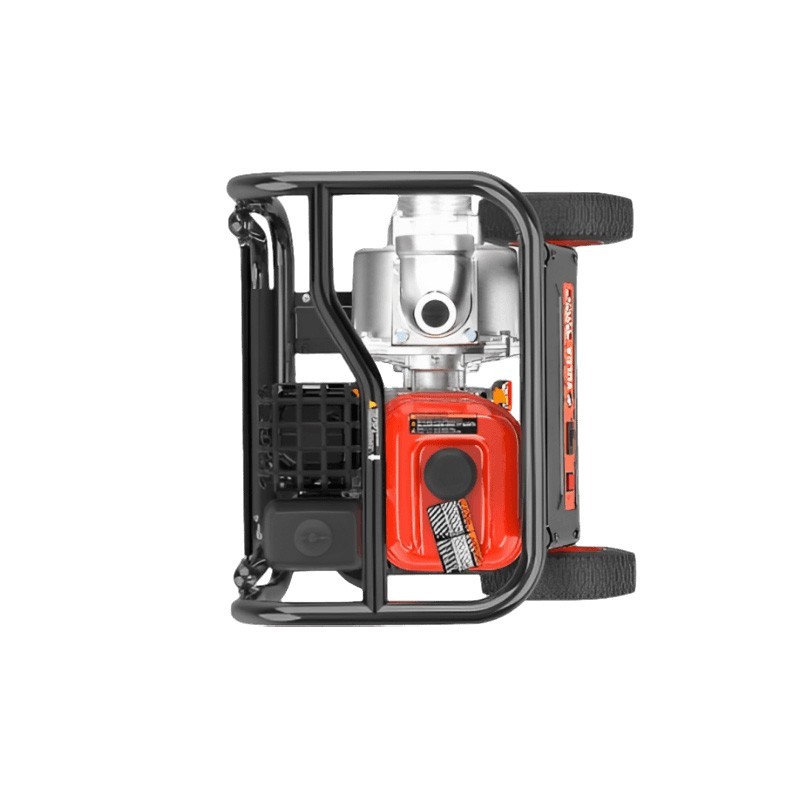

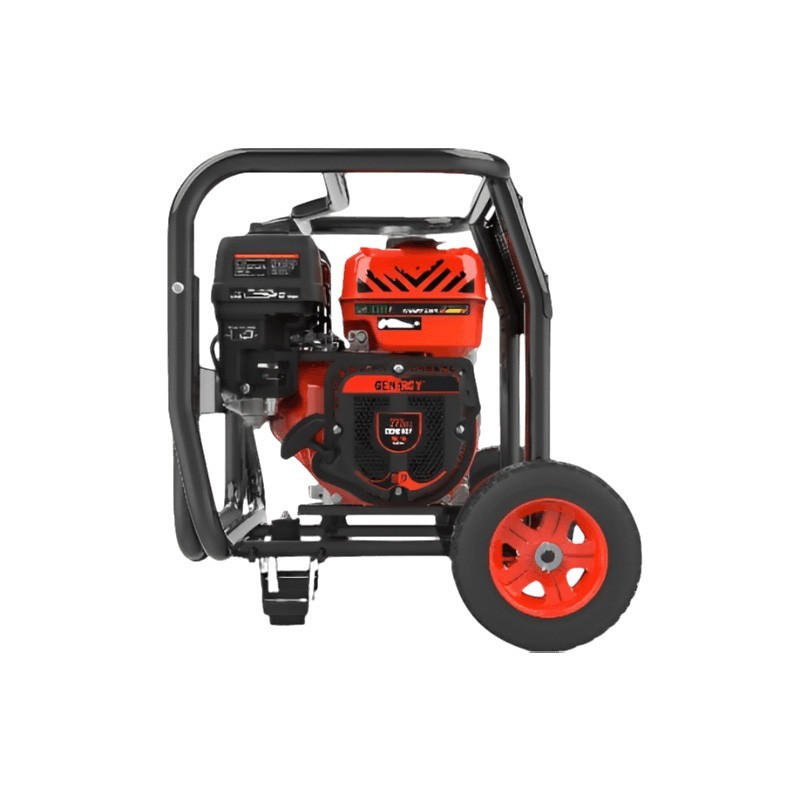

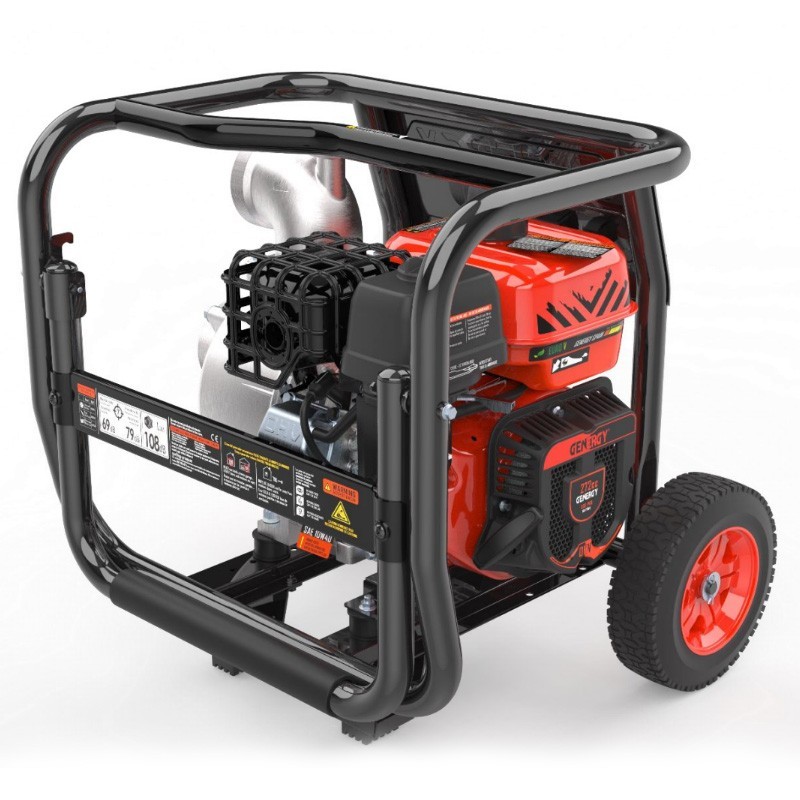

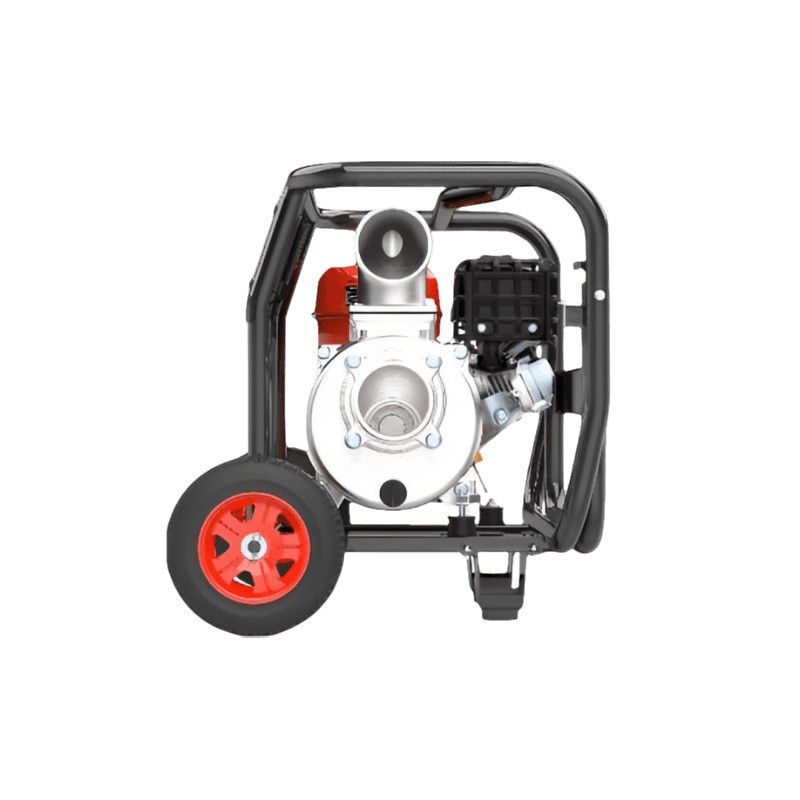

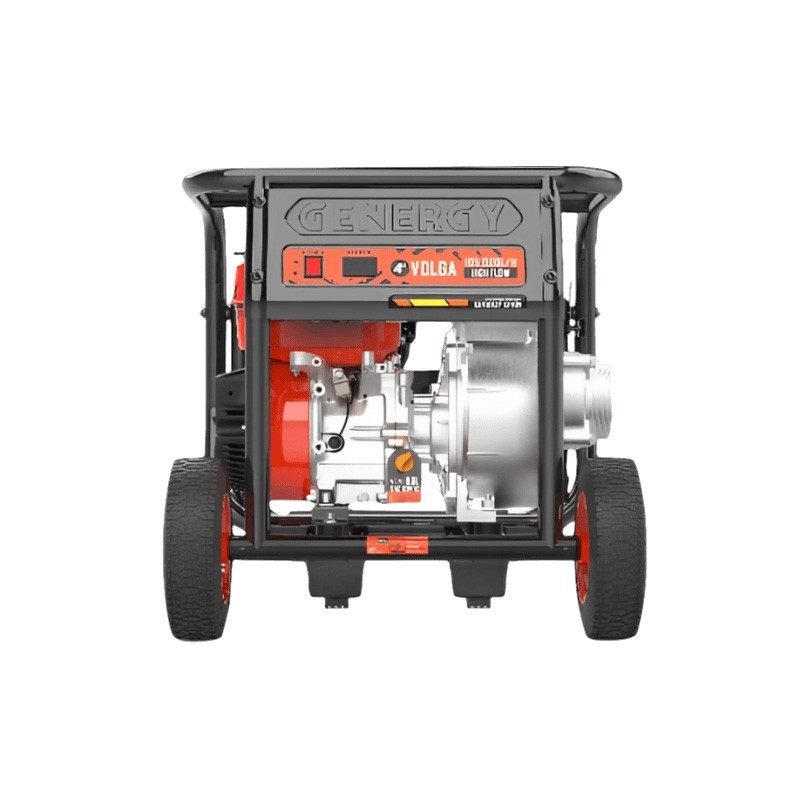

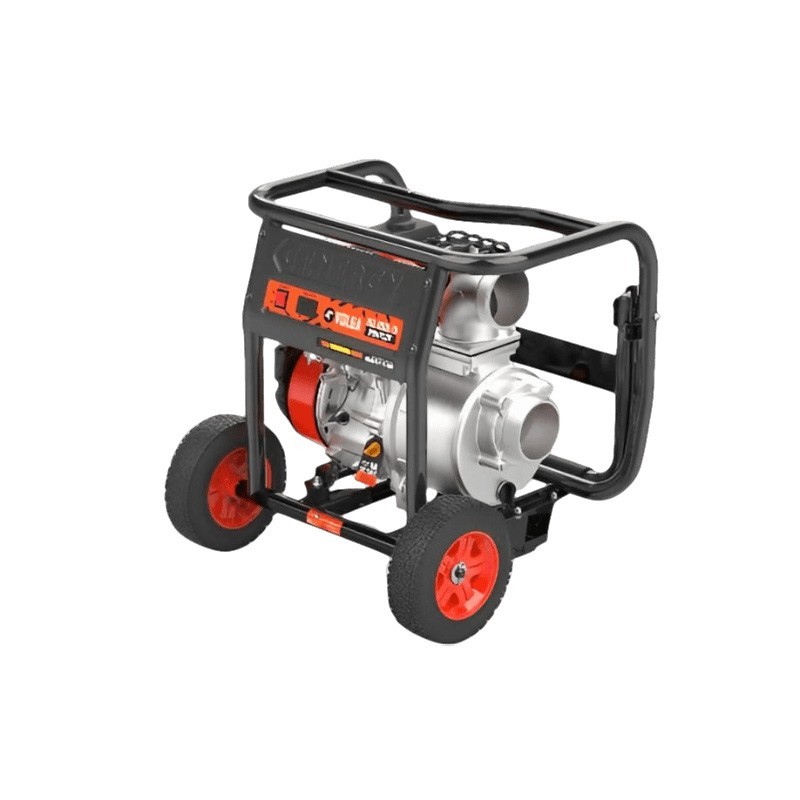

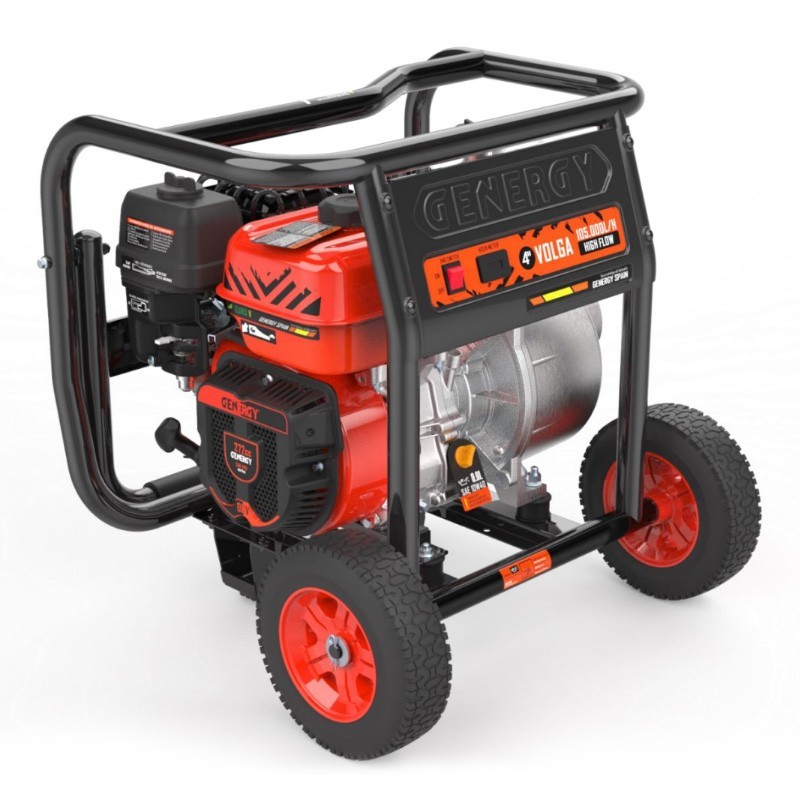

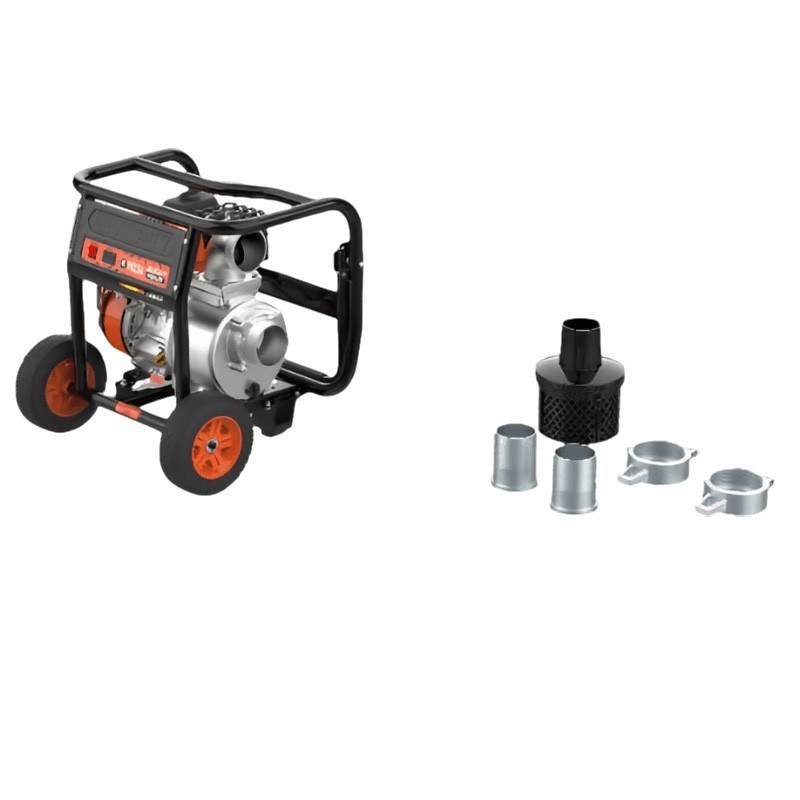

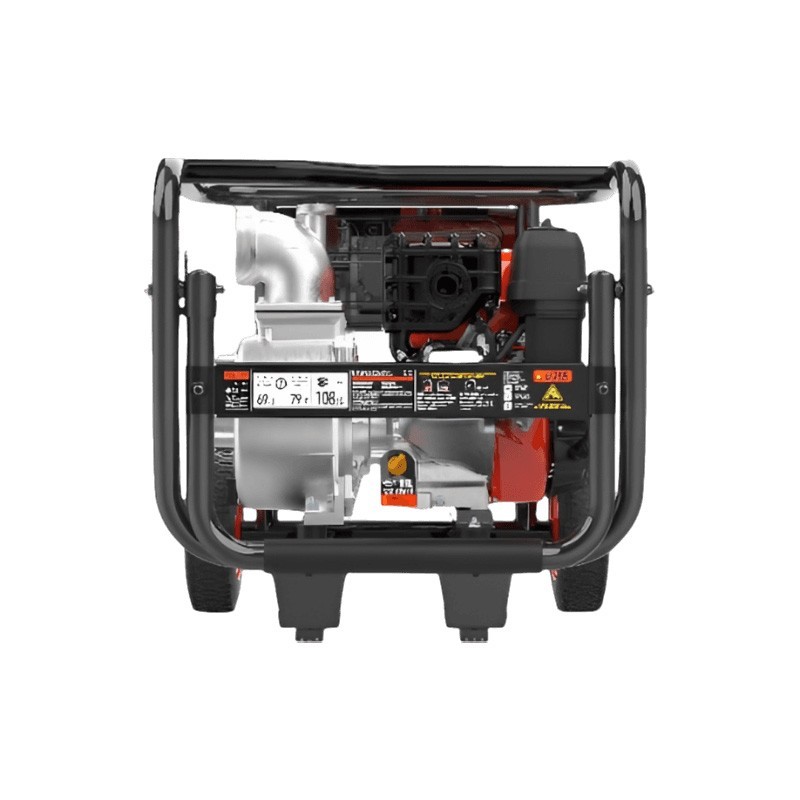

The Gas oline Motor Pump Genergy Volga 105000 L/H 25 m has a maximum flow rate of 105,000 L/H, a thread size of 100 mm, its maximum lift height is 25 meters, and a suction time of ≤200 seconds at 5 meters .
It has dimensions without wheels of 627x508x540 mm and with wheels of 627x611x643 mm, a maximum suction height of 6 meters, with a fuel tank capacity of 3.1 L. It has a 4-stroke OHV air-cooled gasoline engine with a displacement of 272 cc
The Volga Gasoline Motorpump Genergy 105000 L/H 25 m is prepared for clean and dirty water without solids, has a weight of 43 kg, and a service from 5º to 40º of temperature. Its starting type is manual, and its capacity and oil grade is 1L - SAE10W40.
| Application | Clean or dirty water without solids >5o |
| Thread size-Suction diameter | BSP 4" - 100mm |
| Maximum flow rate | 105.000L/H |
| Maximum suction head | 6MTS |
| Maximum total head | 25MTS |
| Suction time at 5mts | ≤200S |
| Motor model | SGB270PRO |
| Displacement | 272cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 69dB - 79dB (A) |
| Guaranteed sound power level LwA | ≤108dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 3.1L |
| Consumption at 25-50-75% throttle | 1.4L/H - 1.8L/H - 2.3L/H |
| Autonomy 25-50-75% throttle | 2.2H - 1.7H - 1.3H |
| Oil capacity and grade | 1L - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º C |
| Transport kit | Carrying handle |
| Dimensions without - with wheels | 627x508x540 - 627x611x643mm |
| Weight | 43 kg |
| Reference | 30025 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
Data sheet
