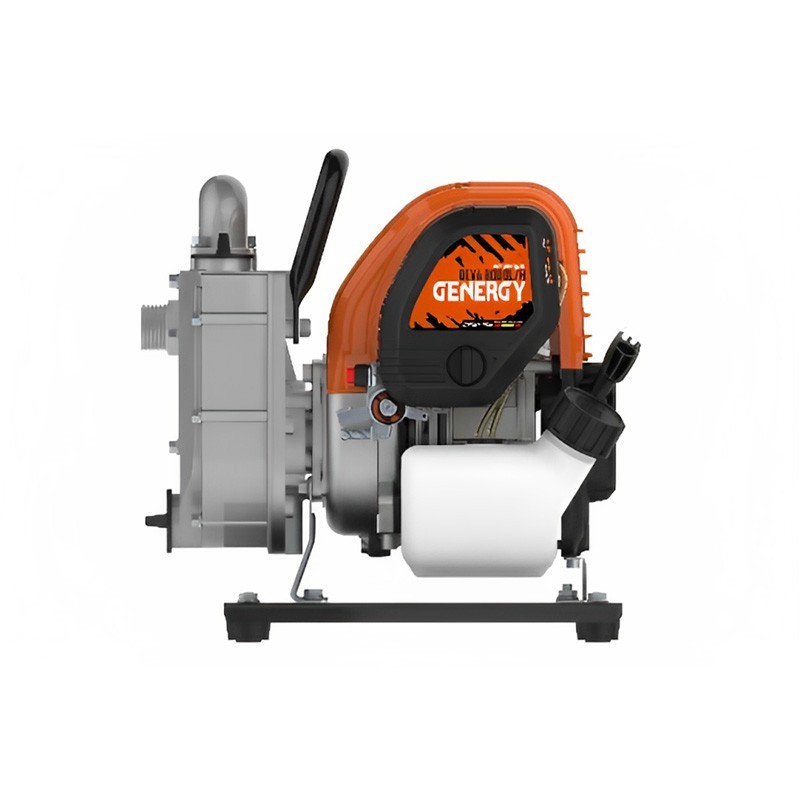

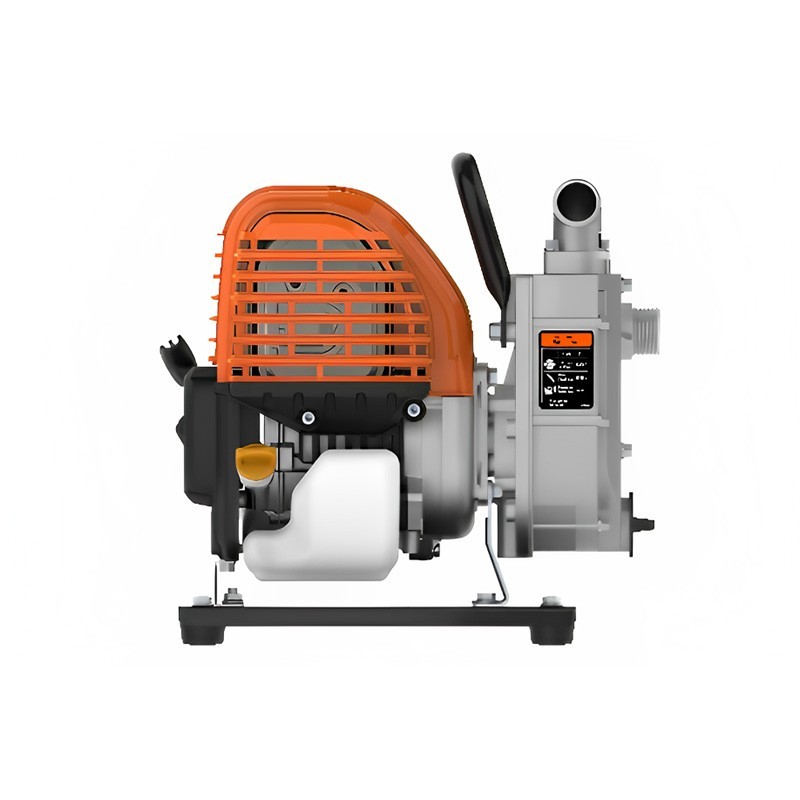

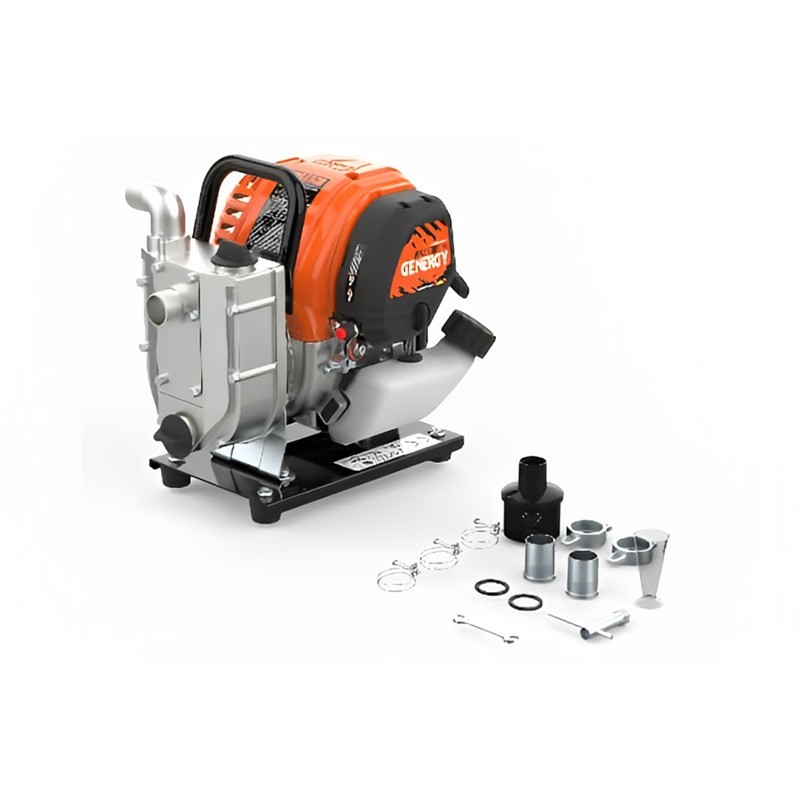

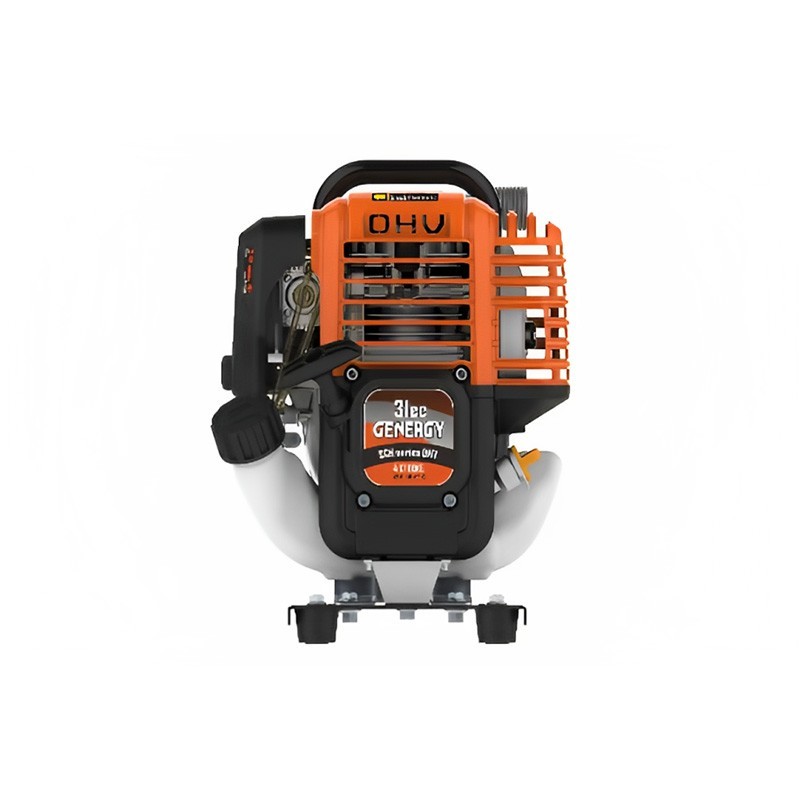

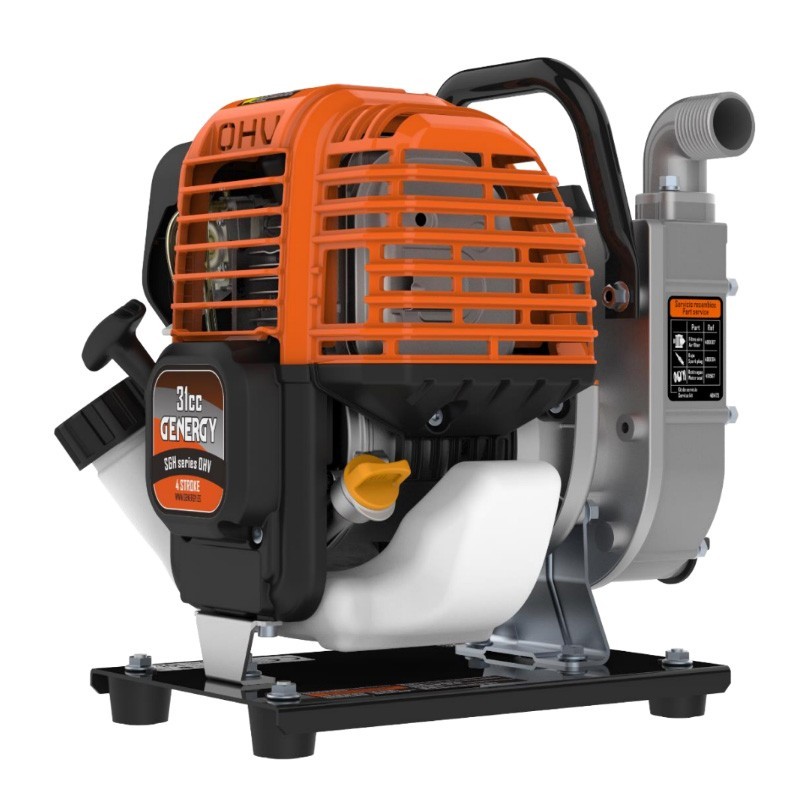

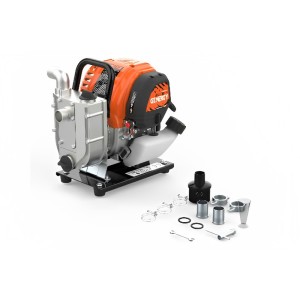

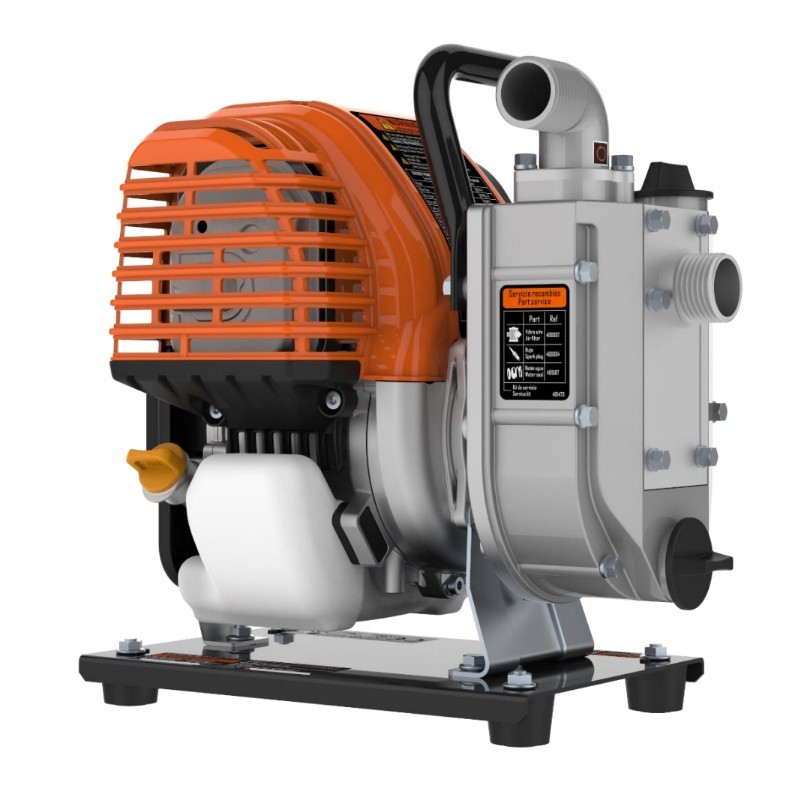

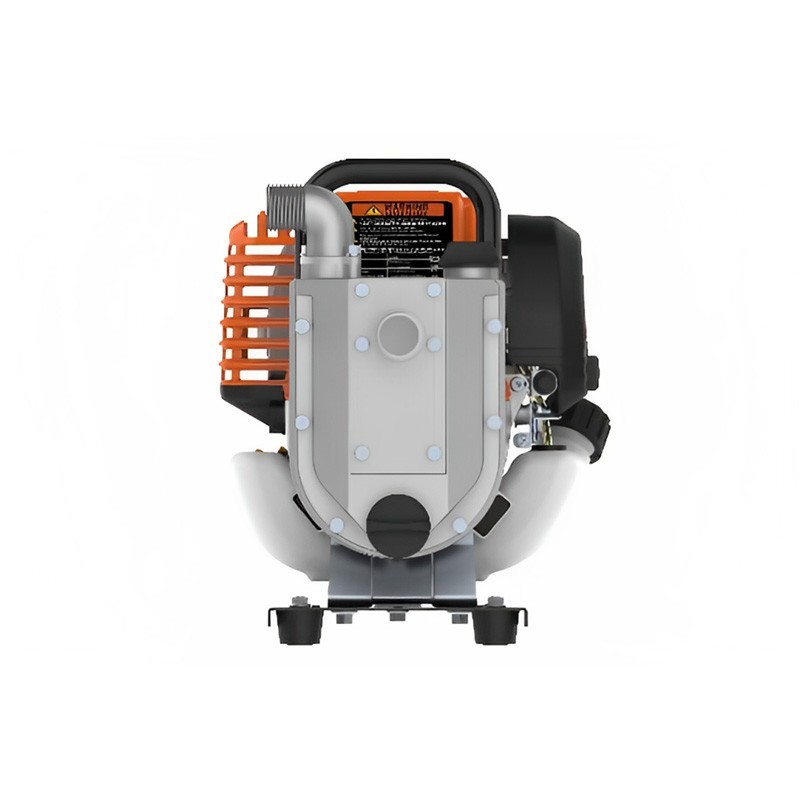

The gasoline motor pump Genergy Deva II 8000 L/H 29 m has athread size of 24mm, a maximum suction lift of 7 meters, and a 4-stroke OHV air-cooled gasoline engine with a suction time of ≤130 seconds at 5 meters.
Its dimensions are 814x623x690 mm, it has a manual start type, and it has a fuel tank capacity of 0.6 L. It offers a service temperature of 5º to 40º, and a total maximum lift height of 29 meters
The petrol motor pump Genergy Deva II 8000 L/H 29 m has a capacity and oil grade of 0.07L (70ml) - SAE10W40, a weight of 6 kg, and has a displacement of 31 cc with a maximum flow rate of 8,000L/H.
| Application | Clean or dirty water with no solids >5o |
| Thread size-Suction diameter | BSP 1" - 24mm |
| Maximum flow rate | 8.000L/H |
| Maximum suction head | 7MTS |
| Maximum total head | 29MTS |
| Suction time at 5mts | ≤130S |
| Engine model | SGH31CC |
| Displacement | 31cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 59dB - 74db (A) |
| Guaranteed sound power level LwA | ≤101dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 0.6L |
| Consumption at 25-50-75% throttle | 0.21L/H - 0.25L/H - 0.30L/H |
| Autonomy 25-50-75% throttle | 2.8H - 2.4H - 2H |
| Oil capacity and grade | 0.07L (70ml) - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º |
| Transport kit | Carrying handle |
| Dimensions | 298X224X304 mm |
| Weight | 6 kg |
| Reference | 30005 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
