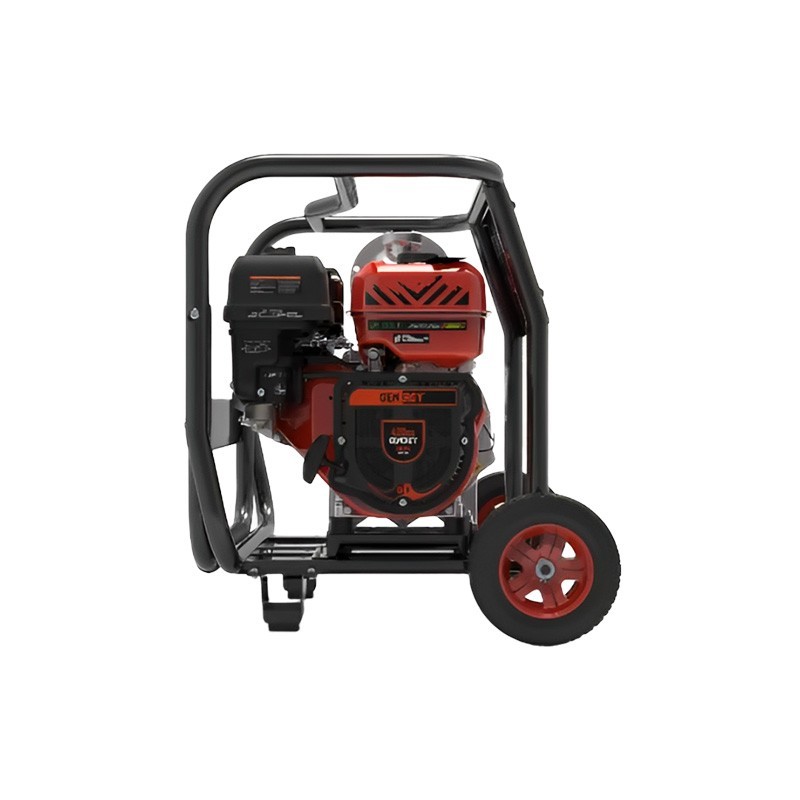

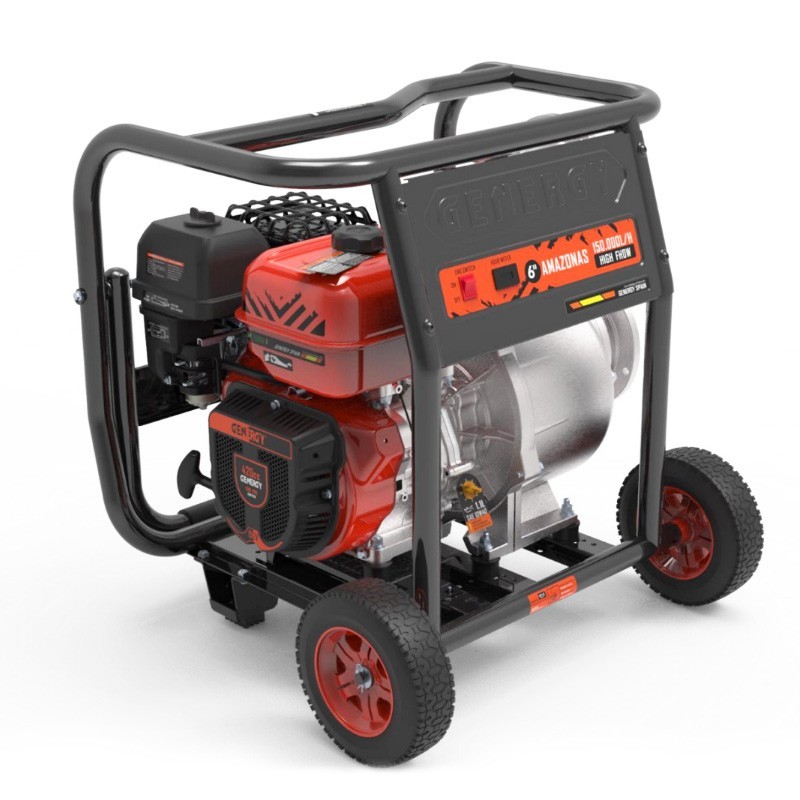

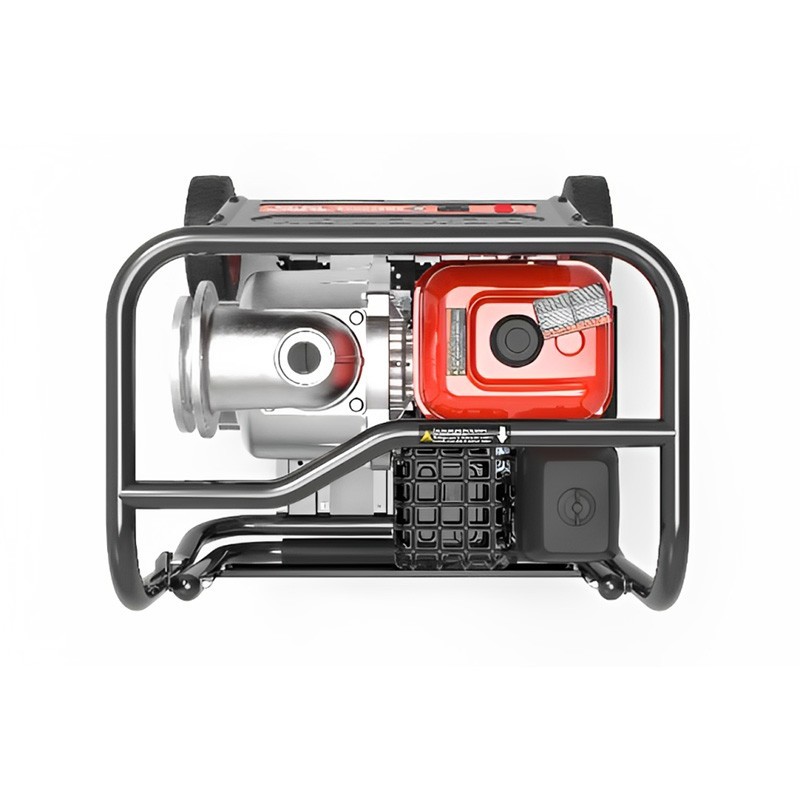

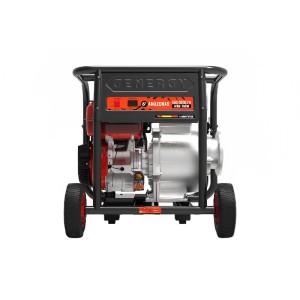

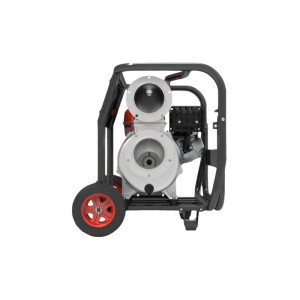

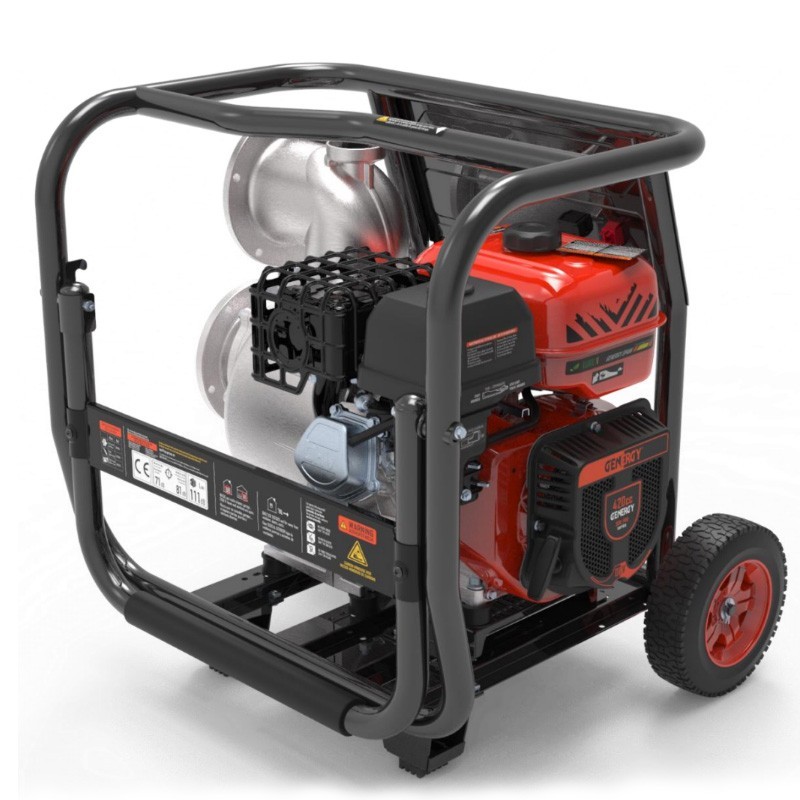

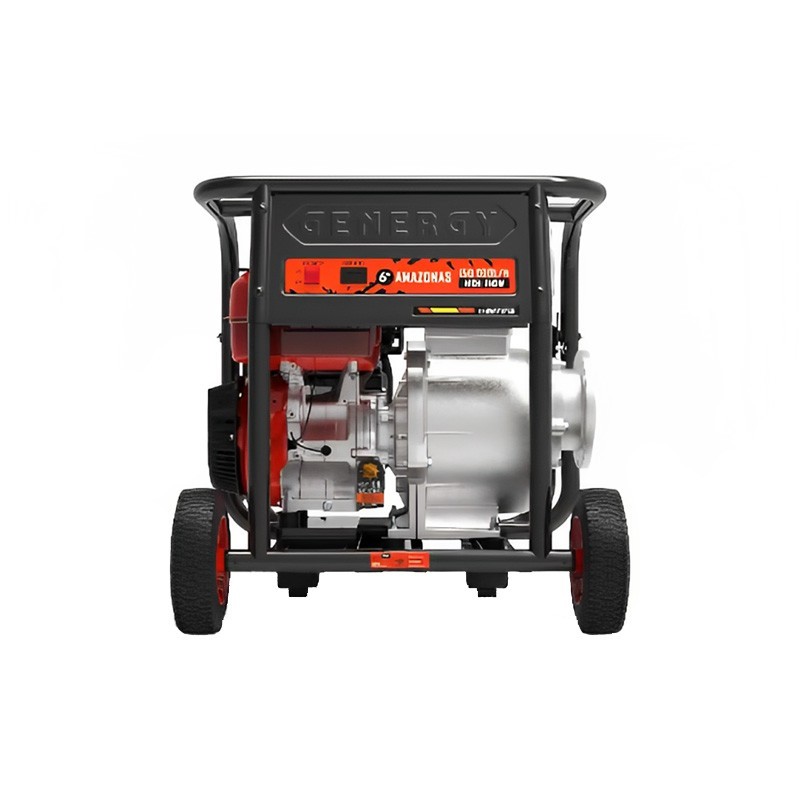

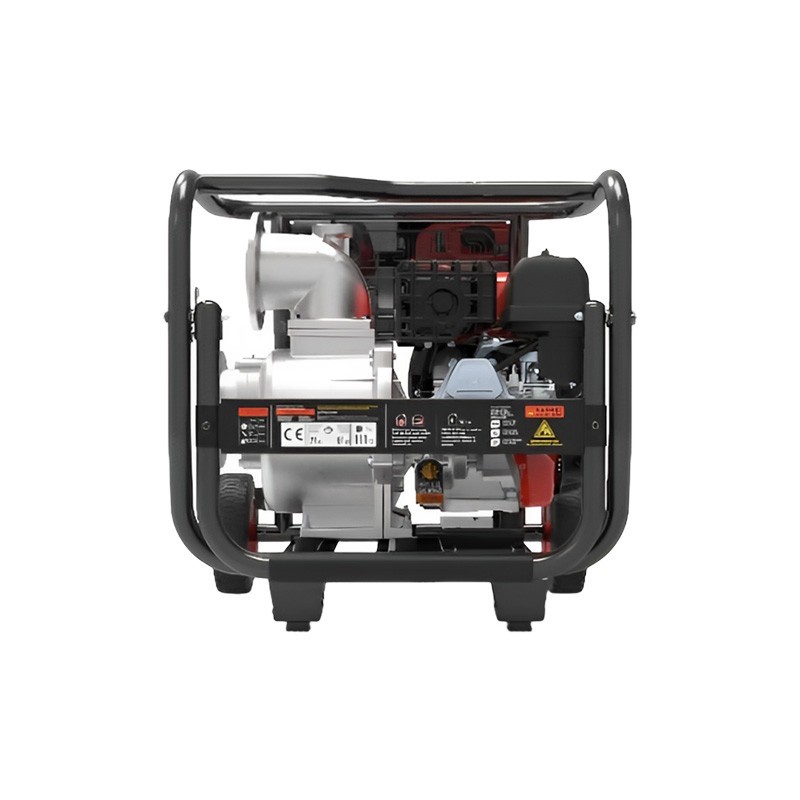

The Amazonas 150000 L/H 20 m gasoline motor pump Genergy Amazonas with a service temperature of 5º to 40º, and a weight of 80 kg has a capacity and oil grade of 1L - SAE10W40. It has a fuel tank capacity of 6 L, and a displacement of 420 cc.
With a maximum flow rate of 150000 L/H this motor pump has a manual start type, with a thread size of 150 mm, a maximum lift height of 20 meters, and a suction time of ≤300 seconds at 5 meters. It is suitable for clean and dirty water without solids.

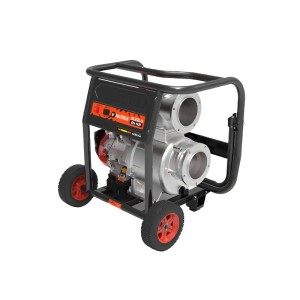

The Amazonas Gasoline Motor Pump Genergy Amazonas 150000 L/H 20 m with a maximum suction lift of 5 meters, has a 4-stroke OHV air-cooled gasoline engine, with dimensions without wheels of 753x605x685 mm and with wheels of 753x705x787 mm.
| Application | Clean or dirty water without solids >5o |
| Thread size - Suction diameter | 1XBSP 6" - 150mm |
| Maximum flow rate | 150.000L/H |
| Maximum suction head | 5MTS |
| Maximum total head | 20MTS |
| Suction time at 5mts | ≤300S |
| Motor model | SGB420PRO |
| Displacement | 420cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 71B - 81dB (A) |
| Guaranteed sound power level LwA | ≤111dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 6L |
| Consumption at 25-50-75% throttle | 1.8L/H - 2.3L/H - 3L/H |
| Autonomy 25-50-75% throttle | 3.3H - 2.6H - 2H |
| Oil capacity and grade | 1.1L - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º C |
| Transport kit | Carrying handle |
| Dimensions without - with wheels | 753x605x685 - 753x705x787 mm |
| Weight | 80 kg |
| Reference | 30030 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
