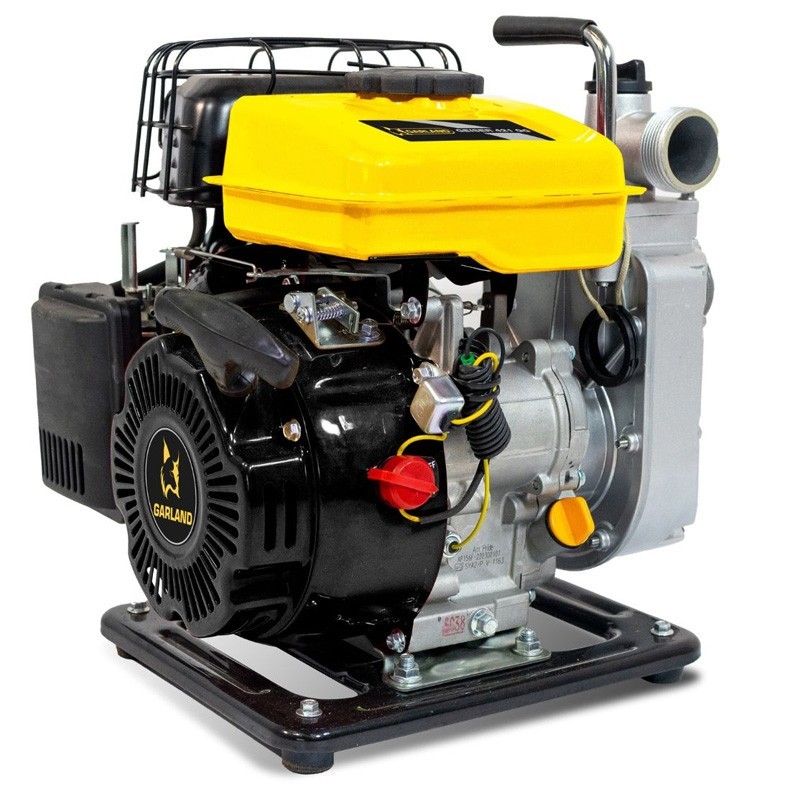

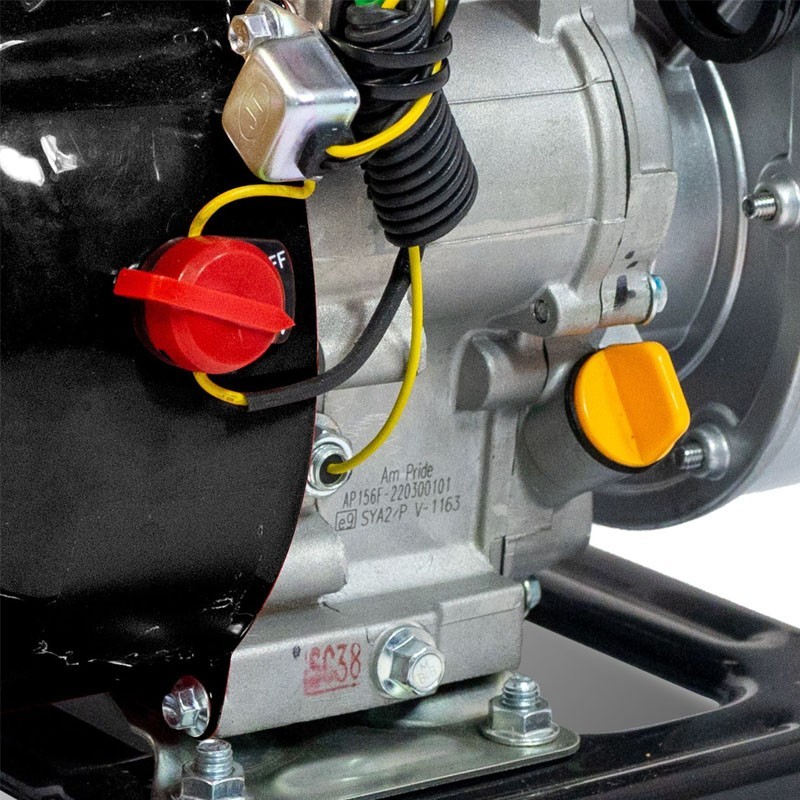

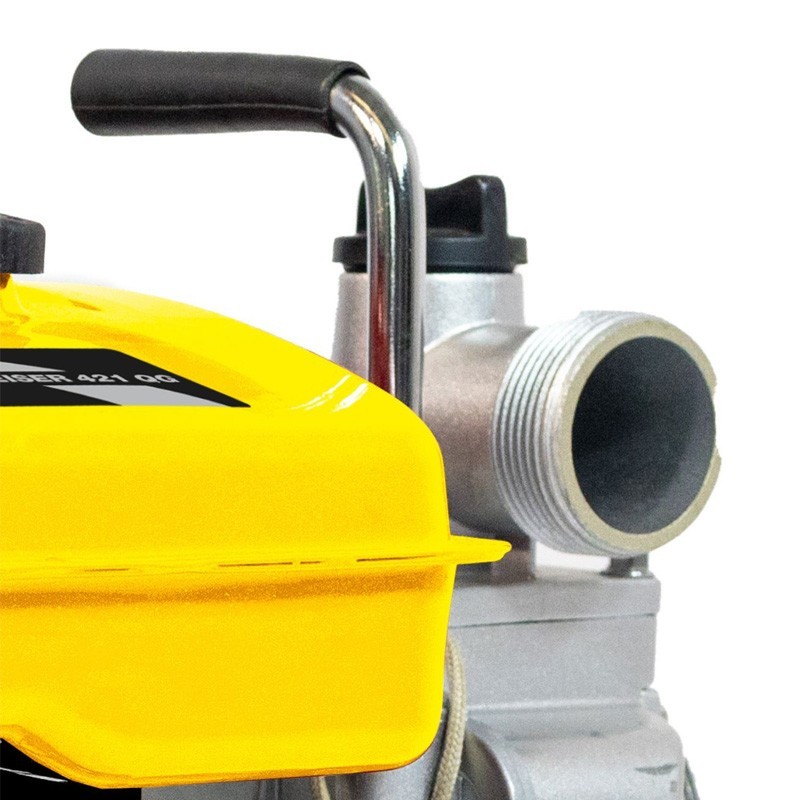

This Motorpump Garland Geiser 421QG-V23 has a four-stroke engine with a displacement of 98 cc and a fuel capacity of 1.6 L, its water inlet and outlet fittings are 1.5 inches (40 mm) and the maximum height of impulsion with fittings that it reaches is 1.5 inches: 25 meters.
The maximum suction height it reaches is 7 meters and it has a discharge of 12m3/h with inlet and outlet of 1.5 inches, its maximum flow rate is 12,000 l/h and it weighs about 12 kg.
| Engine | Garland 4 Stroke |
| Power | 1200 W |
| Max. height | 5 m. |
| Max height of impulsion | 25 m |
| Flow rate | 12.000 L/H |
| Tank | 3'6 L |
| Displacement | 98 cc |
| Starter | Manual |
| Weight | 12 kg |
| Inlet Ø | 40/50 mm |
| Outlet Ø | 40/50 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
