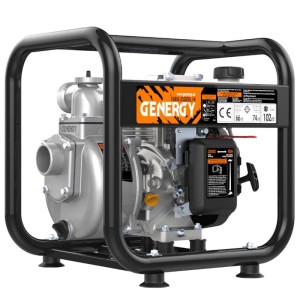

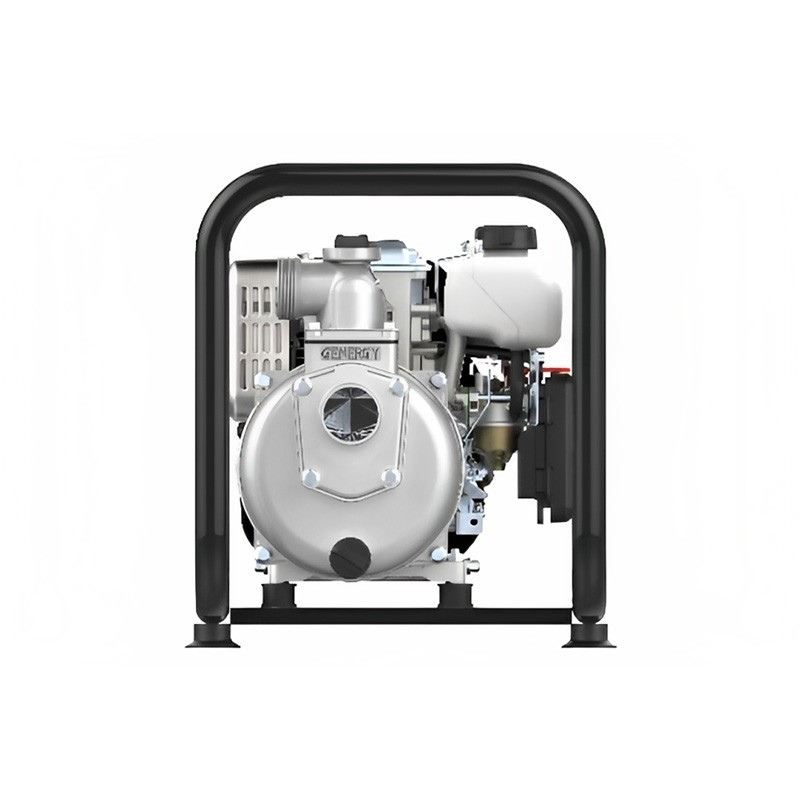

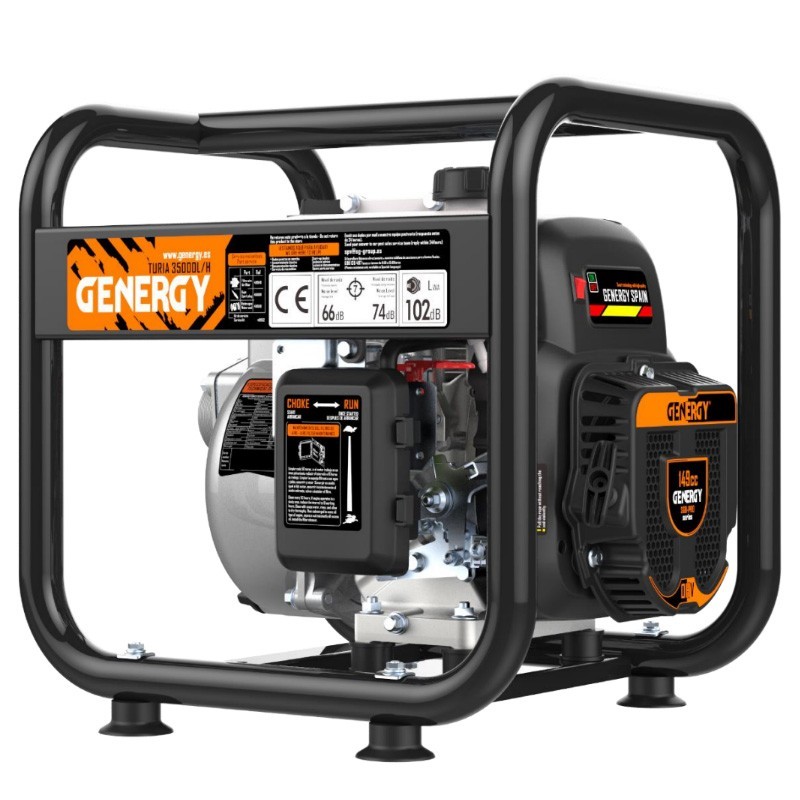

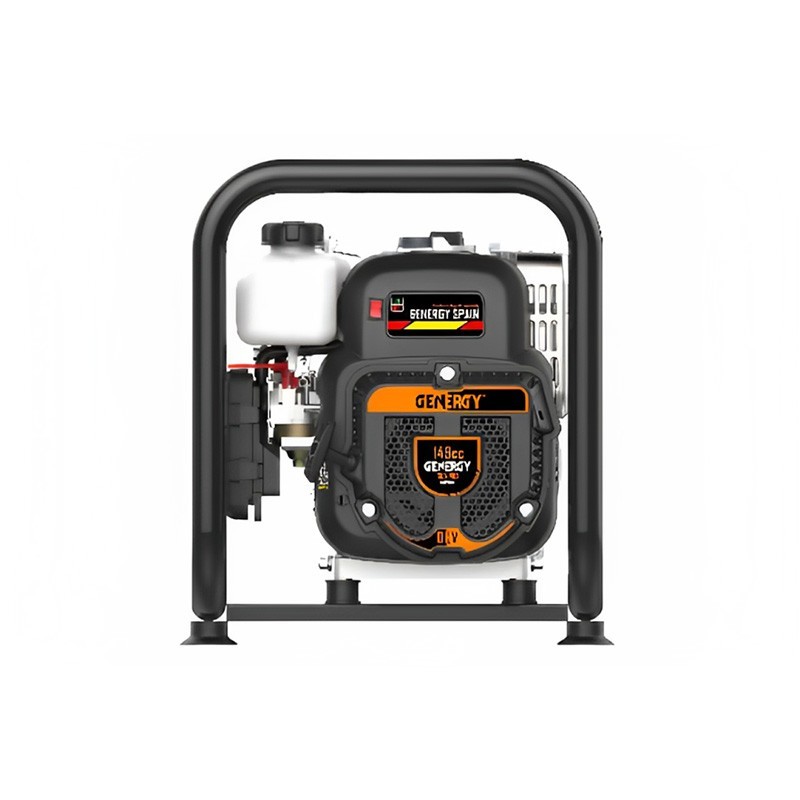

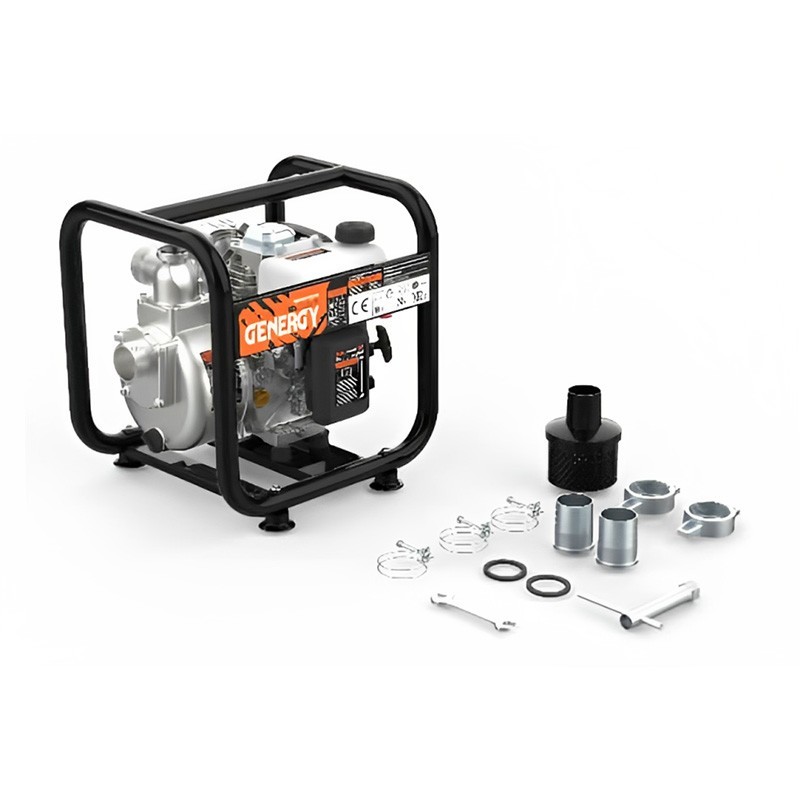

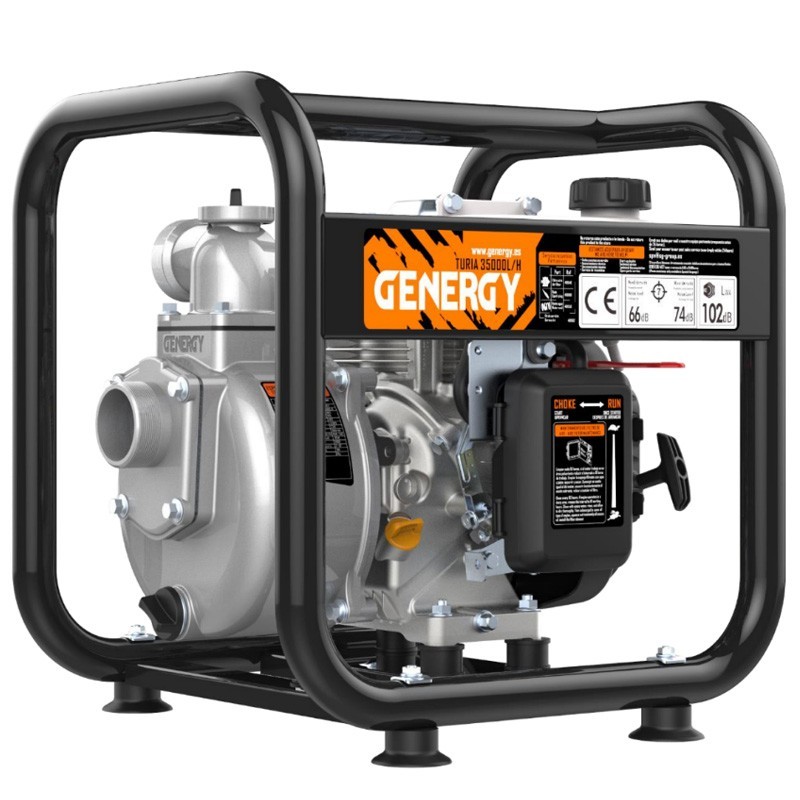

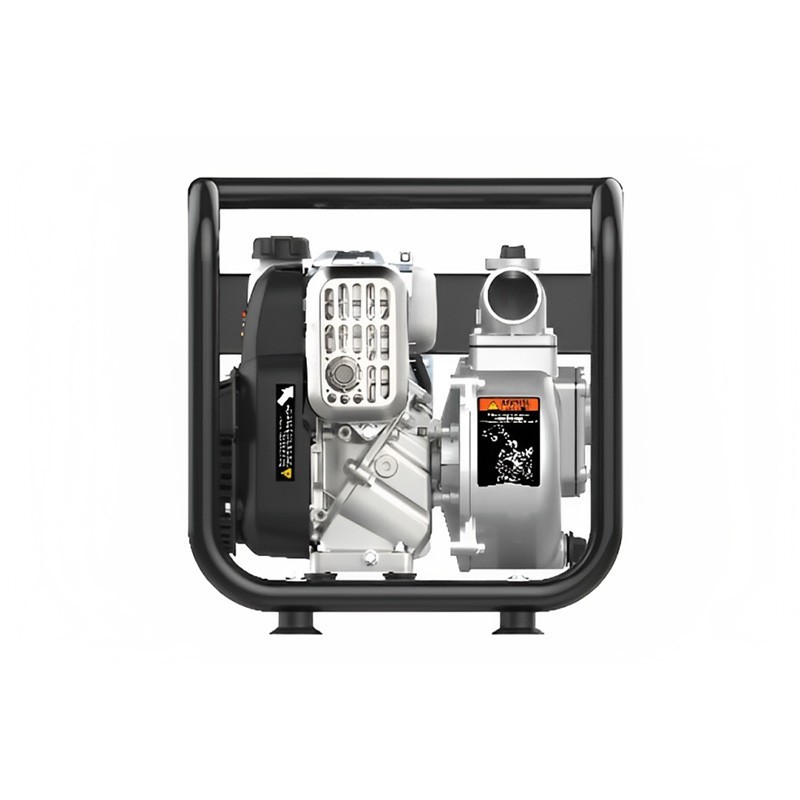

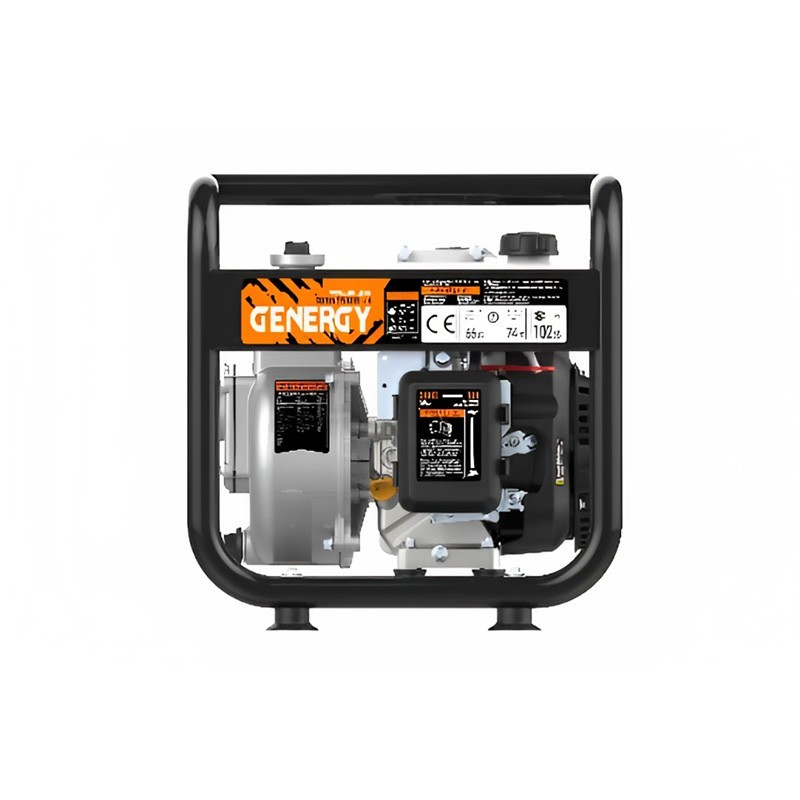

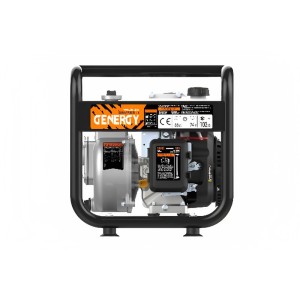

The gasoline motor pump Genergy Turia II 35000 L/H 28 m gives us a service temperature of 5º to 40º, a capacity and oil grade of 0.5L - SAE10W40, and a displacement of 149 cc with a thread size of 50mm.
This motor pump gives us a suction time at 5 meters of ≤130 seconds, a fuel tank capacity of 1.1 L, and a weight of 18 kg. It has a maximum flow rate of 35,000 L/H,its dimensions are 425x378x446 mm, and its starting type is manual.
The gasoline motor pump Genergy Turia II 35000 L/H 28 m has a 4-stroke OHV air-cooled gasoline engine, a maximum suction head of 7 meters, and a maximum total lift height of 28 meters. Itcan be used in both clean and dirty water without solids.
| Application | Clean or dirty water with no solids >5o |
| Thread size - Suction diameter | BSP 2" - 50mm |
| Maximum flow rate | 35.000L/H |
| Maximum suction head | 7MTS |
| Maximum total head | 28MTS |
| Suction time at 5mts | ≤130S |
| Motor model | SGB149PRO |
| Displacement | 149cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 66dB - 74dB (A) |
| Guaranteed sound power level LwA | ≤102dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 1.1L |
| Consumption at 25-50-75% throttle | 0.53L/H - 0.57L/H - 0.76L/H |
| Autonomy 25-50-75% throttle | 2.2H - 2.1H - 1.5H |
| Oil capacity and grade | 0.5L - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º |
| Transport kit | Carrying handle |
| Dimensions | 425x378x446 mm |
| Weight | 18 kg |
| Reference | 30015 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
