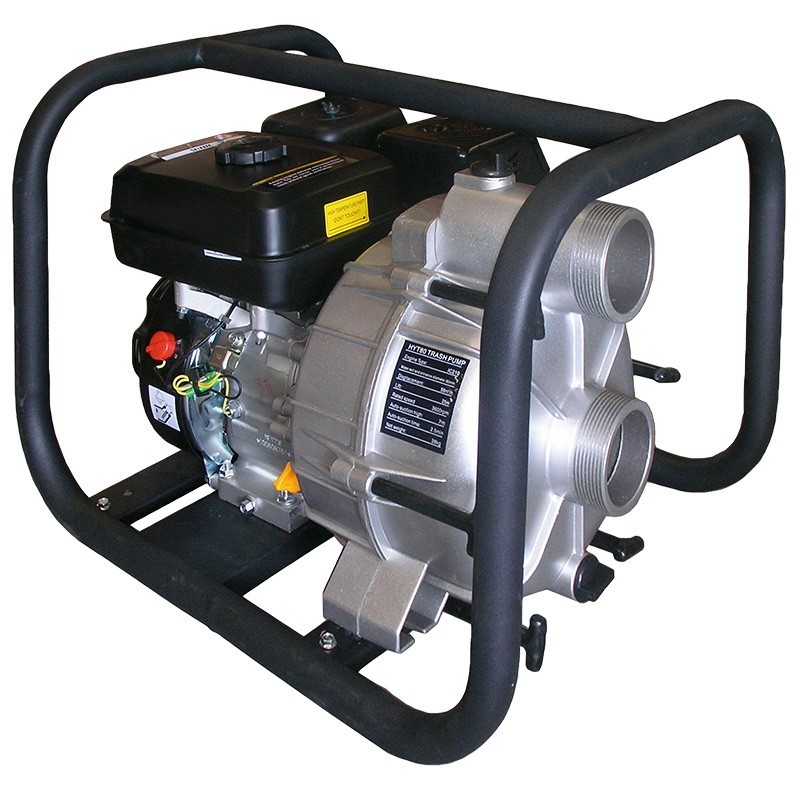

The KOMPAK KGTP80 dirt water pump stands out for its 4-stroke engine Hyundai OHV equipped with oil alarm, providing reliable and efficient performance. Its pump body, manufactured with aluminum injection, ensures durability and resistance to the most demanding conditions.
Ease of maintenance is optimized thanks to its tool-free front opening, allowing quick and easy cleaning. With a robust 32 mm frame, the motor pump offers stability and resistance during operation.
With a suction/drive diameter of 80 mm (3''), a maximum flow rate of 45 m3/h and a maximum head of 25 m, this motor pump is positioned as an efficient choice for handling dirty water, with capacity for solid particles up to 30 mm.
The inclusion of connection and filters further simplifies its use, providing a complete and ready-to-work solution. Backed by an IC210 motor, this KOMPAK KGTP80 motor pump is a reliable tool for various pumping applications.
| Suction/impeller diameter | 80 mm (3'') |
| Max. flow rate | 45 m3/h |
| Maximum head | 25 m |
| Solid particle diameter | 30 mm |
| Motor | IC210 |
| Engine type | OHV |
| Displacement | 210 cc |
| Starter | Manual |
| Revolutions | 3.600 rpm |
| Engine power | 7,0 Hp |
| Fuel capacity | 3,6 L |
| Weight | 38 Kg |
| Dimension (mm) | 590x480x460 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
