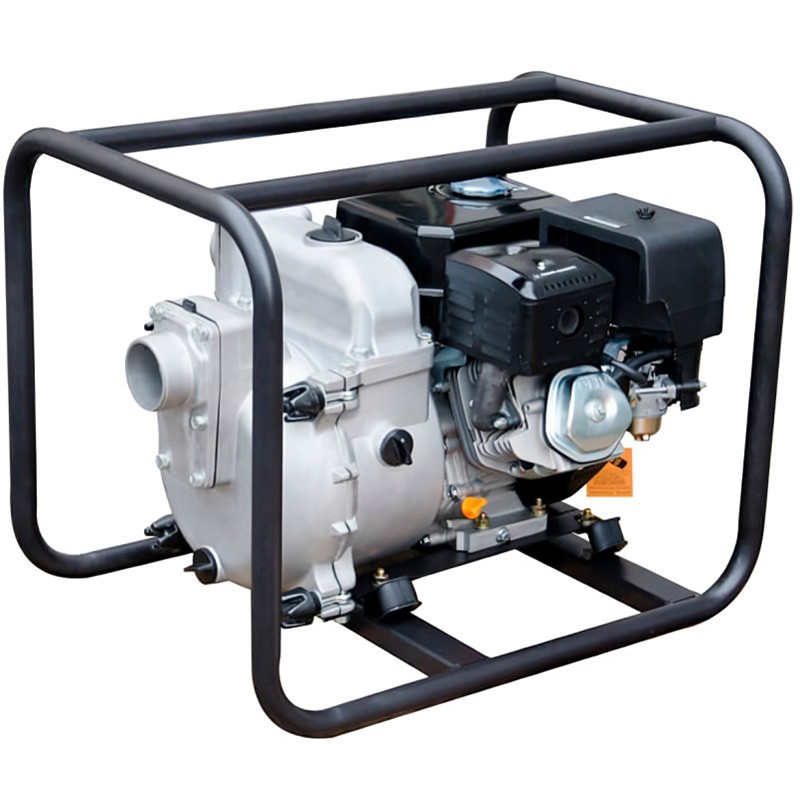

The KOMPAK KGTP80X dirt water motor pump with a suction and delivery diameter of 80 mm (3''), this powerful motor pump is capable of handling an impressive maximum flow rate of 78 m3/h and reaching a maximum head of 27 m (80'').
Its ability to handle solid particles up to 30 mm makes it the ideal choice for situations involving dirty water. Equipped with a high-performance pump and a high-quality mechanical seal, the KGTP80X ensures reliable and long-lasting operation.
Its robust 32 mm chassis provides stability and strength, while the inclusion of connection and filters makes it easy to integrate into various systems. With a 4-stroke Hyundai OHV engine that features an oil alarm, the motor pump offers powerful and safe performance.
In addition, its aluminum injection pump body and tool-free front opening for cleaning and maintenance make it a convenient and low-maintenance option for various applications.
| Suction/impeller diameter | 80 mm (3'') |
| Max. flow rate | 78 m3/h |
| Maximum head | 27 m |
| Solid particle diameter | 30 mm |
| Motor | IC390 |
| Engine type | OHV |
| Displacement | 389 cc |
| Starter | Manual |
| Revolutions | 3.600 rpm |
| Engine power | 13 Hp |
| Fuel capacity | 6,5 L |
| Weight | 70 Kg |
| Dimension (mm) | 750x550x600 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
