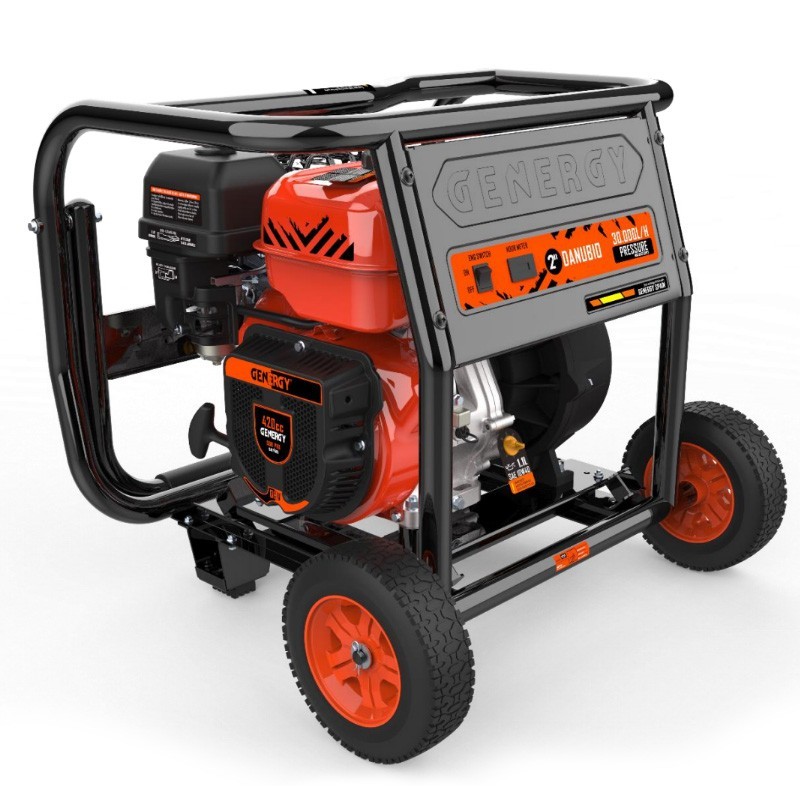

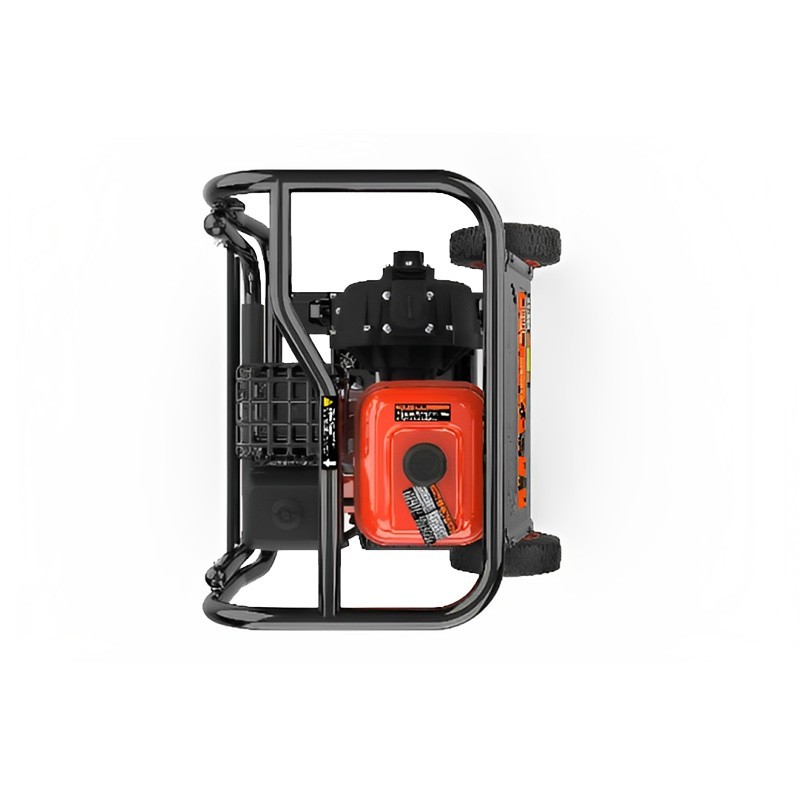

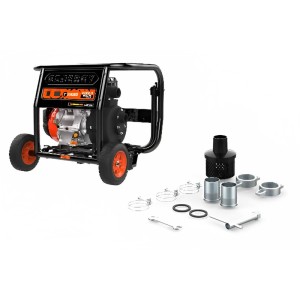

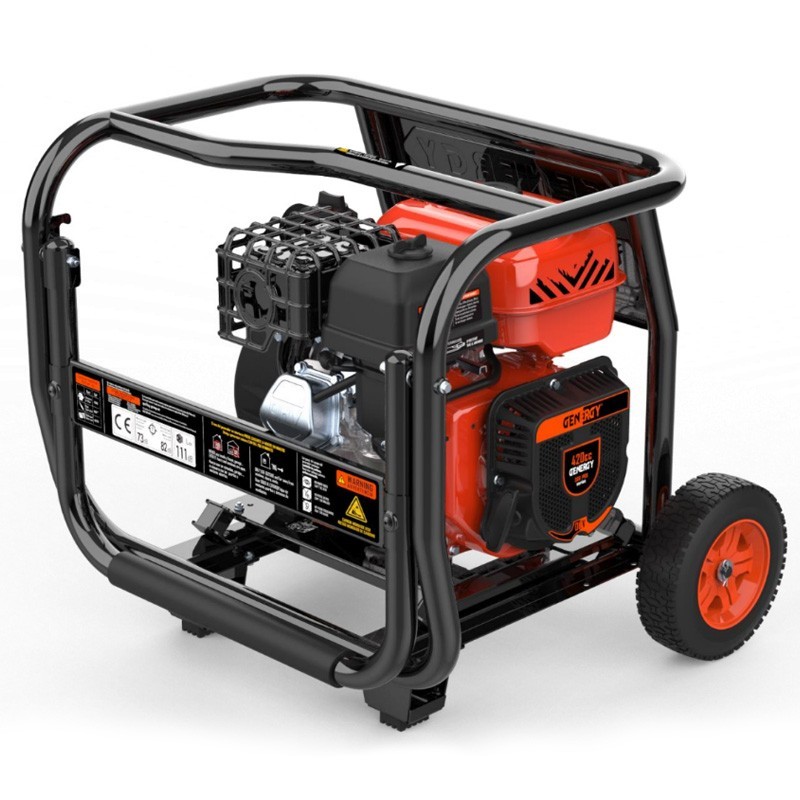

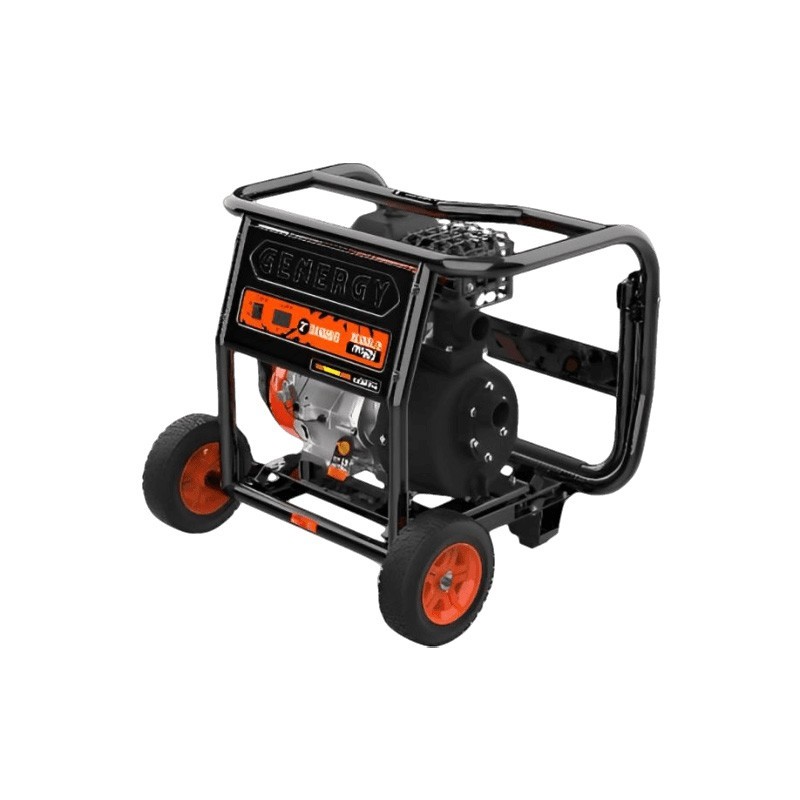

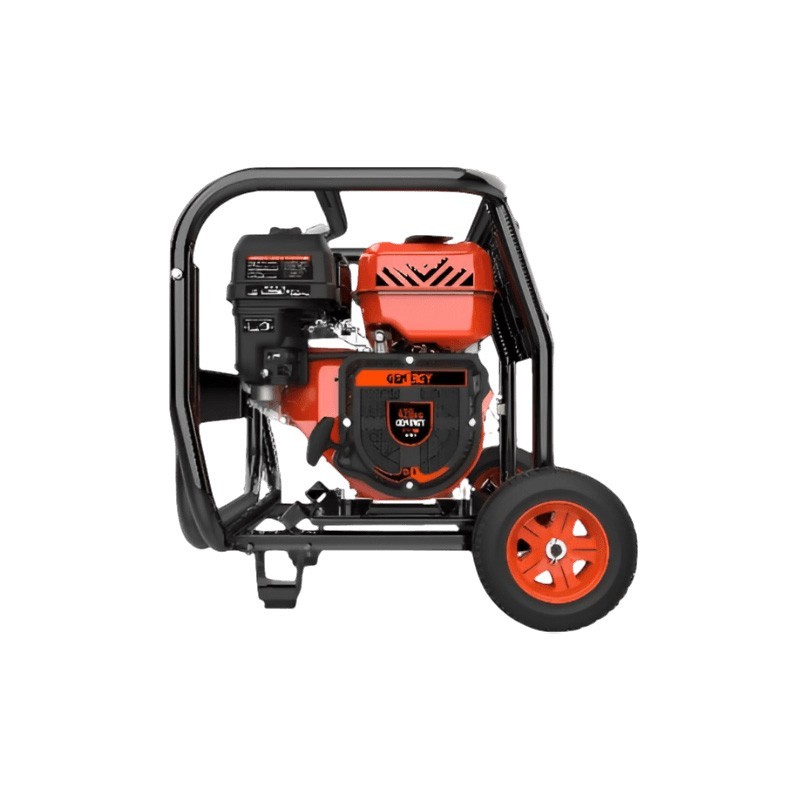

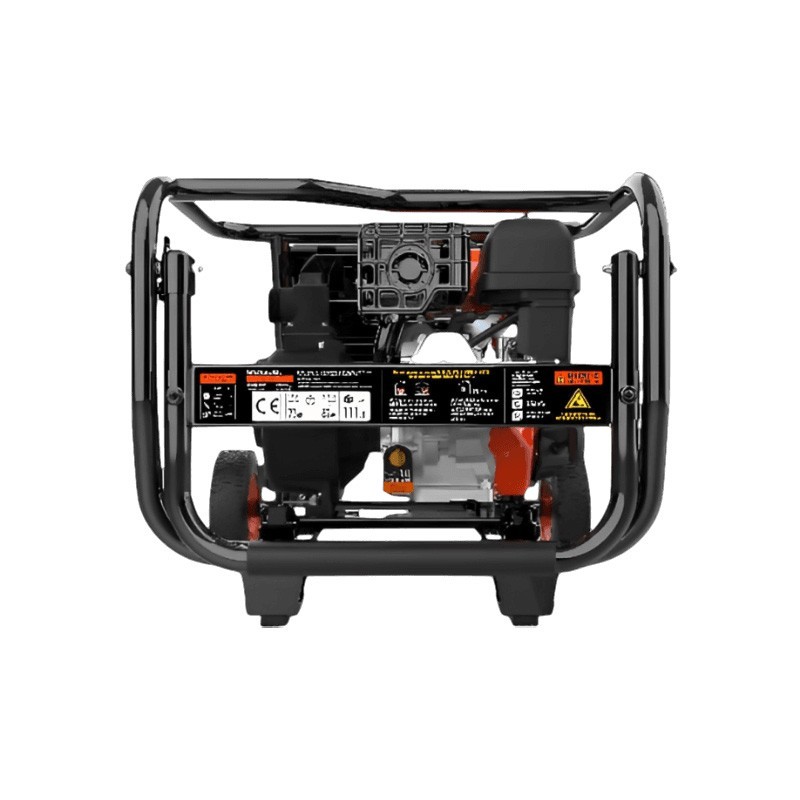

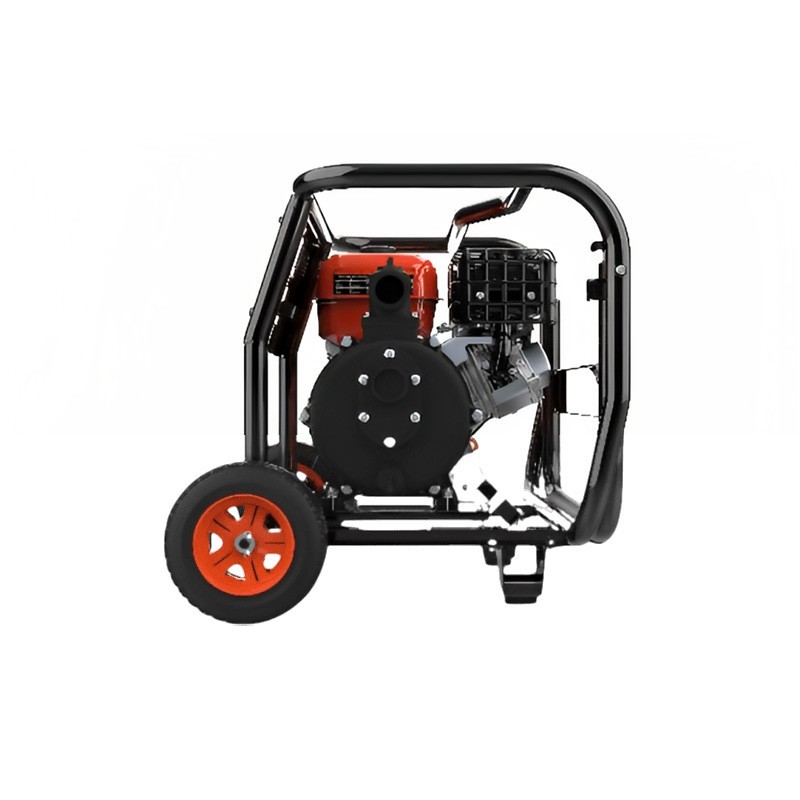

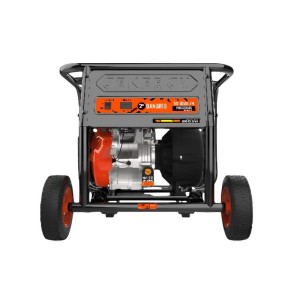

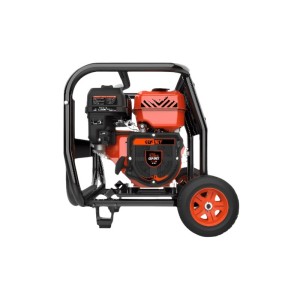

The gasoline motor pump Genergy Danubio 30000 L/H 95 m stands out for its fuel tank capacity of 6 L, its manual start type, the availability to work in clean and dirty water without solids, and for its maximum suction height of 7 meters.
With a 4-stroke OHV air-cooled gasoline engine, dimensions of 753x605x590 mm without wheels and 753x705x691 mm with wheels, it has a maximum lifting height of 95 meters. Its suction time is ≤200 seconds at 5 meters.
The gasoline motor pump Genergy Danubio 30000 L/H 95 m has a service temperature of 5º to 40º, a maximum flow of 30000 L/H and a capacity and oil grade of 1.1L - SAE10W40. Its displacement is 420 cc, its thread size is 50 mm, and its weight is 78 kg.
| Application | Clean or dirty waters without solids >5o |
| Thread size-Suction diameter | 1XBSP 2" - 50mm |
| Maximum flow rate | 30.000L/H |
| Maximum suction head | 7MTS |
| Maximum total head | 95MTS |
| Suction time at 5mts | ≤200S |
| Motor model | SGB420PRO |
| Displacement | 420cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 73dB - 82dB (A) |
| Guaranteed sound power level LwA | ≤111dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 6L |
| Consumption at 25-50-75% throttle | 1.8L/H - 2.3L/H - 3L/H |
| Autonomy 25-50-75% throttle | 3.3H - 2.6H - 2H |
| Oil capacity and grade | 1.1L - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º C |
| Transport kit | Integrated with 10" wheels |
| Dimensions without - with casters | 753x605x590 - 753x705x691mm |
| Weight | 78kg |
| Reference | 30040 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
