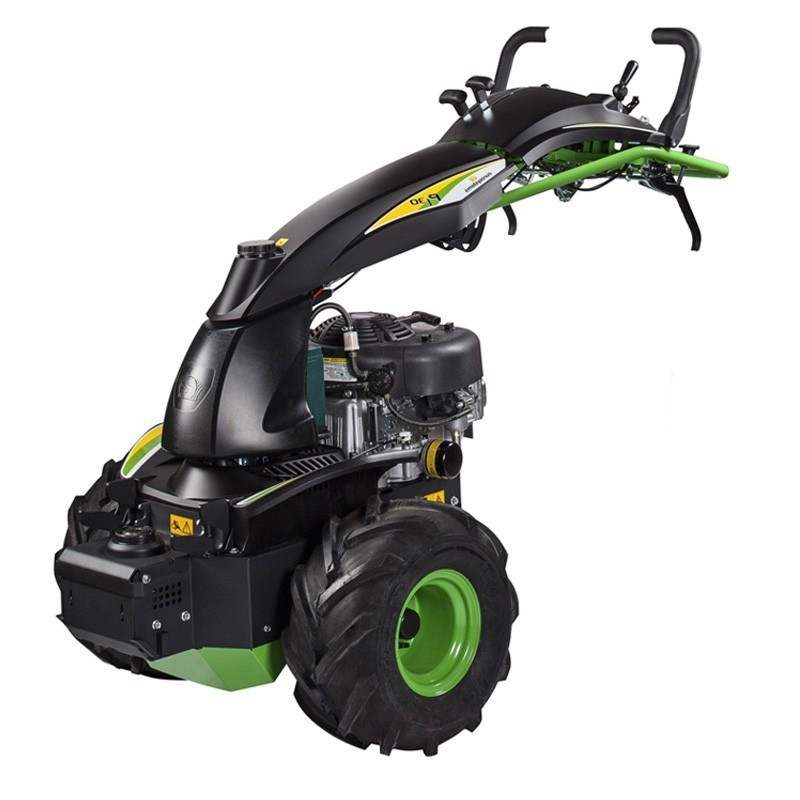

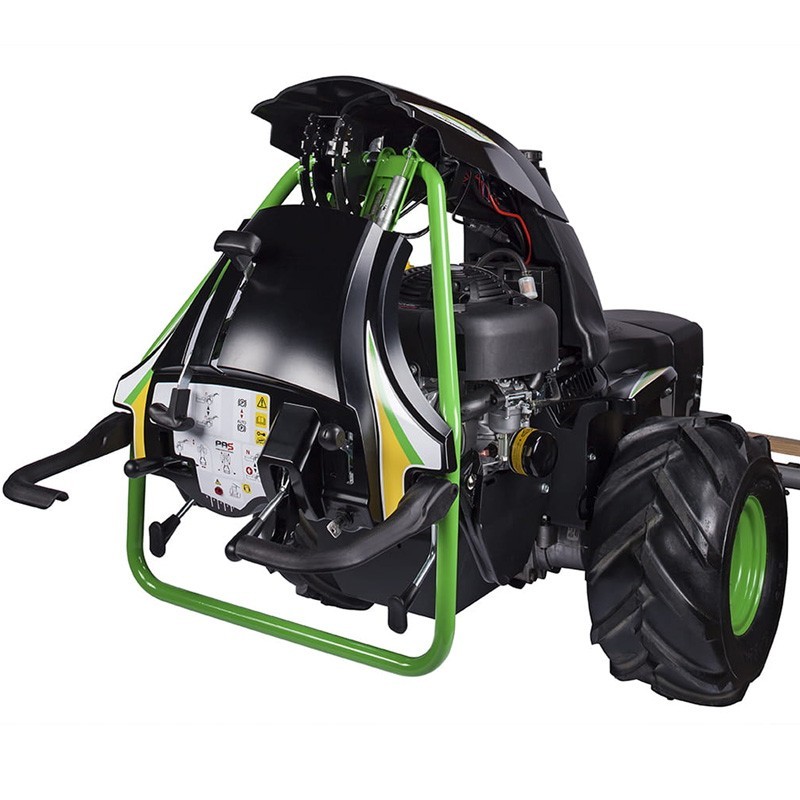

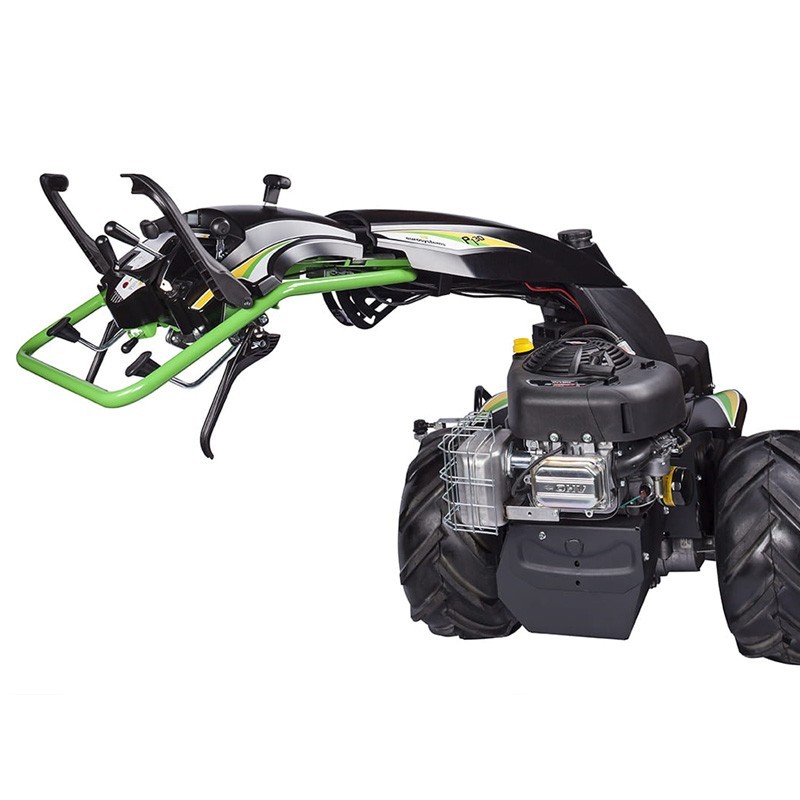

Gasoline multifunction machine Eurosystems P 130 13-16 HP
The Gasoline multifunction machine Eurosystems P 130 is a versatile and powerful tool that is available in seven models Different, each equipped with a specific engine and transmission to meet various needs.

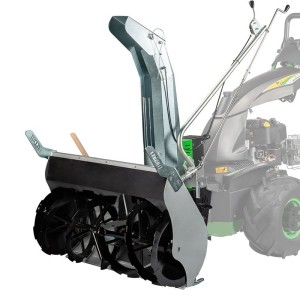

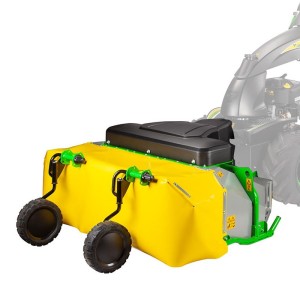

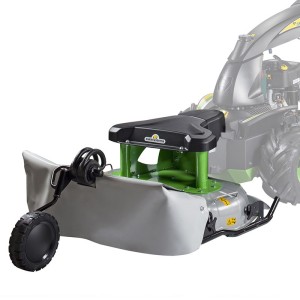

Additionally, it can be further customized with a wide range of accessories, such as a wheeled brush cutter, sickle bar mower, front snow plow, windrow rake, snow blower, and more. This makes it a comprehensive solution for a variety of gardening and maintenance tasks.
The drive unit of the P 130 features a hydrostatic gearbox that provides precise and smooth speed control. With two hydrostatic transmissions independent Hydro-Gear available and five forward speeds and one backward, the machine adapts to different terrains and working conditions.
The power-assisted steering (PAS) and the zero turning radius thanks to the lateral movement of the handlebars make maneuvering easy and efficient.
Additionally, the Gasoline Multifunction Machine Eurosystems The P 130 stands out for its optional slope motor system that allows it to tackle slopes of up to 40-45 degrees with a logical control and an actuator for the motor oscillation.
The Handlebar is adjustable. in height and laterally to suit the operator's preferences, and the driving levers incorporate a dual safety system. With its instantaneous connection power take-off and multi-disc clutch, this machine offers exceptional performance and unparalleled versatility in gardening and maintenance tasks.
Each type of sweeper brush has its function. If you want to know more information, visit the product. Sweeper Eurosystems P130.
Characteristics
| Gearbox |
Hydrostatics |
| Gears |
Hydrostatic speed variator |
| Number of implements |
7 |
| Coupling |
Instantaneous |
| Transmission |
2 independent Hydro-Gear hydrostatic transmissions |
| March-speed |
Variable speed drive, gears with a preset maximum speed of 5 FS + R, 5 forward and reverse speeds |
| Driving system |
Power-assisted steering PAS, zero turning radius thanks to the lateral movement of the handlebars. |
| Slope motor |
Optional system, maximum lateral slope 40-45, logical control system and actuator for motor oscillation. |

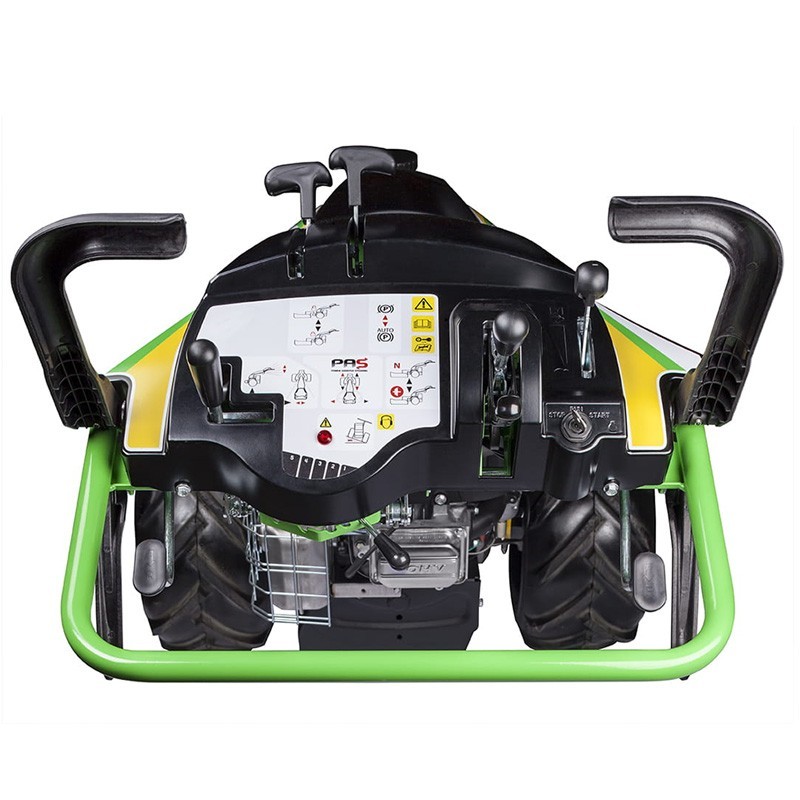

| Handlebar |
Height adjustable (8 positions) and laterally (3), not reversible |
| Driving levers |
Manageable with a double built-in security system |
| Power take-off |
Instant connection system via lever on the handlebar, multi-disc clutch, vertical power take-off with coupling |
| Tools |
8 |
| Drive wheels |
Tires, tractor profile 18×9.5-8 |
| Weight |
162-175 Kg |
| Dimensions |
97x169x128 cm |

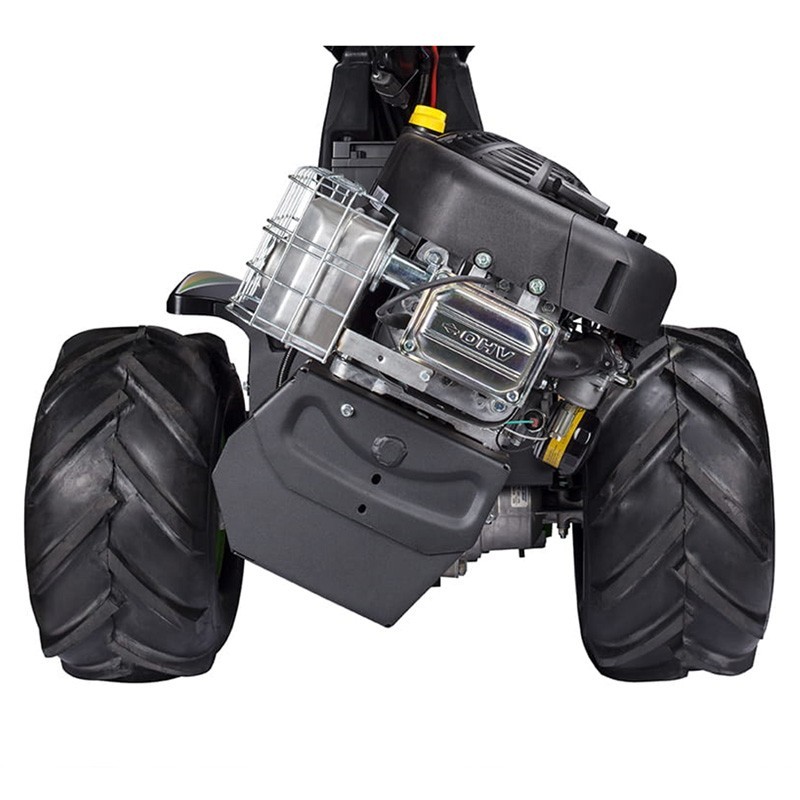

Engines
|
B&S 3125 POWERBUILT
|
| Power Supply |
Gasoline |
| Starting systems |
Manual |
| Displacement |
344 cc |
| Power |
13 HP |
| Fuel tank |
6.5 liters |
| Transmission |
Hydro-gears ZT 2200 transmission |
|
B&S 3130 INTEK
|
| Power Supply |
Gasoline |
| Starting systems |
Electric and manual |
| Displacement |
344 cc |
| Power |
13 HP |
| Fuel tank |
6.5 liters |
| Transmission |
Hydro-Gear ZT 2200 Transmission |
|

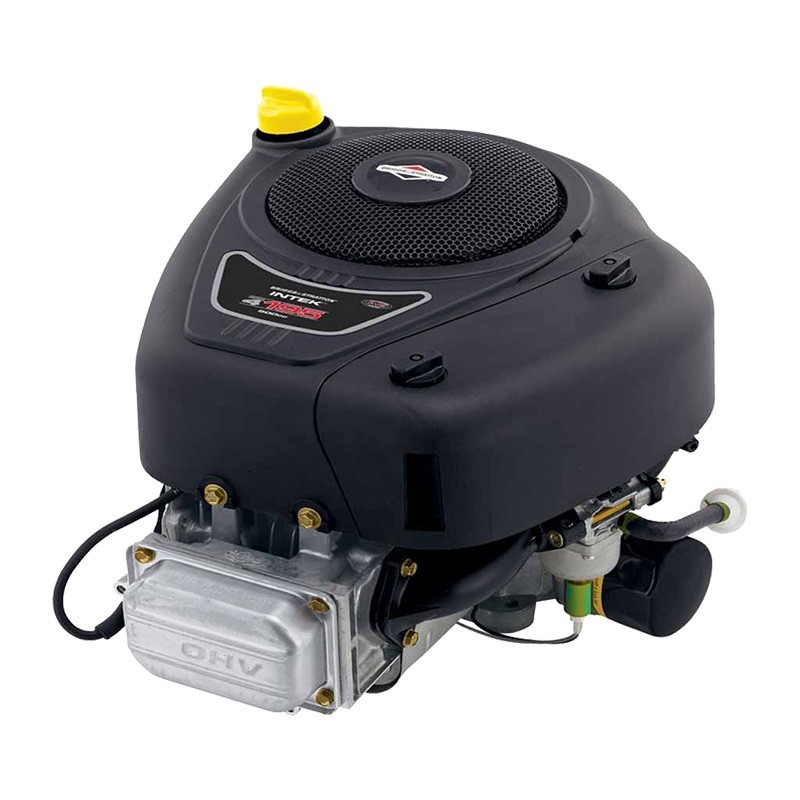

B&S 4195 INTEK
|
| Power Supply |
Gasoline |
| Starting systems |
Electric and manual |
| Displacement |
500 cc |
| Power |
14 HP |
| Fuel tank |
6.5 liters |
| Transmission |
Hydro-gears ZT 2800 transmission |
|
HONDA GXV390
 |
| Power Supply |
Gasoline |
Starting systems
(2 options) |
-Manual
-Electric and manual |
| Displacement |
344 cc |
| Power |
13 HP |
| Fuel tank |
6.5 liters |
Transmission
(2 options) |
-Hydro-Gear ZT 2200 Transmission
-Hydro-Gear ZT 2800 Transmission |
|
|
B&S VANGUARD V-Twin
|
| Power Supply |
Gasoline |
| Starting systems |
Electric |
| Displacement |
500 cc |
| Power |
16 HP |
| Fuel tank |
6.5 liters |
| Transmission |
Hydro-gears ZT 2800 transmission |
|
Broadcasts
|
Hydro-Gear ZT 2200 (EZT)
.jpg "Hydro-Gear ZT 2200 (EZT)")
- Output torque: 291 Nm.
- Features: designed to require low maintenance with an internal oil filter.
- Engine on slope: not allowed, maximum working slope 25º.
- Engines: B&S 3125 Powerbuilt, B&S 3130 Intek, Honda GXV390.
|
Hydro-Gear ZT 2800 (forward)
- Output torque: 406 Nm.
- Features: With an external oil filter to facilitate maintenance for a longer lifespan.
- Engine on slope: Allowed, maximum working side slope 45º.
- Engines: Honda GXV390, B&S 4125 Intek.
|
