The mower Bertolini BT 130S has a Honda GX200OHV gasoline engine which provides a displacement of 196cc.

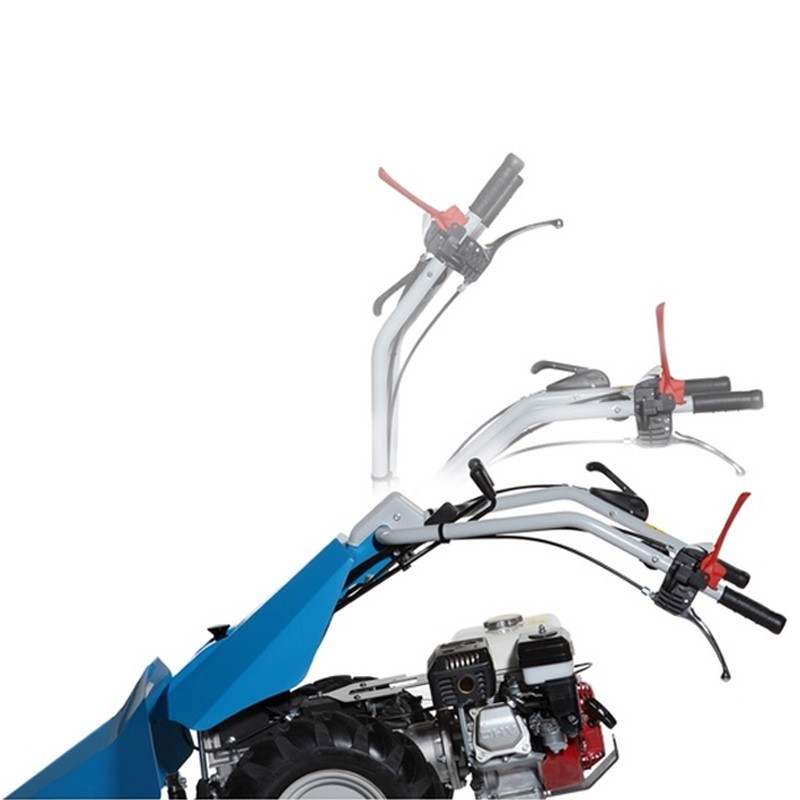

The mower BT 130 S includes a four-speed gearbox, of which two are front and two rear. It also has an adjustable handlebar both vertically and horizontally with anti-vibration device.
This mower model has an independent 973 RPM power take-off . It has a reverse shuttle with hammer lever.

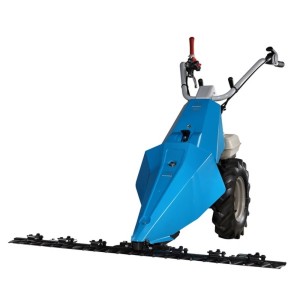

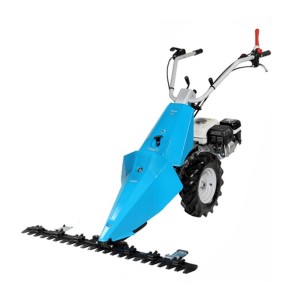

This mower is equipped with a 115 cm mower bar . It is equipped with the QuickFit attachment system.
The mower Bertolini BT 130 S offers an oil-immersed gear transmission. It also offers a dry bevel clutch with a self-retracting starter. The weight of the machine equipped with 4.00-8 wheels and 115 cm mower bar is 105 kg.
| Engine | Honda GX 200 OHV |
| Power | 5,8 HP |
| Displacement | 196 cc |
| Gears | 2 forward + 2 reverse |
| Head | Oil bath |
| Transmission | Gearbox in oil bath |
| PTO | 973 rpm independent |
| Clutch | Dry conical |
| Starter | Self-retracting |
| Weight | 105 kg with wheels, 140 cm mowing bar |

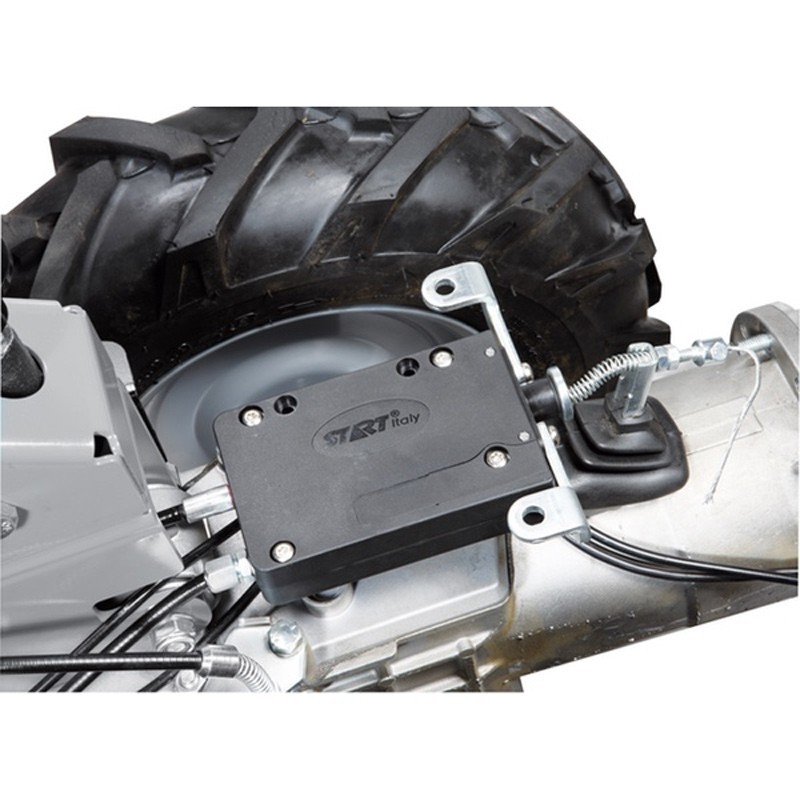

Difference between the oil bath clutch of other brands and the multi-disc dry clutch of other brands Bertolini
Oil immersed clutch brake (Other brands) Disadvantages
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending. |
