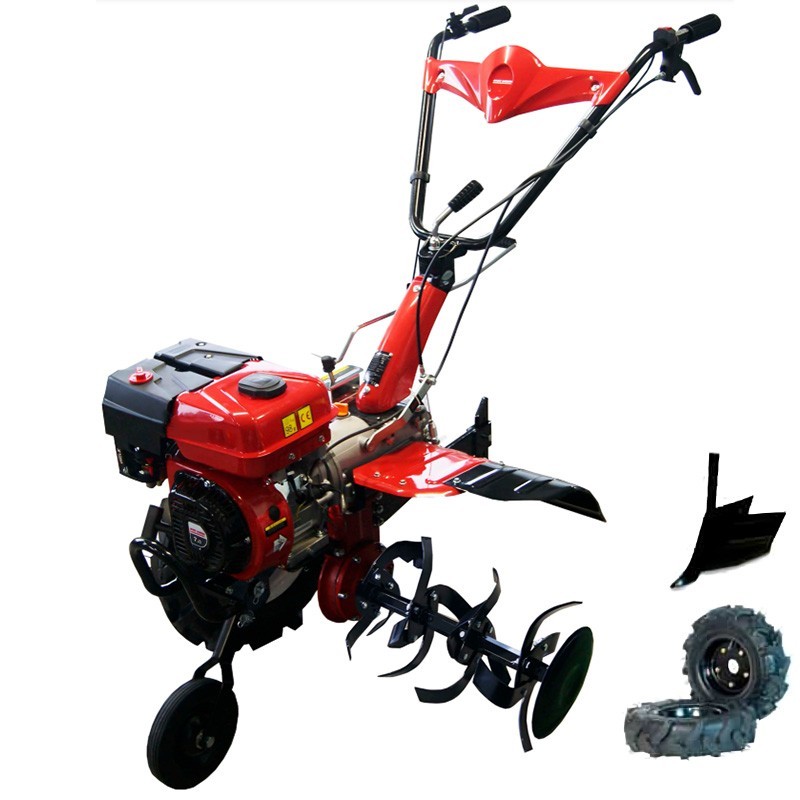

The EuroCentauro SP 700 H motor hoe is a versatile and robust agricultural tool, ideal for a wide range of tasks in the field. With an adjustabletiller width between 800 and 1000 mm, it allows efficient work on different types of terrain.
In addition, it is capable of operating on slopes with a gradient of less than 10% and in rice fields with water depths down to the top hardpan, not exceeding 250 mm. These features make it especially useful for work in uneven terrain and challenging conditions.
Equipped with a front transport wheel, the EuroCentauro SP 700 H offers ease of mobility. Its two-hand safety clutch system ensures safe handling during operation. The hoe also includes a protective steel plate for the transmission, ensuring durability and protection during use.
With an autonomy of up to 3 hours and easy starting thanks to its automatic decompression system, this tool is efficient and reliable for long working days. In addition, the EuroCentauro SP 700 H comes with a hitch and wheels, expanding its capabilities and offering greater versatility for various agricultural tasks.
| Engine | Single-cylinder 4-stroke gasoline engine |
| Engine Model | Honda GX160 |
| Power | 5.5 hp |
| Speeds | 3 forward / 1 reverse |
| Width from tiller | 800 to 1000 mm |
| Elements of tiller | 8 + side disc |
| Cylinder horizontal axis | 25° inclined |
| Type of cylinder sleeve | Cast iron sleeve |
| Bore x stroke | 68 x 45 mm |
| Displacement | 163 cc |
| Compression ratio | 9.0: 1 |
| Mains power | 3.6 kW / 3600 rpm |
| Rated power 3000 rpm | 2.5 kW (3.4 hp) |
| Rated power 3600 rpm | 2.9 kW (3.9 hp) |
| Max. net torque | 10.3 Nm (1.05 kgfm) / 2500 rpm |
| Ignition system | Transistorized |
| Starting mode | manual start |
| Fuel tank capacity | 3,1 L |
| Fuel consumption at rated power | 1.4 liters / h - 3600 rpm |
| Engine oil capacity | 0,6 L |
| Packing dimensions | 780 x 410 x 660 mm |
| Weight | 93 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
