Motor hoe Zeppelin 111 engine Loncin 7 Hp
- Engine: Gasoline 208 cc
- Power: 7 Hp
- Working width: 820mm
- Gears: 3 (2 forward + 1 reverse)
€459.00 VAT incl.

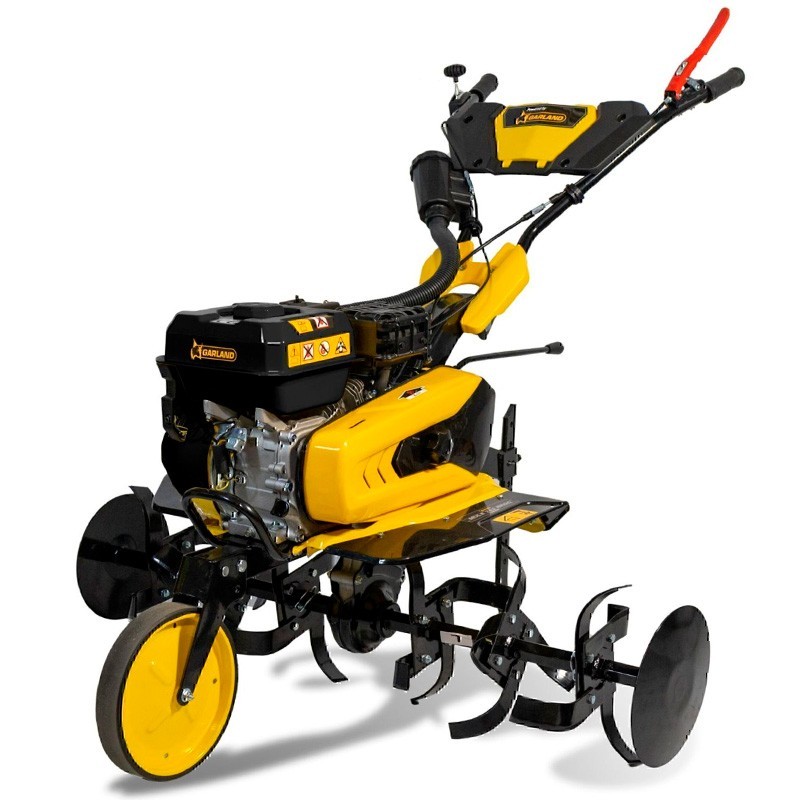

The Garland DONKEY 693 R-V24 motor hoe is the perfect ally for professional and amateur gardeners. Equipped with a 212 cc (5.5 hp) 4-stroke gasoline engine and manual start, it guarantees constant power and reliable starts even on hard ground. Its gearbox with oil-bath gears prolongs the machine's service life.

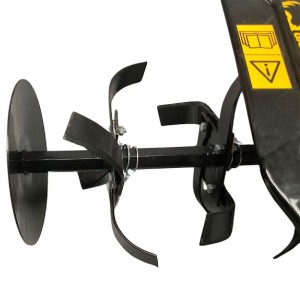

With a working width of 93 cm and 6 groups of 36 cm diameter cutters, the DONKEY 693 R-V24 facilitates uniform soil preparation, from orchards to flowerbeds. The belt drive and its 2 forward speeds plus 1 reverse gear allow the tillage rhythm to be adjusted to every need. Built-in plant protection plates prevent damage to adjacent crops.

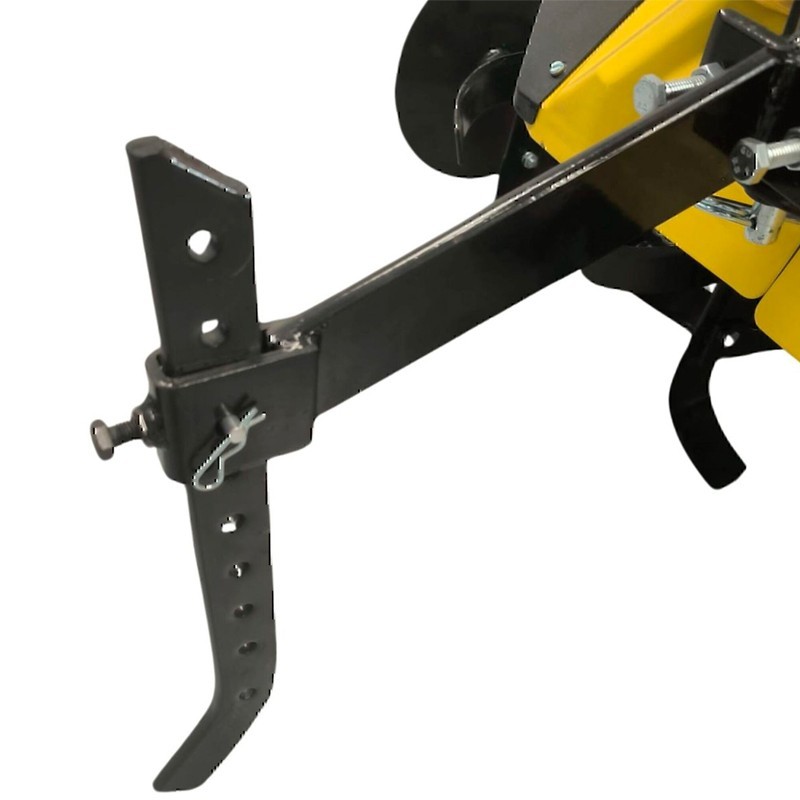

The ergonomic design includes a handlebar that can be adjusted in height and lateral angle, adapting to the operator and reducing fatigue during prolonged sessions. The retractable transport wheel and adjustable spur make it easy to move and secure on slopes or uneven ground. Its weight of 71.2 kg provides stability in all types of work.

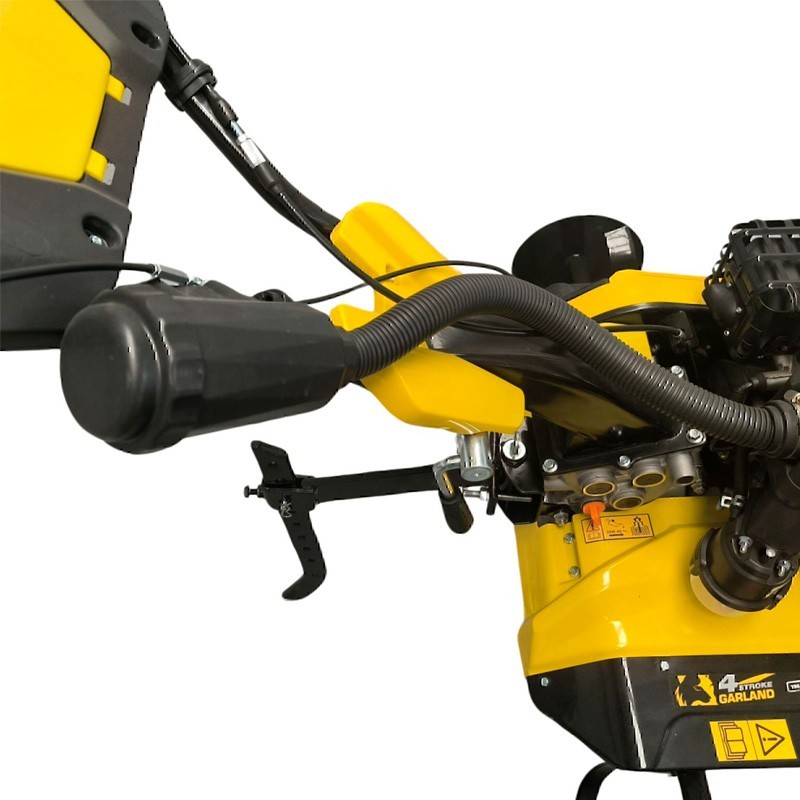

The raised dry air filter prevents dust from entering the carburetor, minimizing maintenance and avoiding engine breakdowns. With a 3.6-liter fuel tank and 0.6-liter oil sump, it offers constant lubrication and autonomy. The 93 dB(A) sound pressure and robust belt drive complete a reliable and durable package.
Start | Manual |
Transmission oil type | SAE 80W-90 |
Engine type | Garland 4 T |
Displacement | 212 cc |
Power | 4.2 kW / 5.5 hp |
Torque | 12 Nm |
Handlebar type | Height adjustable |
Speeds (forward + reverse) | 2 + 1 |
Transport wheel | Yes |
Carrying handle | No |
Filter type | Dry |
Maximum engine speed | 3800 min-¹ |
Fuel tank volume | 3,6 l |
Oil sump volume | 0,6 l |
Engine oil type | 10W-40 |
Transmission | Belt |
Protects plants | Yes |
Accelerated | Manual |
Working width | 930 mm |
Blade dimensions | 320 mm |
Number of cutter/blade groups | 6 |
Folding handlebar without tools | Yes |
Sound pressure | 93 dB(A) |
Weight empty machine | 71,2 kg |
Packing weight | 83 kg |
Packing length | 84 cm |
Packing width | 46,5 cm |
Packing height | 66 cm |
Transmission oil volume | 1 l |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Battery and charger not included
