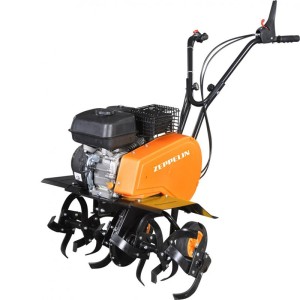

Motor hoe Zeppelin 111 engine Loncin 7 Hp
- Engine: Gasoline 208 cc
- Power: 7 Hp
- Working width: 820mm
- Gears: 3 (2 forward + 1 reverse)
€459.00 VAT incl.

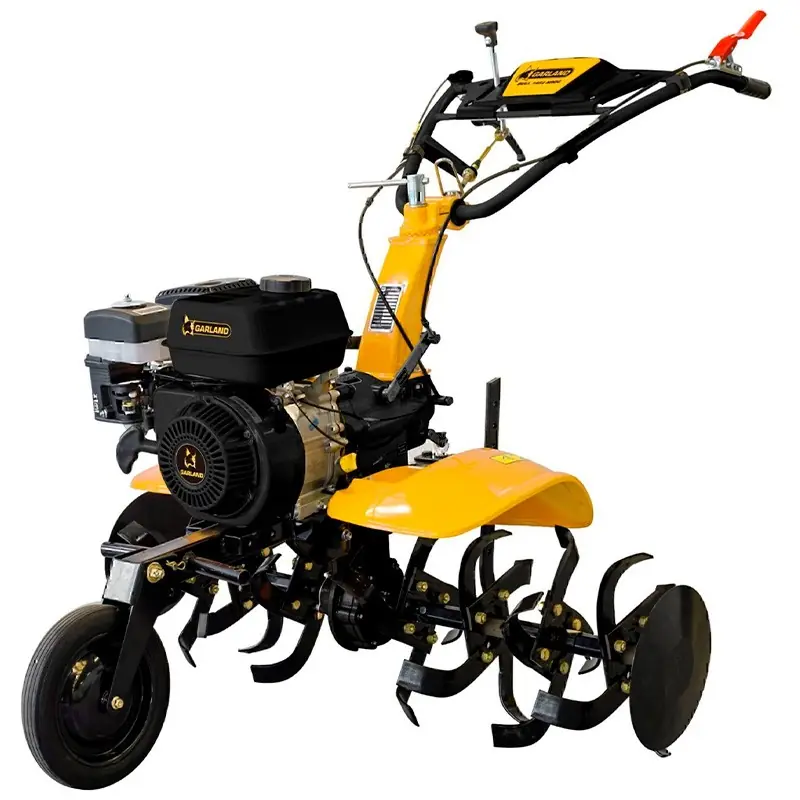

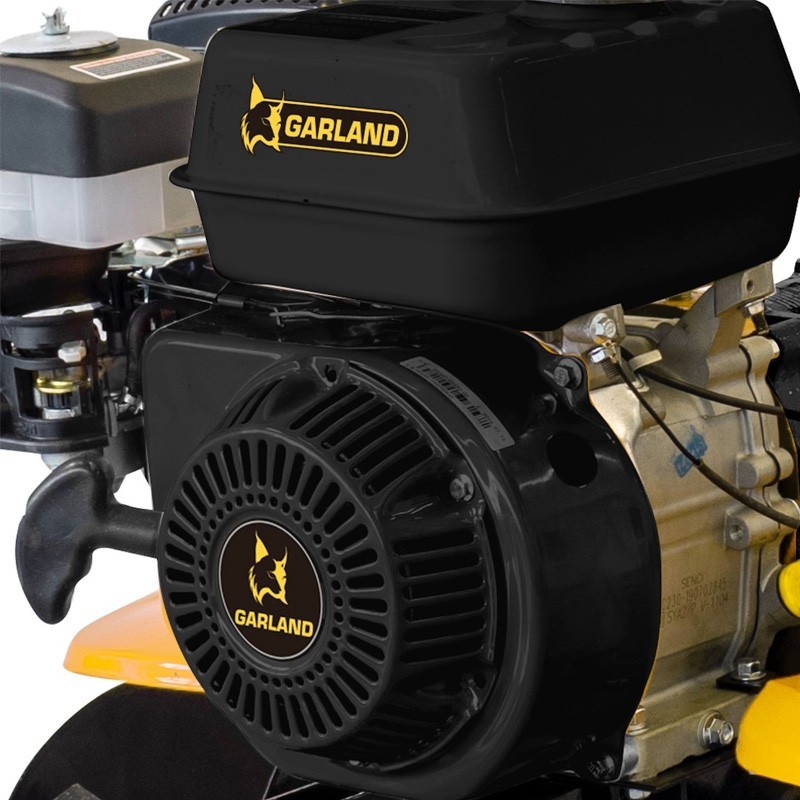

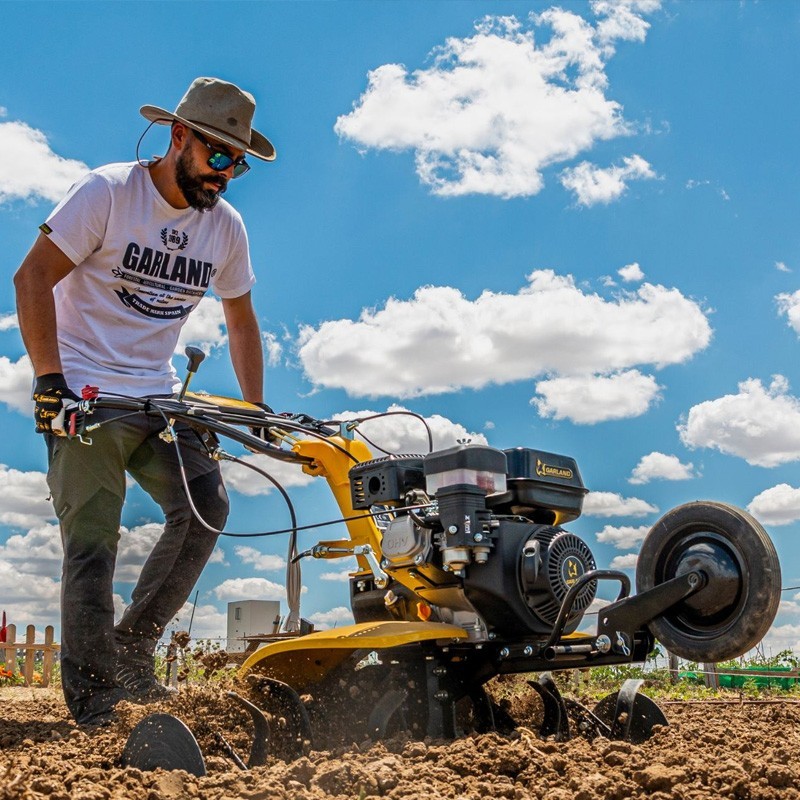

The Garland Bull 1482 NRQG has a 4 stroke OHV engine with air filter in oil bath, which provides a power of 5500 W (7.4 Hp).

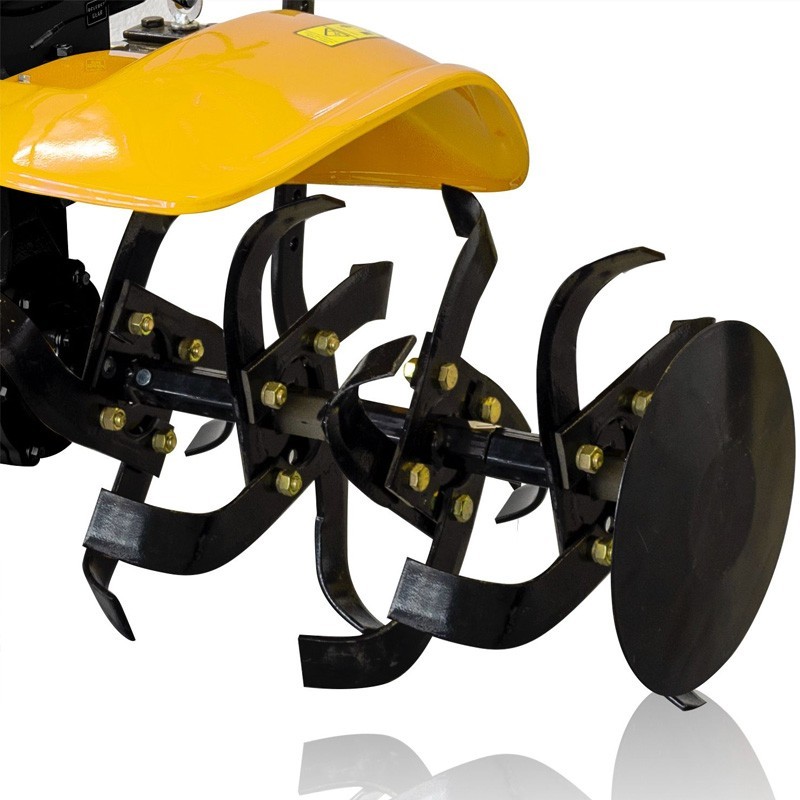

All this power can be used thanks to the group of 8 cutters, which provides a working width of 100 centimeters, allowing a very efficient work.
And not for being efficient and powerful is uncomfortable, with an adjustable handlebar that will make our life much easier.
Start | Manual |
Transmission oil type | SAE 80W-90 |
Engine type | Garland 4 T |
Displacement | 223 cc |
Power | 5.5 kW / 7.38 hp |
Torque | 14.5 Nm |

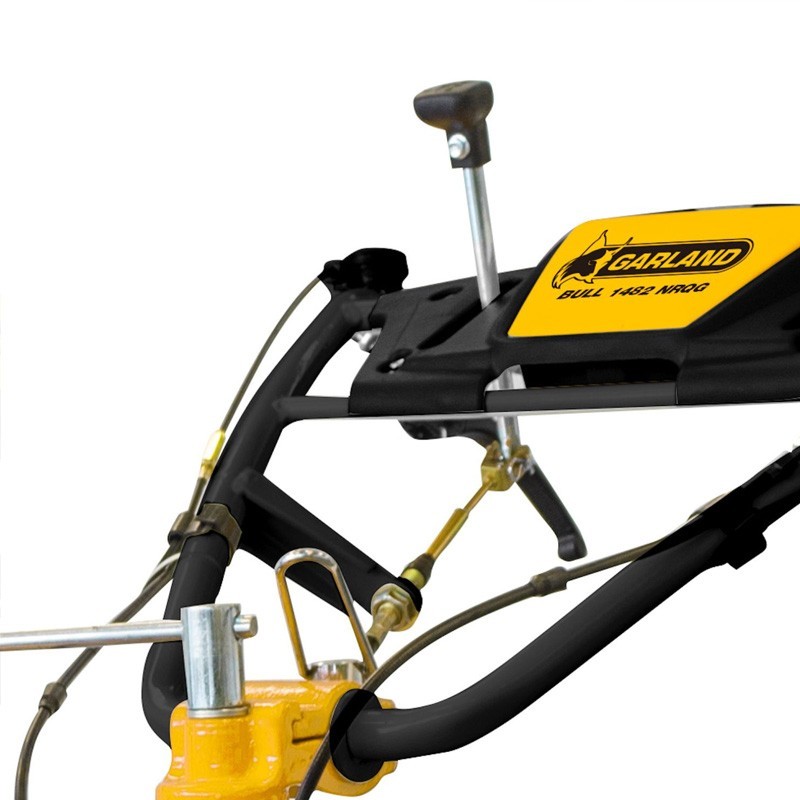

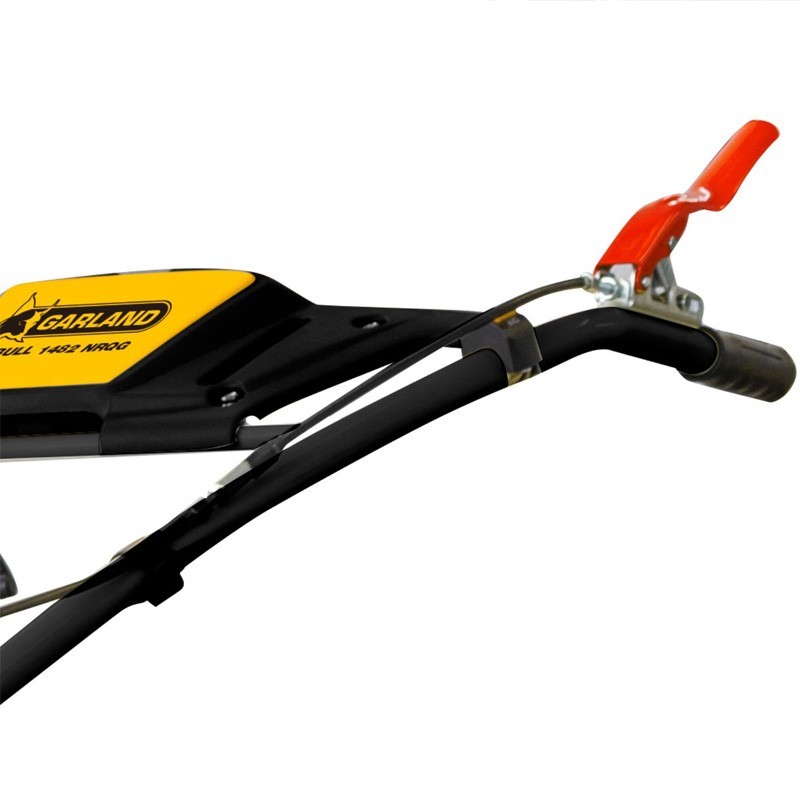

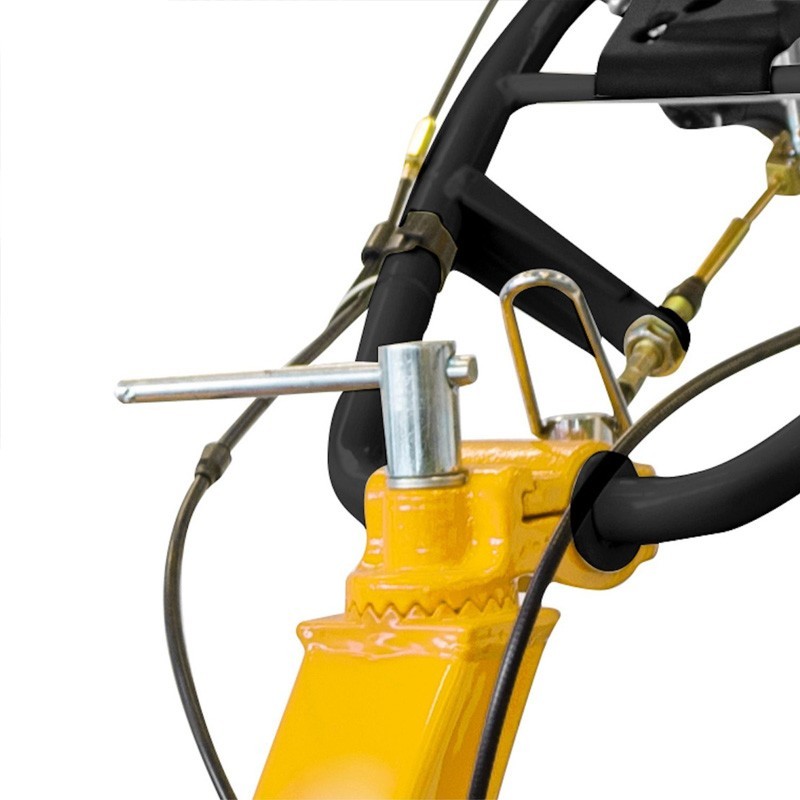

Handlebar type | Adjustable in height and sideways |
Clutch type | Multidisc in oil |
Speeds (forward + reverse) | 2 + 1 |

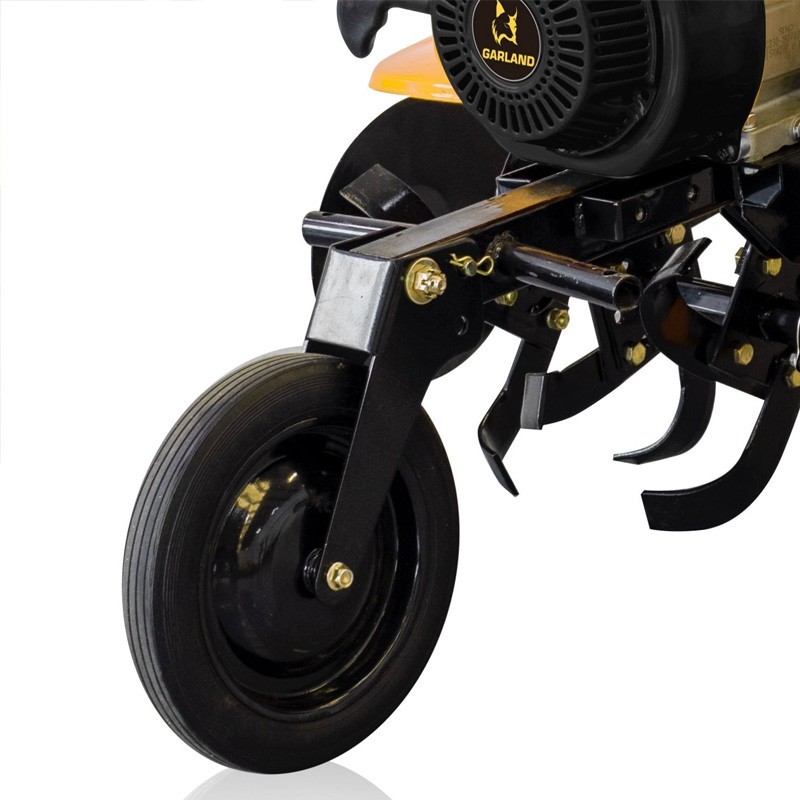

Transport wheel | Yes |
Filter type | In oil |
Maximum engine speed | 3800 min-¹ |
Consumption | 0,353 kg/kWh |
Autonomy | 75.71 min |
Fuel tank volume | 3,6 l |
Oil sump volume | 0,6 l |
Engine oil type | 10W-40 |
Transmission | Direct |
Protects plants | Yes |
Accelerated | Manual |
Working width | 1000 mm |
Blade dimensions | 6 x 40 mm (section) |
Rotor diameter | 350 mm |
Number of cutter/blade groups | 8 |
Wheel/blade diameter | 350 mm |
Handlebar foldable without tools | Yes |
Standard accessory | Includes pneumatic wheels |
Vibration level (average) | 7,2 |
Sound pressure | 87.4 dB(A) |
Sound power level (guaranteed/measured) | 106 dB(A) |
Weight empty machine | 85 kg |
Length in use | 156 cm |
Width in use | 73 cm |
Height in use | 120 cm |
Packing weight | 95 kg |
Packing length | 44 cm |
Packing width | 66 cm |
Packing height | 98 cm |
Transmission oil volume | 1,1 l |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
