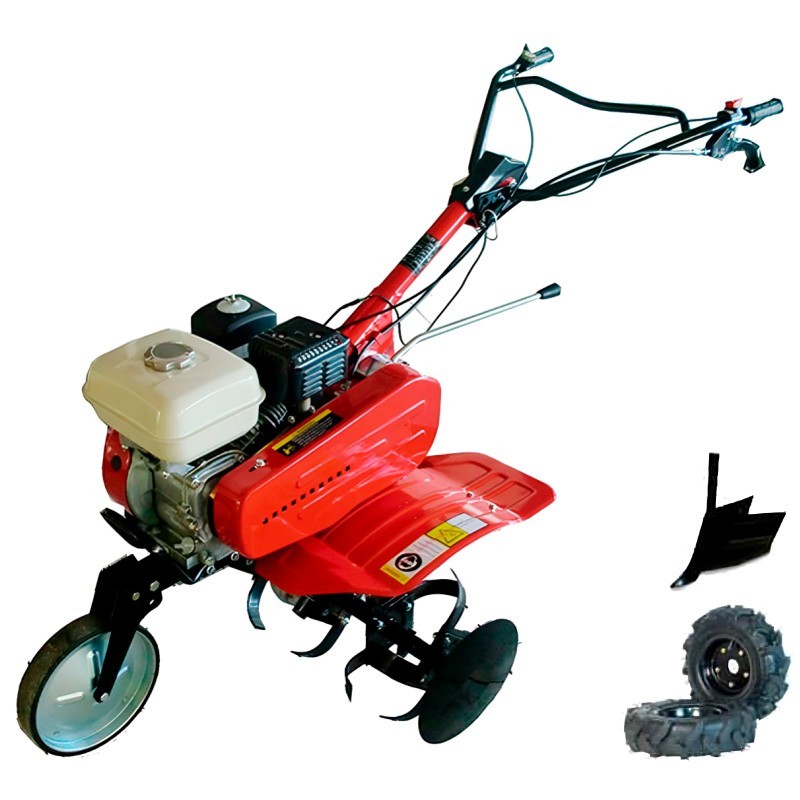

The Centauro SP 500 H rotary tiller is a versatile agricultural tool, ideal for work in crops from up to 1000 m². Equipped with a powerful 5.5 hp Honda GX160 gasoline engine, this device ensures reliable and efficient performance.
In addition, it has a horizontal axle and a cylinder inclined at 25°, which optimizes its operation and durability. Among its attachments, the Centauro SP 500 H includes a tiller and wheels, making it easy to prepare and cultivate the soil surface.
The cylinder liner is coated in cast iron, ensuring greater resistance and longer engine life. This power tiller is especially useful for gardeners and farmers who are looking for a robust and efficient tool for the maintenance of their plots.
| Engine model | Honda GX160 |
| Power | 5.5 hp |
| Speeds | 2 forward / 1 reverse |
| Width from tiller | 500 to 840 mm |
| Elements of tiller | 6 |
| Engine type | Gasoline OHV single-cylinder 4-stroke |
| Horizontal axis of cylinder inclined | 25° |
| Cylinder liner type | cast iron sleeve |
| Bore x stroke | 68 x 45 mm |
| Displacement | 163 cm³ |
| Compression ratio | 9.0: 1 |
| Mains power | 3.6 kW / 3600 rpm |
| Rated power cont | 2.5 kW (3.4 hp) / 3000 rpm - 2.9 kW (3.9 hp) / 3600 rpm |
| Max. net torque | 10.3 Nm (1.05 kgfm) / 2500 rpm |
| Ignition system | transistorized |
| Starter | Manual |
| Fuel tank capacity | 3.1 liters |
| Fuel consumption at rated power | 1.4 liters / h - 3600 rpm |
| Engine oil capacity | 0.6 liters |
| Packing dimensions | 375 x 800 x 740 mm |
| Weight | 70 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
