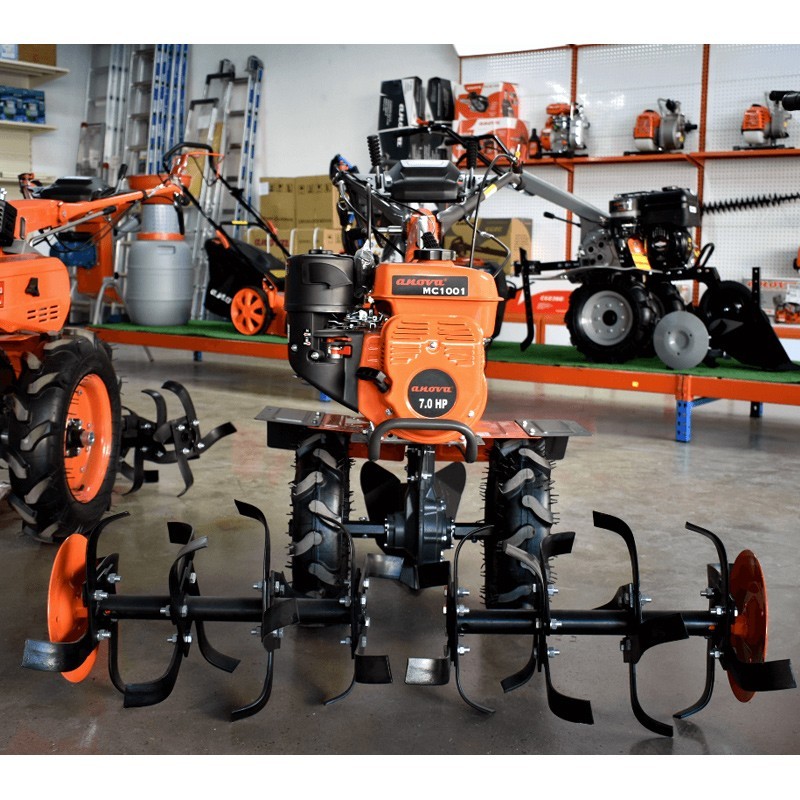

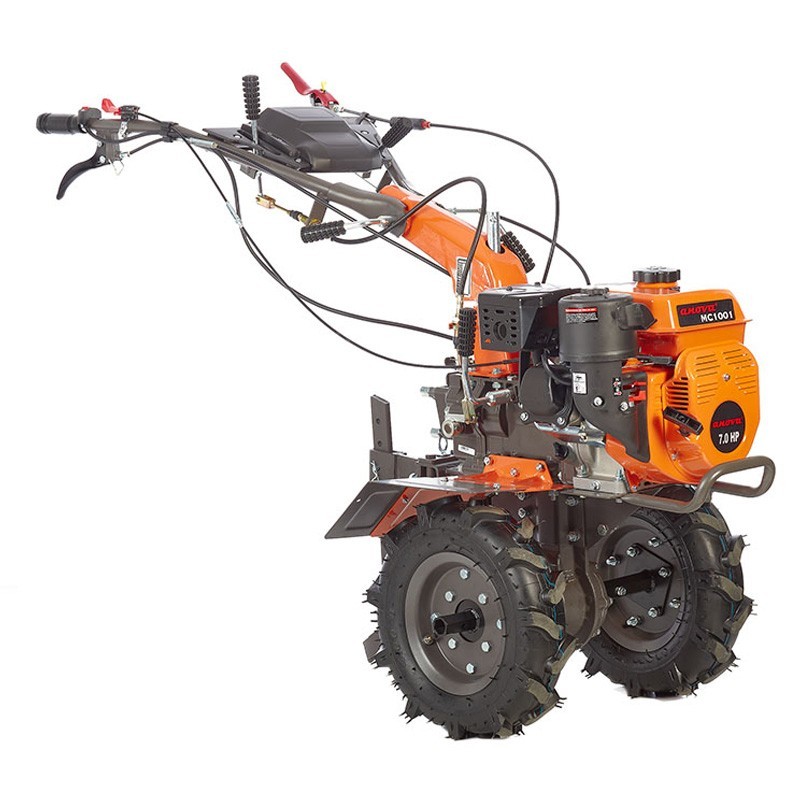

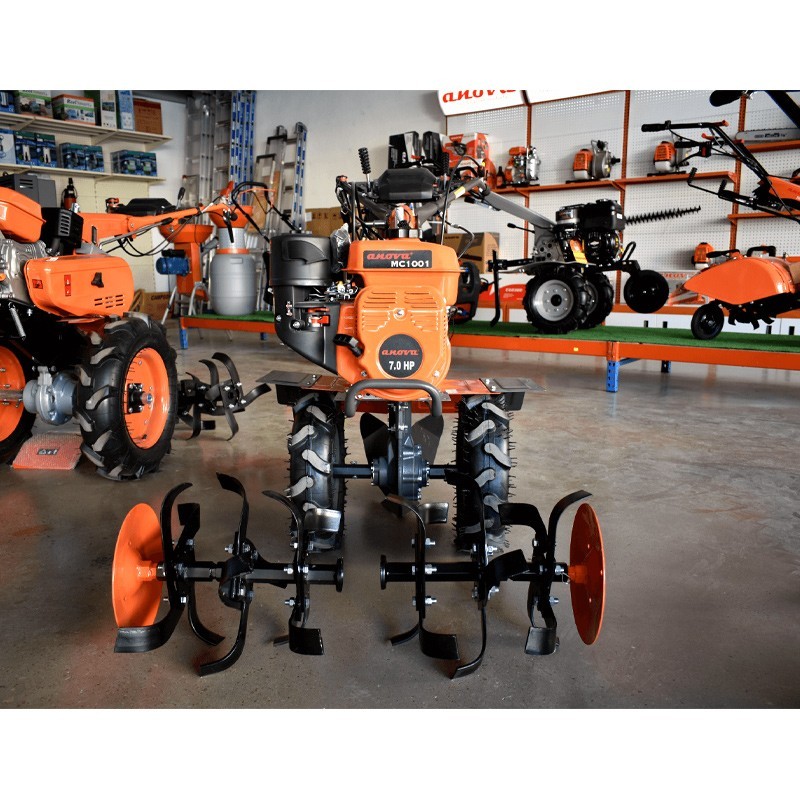

Motor hoe Anova MC1001
The Anova MC1001 petrol motor hoe is equipped with a robust 4-stroke engine Anova , model MA212, which offers a power of 7 HP (5.3 kW) and a displacement of 212cc. This model has 6 gears: 4 forward and 2 reverse.

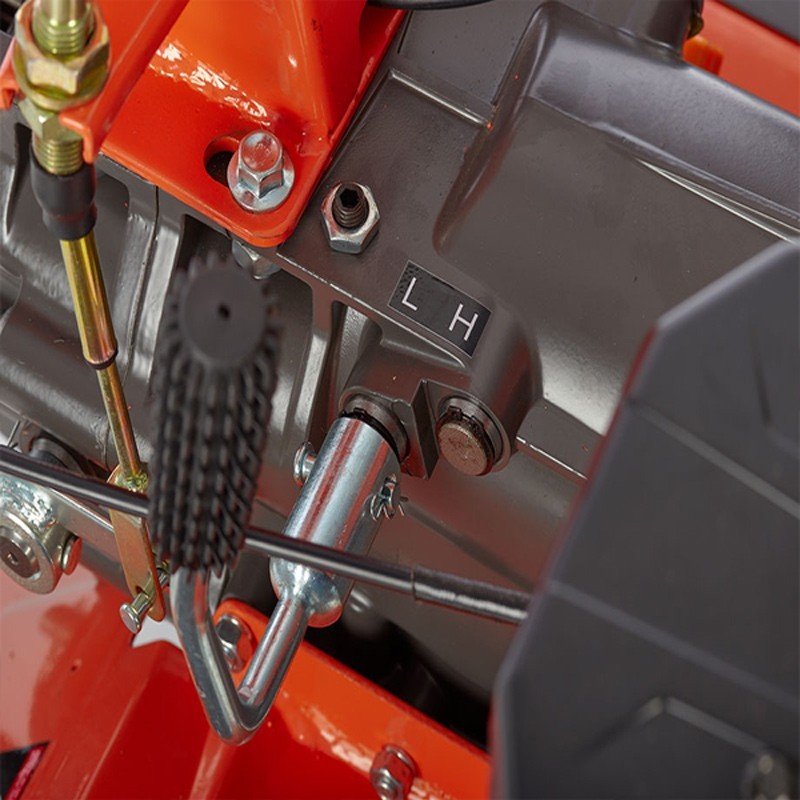

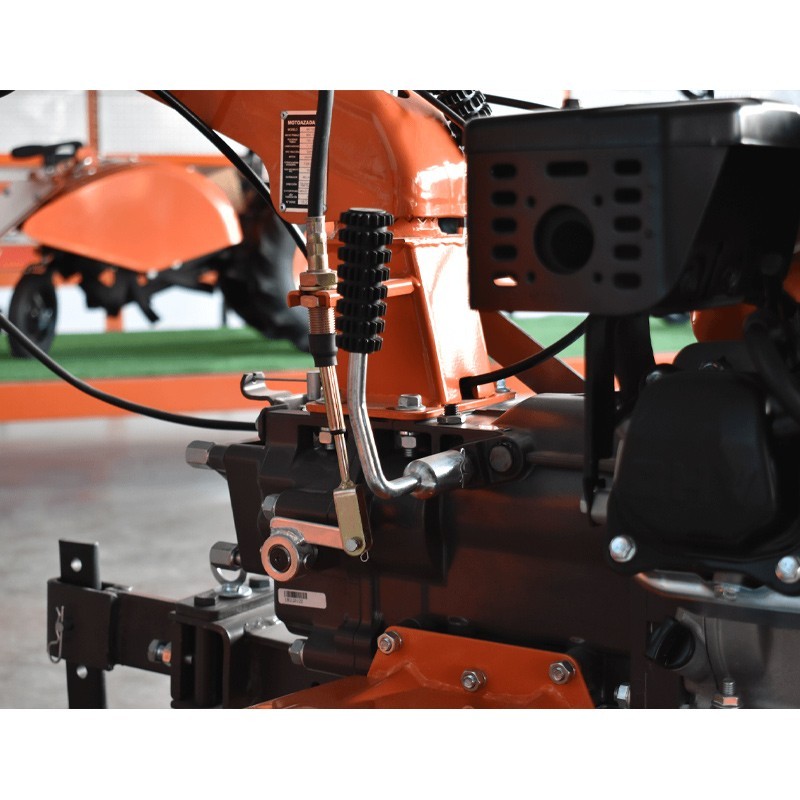

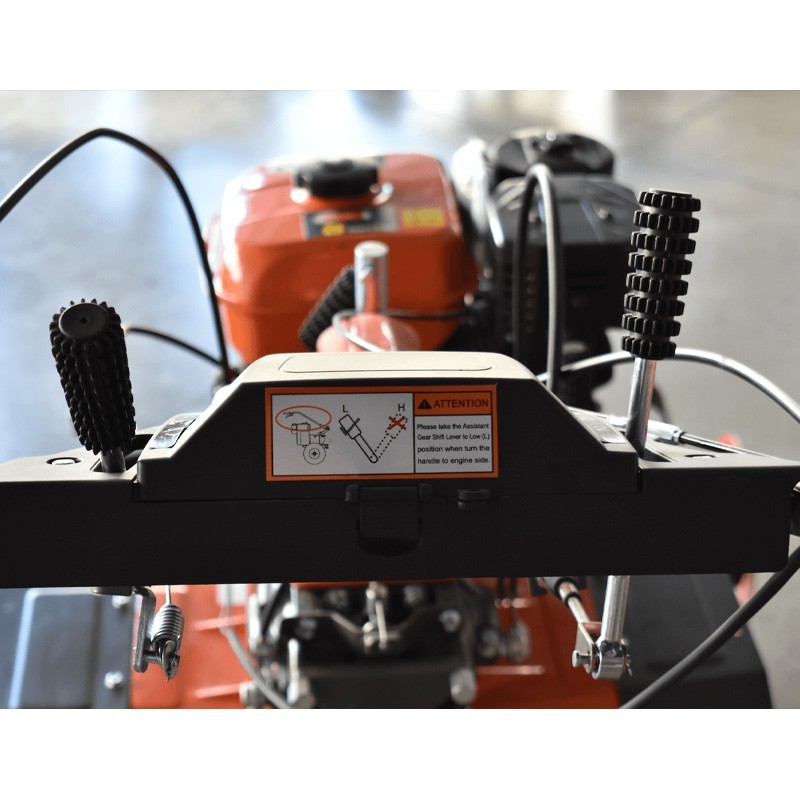

This gearbox with 6 gears has a reduction gear system that can slow down the current gear and increase the thrust force. We recommend the use of the reduction gear for e.g. pulling potatoes from the ground more easily.
The working width of the MC1001 varies between 600 and 870 mm, while its working depth ranges between 150 and 300 mm. In addition, its total weight is just 87 kg, making it easy to handle and transport.
The engine comes with an oil-bathed air filter and the maximum revolutions it can reach are 3600 rpm. The type of oil to be used in both the engine and gearbox is SAE 30.
The transmission of power from the engine to the blades is transferred by gears and comes with the tiller equipment mounted. In addition to that, the MC1001 motor hoe includes a wheel kit and its handlebar is height adjustable.

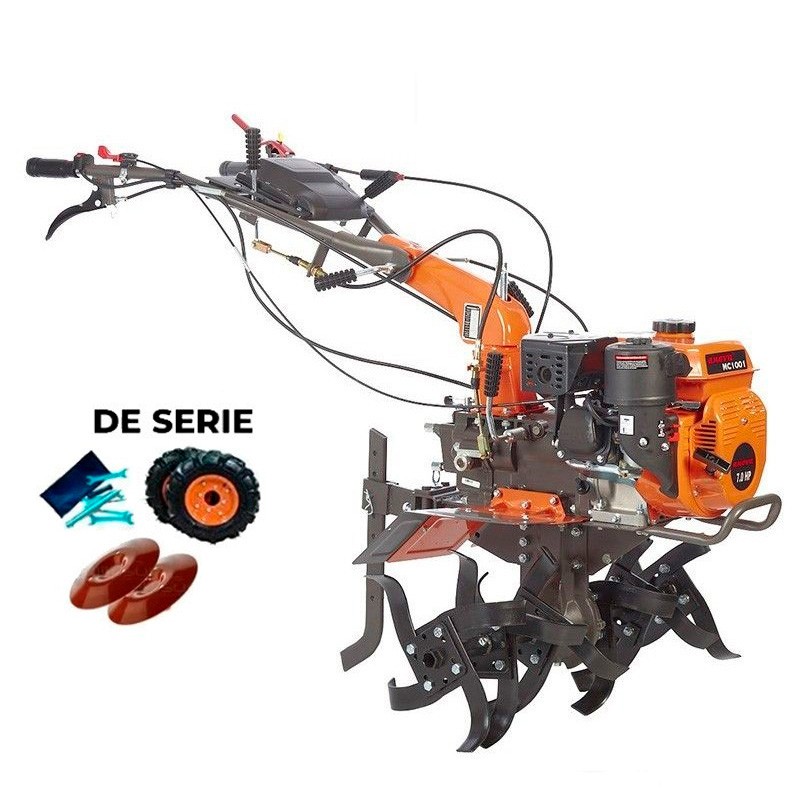

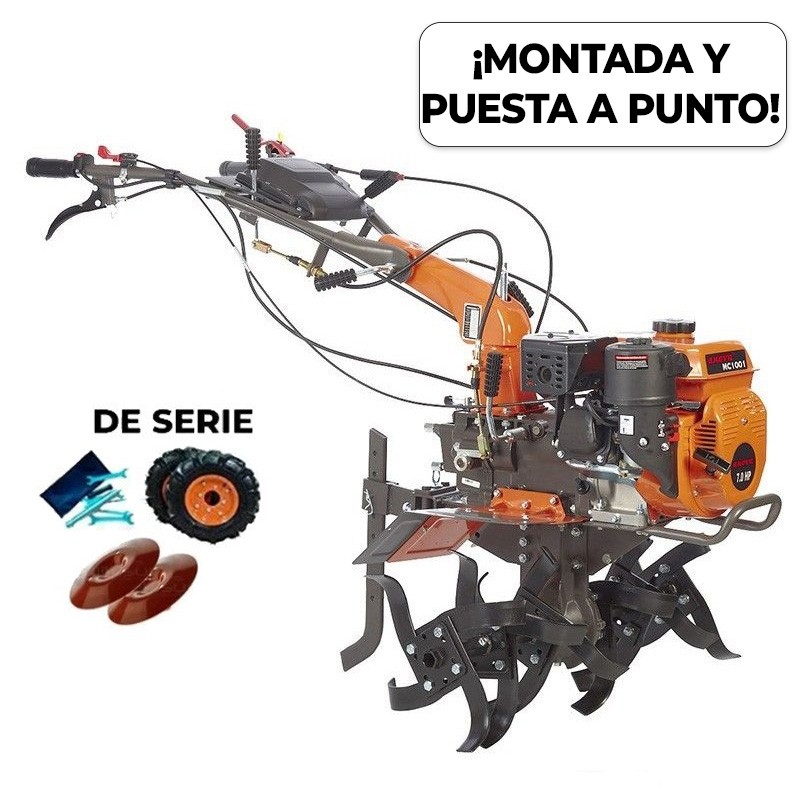

Includes
- Pneumatic wheels
- Side plates
- Depth guide
Features
| MODEL |
MC1001 |
| Milling cutter kit assembled |
Yes |
| Height adjustable handlebar |
Yes |
| AUTO STOP safety system |
Yes |
| Engine |
MA212 |
| Displacement |
212 cc |
| Power |
7 HP - 5.3 kW |
| Transmission |
With gears |
| Revolutions |
3600 rpm |
| Gears |
4 + 2 (with reduction gear) |
| Working depth |
150 - 300 mm |
| Working width |
600 - 870 mm |
| Working speed |
0,1 - 0,3 m/s |
| Weight |
87 kg |
| Engine oil type |
SAE 30 |
| Quantity of oil in the engine |
0.6 liters |
| Gearbox oil quantity |
2 liters |
| EAN-13 |
8435507508315 |
| Dimensions |
1600x1000x1050 mm |
Differences between MC1001 and MC1003
As many of our customers have been asking us about the differences between both models, we have decided to summarize the main differences between both machines to clarify this doubt that many of them have had.
| MC1001 |
MC1003 |
| It has a reduction gear for slower and grippier operation |
It does not have a reduction gear |

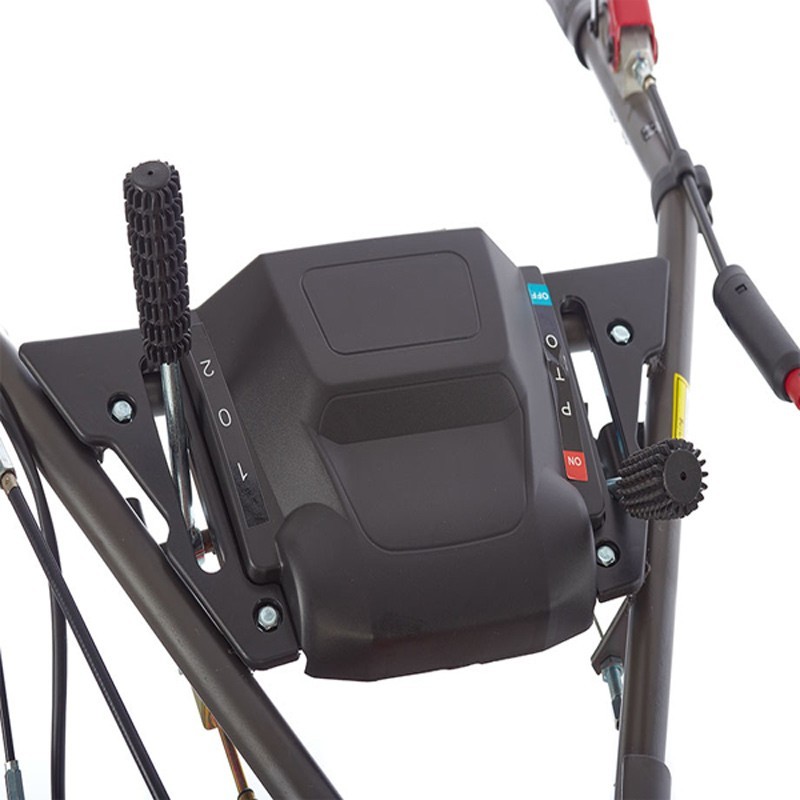

| It has a power take-off used to put different accessories such as: water pump and mower |
Although it has a PTO, it is not possible to attach these accessories. |
| It has 4 gears forward + 2 rearward + 1 rearward |
It has 3 gears forward + 1 reverse gear |
| IMPORTANT NOTICE |
|
| It is compulsory for the customer to check oil and grease levels before starting the machine. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
