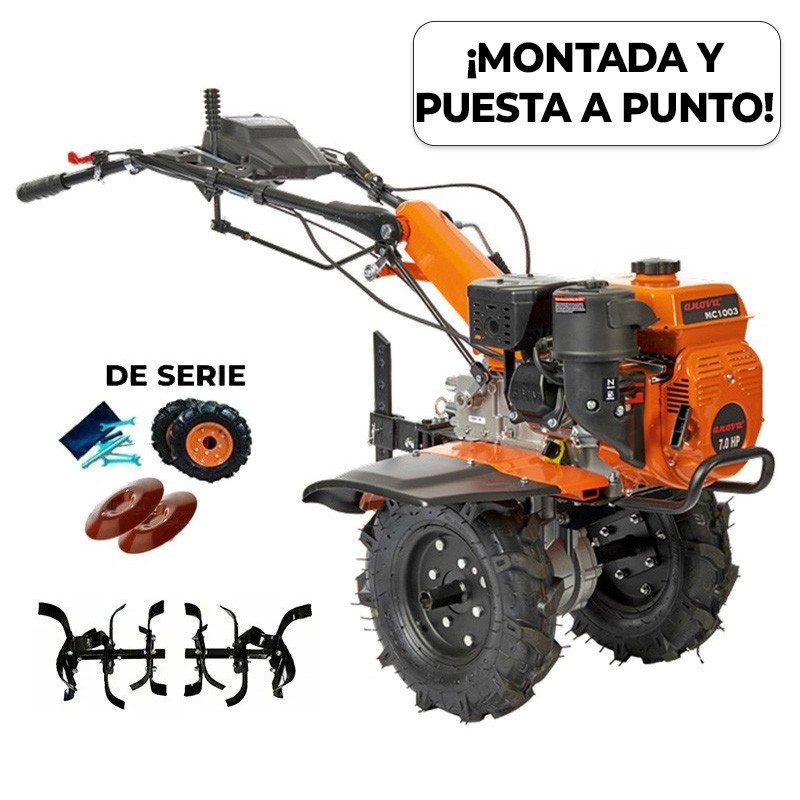

The motor hoe Anova MC1003 is an ideal machine to work the land in an efficient way thanks to the great power of its engine and the great working width of 87 cm.
This engine is the proprietary Anova model MA212 4-stroke engine with 7 HP of power and a displacement of 212 cc, which it reaches at 3600 rpm.
The gearbox has 4 gears gears of which 3 forward and one reverse. In addition, the power tiller is equipped with an automatic stop system in case of emergency. This improves the safety of the machine and the user while in use.

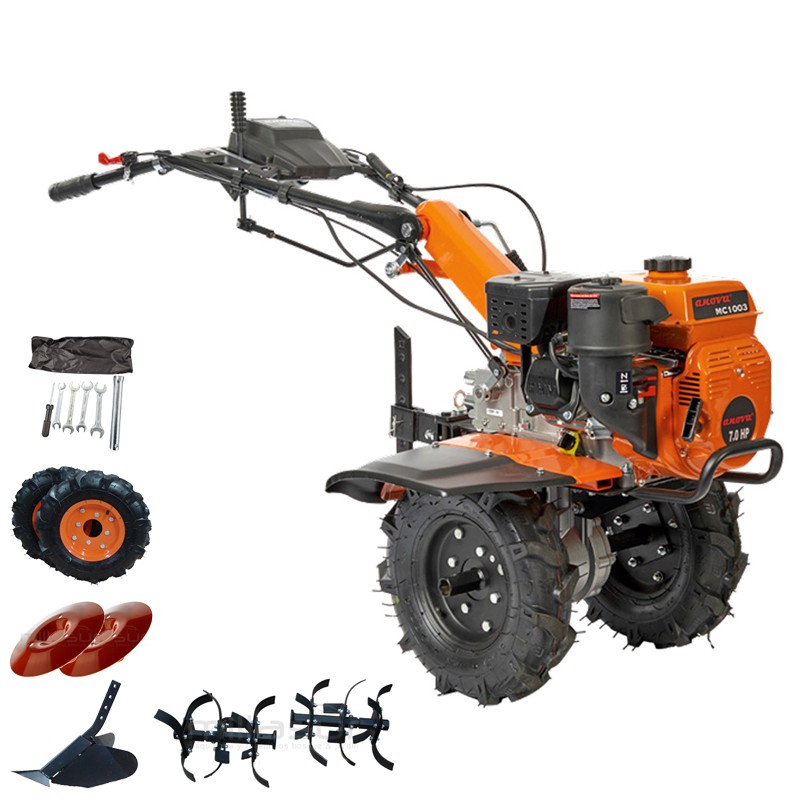

In addition to all of the above, the MC1003 petrol hoe has pneumatic wheels, side plates and depth guide included in the package. The handlebar of the machine can be adjusted in height and the cutters are mounted on the motor hoe.
Finally, the air filter is bathed in oil to preserve it for a longer period of time. In short, if you are looking for a good rotary tiller for large areas, then this is your perfect rotary tiller.
| MODEL | MC1003 |
| Air filter | Oil bathed |
| AUTO STOP safety system | Yes |
| Milling equipment | Mounted |
| Handlebar | Adjustable in height |
| Transmission | By gears |
| Clutch | Friction plate |
| Motor | MA212 |
| Engine type | gasoline 4-stroke |
| Engine speed | 3600 rpm |
| Displacement | 212 cc |
| Power | 7 HP |
| Gears | 3+1 |
| Working width | 60 - 87 cm |
| Working speed | -1 / 0,1 / 2,3 m/s |
| Working depth | 15 - 30 cm |
| Number of blades | 24 |
| Type of engine oil | SAE 30 |
| Quantity of oil in the engine | 0.6 liters |
| Gearbox oil quantity | 2 liters |
| EAN-13 | 8435673702296 |
| Dimensions | 1630 x 1000 x 1200 mm |
| Weight | 87 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
