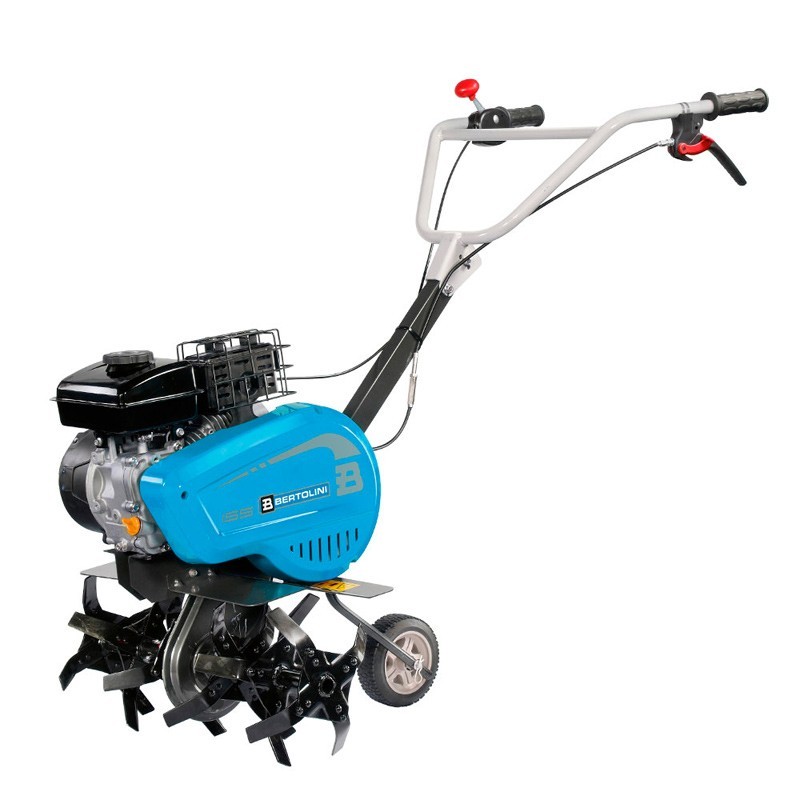

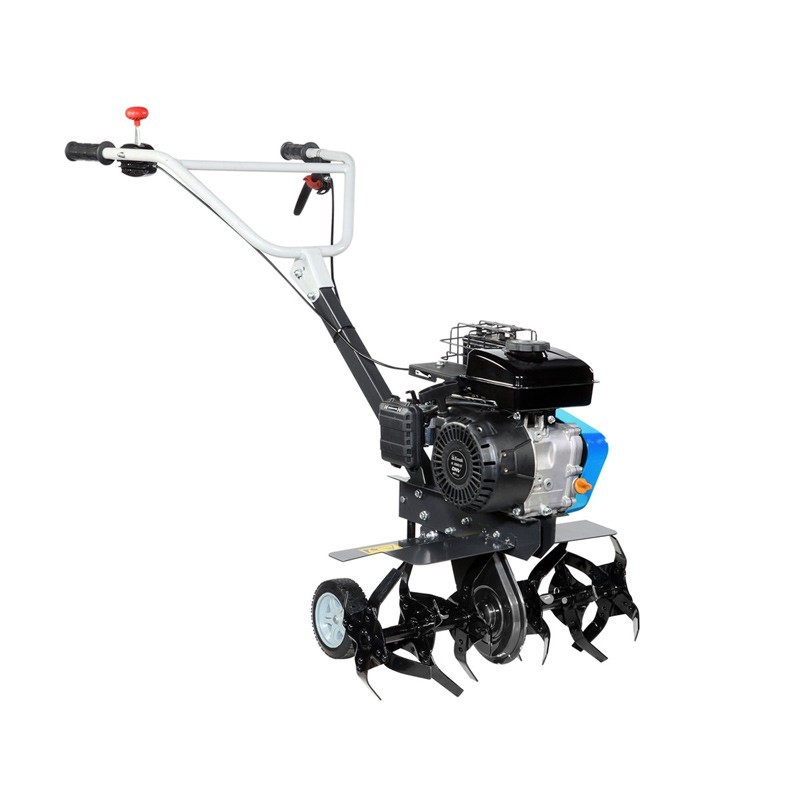

Rototiller Bertolini 155 Emak engine
The Rototiller Bertolini 155 Emak K 300 H OHV engine It features an 80cc engine and delivers a power of 2.4 HP. It has a self-retracting start, a chain transmission, and a belt clutch with a tensioner.
The tiller 155 includes a tiller 46 cm, reducible to 32-22 cm, , with three blades on each side. The chassis of the machine is made of Steel with reinforced oil pan, thus protecting the machine against impacts.
The adjustable handlebar of which this tiller is equipped, is adjustable Vertically in three positions. It adjusts to the user's height, achieving greater comfort and efficiency at work.
Thanks to the rear wheel that the tiller has, it has never been easier to transport. The Rototiller Bertolini 155 It is designed for all types of farmers, both professional and semi-professional.
The model 155 is perfect for users who need to prepare the soil for planting. This model perfectly combines ease of use with power and strength.
Characteristics
| Engine |
Emak K 300 H OHV |
| Power |
2.4 HP |
| Tiller |
46 cm, reducible to 32, 22 cm |
| Transmission |
Chain |
| Power take-off |
No |
| Spur |
Yes |
| Trailer hitch |
No |
| Clutch |
Belt with tensioner |
| Gears |
1 speed (1 forward) |
| Handlebar |
With 3-position vertical regulation |
| Rear wheel |
Included |
| Speed regulator |
Integrated on-off system |
| Joystick of the tiller |
Included, within reach |
| Weight |
27 Kg |
 |

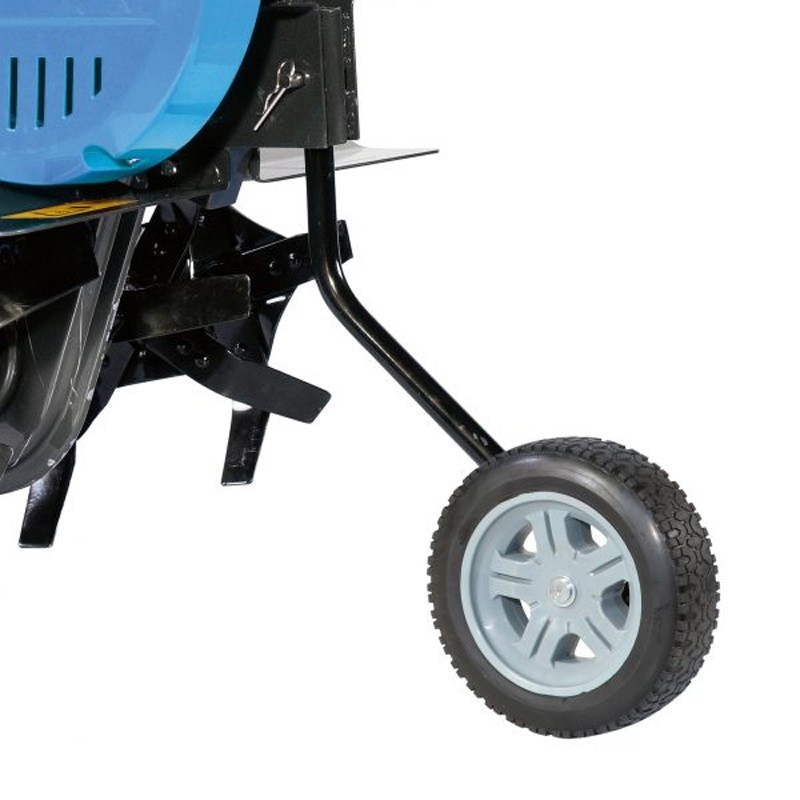

Rear wheel for transporting the machine. |
 |

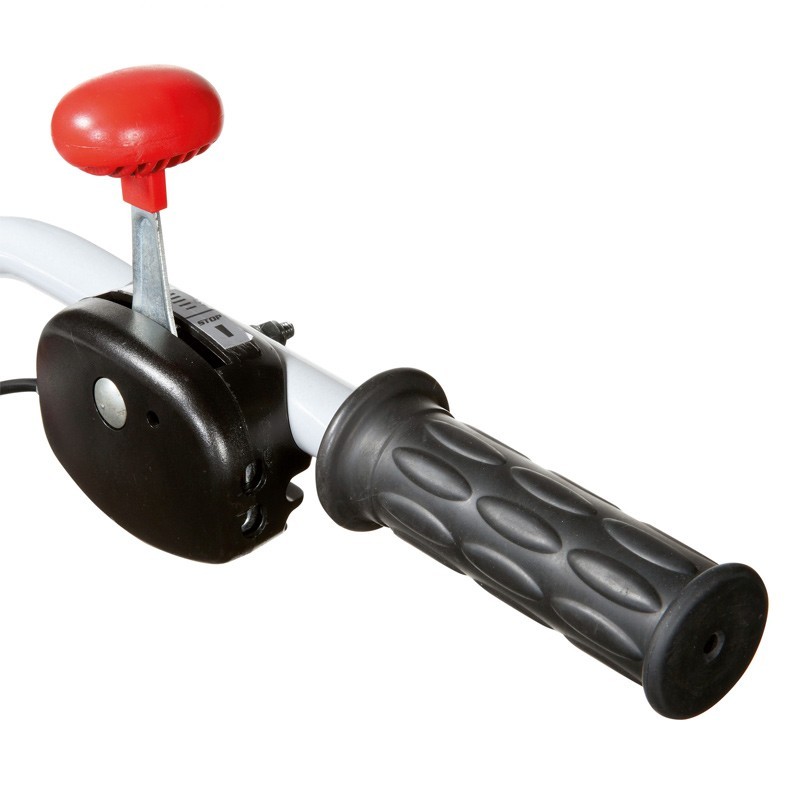

Speed regulator with integrated on-off system and control lever of the tiller within reach. |
 |

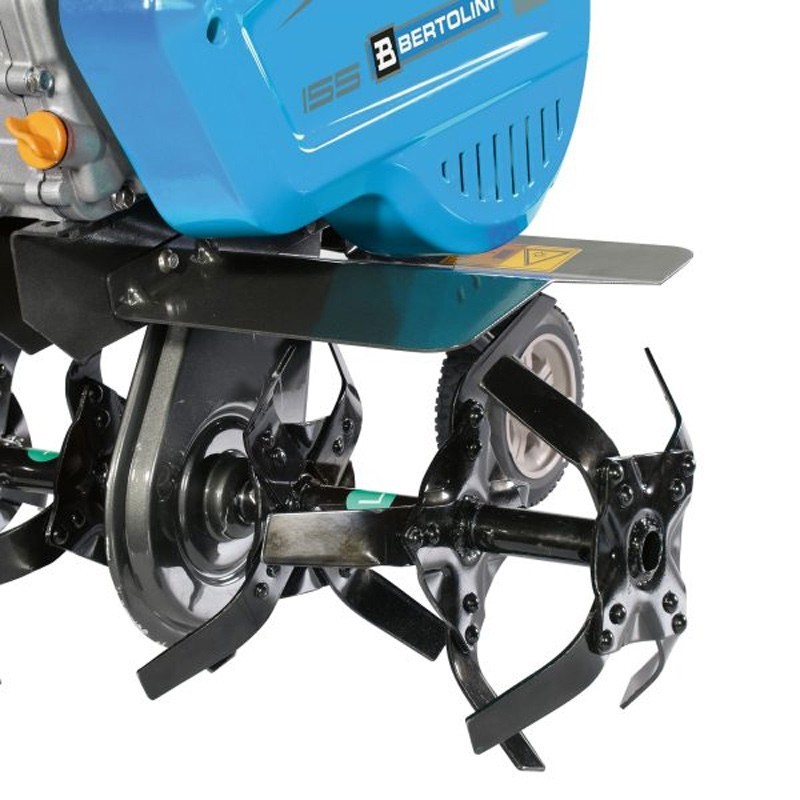

Tiller with three elements per side, measuring 46 cm, reducible to 32-22 cm. |
Difference between the oil bath clutch of other brands and the dry multi-disc clutch of Bertolini
Clutch brake in oil bath (Other brands) Inconveniences
- Hydraulic due to the use of oil.
- When the machine gets filled with debris, it is more likely to fail.
- Practical and functional with good maintenance when needed.
- On its first use, it is necessary to change the oil within a maximum of 40 hours.
- The engine has a small oil pump that connects to the clutch device and lubricates it, allowing it to function. When this oil is full of debris, the system will stop working and start to fail.
- In the case of poor maintenance, the machine starts to malfunction. The warranty does not cover the damages, so it will be necessary to take it to the workshop and have it repaired by a professional.
- There could be oil leaks at certain points of the machine.
Multi-disc dry clutch Bertolini
- Simpler and more mechanical system with a clutch with brake and a force multiplication system without DHS.
- This machine is less prone to failures.
|
IMPORTANT
It is mandatory for the client to check oil levels and lubrication before starting up! |
| If the merchandise cannot be checked at the time of receipt, it should be noted on the carrier's document that the customer is in agreement pending examination. |
