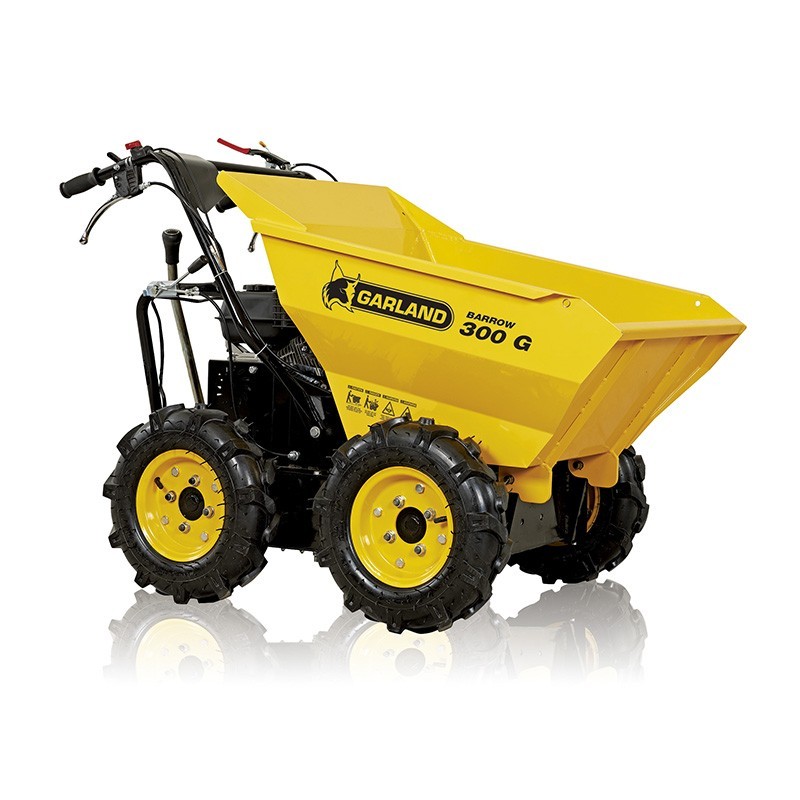

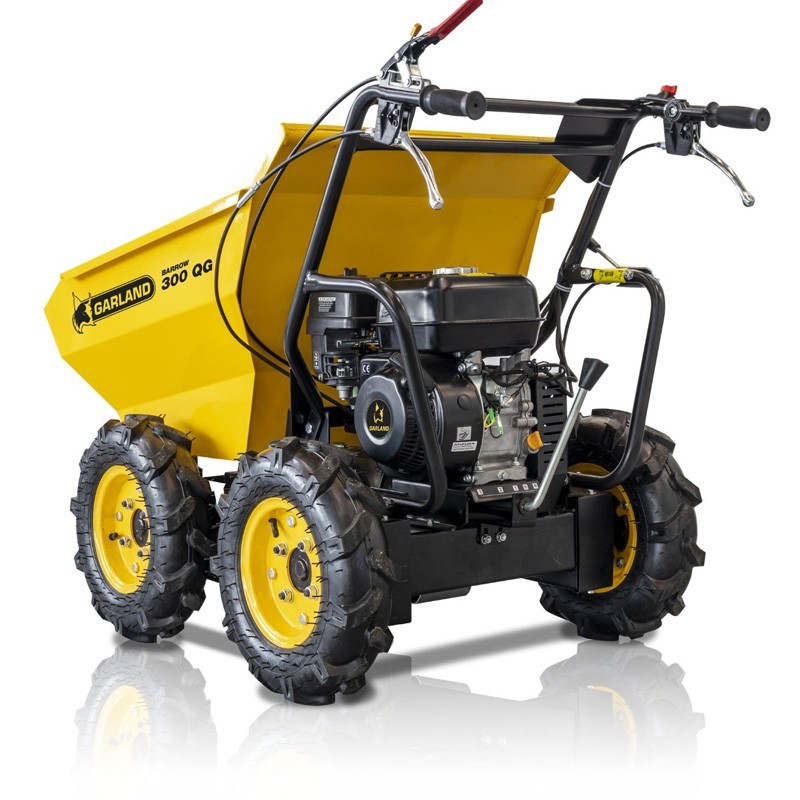

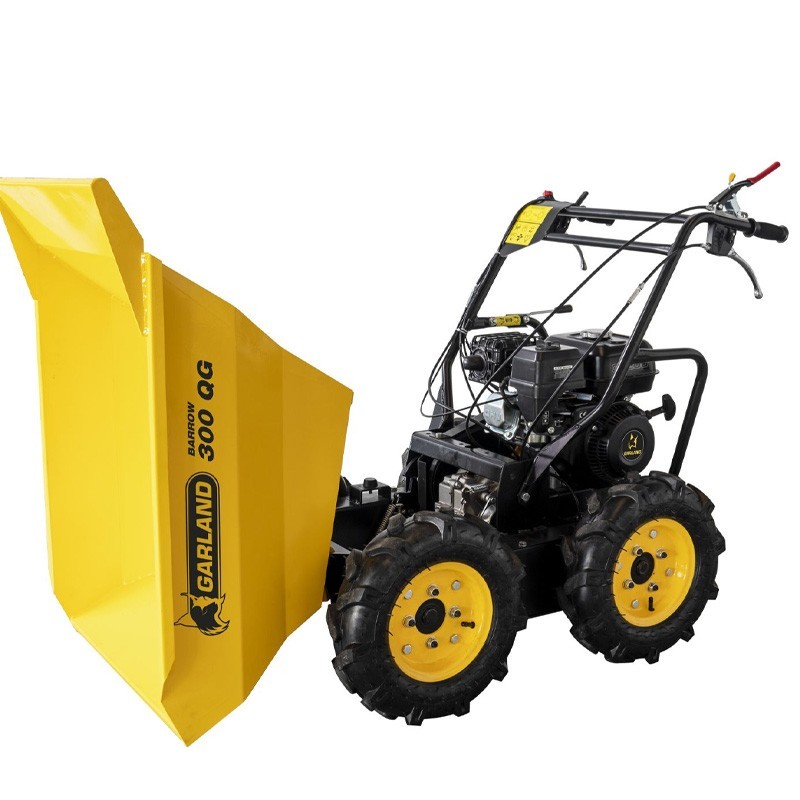

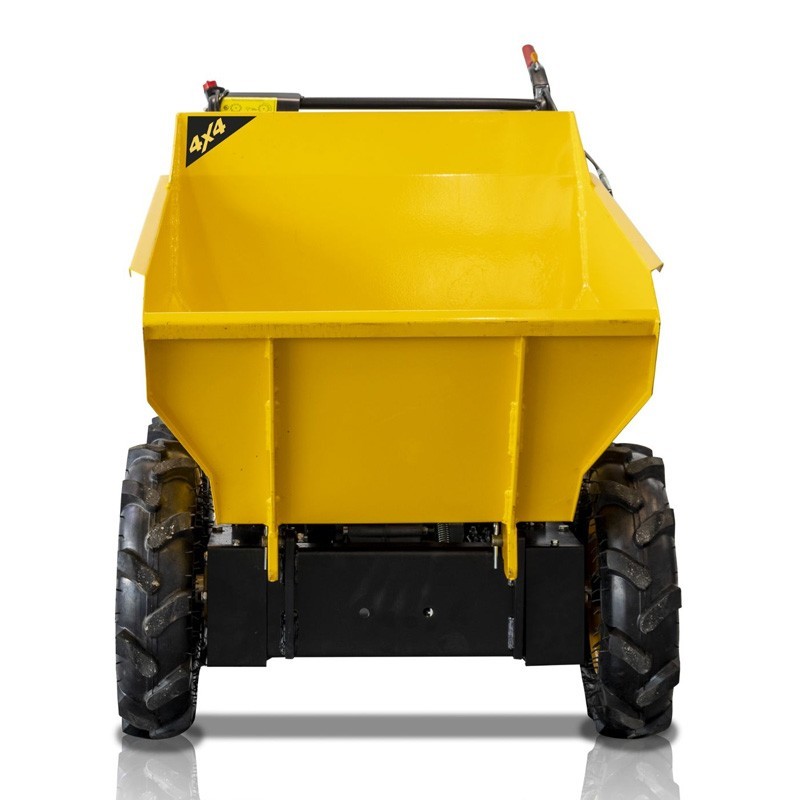

Mini Dumper Garland BARROW 300G-V20 196cc
Gasoline Mini Dumper Garland BARROW 300G-V20
Gasoline Mini Dumper Garland BARROW 300G-V20 4x4
Gasoline Mini Dumper
Mini Dumper Garland BARROW 300G-V20 196cc
Mini Dumper Garland BARROW 300G-V20 196cc
Mini Dumper Garland BARROW 300G-V20 196cc working

Gasoline Mini Dumper Garland BARROW 300G-V20 196 cc


  • Engine: 4 stroke Garland
  • Displacement: 196 cc
  • Power: 4200 W / 5,6 HP
  • Maximum load: 300 Kg
En stock
icon Power Supply
Power Supply
Gasoline
icon Load capacity
Load capacity
300 kg
icon Forklift Type
Forklift Type
Of Wheels
icon Startup
Startup
Manual
icon Engine
Engine
Other engines
icon Displacement
Displacement
196 cc
icon Power
Power
5.6 HP
icon Engine type
Engine type
4 strokes
icon Gears
Gears
3+1
icon Max. slope
Max. slope
icon Drawer turning
Drawer turning
Manual
icon Type of box
Type of box
Dumper box
icon Weight
Weight
145 kg
€1,171.07 excl. VAT
€1,417.00 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline Mini Dumper Garland BARROW 300G-V20 196 cc
€1,417.00
Qty

Mini Dumper Garland BARROW 300G

The Mini Dumper Garland BARROW 300G has a 4-stroke engine Garland. This engine provides a total power of 4.2kW / 5.6HP and a displacement of 196 cc. It has a fuel tank capacity of 4.2L.

This model of Mini Dumper from Garland, BARROW 300G, offers 3 forward speeds and 1 reverse speed. It also has a maximum speed of 6.4 km/h. The model has a maximum load of 300 kg.

The Mini Dumper Garland BARROW 300G has a sound pressure level of 84.7 LpAdB (A). In addition, it also has a sound power level, average 95 LwA dB(A) and guaranteed 100 Lw dB(A). It offers a handlebar vibration level of 3.92 m/s2.

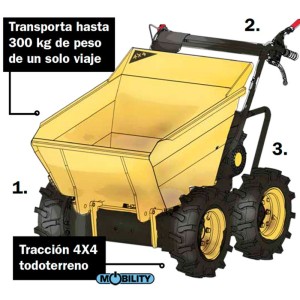

This BARROW model has reduced dimensions and a large load capacity. It includes 4x4 and tipper. In addition, the model has a weight of only 145 kg.

Features

EAN 8414218097097
Engine type 4-stroke
Euro V Yes
Displacement (in cm³) 196
Maximum power (KW/min-1) 4,2/3.600
Engine speed at idle (min-1) 1800+/- 200
Maximum torque (Nm) 11,5
Fuel tank capacity (in l) 4,2
Oil capacity in crankcase 0,6 l
Engine oil type SAE 20W-40
Transmission oil capacity (l) 1,5
Transmission oil type SAE 80 W-90
Number of speeds 3 forward/ 1 reverse
Maximum speed (km/h) 6,4
Maximum load (kg) 300
Transport wheels Pneumatic 4x4
Vibration level of handle (m/s2) 3,92
Weight (kg) 145

Transport

  • Never lift or transport the machine while the engine is running. Also switch off the engine whenever moving between different working areas.
  • Wait 5 minutes after switching off the machine. This is to allow the machine to cool down before putting it away or transporting it. The exhaust pipe of the machine will still be hot after the engine is switched off.
  • To transport the machine press the clutch lever down and push the machine
  • If you have to lift the machine check in the technical characteristics the weight of the machine before lifting it. This is to ensure that it is a weight that you can support.
  • If you are transporting the machine in a vehicle secure it firmly to prevent it from sliding or tipping over.

Storage

  • Wait 5 minutes after the machine is turned off for the machine to cool down before storing or transporting the machine. The exhaust pipe of the machine will still be hot after the engine is turned off. Never store the machine near flammable materials (dry grass, wood...), gas or combustibles.
  • Store this tool in a place that is not accessible to children and safe so as not to endanger any person and that is dry, clean and at a temperature between 0ºC and 45ºC.
  • Before storing the machine follow the points in the maintenance chapter.
  • If you are going to store the machine in a closed place, empty the fuel as the vapors could come into contact with a flame or hot body and ignite.
  • If the fuel tank has to be emptied this must be done in the open air and following the recycling regulations.
  • To reduce the risk of fire, keep the engine, muffler and fuel tank clean by removing cut material, oil and grease.

Useful links

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before starting up the machine. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
164000

Data sheet

Power Supply
Gasoline
Load capacity
300 kg
Power (HP)
5.0 - 5.9 HP
Forklift Type
Of Wheels
Startup
Manual
Engine
Other engines
Displacement
196 cc
Power
5.6 HP
Engine type
4 strokes
Gears
3+1
Max. slope
Drawer turning
Manual
Type of box
Dumper box
Weight
145 kg

Specific References

EAN-13
8414218097097
MPN
52-0006
New
