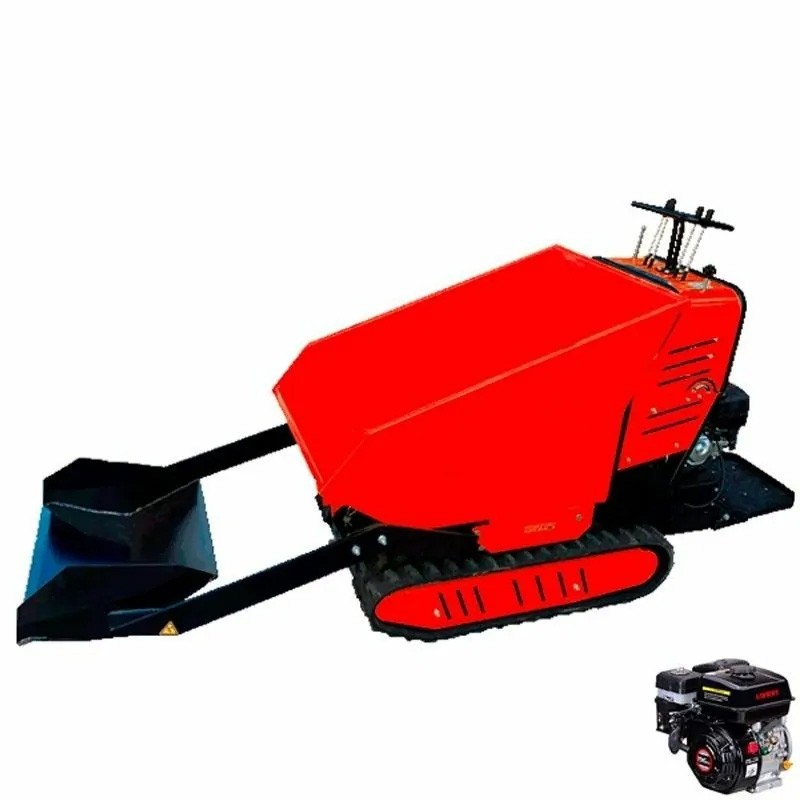

With theMinidumper Centaur SP MINITRANS Shovel, you will save not only money, but also aggravation because it is built for low maintenance and a very long service life.
Breakdowns due to misuse will not be a problem either, as it has a fast-acting and safe overload protection . Besides, the gearbox will be better maintained because it hardly generates any friction.
All this will allow us to enjoy its 6.5 HpLoncin engine that allows you to load up to 500 kg for many years.
| Engine | Loncin 6,5 Hp gasoline 4 stroke |
| Maximum slope at idle | 20% |
| Displacement | 270 cc |
| Transmission | Hydrostatic |
| Load capacity | 500 kg |
| Shovel depth | 660 mm |
| Shovel length | 1065 mm |
| Shovel width | 715 mm |
| Blade width tracked | 180 mm |
| Pump flow rate | 15.1 l/min |
| Weight | 360 kg |
| Engine type | 4-stroke monoclinic, forced cooling, OHV |
| Displacement | 270 cc |
| Bore x stroke | 77 x 58 mm |
| Net power | 6000 W - 3600 rpm |
| Net torque | 17.73 N.m - 2500 rpm |
| Re-launch speed | 1400 ± 150 r/min |
| Compression ratio | 8,21 |
| RDF shaft rotation | counterclockwise |
| Noise | 70dB |
| Ignition system | Transistorized magneto ignition |
| Starting system | Recoil start |
| Carburetor | Throttle |
| Air filter | Semi-dry, dual element, oil bath |
| Oil capacity | 0.95 liters |
| Fuel tank capacity | 6 liters |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
- Accessories not included as standard
