Hydraulic Electric mini dumper Deleks XE500HEL Lithium Battery 48 V
- Power Supply: Electric
- Power: 1000W
- Voltage: 48V
€2,305.02 VAT incl.

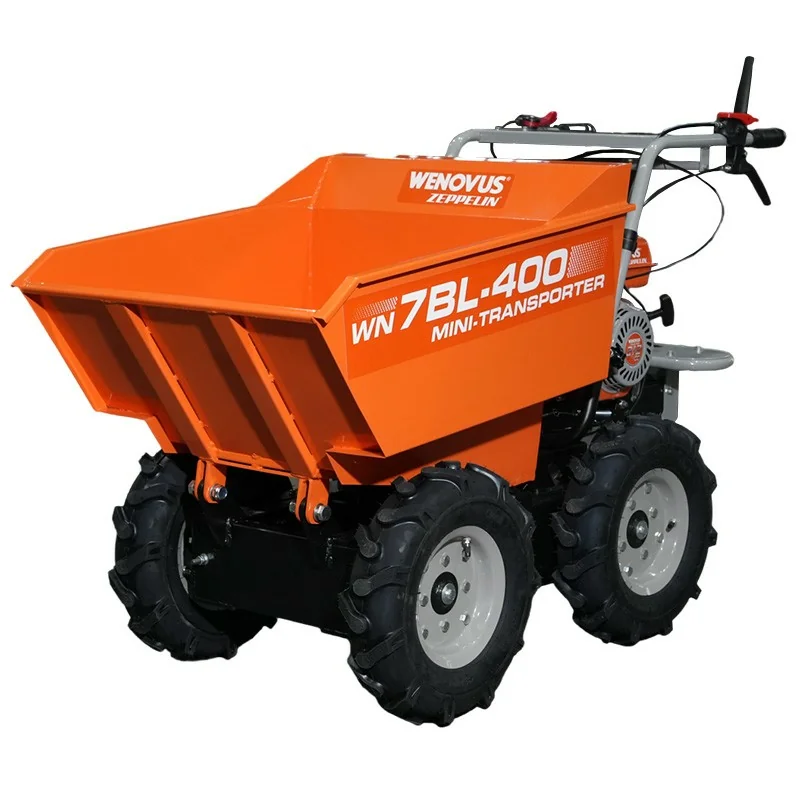

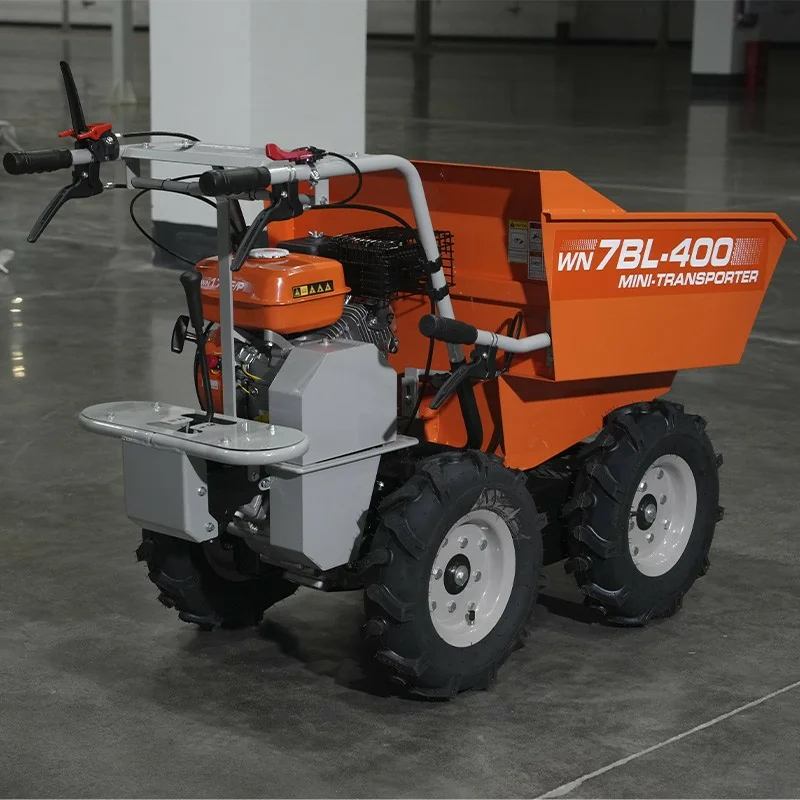

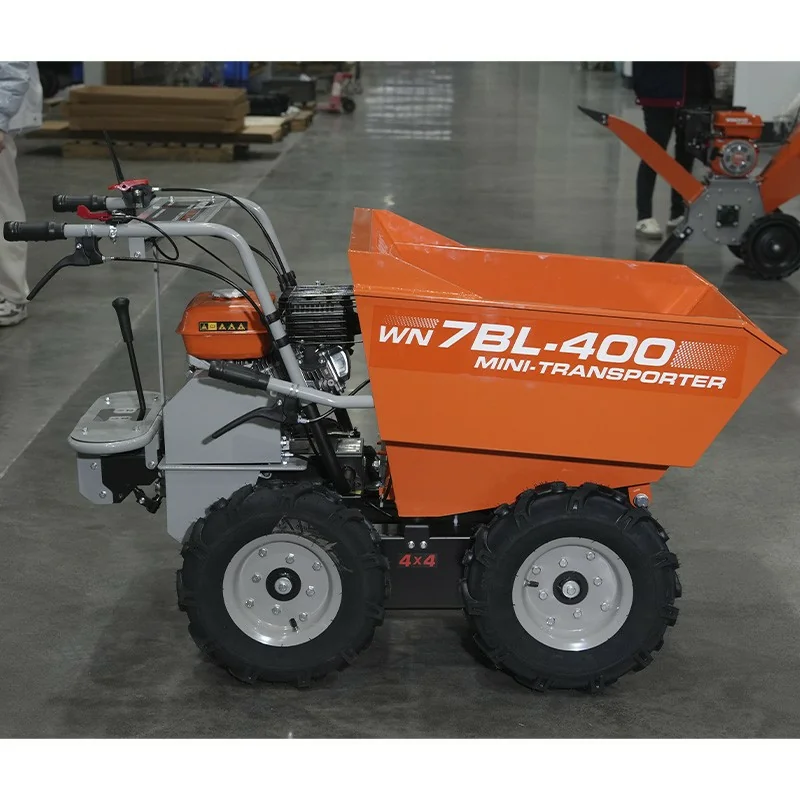

The minidumper Zeppelin Wenovus 7BL-400 is a compact and robust tool, ideal for transporting materials on construction sites, gardens or farms. Thanks to its design with mechanical traction and 4.00-8 all-terrain wheels, it travels easily over uneven and narrow terrain, even with a load of up to 400 kg.
It is equipped with a 196 cc 4-stroke WEIMA gasoline engine with 3.6 kW of power and manual start. The gear transmission (3 gears front and 1 rear) allows it to adapt to different speeds depending on the load or terrain, while the steering brake facilitates maneuvering in tight spaces, with a turning radius of less than 1 meter.

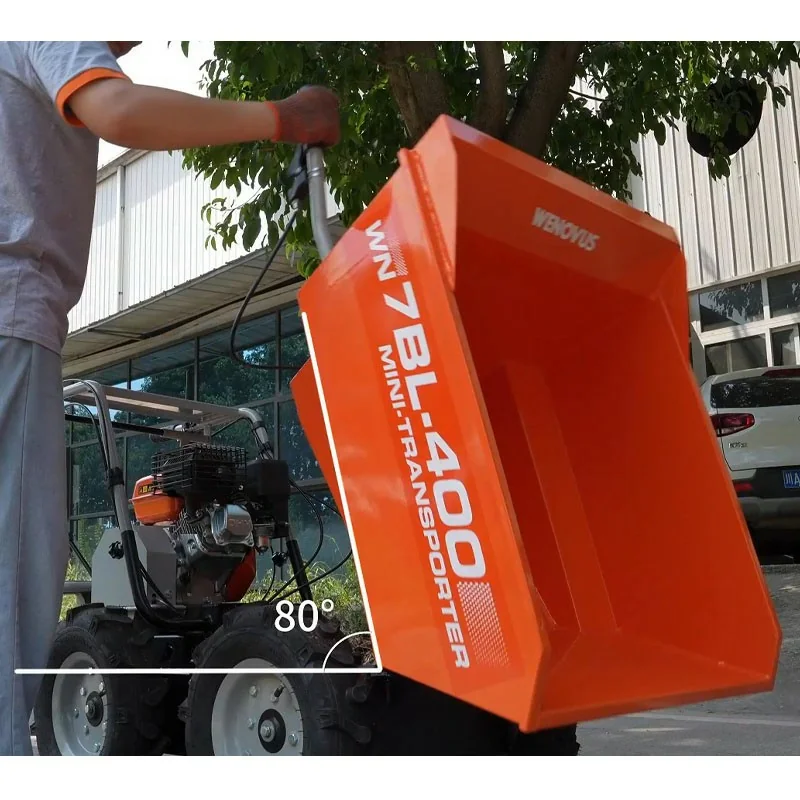

Its metal cargo box includes a manual tipping system with an unloading angle of more than 80°, which speeds up emptying tasks. With a total weight of only 150 kg and a minimum ground clearance of 124 mm, it is a practical and resistant option for intensive work where mobility and efficiency are required.
Load capacity | 400 kg |
Wheels | 4.00-8 |
Minimum ground clearance | 124 mm |
Minimum turning radius | ≤1 m |
Lift capacity (without load) | 15° |
Load box tipping method | Manual tipping |
Rotation angle of cargo box | ≥80° |
Motor model | WN168FB/P (WEIMA) |
Displacement | 196 cc |
Power Supply | Gasoline |
Engine type | Single-cylinder 4-stroke air-cooled |
Power rating | 3.6 kW |
Starter | Manual |
Clutch | Belt tension type |
Transmission | Gear, 3F and 1R |
Swivel | Built-in one-way steering brake |
Brake | Internal expansion |
Dimensions | 1518 x 688 x 1049 mm |
Cargo box dimensions | 815 x 688 x 574 mm |
Weight | 150 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
AVAILABLE FOR RESERVATION, STOCK AS OF 09/06/2025
