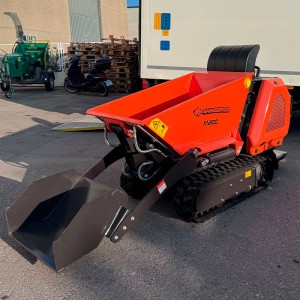

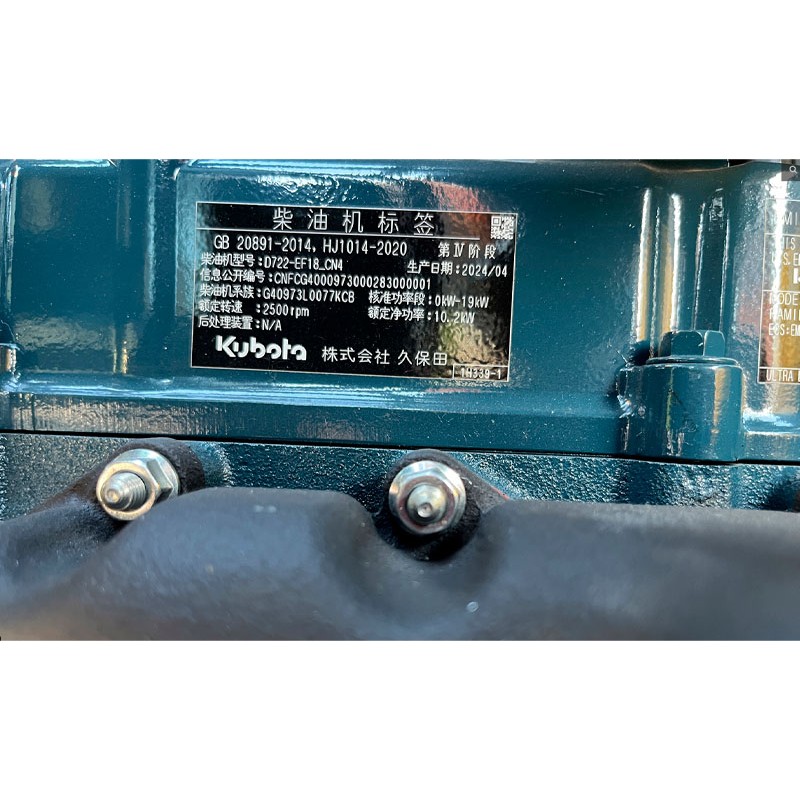

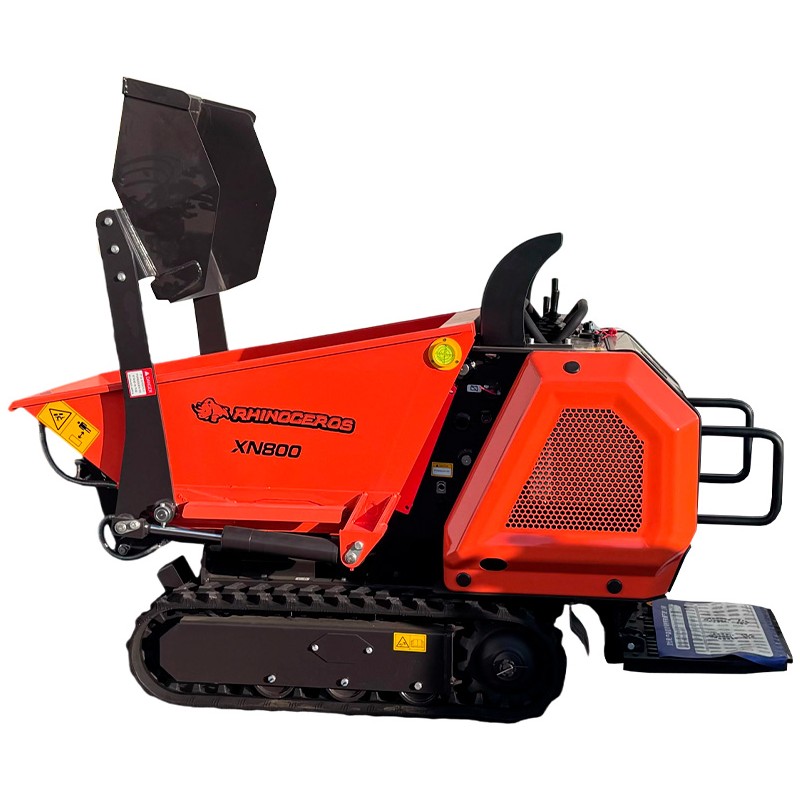

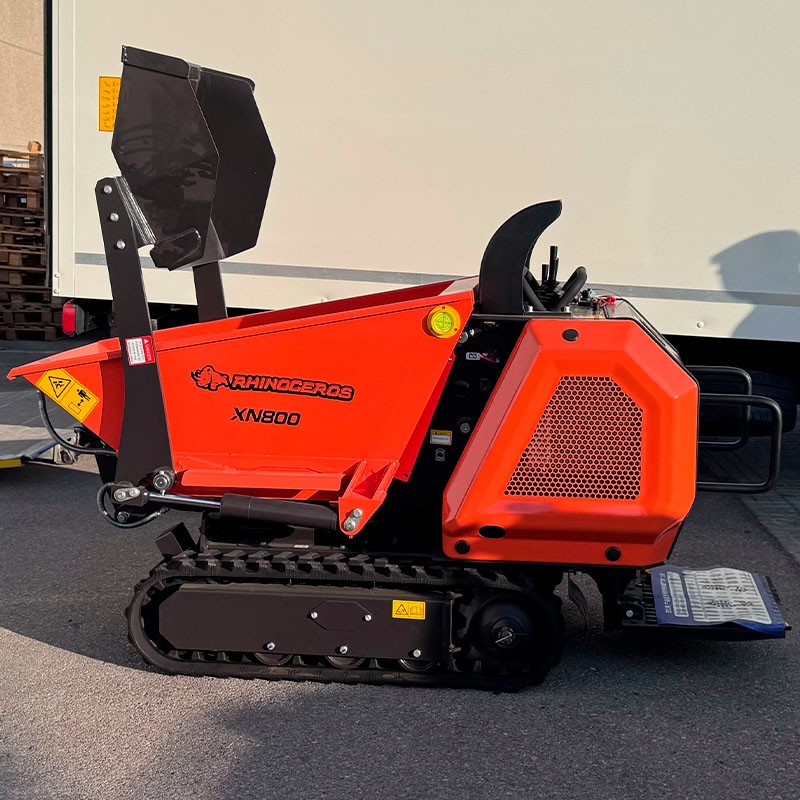

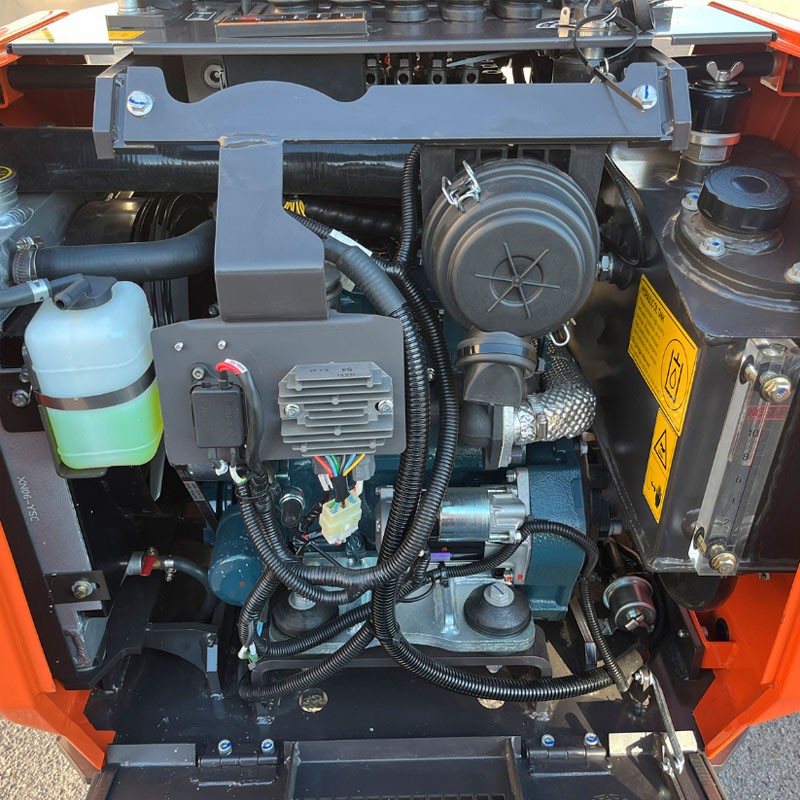

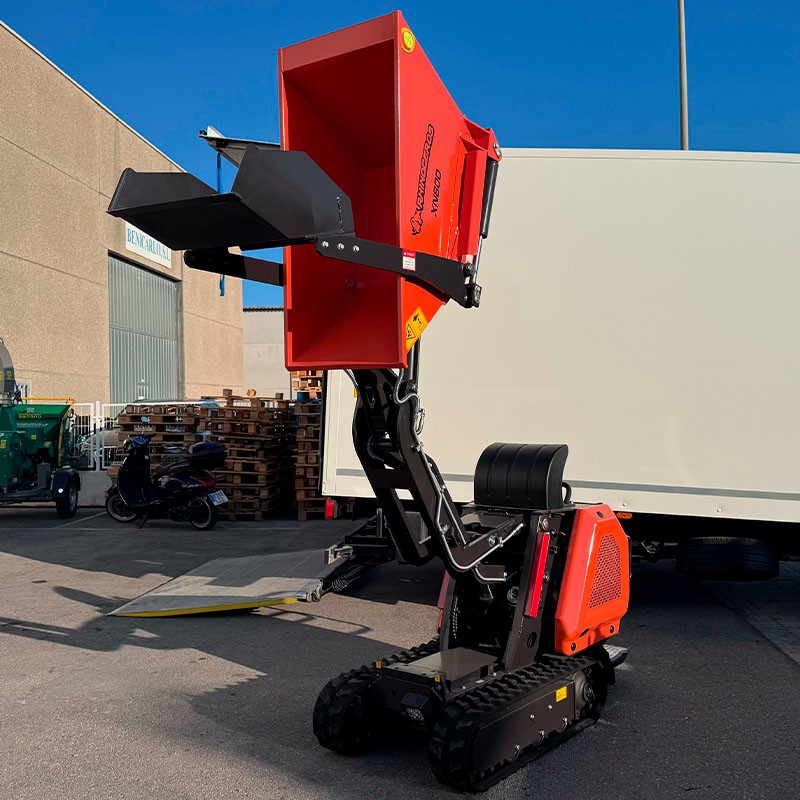

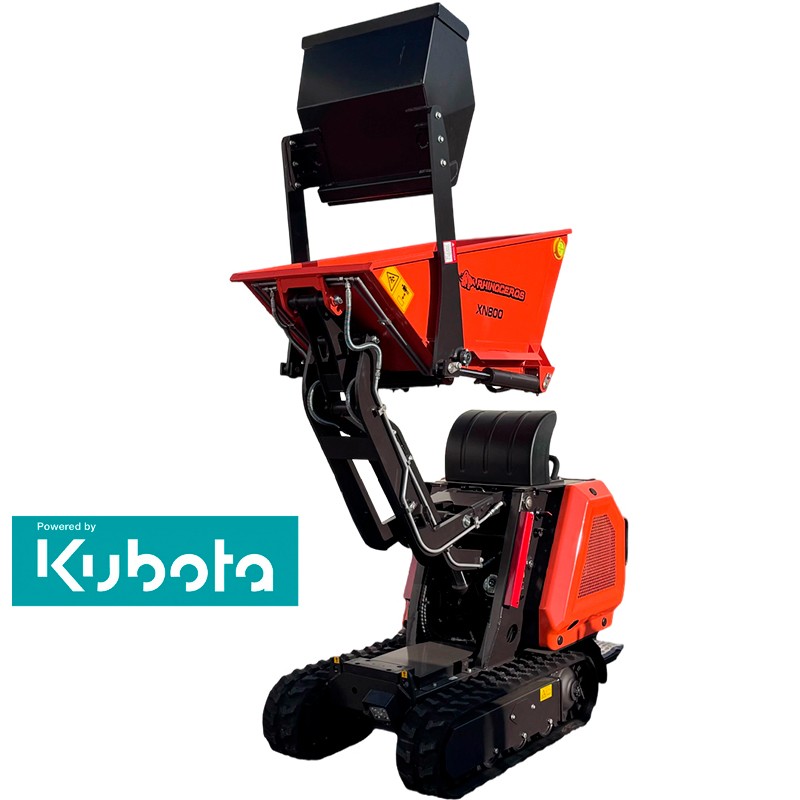

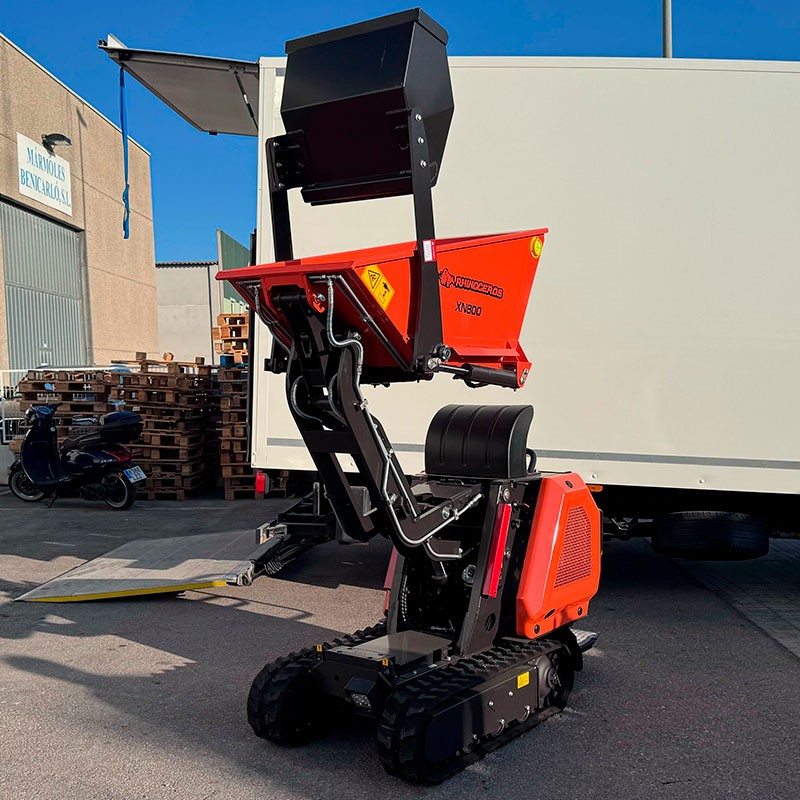

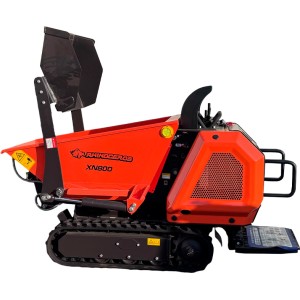

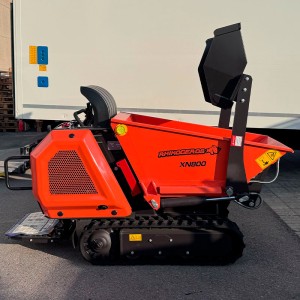

The Rhinoceros XN800 lifting minidumper with shovel features a Kubota D722 3-cylinder 13.7 hp diesel engine, renowned for its reliability, constant thrust and low consumption in continuous operation. It is key-started by electric starter and is combined with a hydrostatic transmission for smooth and precise progress, which is key when maneuvering loaded on site or between crop rows.

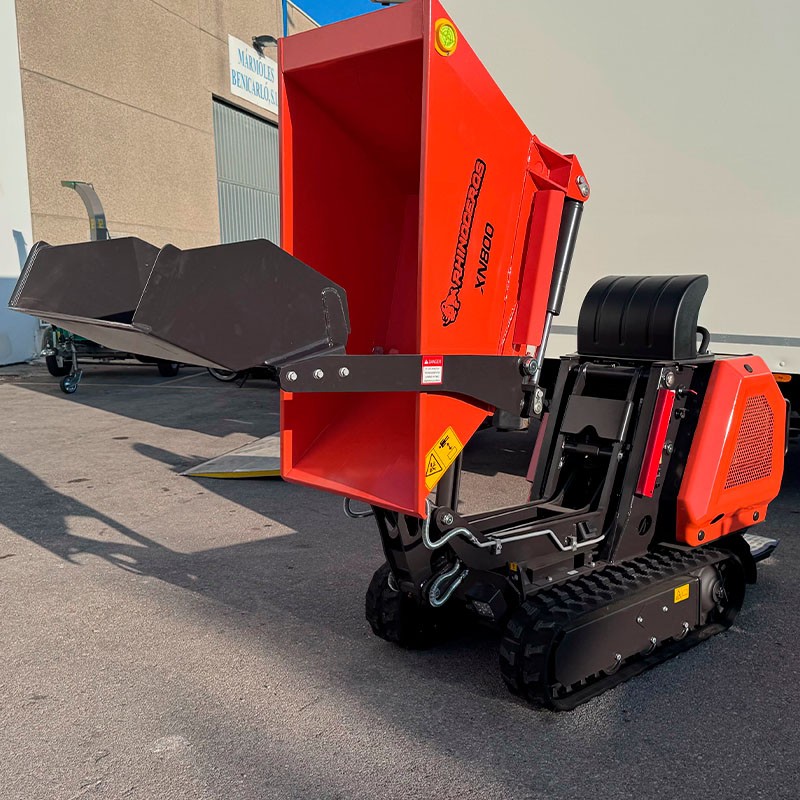

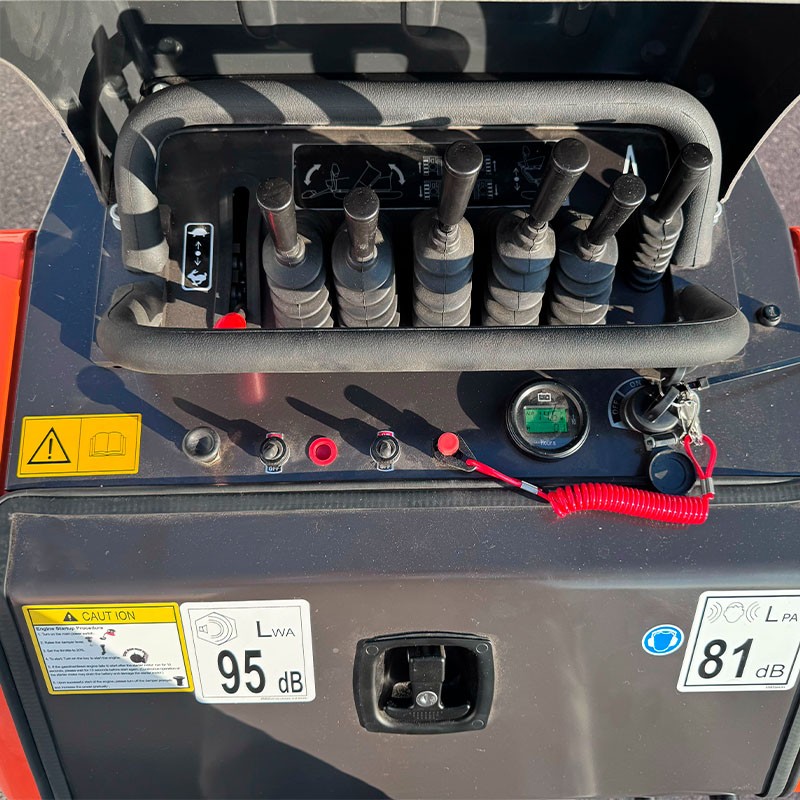

The machine is self-loading and works with a reinforced high dump dumper type box, ideal for dumping directly into a truck or container without ramps. The dumper is hydraulic and allows controlled unloading, with a load capacity of 800 kg and a volume of 0.26 m3, perfect for soil, sand, rubble and waste. Includes operator platform and lever controls, with dual speed from 2 to 4 km/h to adapt the pace to the terrain.

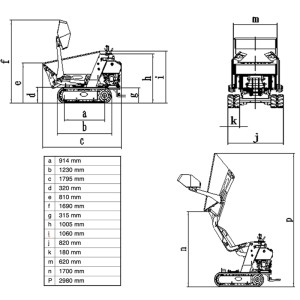

The 180 mm wide by 1200 mm long tracked provides traction and stability on soft soils and slopes, and its compact format facilitates access to narrow passages with 820 mm overall width and 1795 mm length. It is a very solid solution for professionals looking for real performance with Kubota engine, height unloading and comfortable handling in tight spaces.
| Engine | Kubota |
| Power | 13,7 HP |
| Overall width | 820 mm |
| Weight | 850 kg |
| Type of box | Dumper with high dump |
| Load capacity | 800 kg |
| Overall length | 1795 mm |
| Tilting system | Hydraulic |
| Start | Electric |
| Transmission | Hydrostatic |
| Fuel consumption | 1 l/h |
| Drawer capacity | 0,26 m³ |
| Speeds | Double speed (2 - 4 km/h) |
| Track width / length | 180 mm x 1200 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
