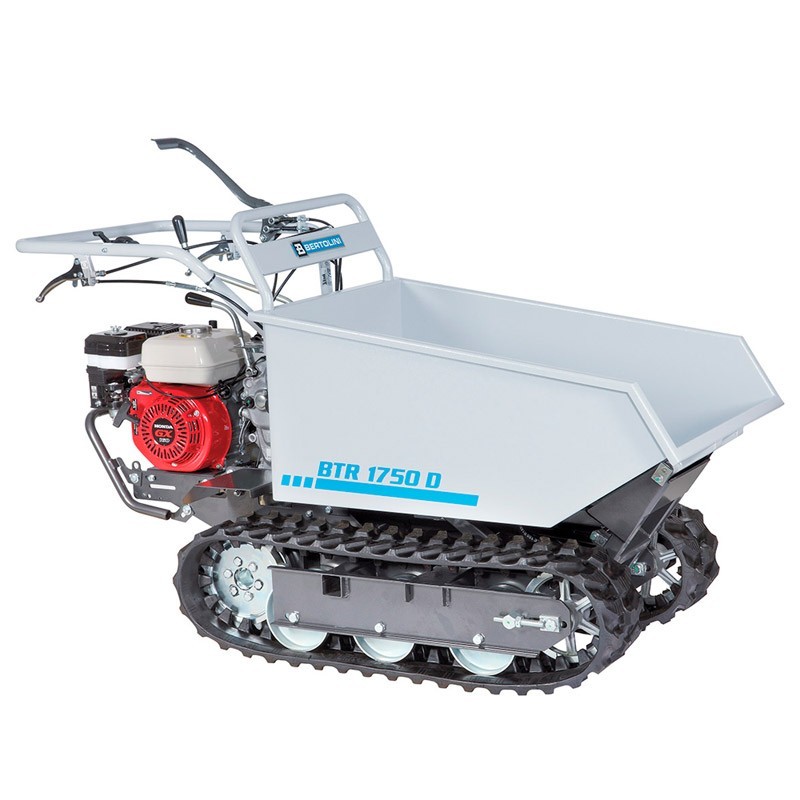

The Bertolini BTR1750 crawler truck is powered by a Honda GX160 OHV engine which provides 4.8HP and 163cc. This model of crawler truck is equipped with a six-speed gearbox, four forward and one reverse.
The BTR 1750 crawler truck operates with an oil-bath gear transmission. This model also offers hydraulic unloading. It is capable of carrying a load of up to 550 kg or 175 L.
It also has an independent PTO at 2100 RPM . It has a minimum turning range of 700 mm with an unloading angle of 60º. It also has brakes which have an automatic expansion and cut-off.
This tracked forklift has a track contact surface of 60cm in length and 18cm in width. It has a Dumper type loading platform (optional extendable flatbed).
| Engine | Honda GX 160 OHV |
| Gears | 6 speeds, 4 front + 2 rear speeds |
| Load capacity | 550 kg - 175 L |
| Transmission | Oil-bath gears |
| Body | Fixed |
| Platform | Dumper type (optional extendable flatbed). |
| Brakes | With expansion and automatic cut-off when clutch is released |
| Unloading angle | 60 º |
| Lifting/unloading | Hydraulic |
| Max. no-load inclination | 20% |
| Belt clutch | With automatic release when lever is released |
| PTO | Independent at 2100 revolutions per minute |
| Minimum turning radius | 700 mm |
| Weight | 215 kg |
Difference between the oil bath clutch of other brands and the dry multi-disc clutch of other brands Bertolini
Oil immersed clutch brake (other brands) Disadvantages
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending. |
