Minidumper Zeppelin Rhinoceros XN500 B&S motor 10 HP
- Brand : Briggs & Stratton
- Type : Petrol, 4 stroke
- Displacement: 306 cc
€3,147.63 VAT incl.
The unauthorized use, copying or distribution of the information, images or links contained on this website constitutes a violation of intellectual property rights and will be prosecuted in accordance with the Law. If any improper use of any link or any type of data from our website is detected, legal action will be immediately initiated, as well as notification to the Spanish Data Protection Agency for the relevant purposes.

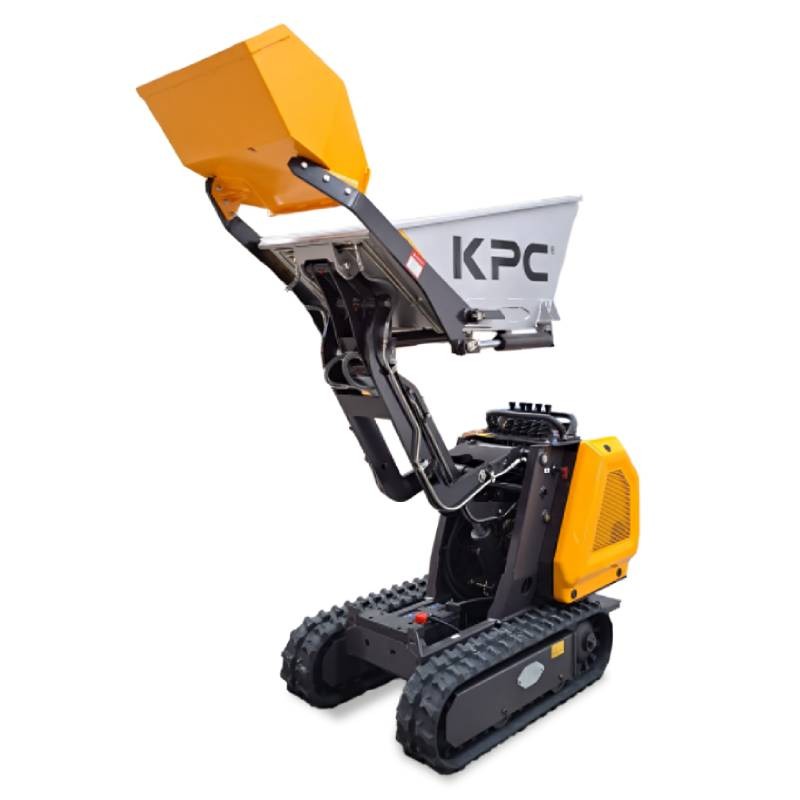

The KGFC800G Mini Dumper is a high-performance machine designed to fully automate the material transport cycle on site. Thanks to its advanced front shovel self-loading system and its height unloading capacity (up to 1.69 meters), this equipment allows dumping rubble, aggregates or soil directly onto trailers and containers, eliminating the need for auxiliary machinery and drastically reducing operating times.
Equipped with the powerful 14 HP Briggs & Stratton 420 engine and electric start, the KGFC800G offers superior mechanical reliability. Its professional hydraulic system features a duplex gear pump that generates a flow of 30 L/min at 16 MPa, ensuring precise movements and constant lifting force for its 800 kg load. Control is intuitive and flexible, with four gear settings including high speed, low speed, park position (P) and reverse.
Built to last, this dumper from tracked uses heavy-duty rubber with a set screw tightening system, achieving a rolling pressure of only 21.21 Kpa to protect the ground. With a compact 780 mm wide design, the KGFC800G is capable of maneuvering in confined spaces and overcoming slopes of 30%, establishing itself as the ultimate tool for construction, renovation and landscaping professionals.
Technical Specifications
| Model | KGFC800G | |
| Brand / Model | Briggs & Stratton 420 (Gasoline) | |
| Power | 14 HP (9.9 kW / 3500 rpm) | |
| Displacement | 420 cc (0,420 L) | |
| Starter | Electric | |
| Maximum torque | 26 N.m / 2860 rpm | |
| Maximum load | 800 kg | |
| Unloading lift | 1.69 meters | |
| Shovel capacity | 0,26 m³ | |
| Fuel / hydraulic tank | 16 L / 14 L | |
| Pump type | Duplex gear pump | |
| Pressure / flow | 16 MPa / 30 L/min | |
| Tipping method | Hydraulic | |
| Speed (min / max) | 2 km/h - 4 km/h | |
| Gradability (max slope) | 30% | |
| Track dimensions | 180 mm (rubber) | |
| Track pressure | 21.21 kPa | |
| Overall size | 1300 x 780 x 1740 mm | |
| Operating weight | 745 kg | |
| Type of work | Self-loading / unloading in height | |
| Gears | 4 settings (high, low, P, back) | |
